Aten · MPN: UC3430
£767.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £255.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Captures 4 channels of 4K @ 60 HDMI, mixes and switches the streams while providing audio mixer functionalities and seamless transition for pro-level broadcasting
  • Multiple output options:
  • – HDMI PGM / Loop-through at 4K @ 60 for preview and monitoring purposes
  • – USB-C output 4K @ 30 for live broadcast on the Internet
  • Built-in audio mixer – mixes up to 4 HDMI audios and 1 line-level audio for adding live narration / music to the content
  • Versatile control methods via the front panel pushbuttons, RJ-45 port for serial control via ATEN VK Control System, and ATEN OnAir Lite app
  • ATEN OnAir Lite app – users can remotely control device settings in real-time, including multiple AV source switching / mixing, content cropping / resizing, layout options (full screen / PiP / PbP / PoP), transitions, Chroma Key, and logo adding
  • Compatible with popular streaming software including Zoom, Microsoft Teams, Youtube, Facebook, GoToWebinar, Open Broadcaster, XSplit Broadcaster, and Twitch
  • Supports UVC / UAC v1.1
  • Plug-and-Play functionality with USB-C 3.2 Gen 1 compliance
  • Works with major operating systems: Windows® and Mac OS X®

Stream and Transition in a Snap

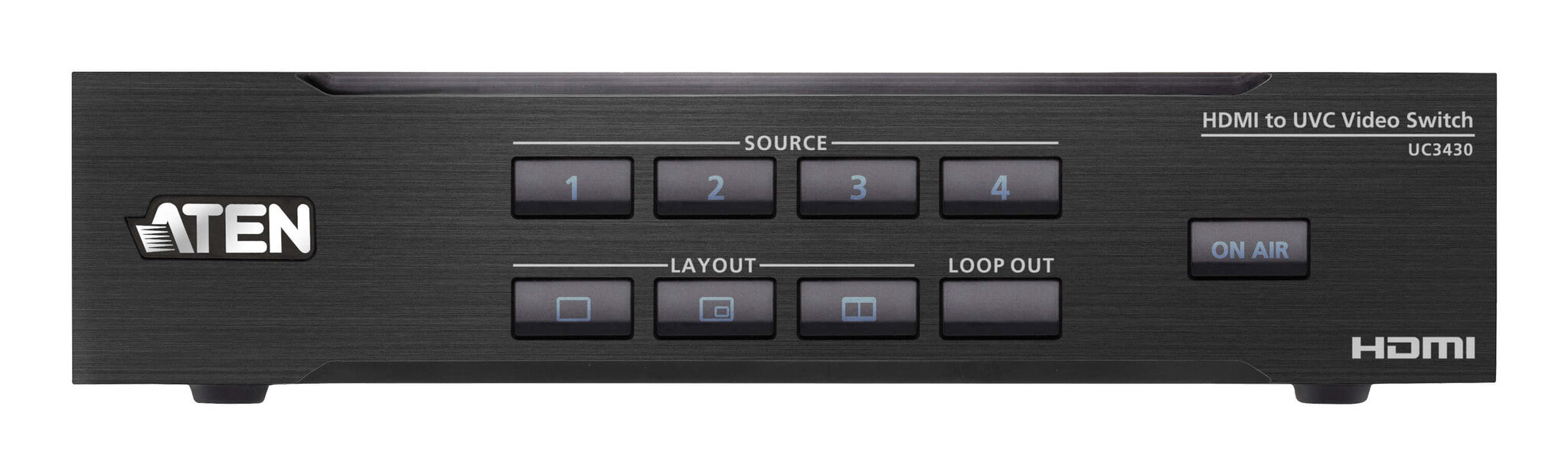

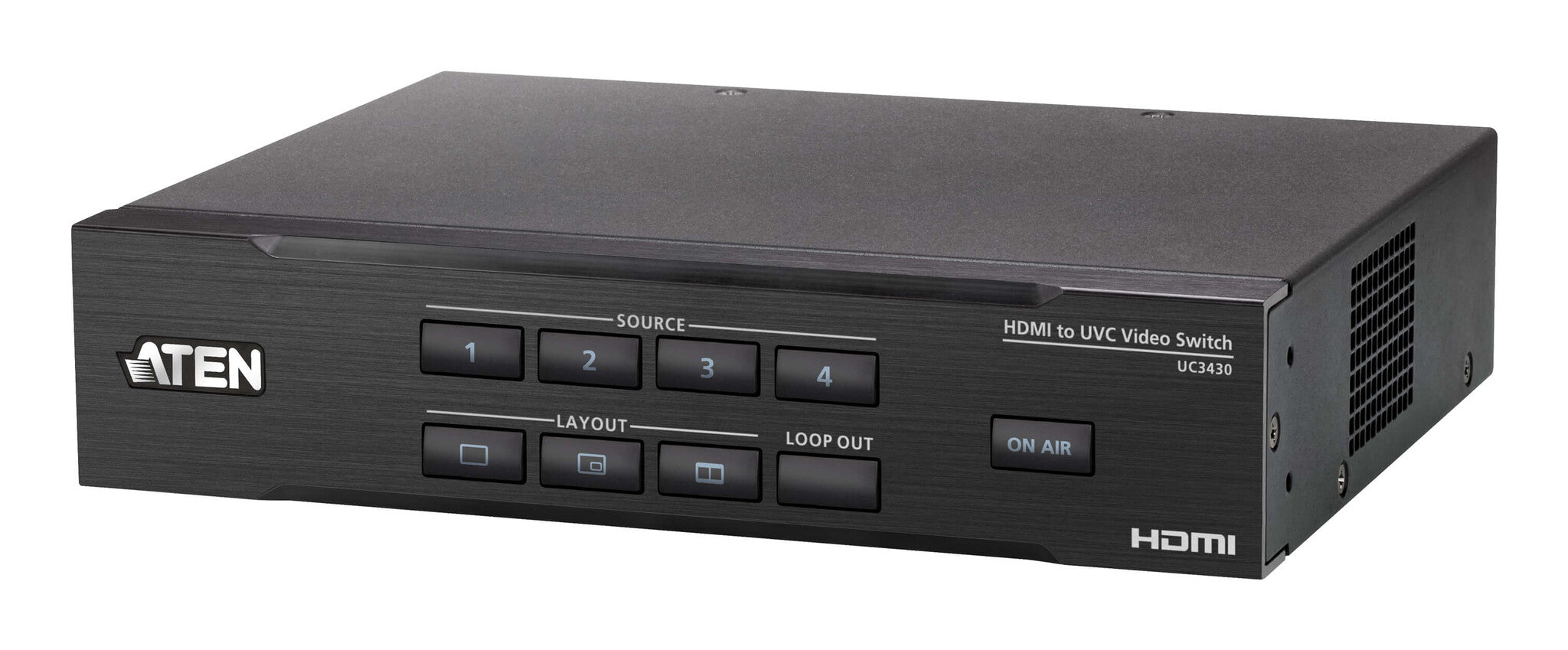

The CAMLIVE™ PRO 4K 4-Input HDMI to USB Video Switcher captures up to four 4K@60 HDMI inputs, allowing users to blend dual video signals into a single stream. It supports various output options, including 4K@60 HDMI PGM/Loop-through for multi-view screen purposes and 4K@30 USB-C output for live broadcasting on the Internet.

Recommended Usage Scenarios

The CAMLIVE™ PRO 4K can be used in scenarios requiring multiple HDMI input sources. Connecting multiple cameras allows you to effortlessly switch recording sources, capturing every exciting moment. You can also connect different visual sources such as laptops, desktops, and gaming consoles to overlap with the camera feed, creating various live streaming effects. The 6.35mm audio jack enables seamless integration with professional audio equipment, delivering the best visual and auditory experience.

Meeting with Multiple Input Sources

In medium to large meeting rooms, two cameras, and two different presentation sources, such as PowerPoint slides and videos, are often used. As the CAMLIVE™ PRO 4K supports 4 HDMI sources, it can optimize the capacity of these sources and seamlessly incorporates both presentation content and important participants into the video during the meeting, avoiding awkward gaps caused by switching.

Live Lecture

The CAMLIVE™ PRO 4K allows large conference rooms to stream professional grade content to global employees and stakeholders through video software. The intuitive front panel control makes it easy for you to quickly switch between multiple HDMI cameras and presentations on laptops. Produce professional content without the need to hire professionals.

Versatile Deployment in Diverse Applications

The CAMLIVE™ PRO 4K serves as an invaluable asset in streaming high quality content through its advanced video processing capabilities. Its versatility is highlighted by its capacity to be deployed in the following diverse applications.

Stream in Style, Unleashing Epic Live Experiences

Quickly complete your program with on-site production and simultaneously reach a global audience through the CAMLIVE™ PRO 4K. Its built-in hardware streaming engine works seamlessly with various software, enabling direct live streaming to multiple social media platforms. With 4 HDMI inputs, capture diverse angles and switch content in real-time. Connect a computer for presentations for important meetings on Zoom and Teams. Livestream effortlessly on platforms like YouTube, Twitch, and Facebook.

Multi-Cam Mixing with Enhanced Effects

CAMLIVE™ PRO 4K redefines 4K video processing, featuring an intuitive “Scene Priority” preset operation for seamless content switching, mixing, and encoding. What’s more, the ATEN OnAir Lite App empowers you to crop, resize, and create Picture-in-Picture effortlessly.

Chroma Keying can be accomplished by utilizing RGB codes, color palettes, or even a color selection tool to precisely select colors from the actual location of the background image.

CAMLIVE™ PRO 4K is your versatile companion for video presentations, and multi-cam mixing with enriched effects. The perfect complement to maximize your creative juices.

ATEN OnAir Lite Free Control App with Continuously Updated Features

The ATEN OnAir Lite control app allows for controlling, editing in real-time, chroma keying, and arranging multi-elements into your program mix. You can switch and mix video/audio change settings and effects, and save up to 8 scene presets for quick switching. The new version of ATEN OnAir Lite also allows you to upgrade the firmware online. Simply plug the USB cable into the PC from CAMLIVE™ PRO 4K, connect the network to the PC, open the OnAir Lite app, and click the device logo to initiate the upgrade.

Specifications

Performance

Country of originTaiwan
Housing materialMetal
Video capture resolution (max)3840 x 2160 pixels
Host interfaceHDMI
InternalNo
Product colourBlack

Video

Supported video modes720p, 1080p, 2160p
Maximum frame rate60 fps
Maximum refresh rate60 Hz
Supported resolutions3840 x 21601920 x 10801280 x 720
Show all 29 specificationsShow fewer specifications

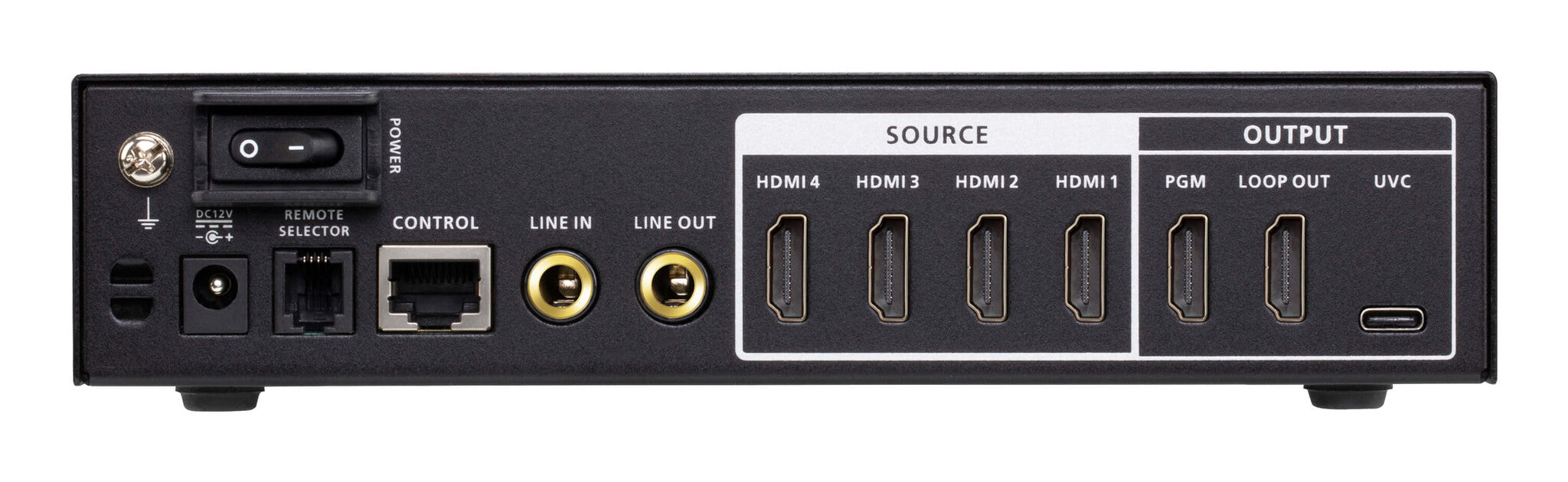

Ports & interfaces

Microphone inYes
Headphone outputs1
Number of HDMI outputs2
HDMI in4
USB ports quantity1
USB version3.2 Gen 1 (3.1 Gen 1)
USB connector typeUSB Type-C
USB portYes

Power

Power supply typeDC

Software

Mac operating systems supportedMac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Mac compatibilityYes
Windows operating systems supportedWindows 10, Windows 11

Operational conditions

Operating relative humidity (H-H)0 - 80%
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Weight1.03 kg
Height44 mm
Depth200 mm
Width164.6 mm
