Overview

  • Secure in-band and out-of-band remote serial console access
  • Versatile serial operating modes – Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem
  • Auto-sensing DTE/DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
  • Online/Offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline for device status monitoring

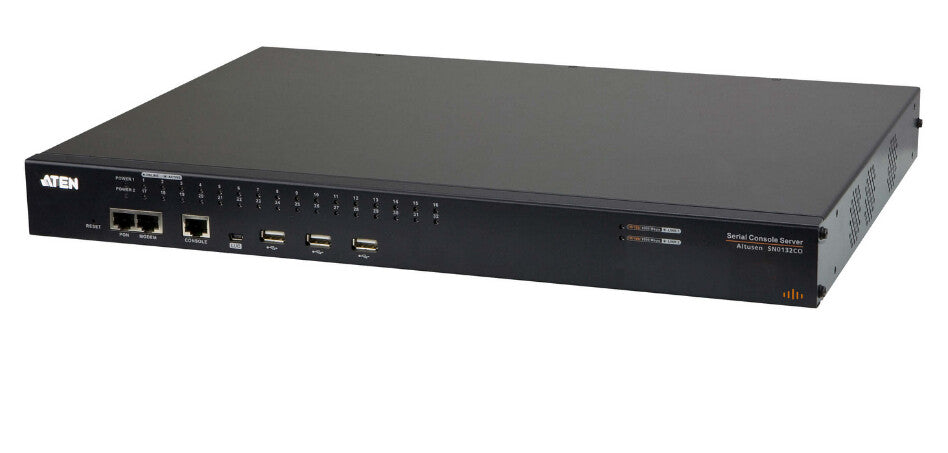

ATEN launches a new generation of Serial Console Servers, the SN01xxCO Series (SN0108CO / SN0116CO / SN0132CO / SN0148CO). With dual power / LAN in SN01xxCO models, they integrate cutting edge technologies to provide convenient installation, secure serial device access, easy management and comprehensive control for data centers.

The SN01xxCO Series features Cisco pin-outs and auto-sensing DTE/DCE function, providing a direct connection to Cisco network switches (and other compatible devices) without rollover cables for even more time-saving IT infrastructure deployment. In addition, the SN01xxCO models support online detection of connected serial devices (including terminal blocks) for device status monitoring. A notification email alert will be sent to the administrator when connected devices are offline.

With dual Ethernet ports and power supplies, the SN01xxCO supports power redundancy as well as failover, or dual IP addresses access, ensuring 24/7 availability of access to serial devices. The SN01xxCO Series also offers dual DC* options for more flexible implementation.

Available in 8-, 16-, 32- and 48-port models, the SN01xxCO serial console servers offer both in-band and out-of-band (OOB) remote serial console access to servers and network devices via a direct Telnet/SSH client and Java viewer. The OOB management enables IT administrators to manage network devices (e.g. router, switch, UPS) in server rooms using management networks that are separated from the main/production networks. Where access difficulty occurs in the production network, the administrators can still access them via the console server. The serial console servers offer out-of-band access methods such as direct console connection from a local computer, USB console connection from a laptop, PSTN connection via modem, or hybrid network connection via the dual LAN ports (one connected to the production network and the other connected to the management network).

Implemented with various security technologies such as TLS 1.2 data encryption, RSA 2048-bit certificates, configurable user permissions for port access and control, local/remote/third-party authentication and authorization, IP/MAC address filter, and FIPS 140-2 certified cryptography, the SN01xxCO serial console servers assure administrators the security for easy and high-level access. For instance, access rights and privileges can be applied to 8/16/32/48 serial ports individually. Data encryption is provided to ensure that information and control are always protected. Logging and alerting of system events help to quickly resolve issues and mitigate risks. While secured by the above examples, the consolidated password authentication simplifies management.

The SN01xxCO Series is used to connect serial devices to an Ethernet network to allow access and control of demanding applications that manage industrial control, data acquisition, environment monitoring, remote facility operations and equipment management. Multiple operational modes are available to administrators including Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem. Furthermore, the SN01xxCO Series works in tandem with ATEN’s PDU** remote power management systems. Both can be utilized through ATEN’s CC2000 software to provide centralized serial device access and integrated power management.

With its comprehensive features, the SN01xxCO Series helps to maximize IT productivity, increase scalability, as well as reduce installation and operational costs with easy and secure remote management of serial devices. The serial console servers save you time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services.

Specifications

Technical details

Serial ports quantity32
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Compliance certificatesRoHS

Ports & interfaces

Cabling technology10/100/1000Base-T(X)
Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity4
Show all 24 specificationsShow fewer specifications

Weight & dimensions

Dimensions (WxDxH)438.4 x 327.7 x 44 mm
Weight4.84 kg

Software

Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008
Windows operating systems supportedYes

Design

Housing materialMetal
Product colourBlack

Power

Input current1.8 A
Input frequency50/60 Hz
Input voltage100 - 240 V
Power source typeAC

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Security

Security algorithms802.1x RADIUS, FIPS 140-2, RSA, SSH, SSL/TLS

Indication

LED indicatorsYes

Packaging content

Wall mounting kitYes
