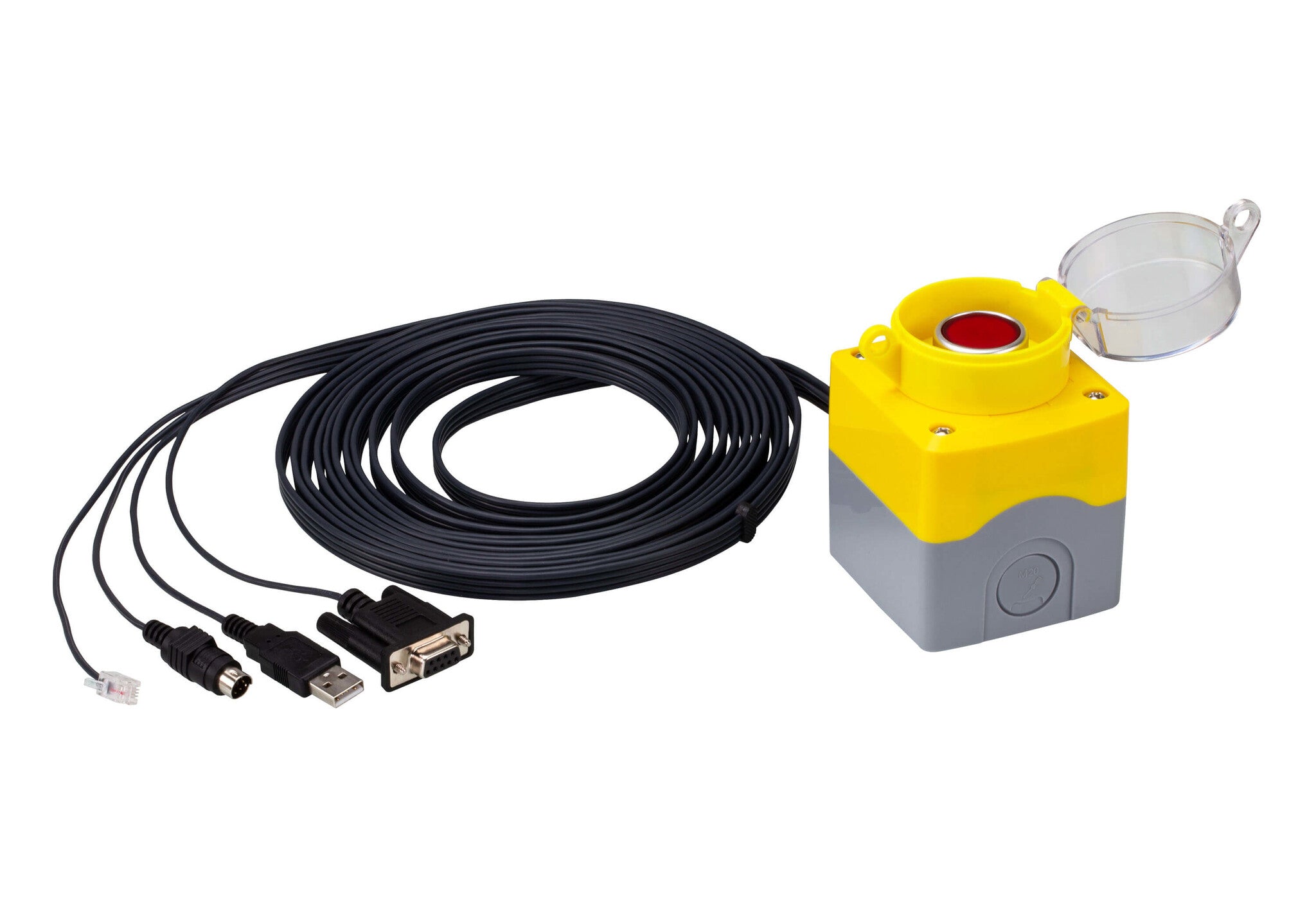

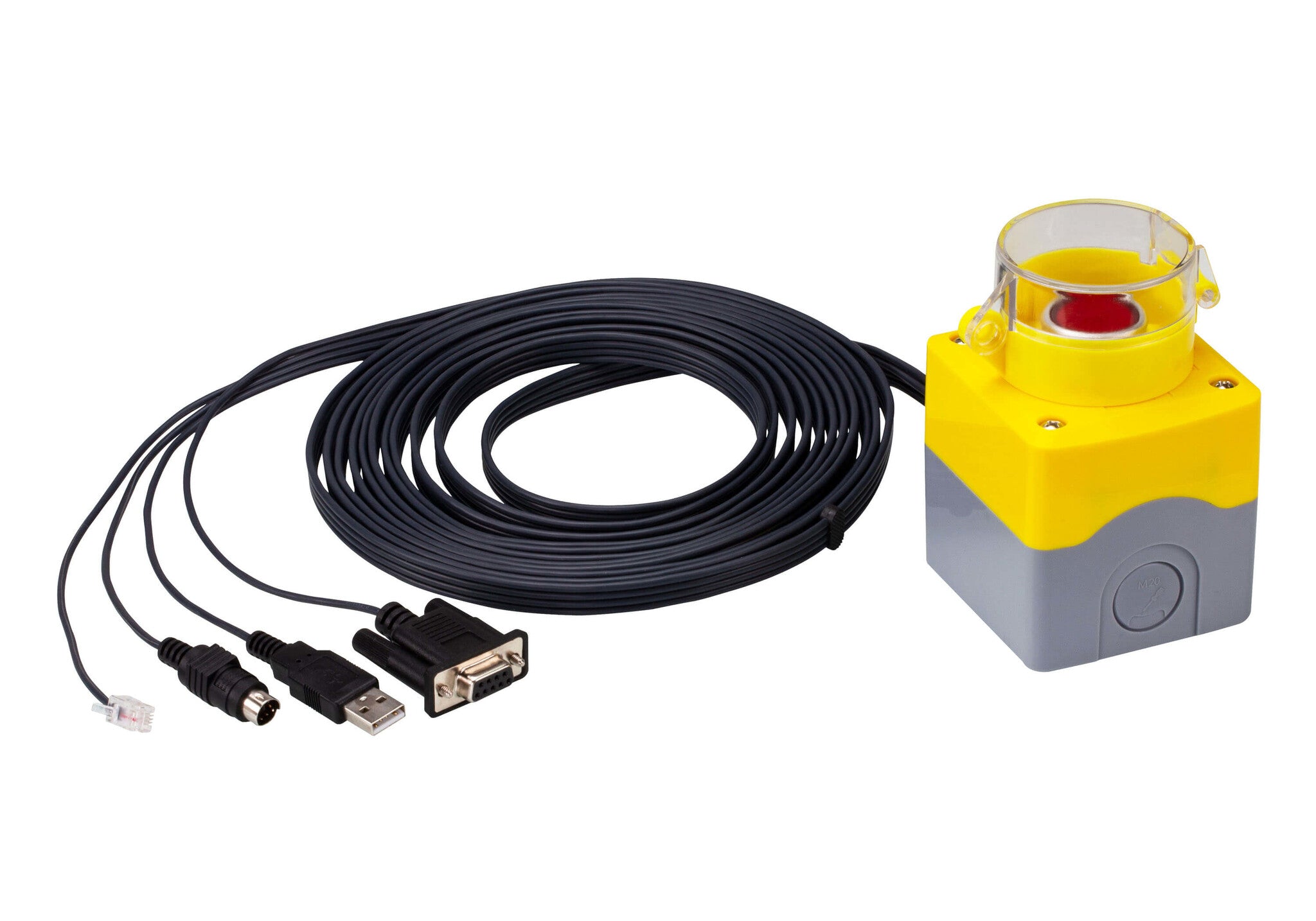

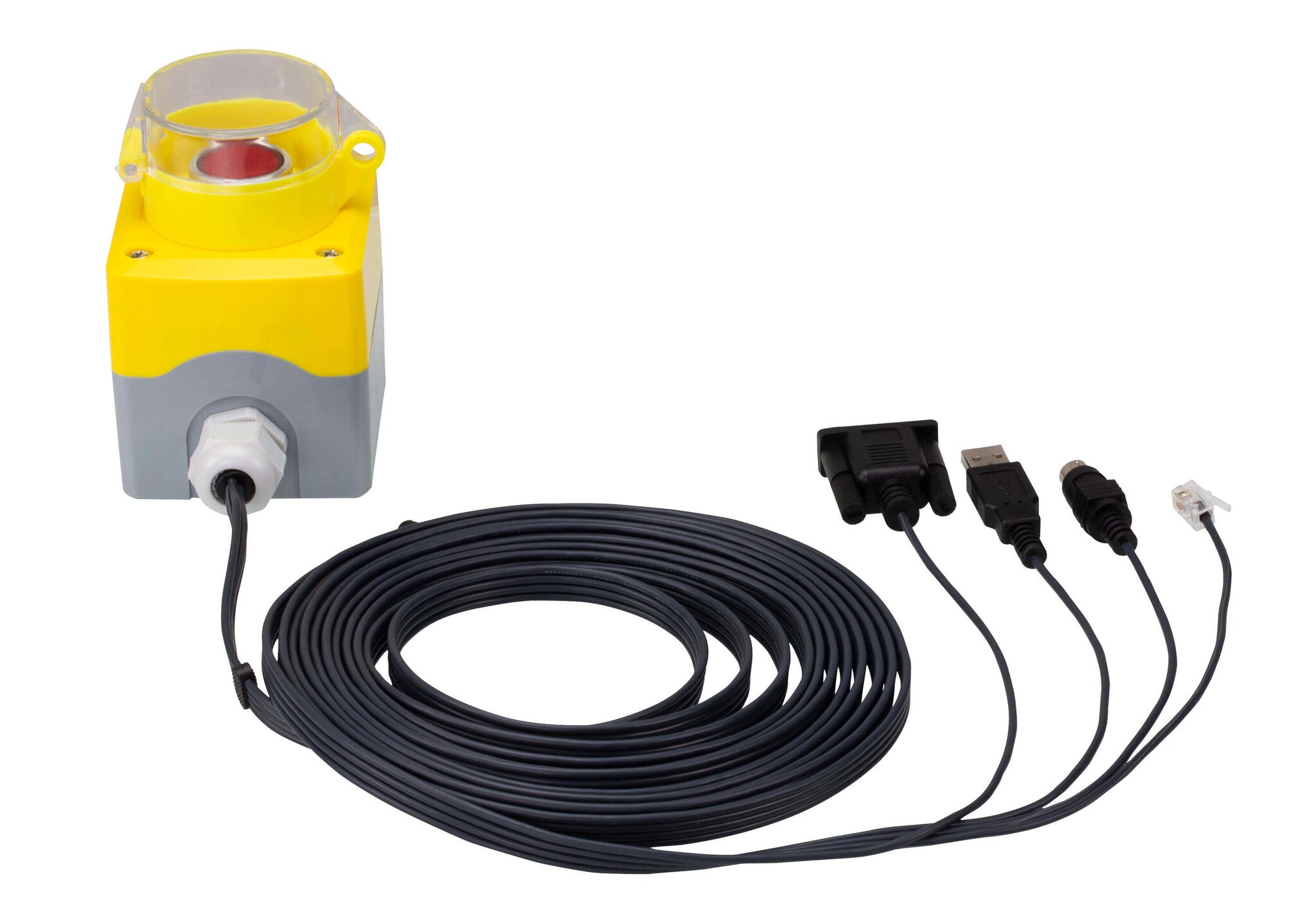

The 2XRT-0015G KVM over IP Access Control Box allows users to enable or disable remote over IP control privilege by simply pressing a control button. When installed with the KE Series1 Transmitter, the 2XRT-0015G allows users to quickly and effortlessly enable or disable control privilege from the Receiver, making operations only permitted to the user at the local console. 2
It’s fast and easy to set up the 2XRT-0015G. Simply plug the 2XRT-0015G’s cables to the KE transmitter3. There is no need to install software or configure devices – just plug and play. In addition, the cable length of the 2XRT-0015G reaches 5 meters, enabling connection to the transmitter over longer distances for more flexible installation.
Note:
1. Please scroll down for more about compatible products.

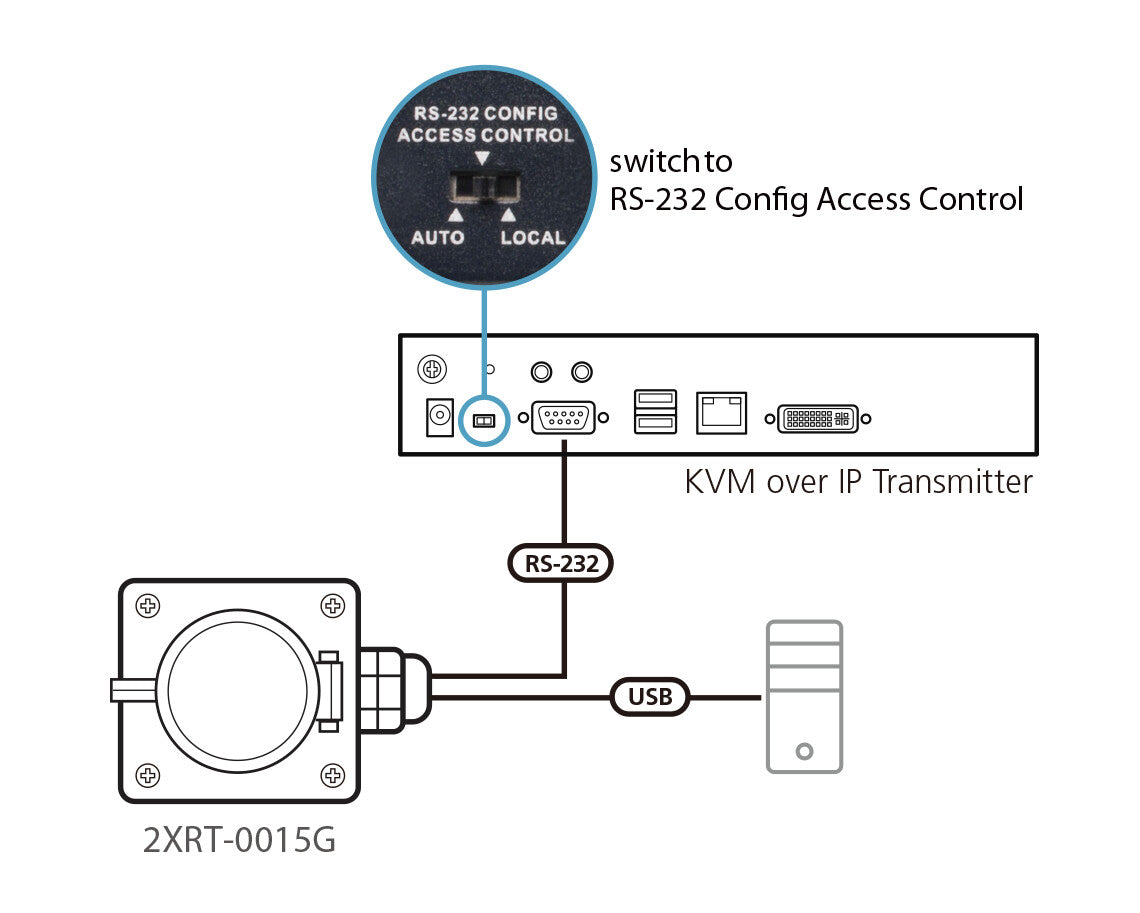

2. The slide switch on the rear side of the KVM over IP Transmitter needs to be switched to the RS-232 Config / Access Control position.
3. Connect the RS-232 connector of the 2XRT-0015G to the RS-232 Port of the KE Transmitter and connect the USB connector of the 2XRT-0015G to a computer for USB bus power supply.
