ATEN HDMI Receiver only over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B)
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £49.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
- HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
- Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- Plug-and-play
- Rack-mountable

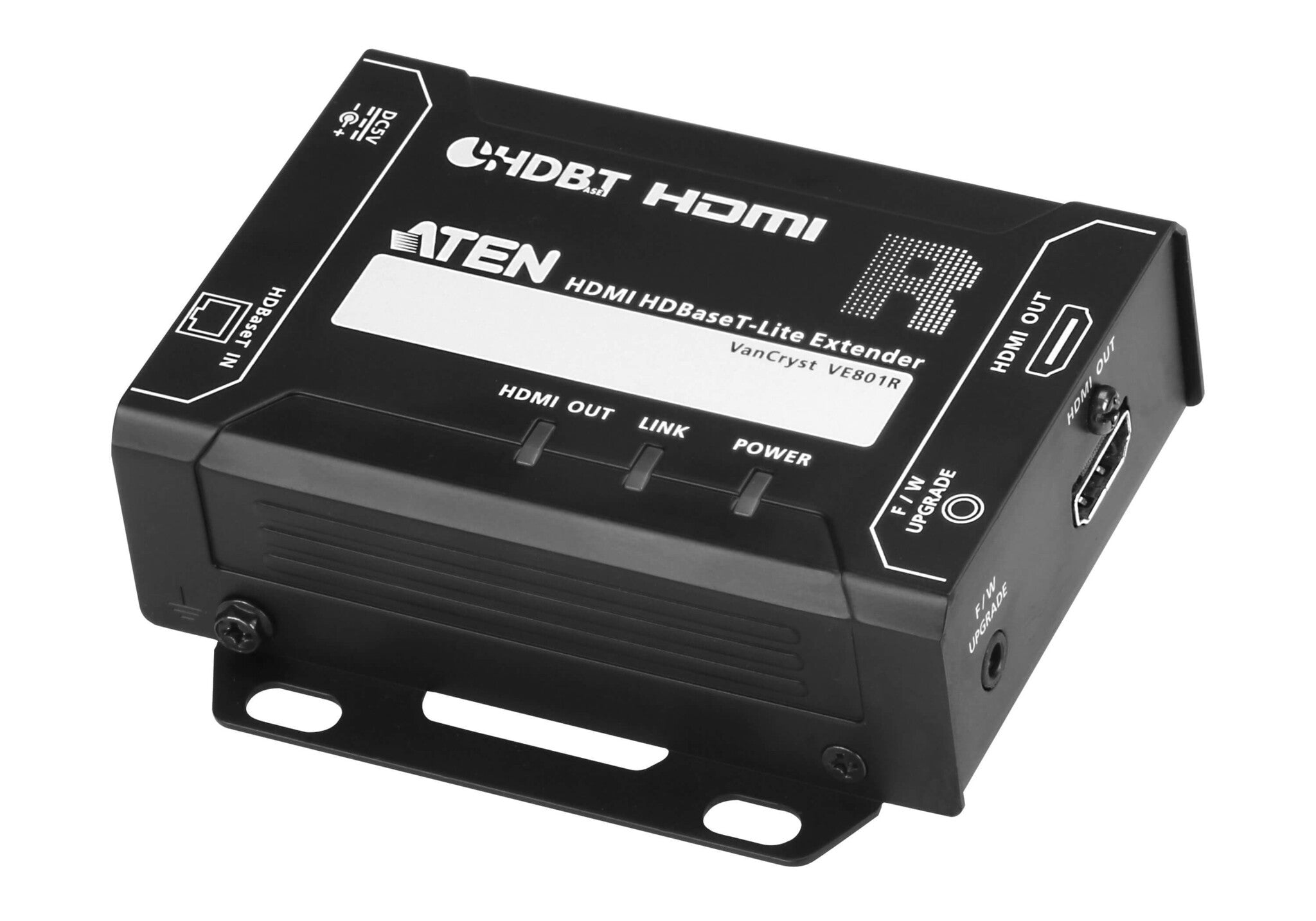

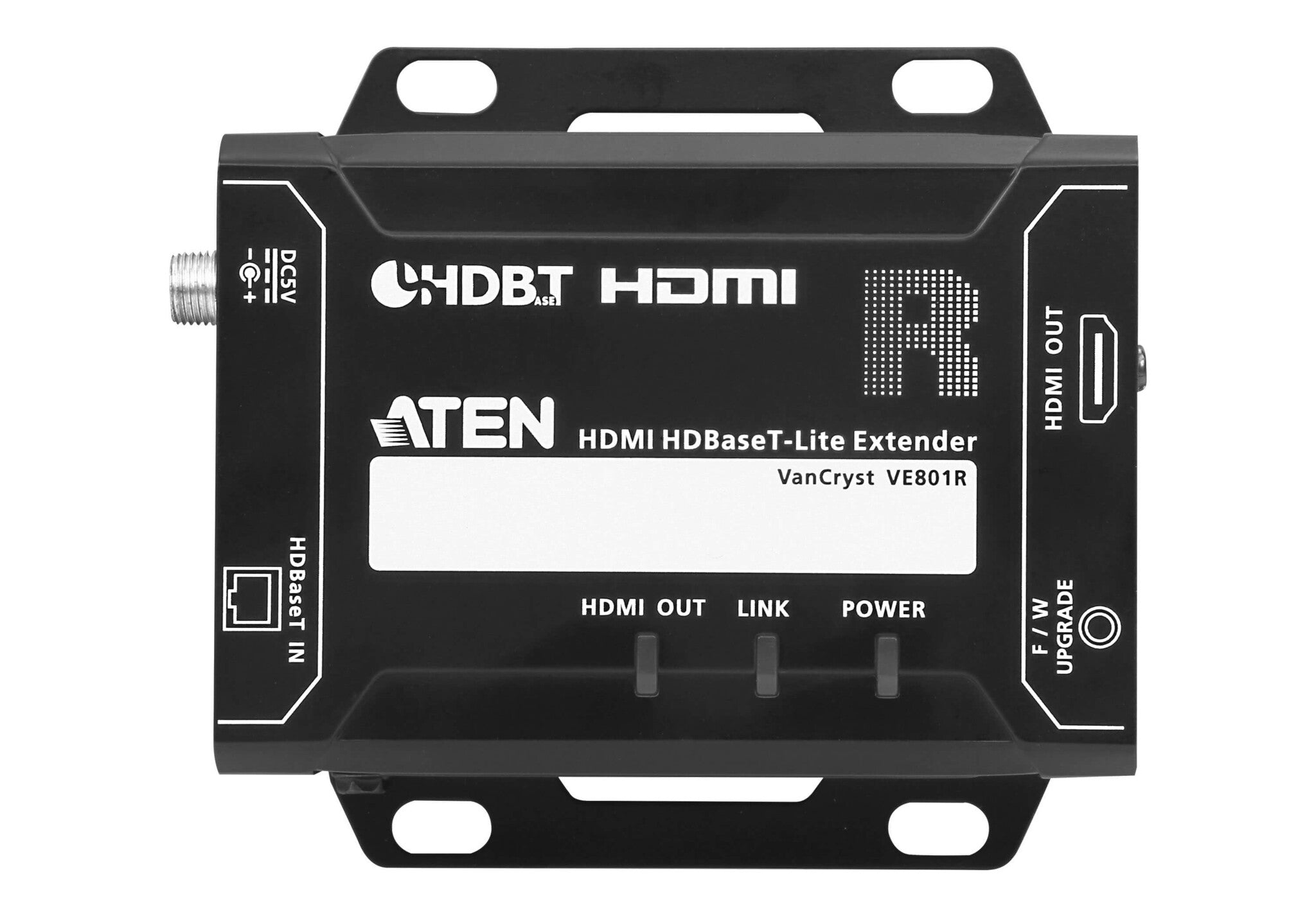

The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.

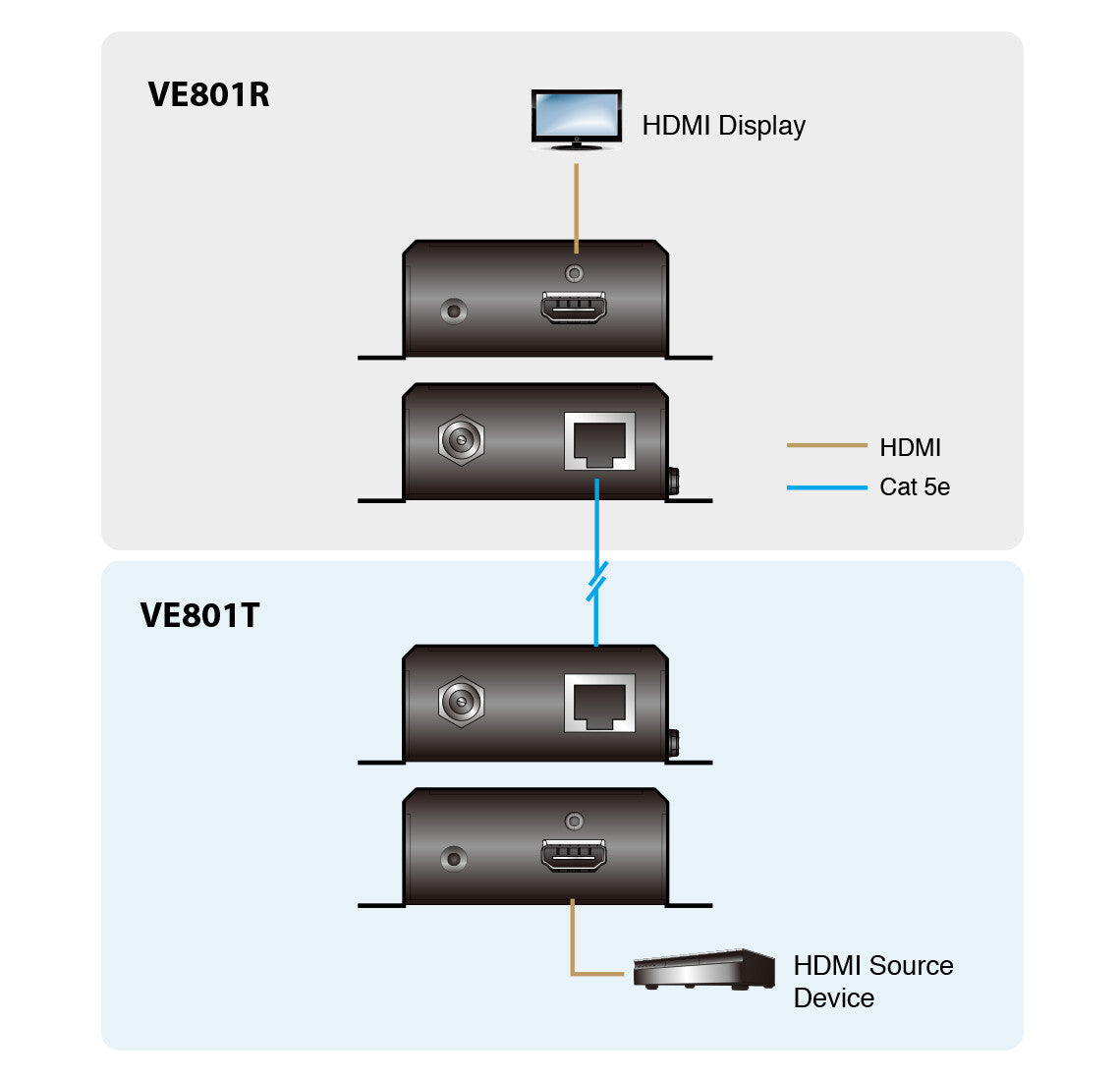

* Compatible HDBaseT Transmitter Units: VE801T
Specifications
Features
| Product colour | Black |
|---|---|
| Supported video modes | 1080p |
| HDCP | Yes |
| Material | Metal |
| LED indicators | Yes |
| Maximum transfer distance | 70 m |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum resolution | 3840 x 2160 pixels |
| Type | AV receiver |
Ports & interfaces
| DC-in jack | Yes |
|---|---|
| Number of HDMI outputs | 1 |
| RJ-45 input ports | 1 |
| Ethernet LAN | Yes |
Show all 21 specificationsShow fewer specifications
Power
| Power consumption (typical) | 4.23 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Weight | 250 g |
|---|---|
| Dimensions (WxDxH) | 87 x 103 x 30 mm |
Packaging content
| AC adapter included | Yes |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
