ATEN HDMI Extender over 1 CAT5e/6 Cable (100m) ,4Kx2K, 3 level cascadable / HDBaseT
£443.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £147.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Extends the distance between HDMI source and HDMI display
- Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
- HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
- Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- Long distance transmission - up to 100m
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports up to 340MHz bandwidth for high performance video
- Supports Dolby True HD and DTS HD Master Audio
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)

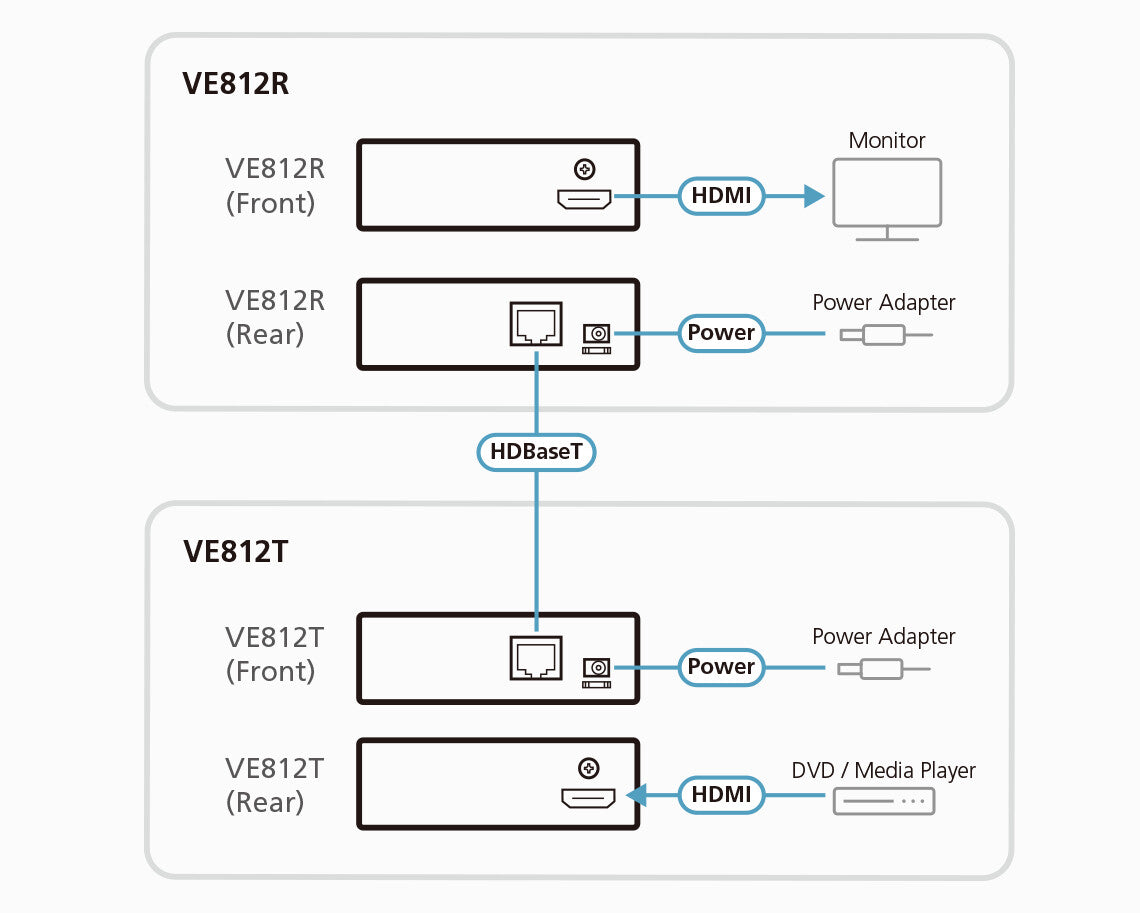

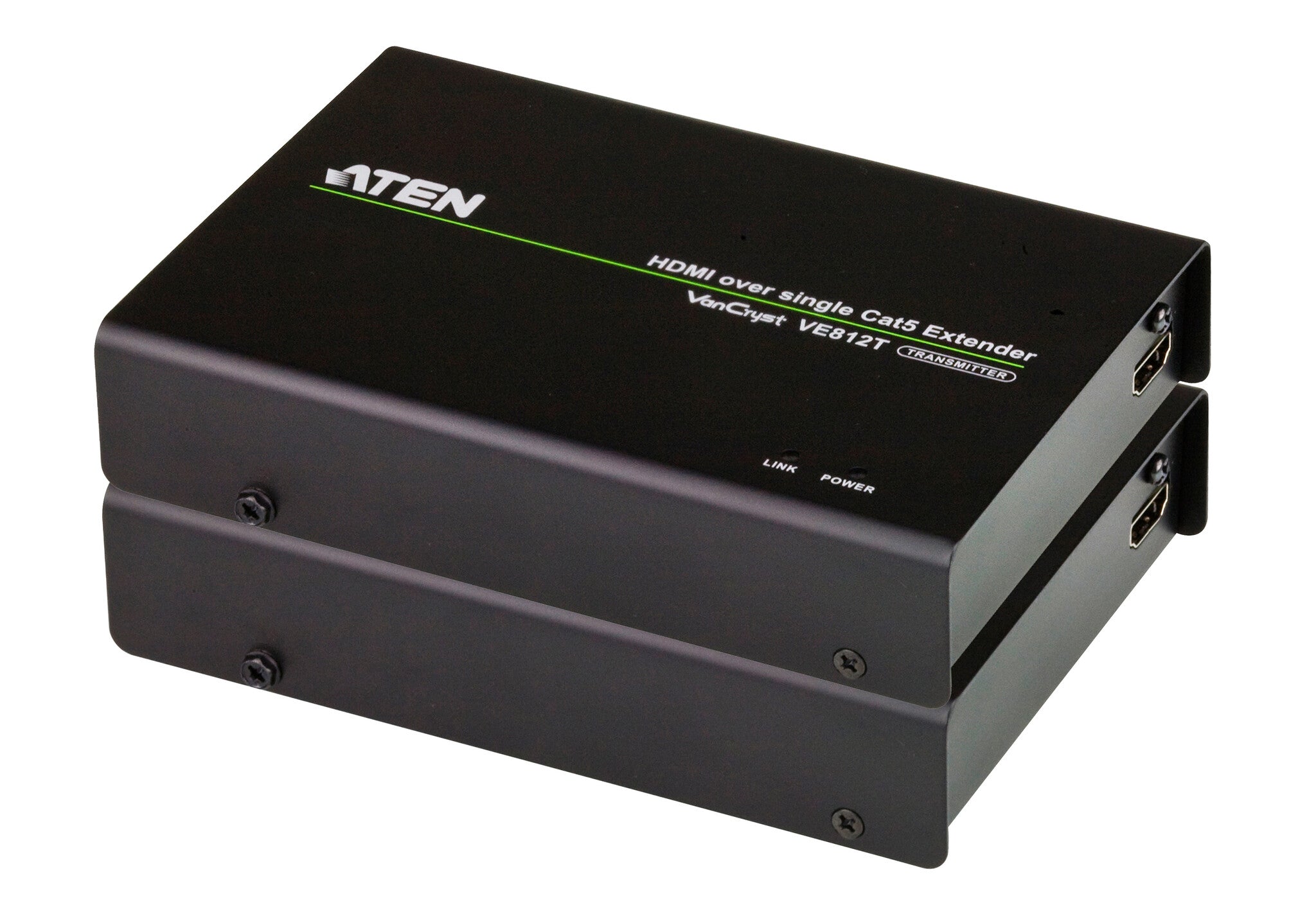

The VE812 HDMI HDBaseT Extender enables an HDMI display to be located up to 100 meters away from the source device. It can be conveniently extended using only one Cat 5e cable, which is cost-effective.
The VE812 supports HDMI (3D, Deep Color), Ultra HD (4k x 2k), and is HDCP compatible. Furthermore, the remote EDID pass-through ensures optimum video quality for any HDMI display.
The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
Specifications
Features
| Product colour | Black |
|---|---|
| Supported video modes | 1080p |
| LED indicators | Yes |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat5e |
| Maximum resolution | 4000 x 2000 pixels |
| Type | AV transmitter & receiver |
Ports & interfaces
| DC-in jack | Yes |
|---|---|
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| RJ-45 output ports | 1 |
| RJ-45 input ports | 1 |
Show all 22 specificationsShow fewer specifications
Power
| External power adapter | Yes |
|---|---|
| Operating voltage | 5.3 V |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Transmitter weight | 400 g |
|---|---|
| Transmitter dimensions (WxDxH) | 103 x 141.7 x 30 mm |
| Receiver weight | 400 g |
| Receiver dimensions (WxDxH) | 103 x 141.7 x 30 mm |
Technical details
| Compliance certificates | RoHS |
|---|
