ATEN CS1732B KVM switch
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £44.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 2-port KVM switch with USB 2.0 support and 2.1 surround sound audio
- One console controls two computers and two additional USB devices
- 2-port USB 2.0 hub built in
- USB 2.0 compliant
- Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
- Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
- Console audio ports on front panel for easy access - ideal for IP phone users
- Independent switching of KVM, USB, and Audio focus
- Superior video quality; 2048 x 1536; DDC2B
- Supports widescreen resolutions
- Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
- Multiplatform support - Windows , Mac, and Sun
- Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- LED Display for easy status monitoring
- Easy installation no software required
- Firmware upgradeable
- *1.PC keyboard combinations emulate Sun/Mac keyboards
- 2.Sun/Mac keyboards only work with their own computers

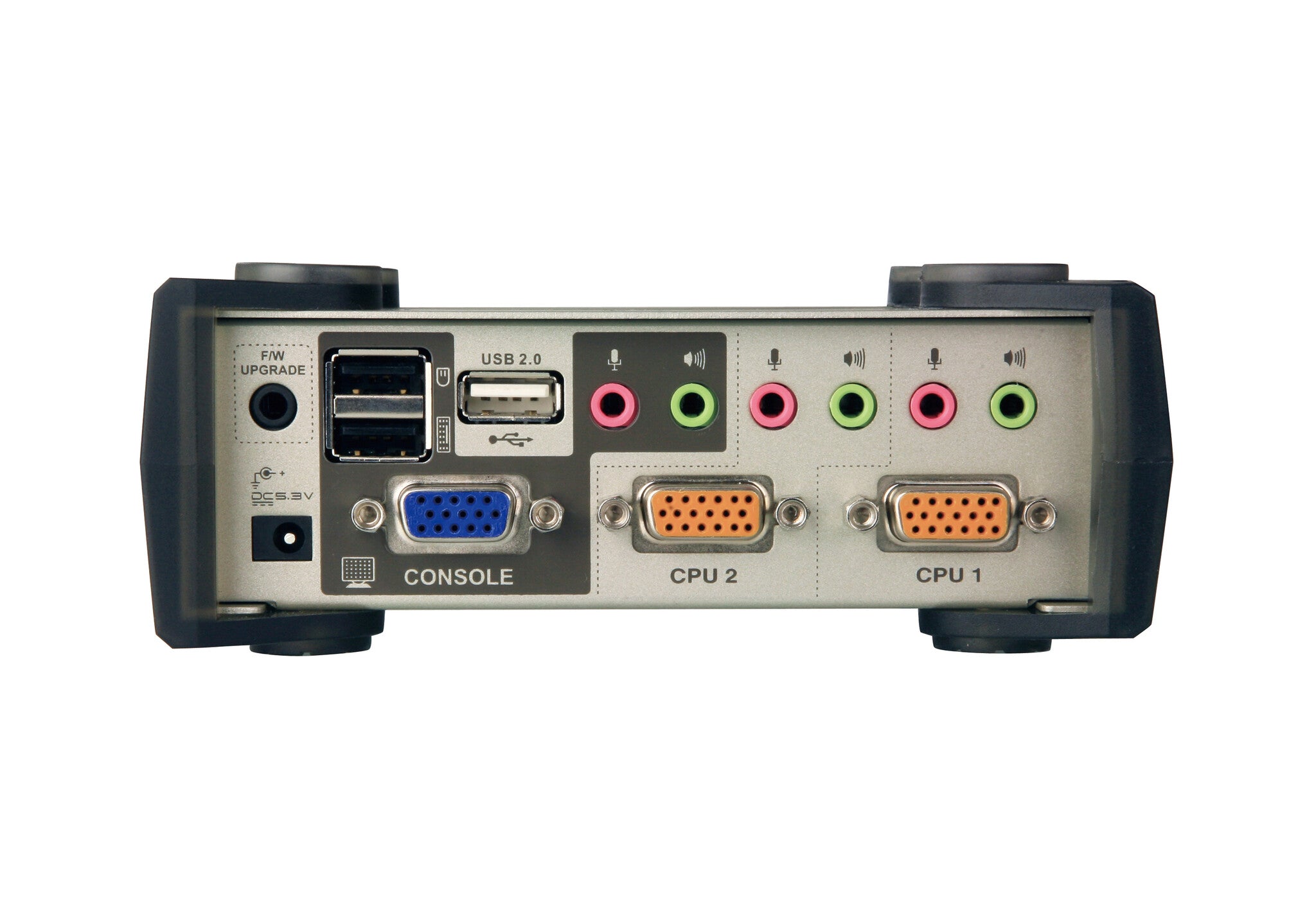

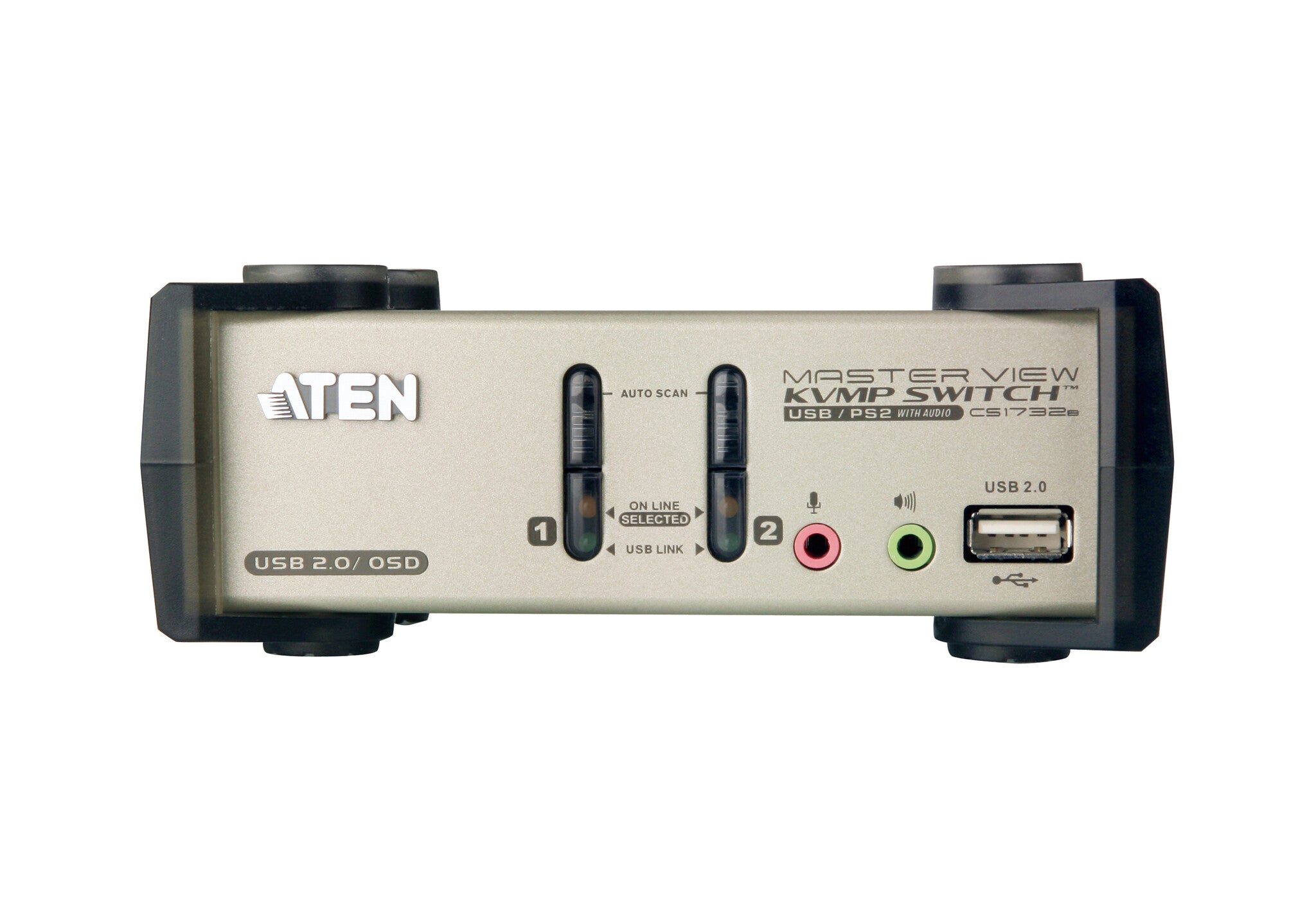

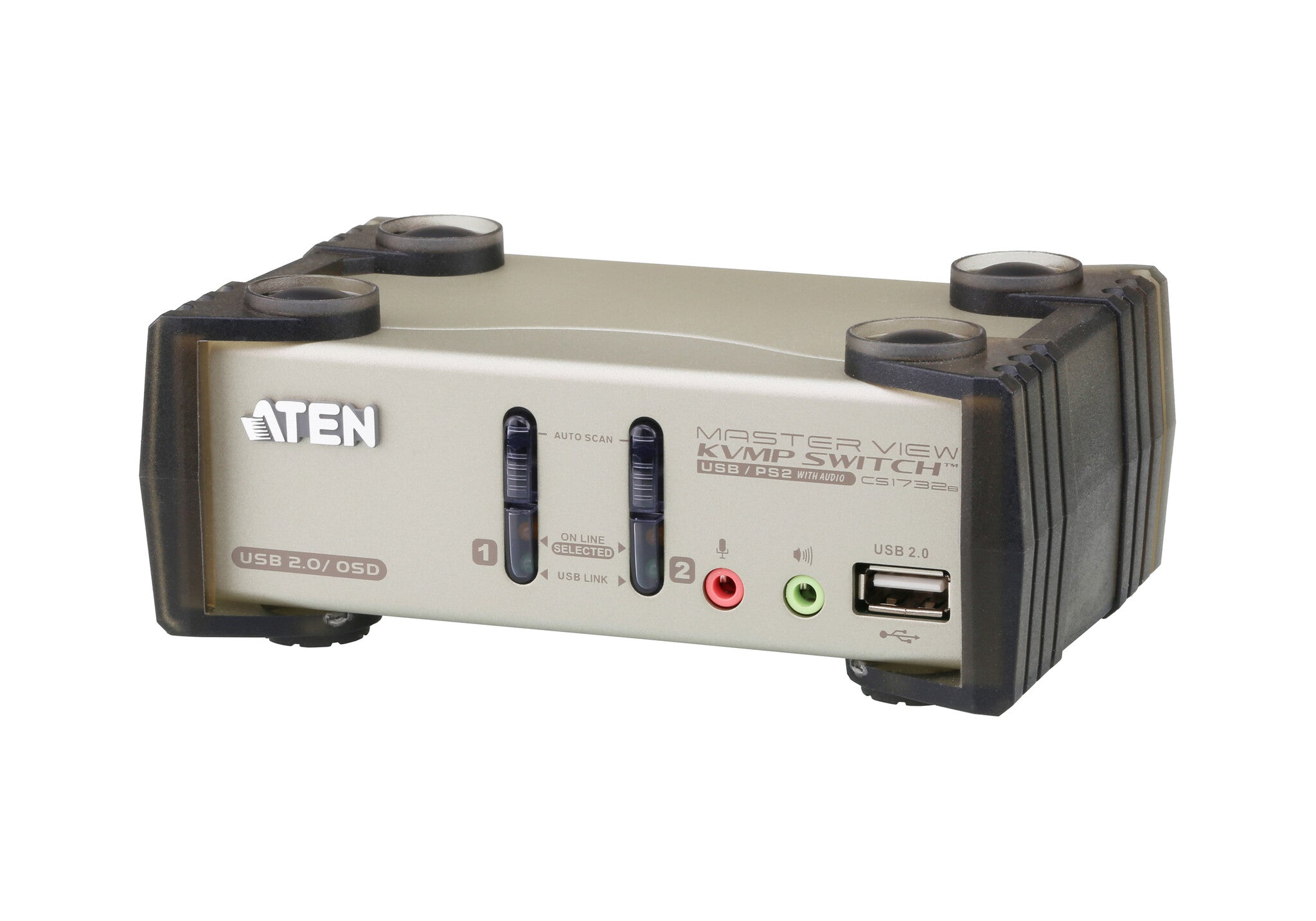

The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
Specifications
Ports & interfaces
| Headphone outputs | 4 |
|---|---|
| Audio connections | Yes |
| USB version | 2.0 |
| USB 2.0 ports quantity | 2 |
| USB hub | Yes |
| Console ports | 3.5mm headphone, 3.5mm mic |
| Video port type | VGA |
| Mouse port type | USB, PS/2 |
| Keyboard port type | USB, PS/2 |
| Number of computers controlled | 2 |
Performance
| Firmware upgradeable | Yes |
|---|---|
| DDC2B support | Yes |
| Scan interval | 1,255 s |
| Video bandwidth | 60 Hz |
| Maximum resolution | 2048 x 1536 pixels |
Show all 36 specificationsShow fewer specifications
Design
| Hot keys | Yes |
|---|---|
| Push button | Yes |
| LED indicators | Network, USB |
| Cable length | 1.2 m |
| Housing material | Metal |
Display
| On Screen Display (OSD) | Yes |
|---|
Power
| Power consumption (typical) | 2.5 W |
|---|---|
| Input voltage | 5.3 V |
| Power source | DC |
System requirements
| Mac operating systems supported | Yes |
|---|---|
| Windows operating systems supported | Yes |
Operational conditions
| Operating relative humidity (H-H) | 0 - 80% |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Weight | 550 g |
|---|---|
| Height | 55.5 mm |
| Depth | 88 mm |
| Width | 140 mm |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
| Cables included | KVM |
