• 4-port HDBaseT Output Board that is compatible with the VM1600A/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
• Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
• HDBaseT Connectivity – extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
• HDBaseT Anti-jamming – resists signal interference during video transmission using HDBaseT technology
• Connected to VE805R/VE816R:
• Seamless Switch – features close-to-zero-second switching, continuous video streams, real-time switching and stable signal transmissions
• Video Wall – features configurable video wall profiles for custom layouts via point-n-click web GUI
• Bi-directional IR channel – IR transmission is processed one direction at a time
• Hot-swappable design for easy integration of I/O boards

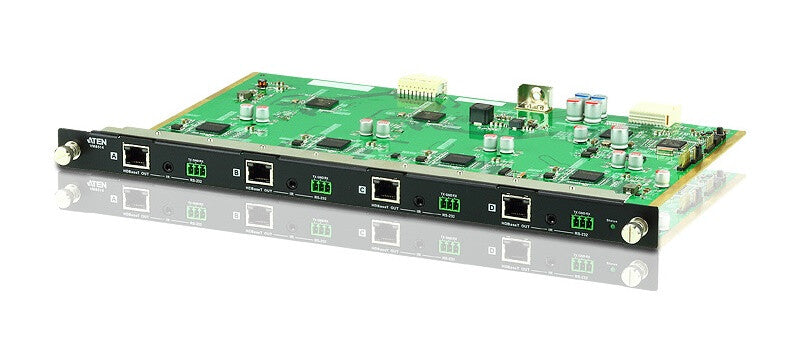

The VM8514 4-Port HDBaseT Output Board offers an easy way route 4 HDBaseT transmitters to 4 HDBaseT receivers, and in combination with the ATEN Modular Matrix Switches to provide the ability of routing up to 32 input and 32 output HDBaseT connections.
1x VM8514 4-Port HDBaseT Output Board
4x JCTN-3401-103G Terminal Block Connectors
1x 2xRT-0003G-1 IR Transmitter
1x 2xRT-0004G IR Receiver
1x User Instructions

• leaflet
