ATEN 4-Port DesPlay Input Board
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £497.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Compatible with the VM1600A / VM3200; mix and match with modular I/O boards of any type for optimum flexibility
- Superior video quality – up to 4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4)
- Audio-enabled - DisplayPort audio can be exracted and stereo audio can be embedded
- Support DP1.1 with data rate up to 10.8 Gbps (2.7 Gbps per lane)

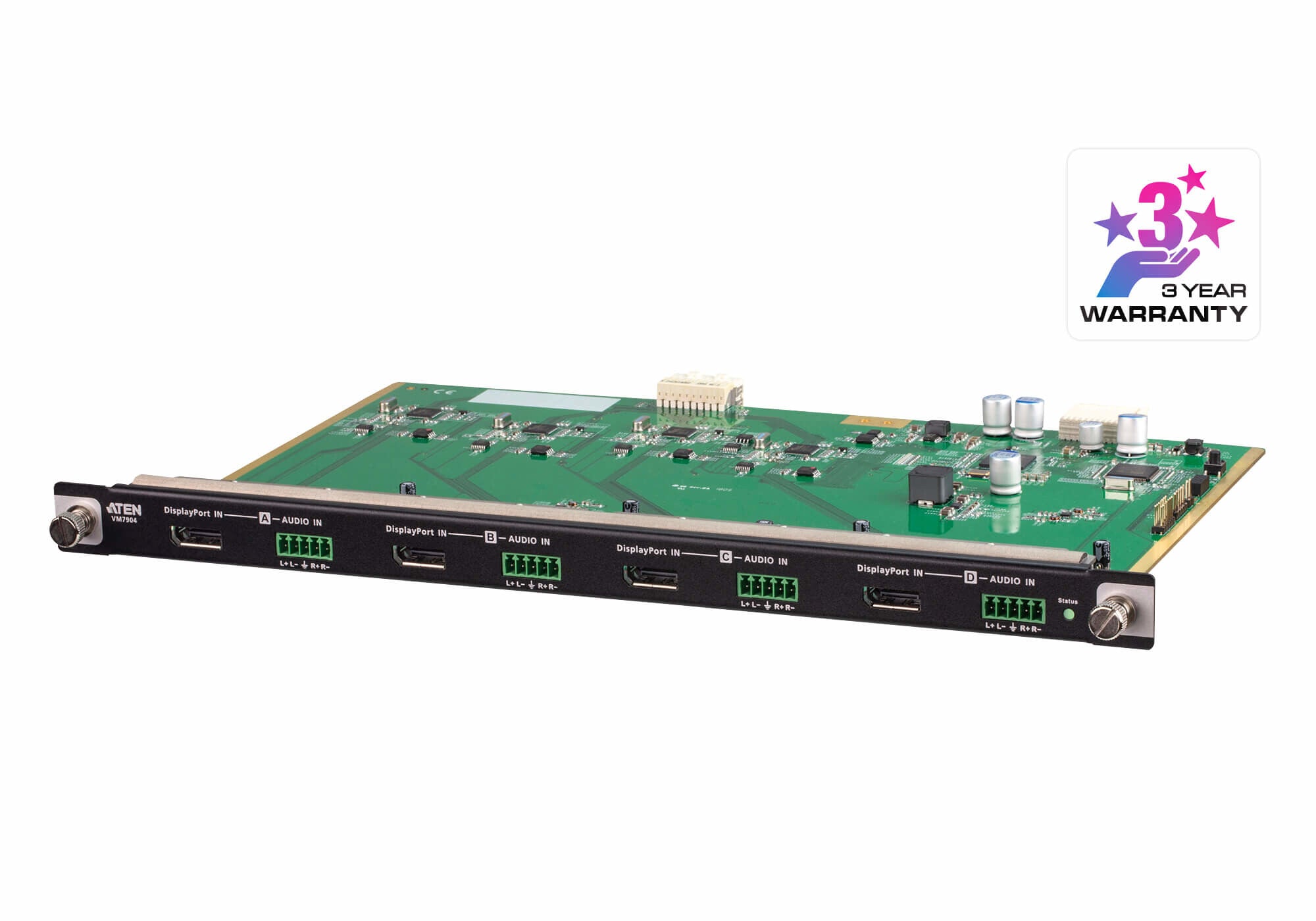

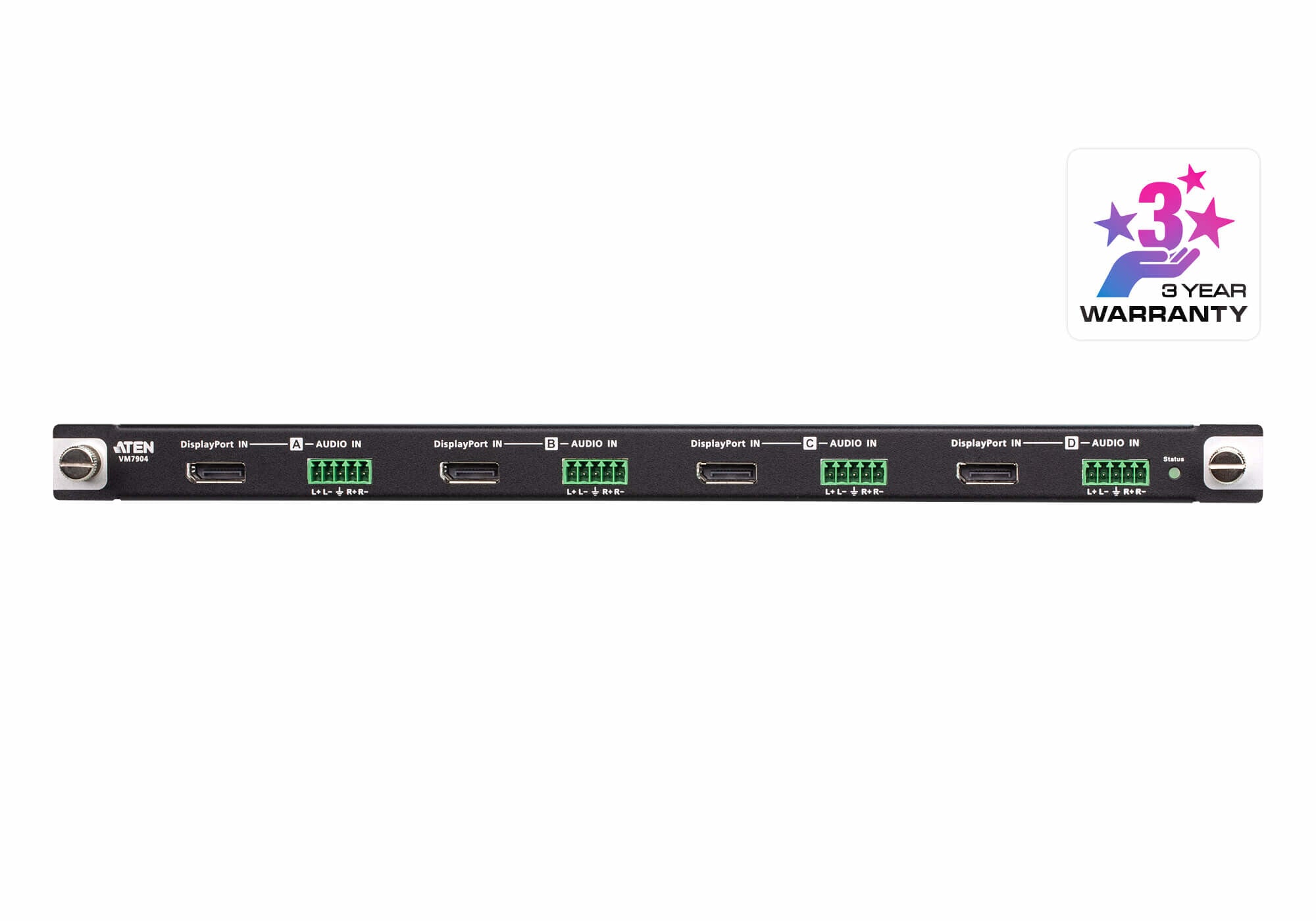

The VM7904 is a 4K DisplayPort Input Board that works with an ATEN Modular Matrix Switch to offer an easy way that routes 4 DisplayPort video and audio sources to up to 16 or 32 displays. In addition to the DisplayPort interface that carries digital A/V signal, the VM7904 also provides 4 stereo audio input ports that allow stereo audio to be routed independently or embedded for digital output.
1x VM7904 4-Port 4K DisplayPort Input Board
4x Terminal Blocks
1x User Instructions
Specifications
Design
| Material | Metal |
|---|---|
| Product colour | Black, Green |
| Product type | Input board |
Ports & interfaces
| DisplayPorts quantity | 4 |
|---|
Show all 13 specificationsShow fewer specifications
Power
| Power consumption (typical) | 7.18 W |
|---|
Weight & dimensions
| Weight | 550 g |
|---|---|
| Height | 23.3 mm |
| Depth | 352 mm |
| Width | 238 mm |
Operational conditions
| Storage temperature (T-T) | -20 - 60 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
Technical details
| Compliance certificates | RoHS |
|---|
