• Compatible with the VM3250 / VM3200 / VM1600A; mix and match with modular I/O boards of any type for optimum flexibility
• Extends audio/video, IR, and RS-232 control signals over long distances via duplex fiber optic cables
• Superior video quality over long-distance transmission – up to 4096 x 2160@60Hz (4:2:0), 300m with VM7584K1 over multimode cables or 10km with VM7584K2 over single-mode cables
• HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
• Consumer Electronics Control (CEC) support
• Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
• Bi-directional IR channel – IR transmission is processed one direction at a time, ranging from 30 kHz to 60 kHz
• EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
• Hot-swappable fiber optic module and I/O boards for easy integration and maintenance

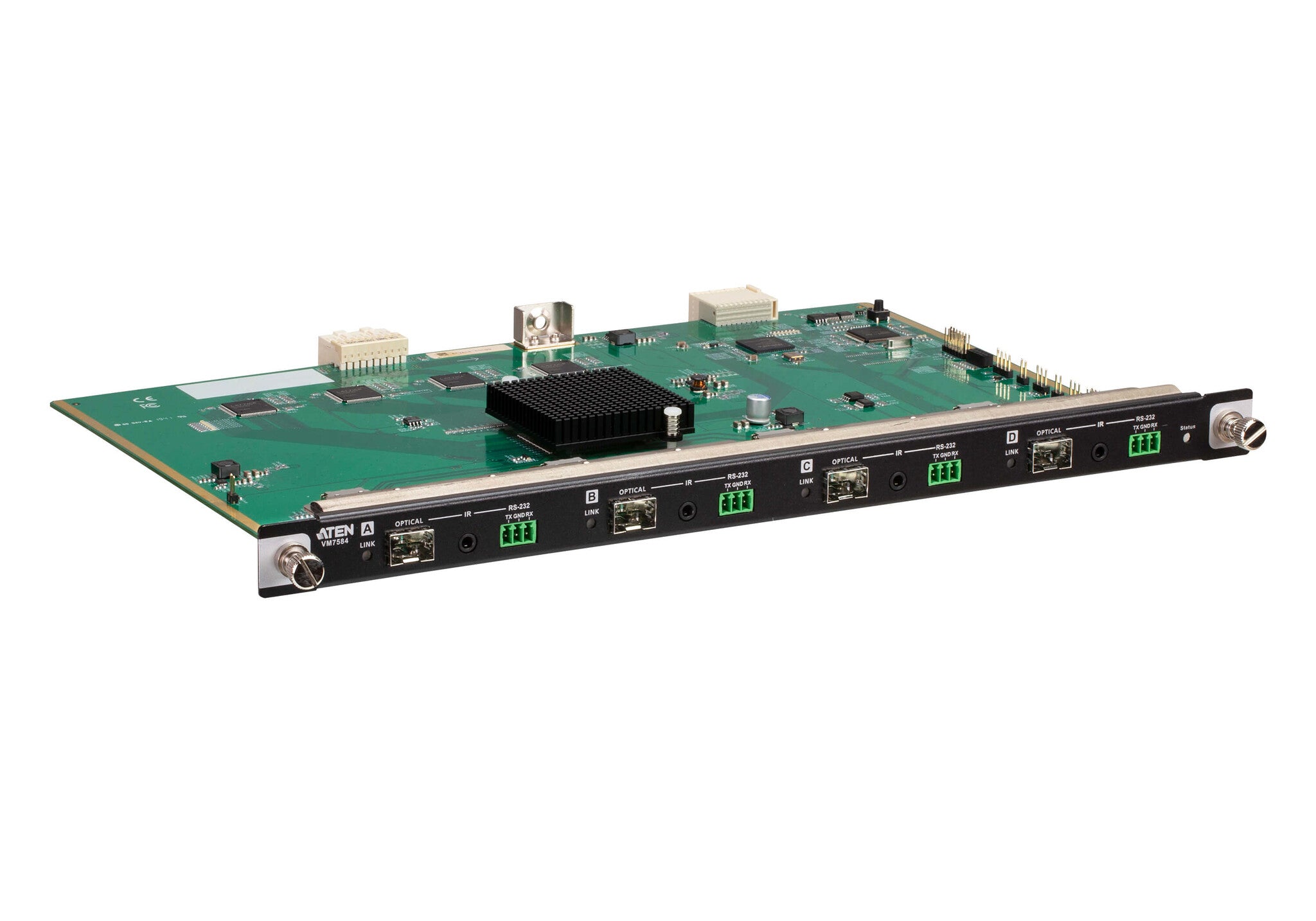

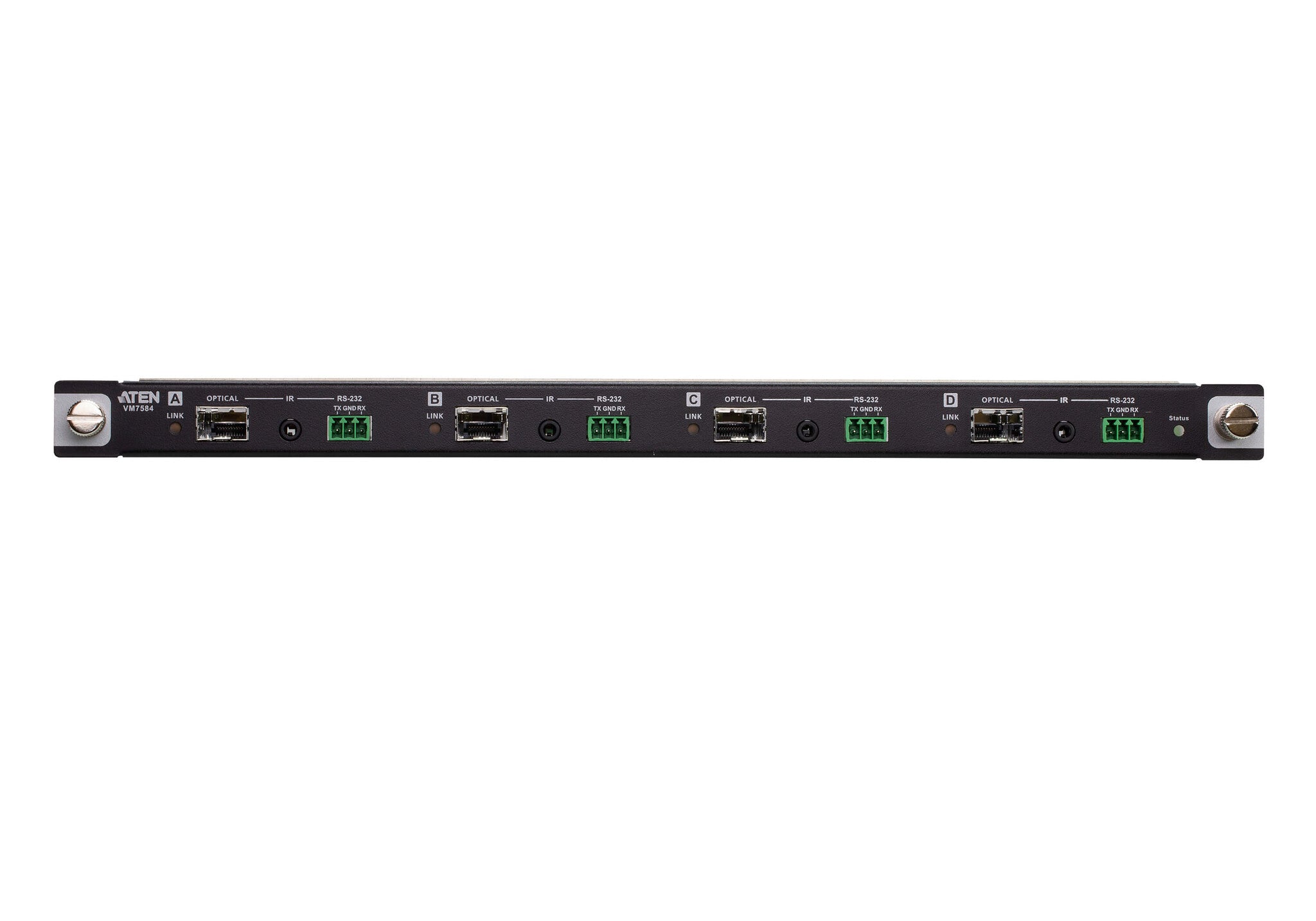

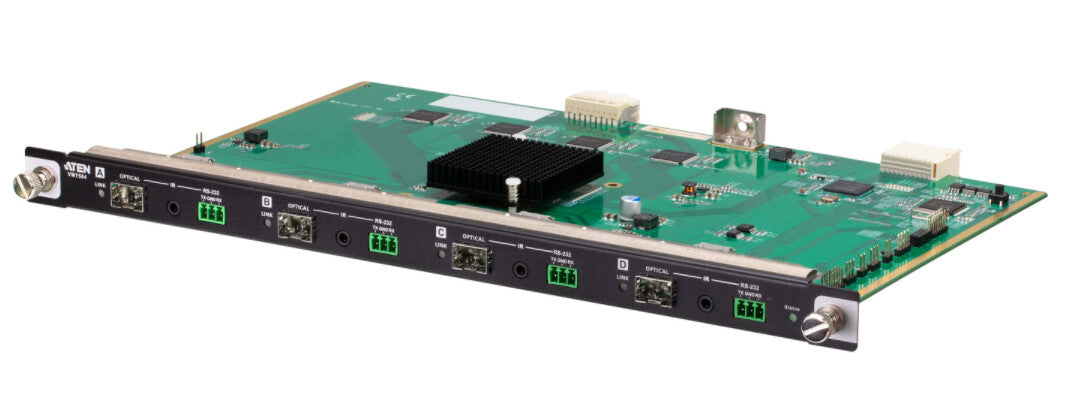

The VM7584 4-Port 10G Optical Input Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces. Designed with fiber optics technology for long-distance transmission, the VM7584 along with its SFP+ modules extends uncompressed 4K signal up to 300 m (using VM7584K1) or 10 km (using VM7584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, the VM7584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality.
1x VM7584 4-Port 10G Optical Input Board

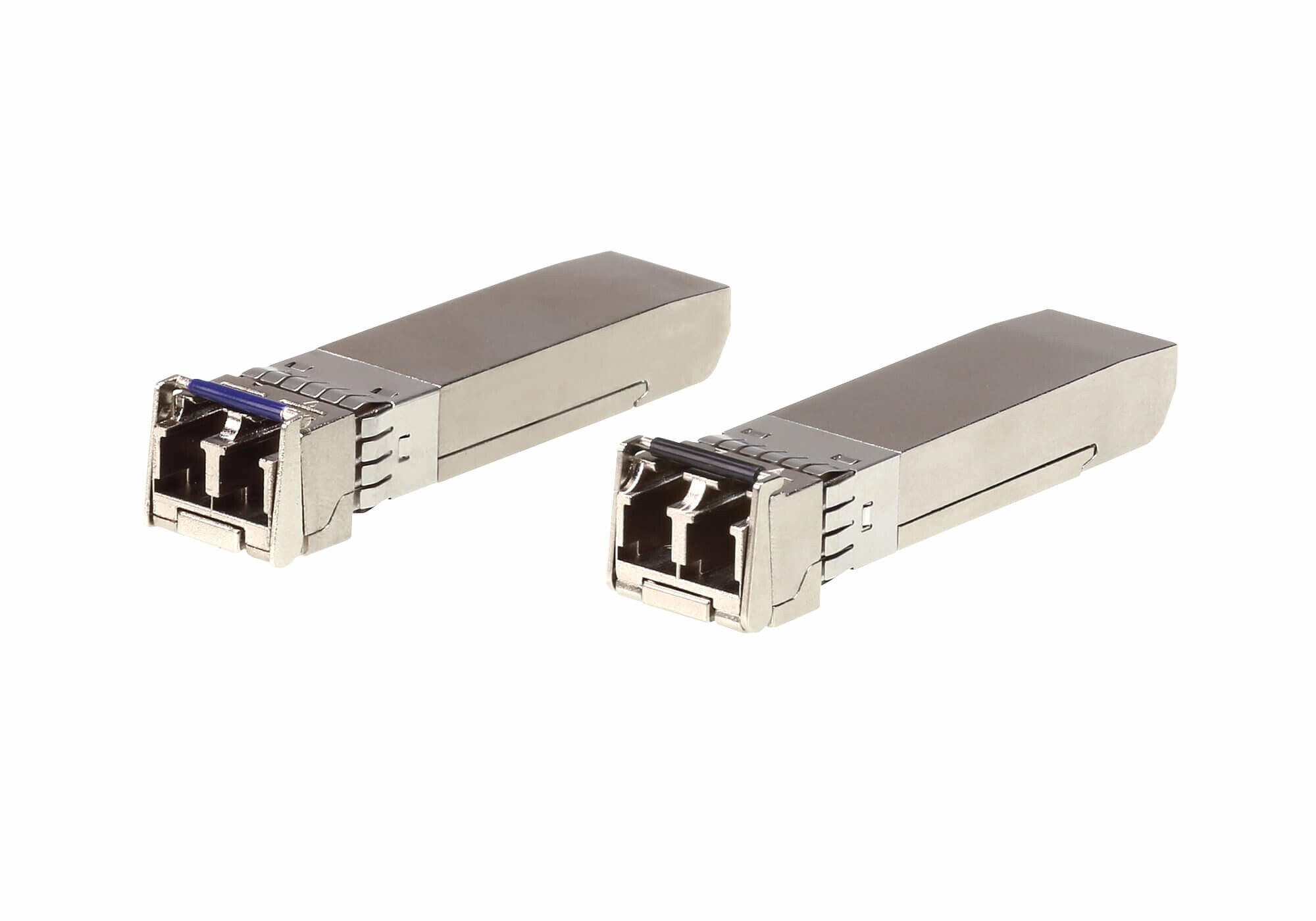

4x SFP+ Modules
4x 3-Pole Terminal Blocks
1x IR Receiver
1x IR Emitter
1x User Instructions
