ATEN 4" Coaxial Ceiling Loudspeaker
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £90.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 100 – 20 kHz bandwidth with wide coverage for consistent, full-range coverage of the space while reducing the amount of the speakers needed
- Switchable for use as either an 8 Ω low-impedance speaker or as part of a 70V / 100V distributed loudspeaker system
- UL94-V0 compliance for life safety applications
- Paintable magnetic grille for blending into any room decor
- Ease of installation guaranteed with the magnetic grille, dog leg mounting system and cutout template

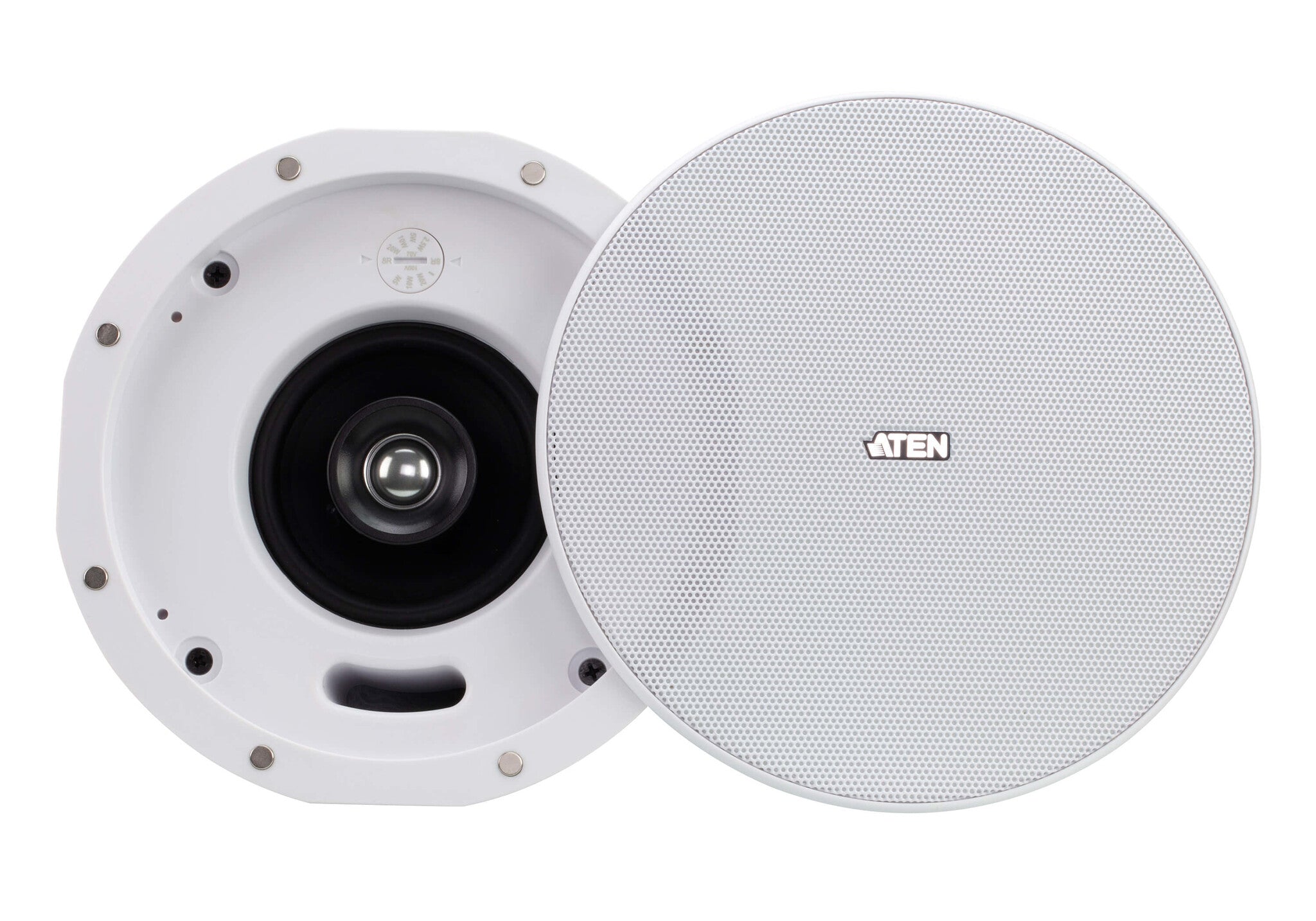

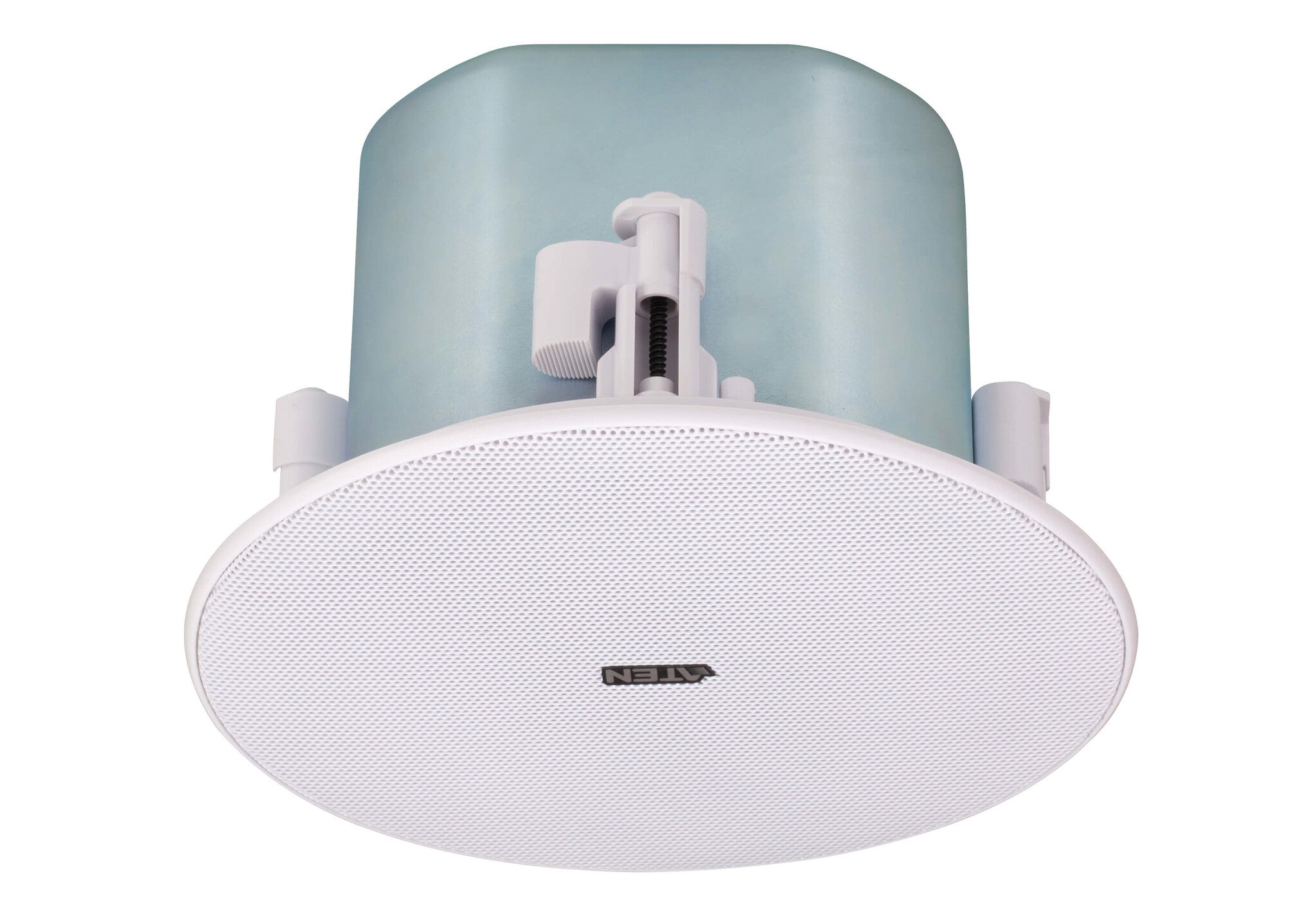

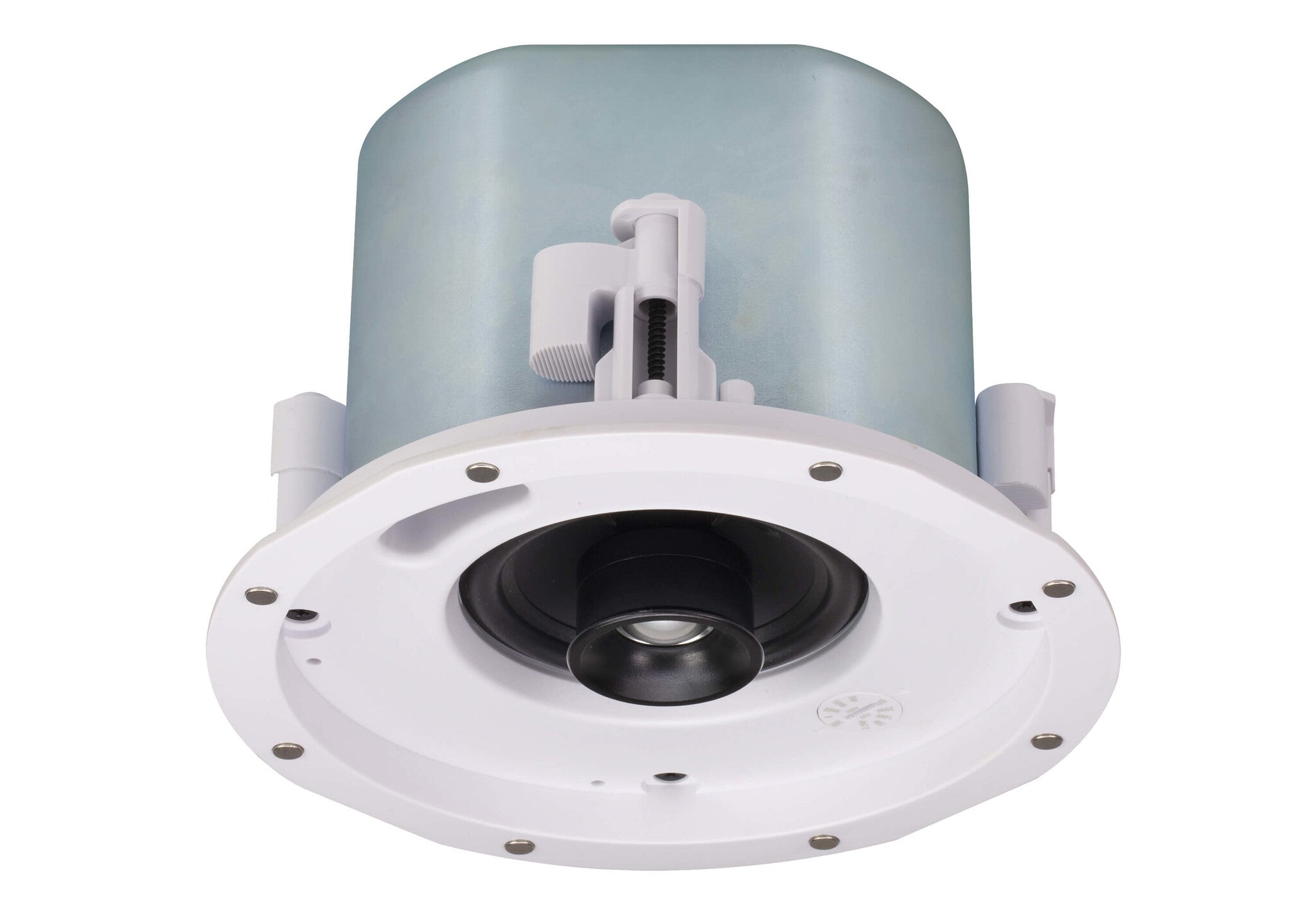

The AS104 comes in a pair of 4” coaxial 2-way ceiling loudspeakers that deliver decent sonic performance. Each speaker ships with a 4” woofer, 20 mm dome tweeter, and 30 W RMS, 60 W peak (8Ω) power handling capability. Excellent and consistent sound quality is ensured by taking advantages of its 100 - 20 kHz bandwidth and wide coverage, allowing less speakers used to cover the listening area to lower the cost of the system installed.

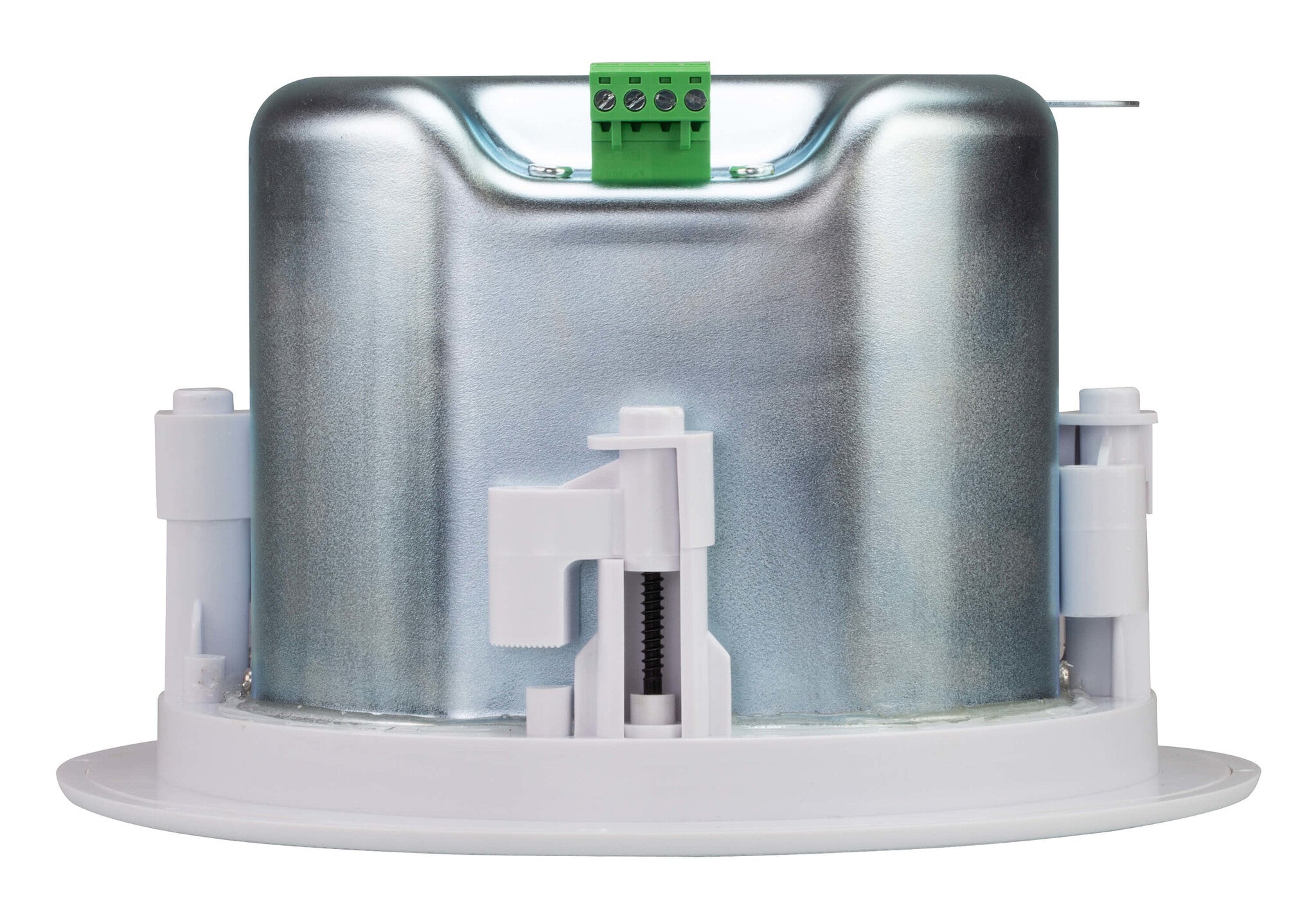

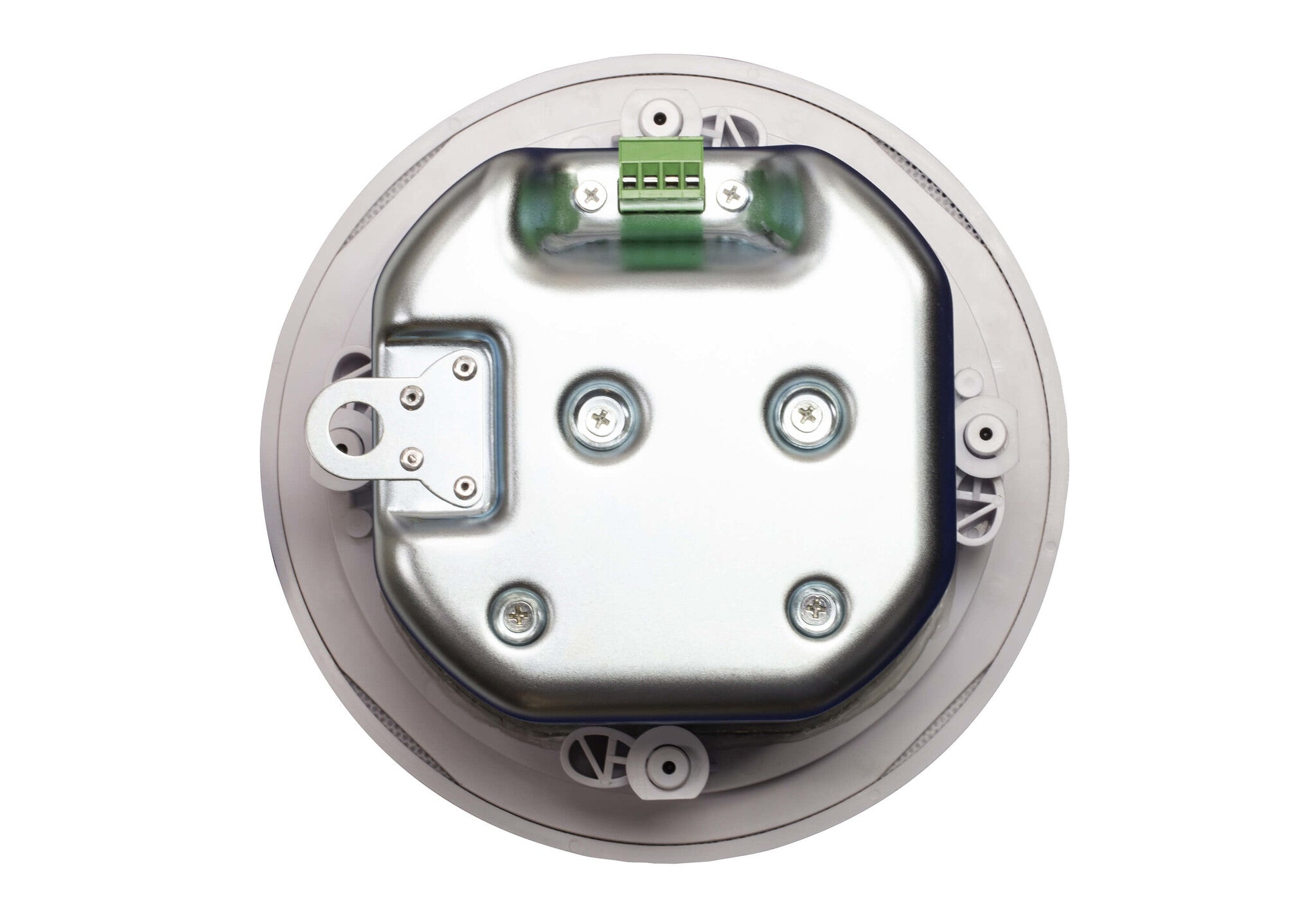

The loudspeaker contains a matching transformer, running comfortably on 70 / 100 V lines or at 8Ω to suit various application demands. Phase issues are minimized as a result of the adoption of the coaxial neodymium magnetic driver, making sound waves with various frequency bands easier to be added together instead of canceling each other out. Made of UL94-V0-compliant flame retardant materials, the housing, together with the Zinc-coated steel backcan, improve safety for applications where flame and fire protection is of the highest importance. When it comes to installation, each speaker features a cutout template for quick and easy post construction installation and can be secured with its dog-leg mounting system. The paintable magnetic grille assures effortless installation and cleaning while giving unobtrusive appearance in any room design.
AS104 is ideal for residence and enterprise-grade audio applications, such as auditoriums, houses of worship, sports venues, and any small or mid-sized commercial spaces that require a clear and intelligible sound solution without compromise on life safety.
Specifications
Loudspeakers
| Woofer diameter | 10.2 cm |
|---|---|
| Number of woofer drivers | 1 |
| Woofer | Yes |
| Tweeter diameter | 2 cm |
| Number of tweeter drivers | 1 |
| Tweeter | Yes |
| Number of drivers | 2 |
| Speaker placement | Ceiling-mountable |
| Speaker type | 2-way |
Audio
| Total Harmonic Distortion (THD) | 5% |
|---|---|
| Sensitivity | 86 dB |
| Impedance | 8 Ω |
| Frequency range | 100 - 20000 Hz |
| Peak Music Power Output (PMPO) | 60 W |
| RMS rated power | 30 W |
Show all 36 specificationsShow fewer specifications
Performance
| Housing material | Plastic, Rubber, Steel |
|---|---|
| Recommended usage | Universal |
| Product colour | White |
Amplifier
| Amplifier | No |
|---|
Ports & interfaces
| Bluetooth | No |
|---|---|
| Connectivity technology | Wired |
Power
| Transformer taps | 2.5,5,10,20 W |
|---|---|
| Power source type | DC |
Weight & dimensions
| Weight | 2.2 kg |
|---|---|
| Height | 130 mm |
| Depth | 218 mm |
| Width | 218 mm |
Packaging content
| Mounting brackets included | Yes |
|---|---|
| Manual | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Sustainability
| Sustainability compliance | Yes |
|---|
Technical details
| Compliance certificates | CE, RoHS, WEEE |
|---|
Other features
| Package volume | 50687.16 cm³ |
|---|---|
| Country of origin | China |
