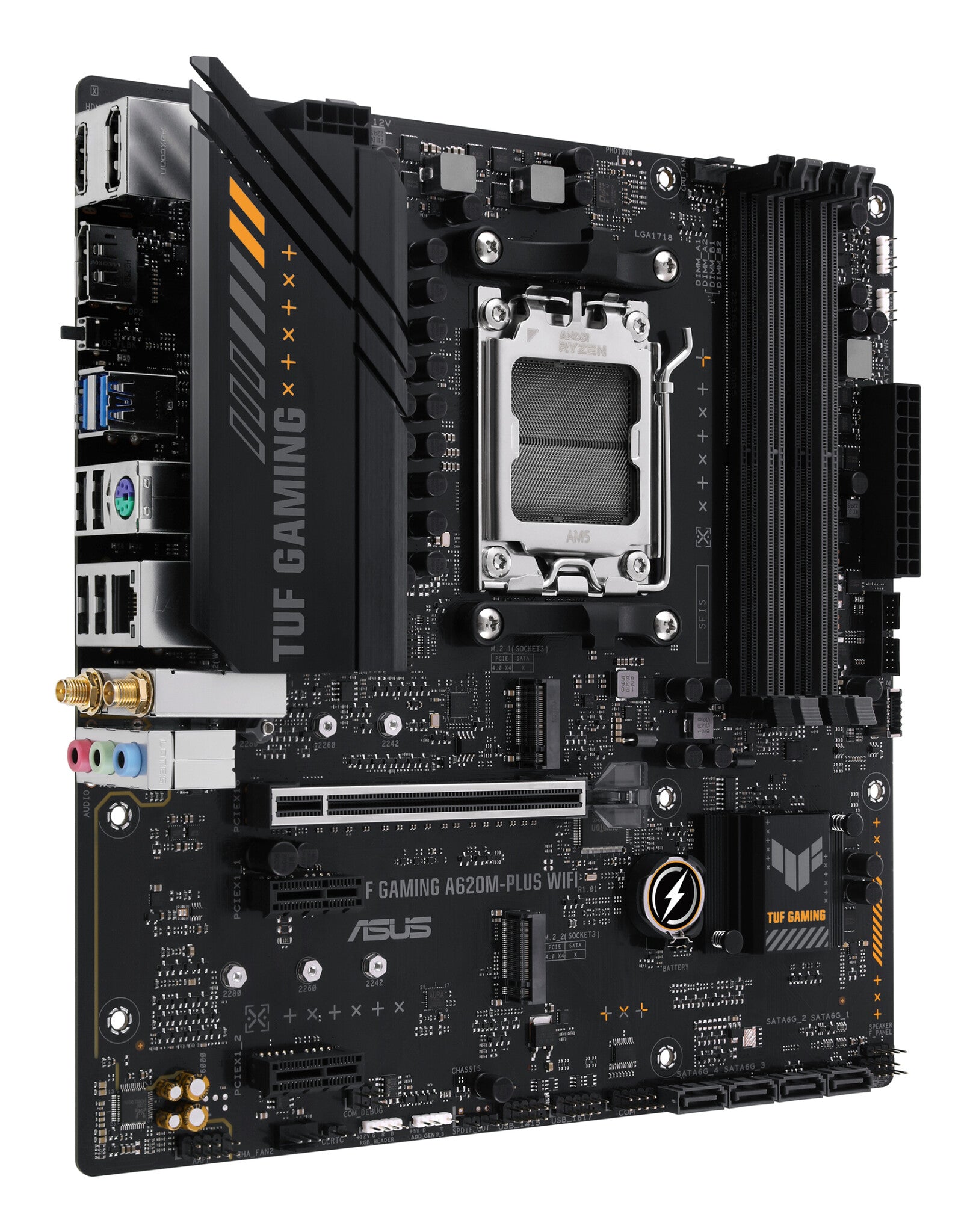

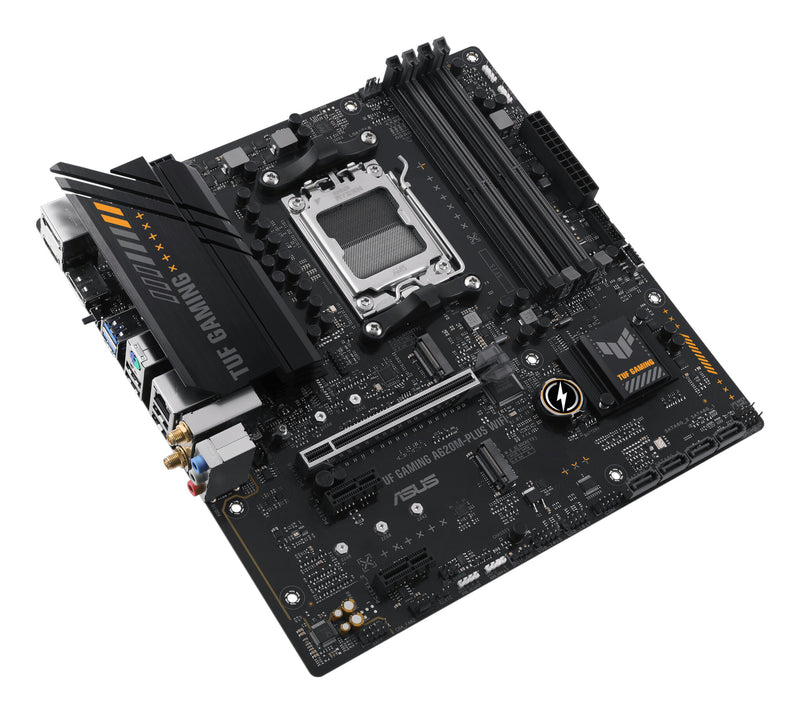

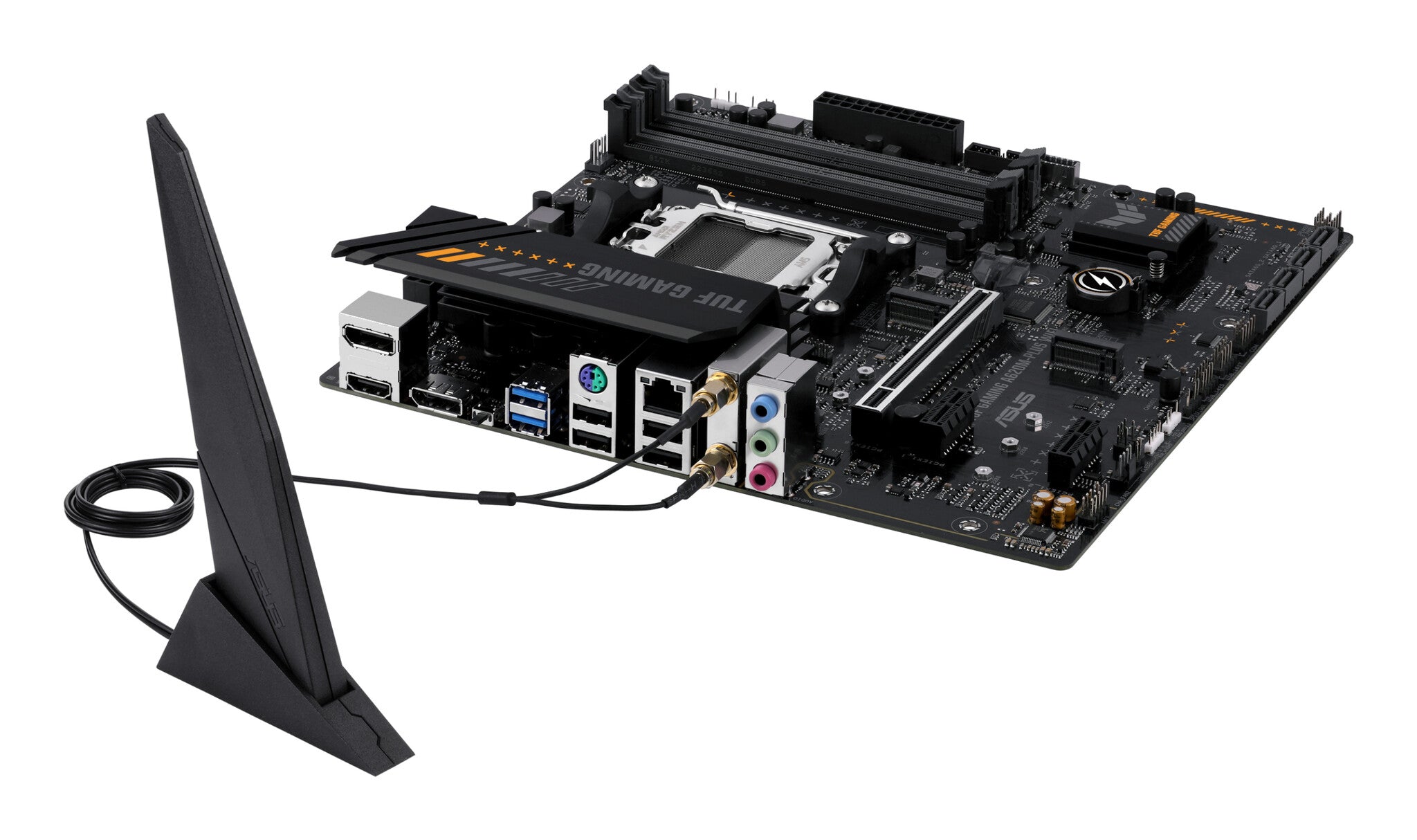

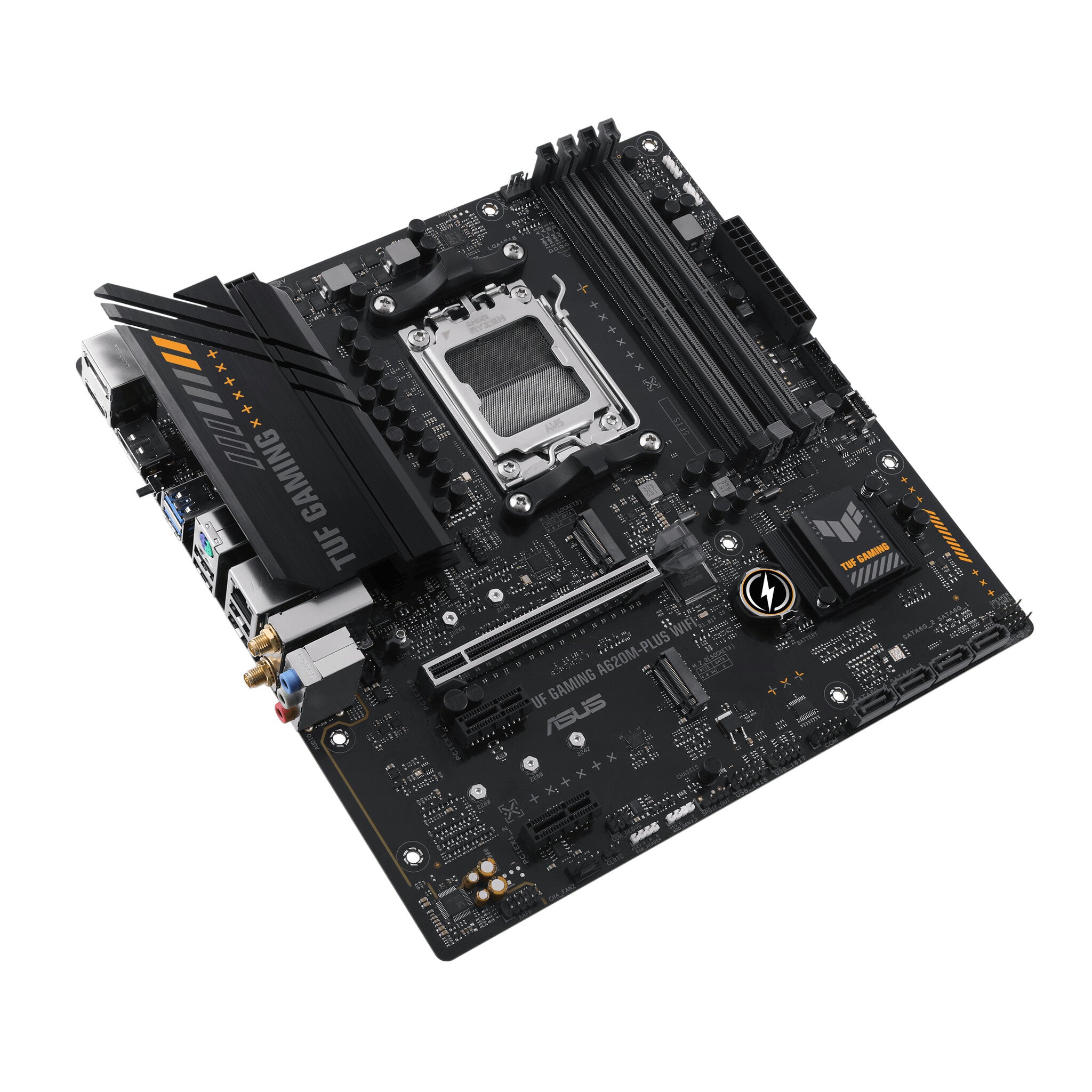

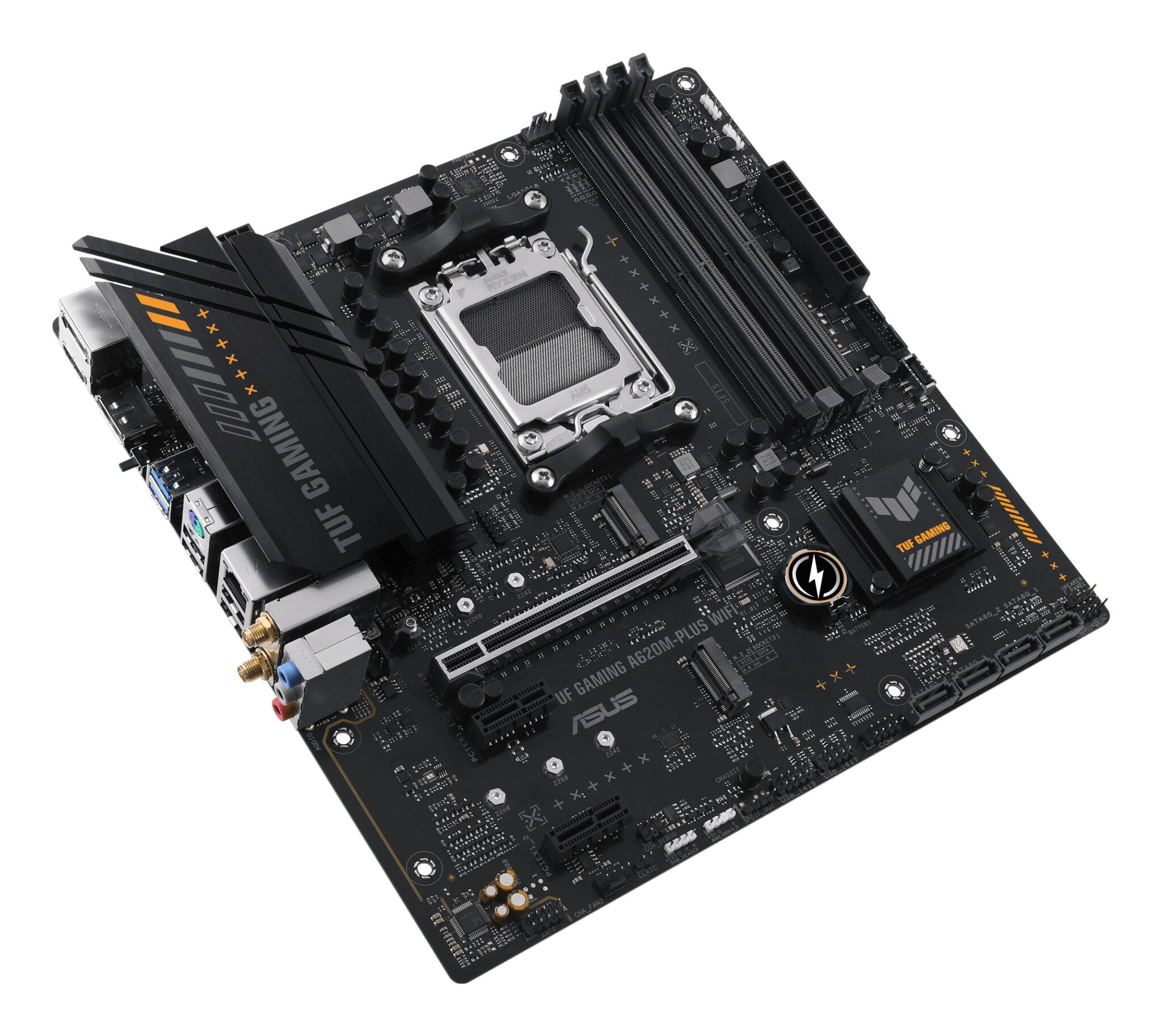

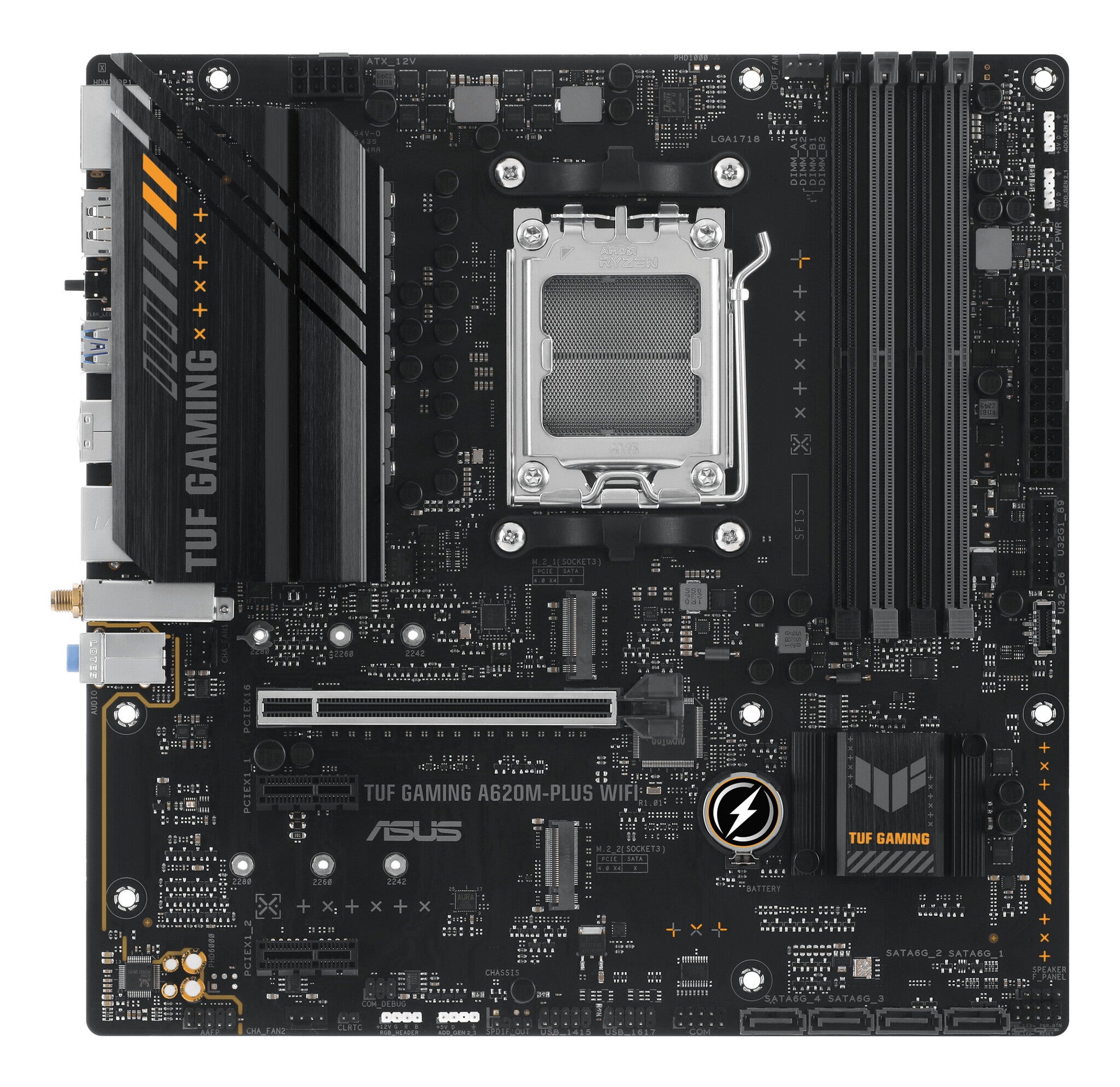

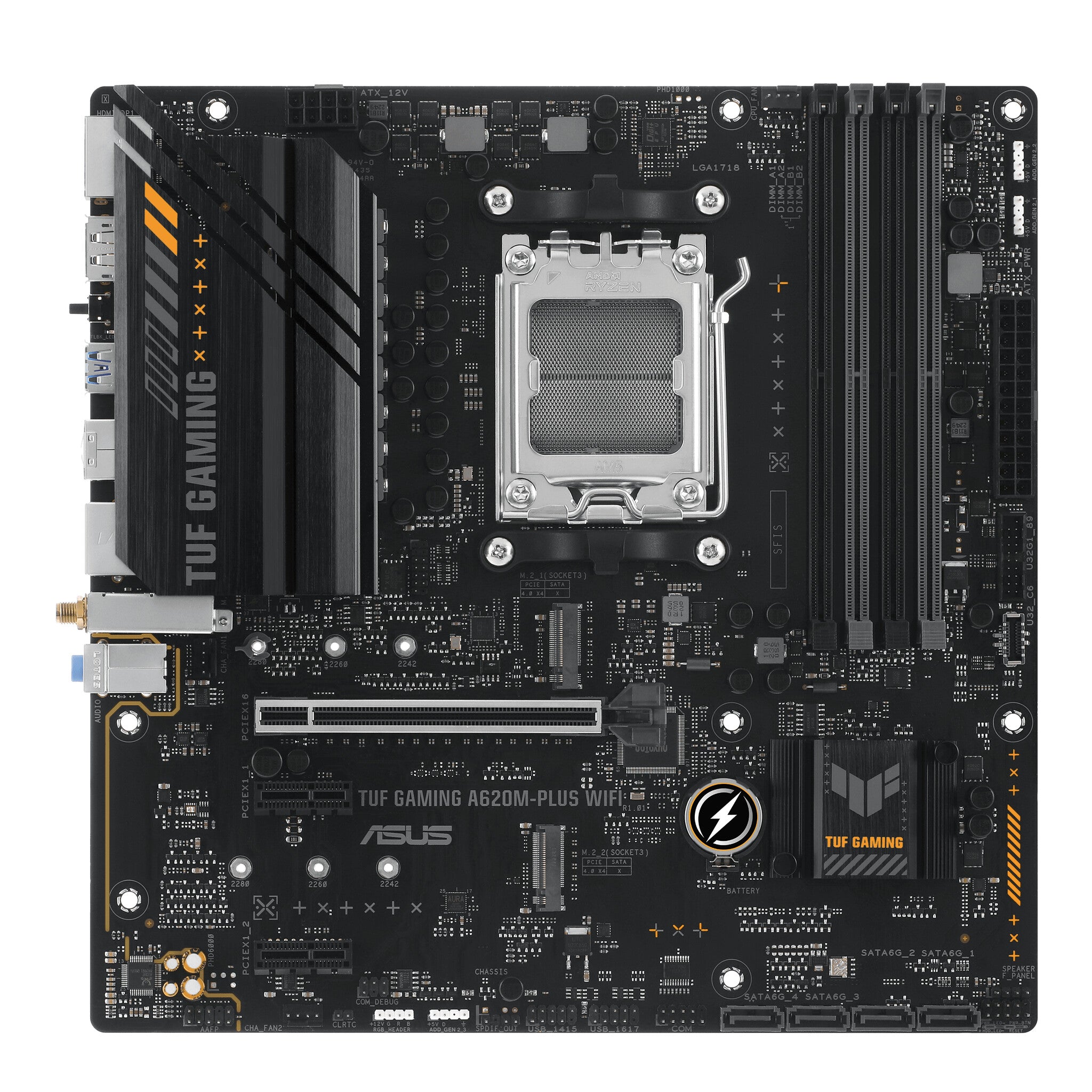

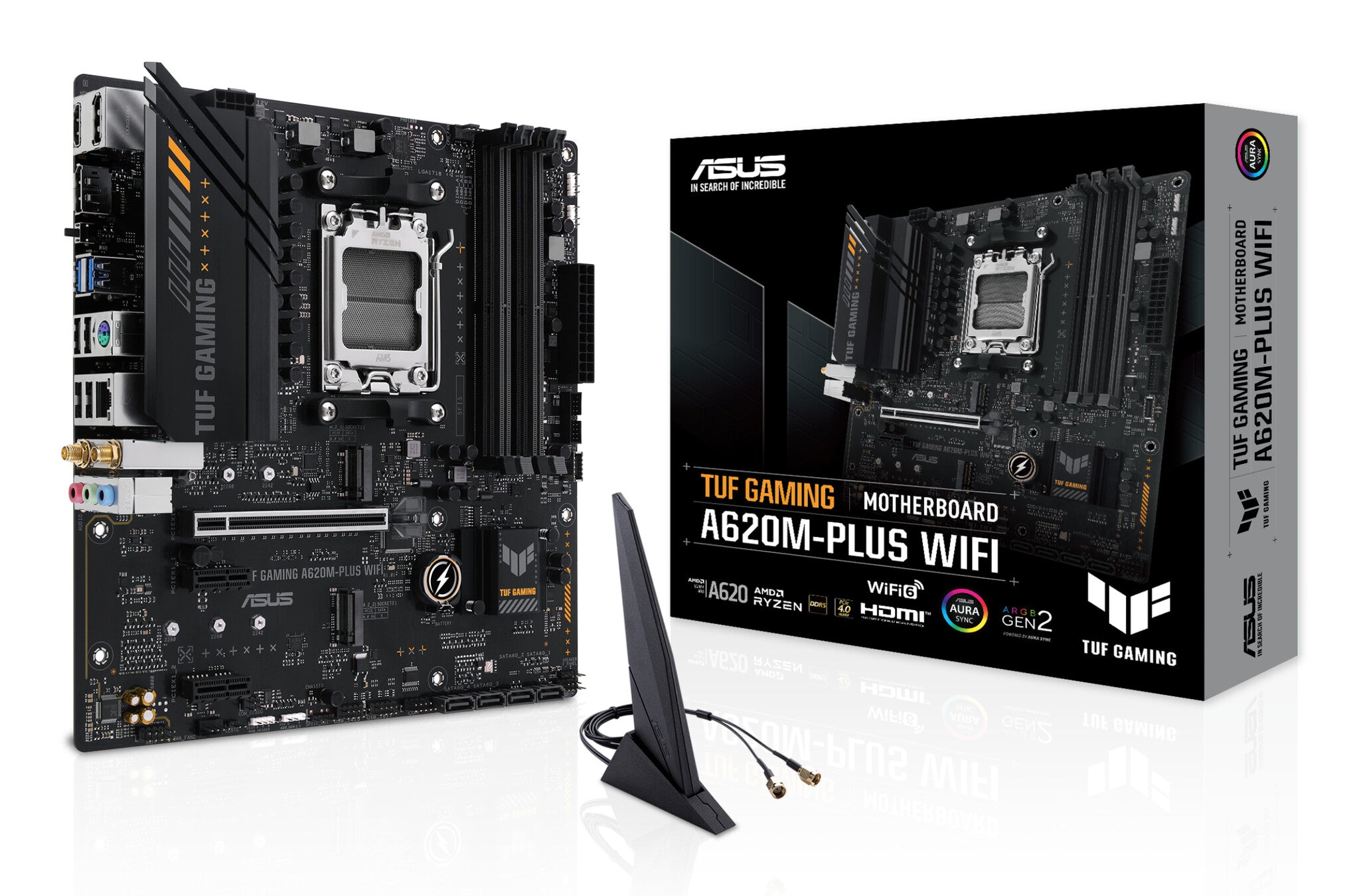

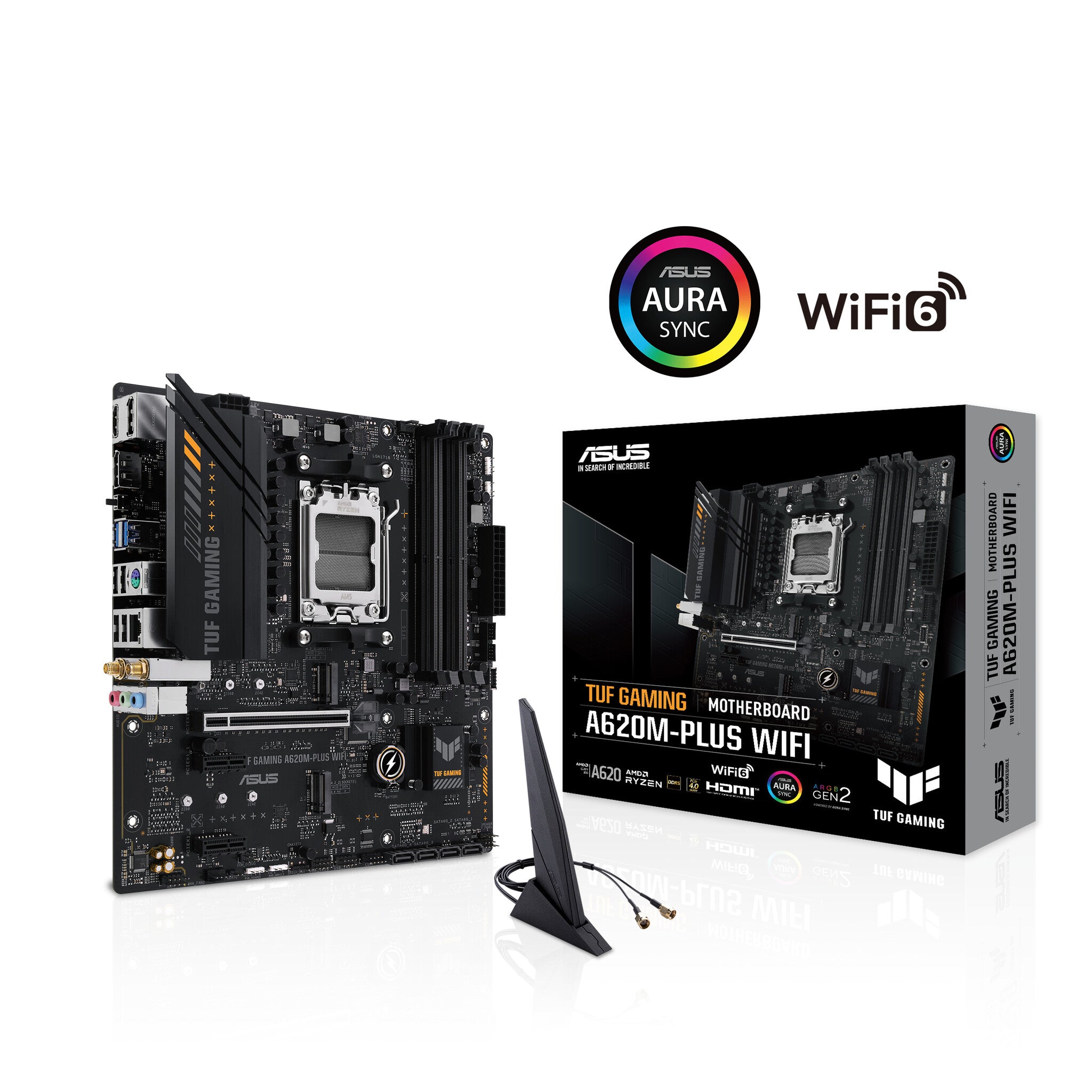

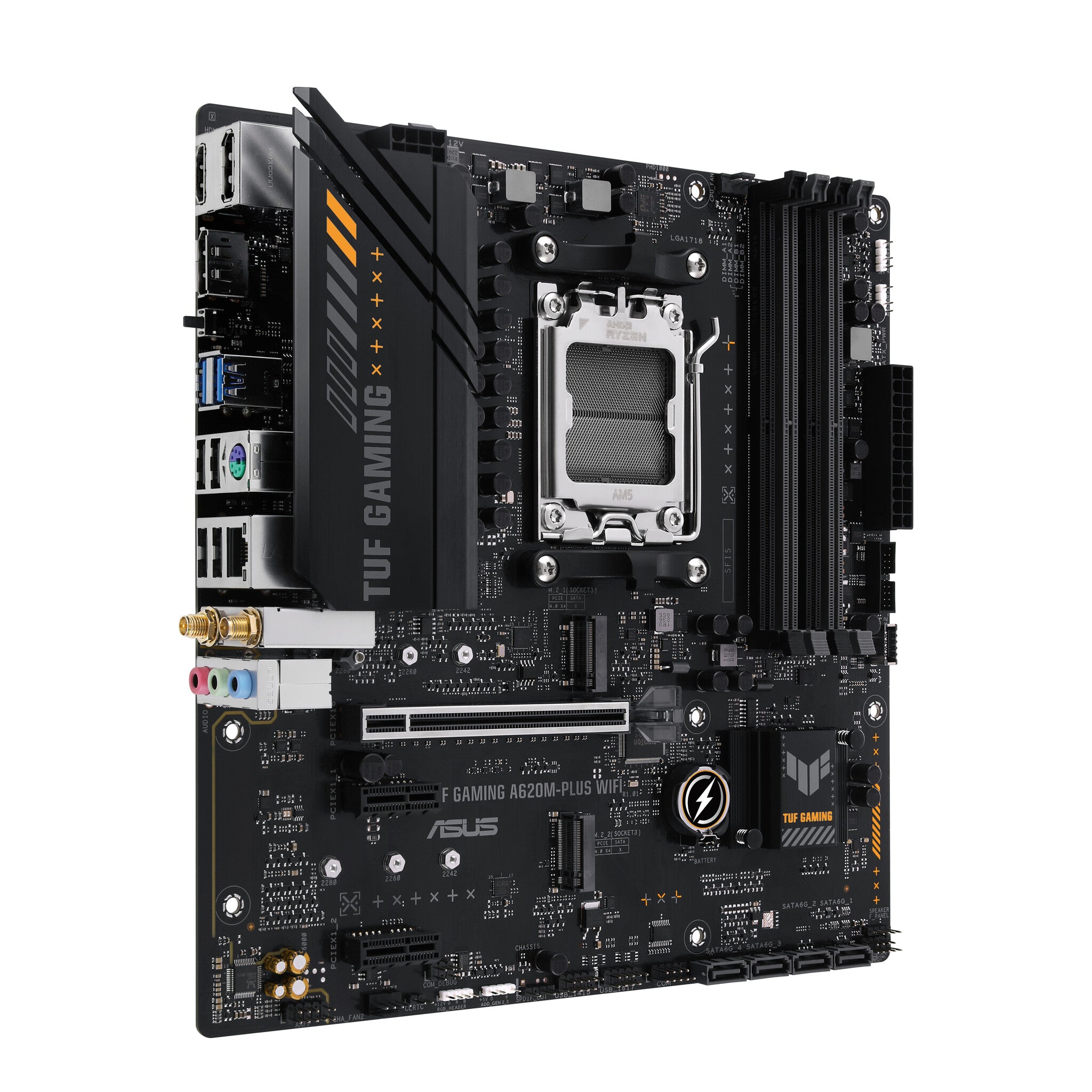

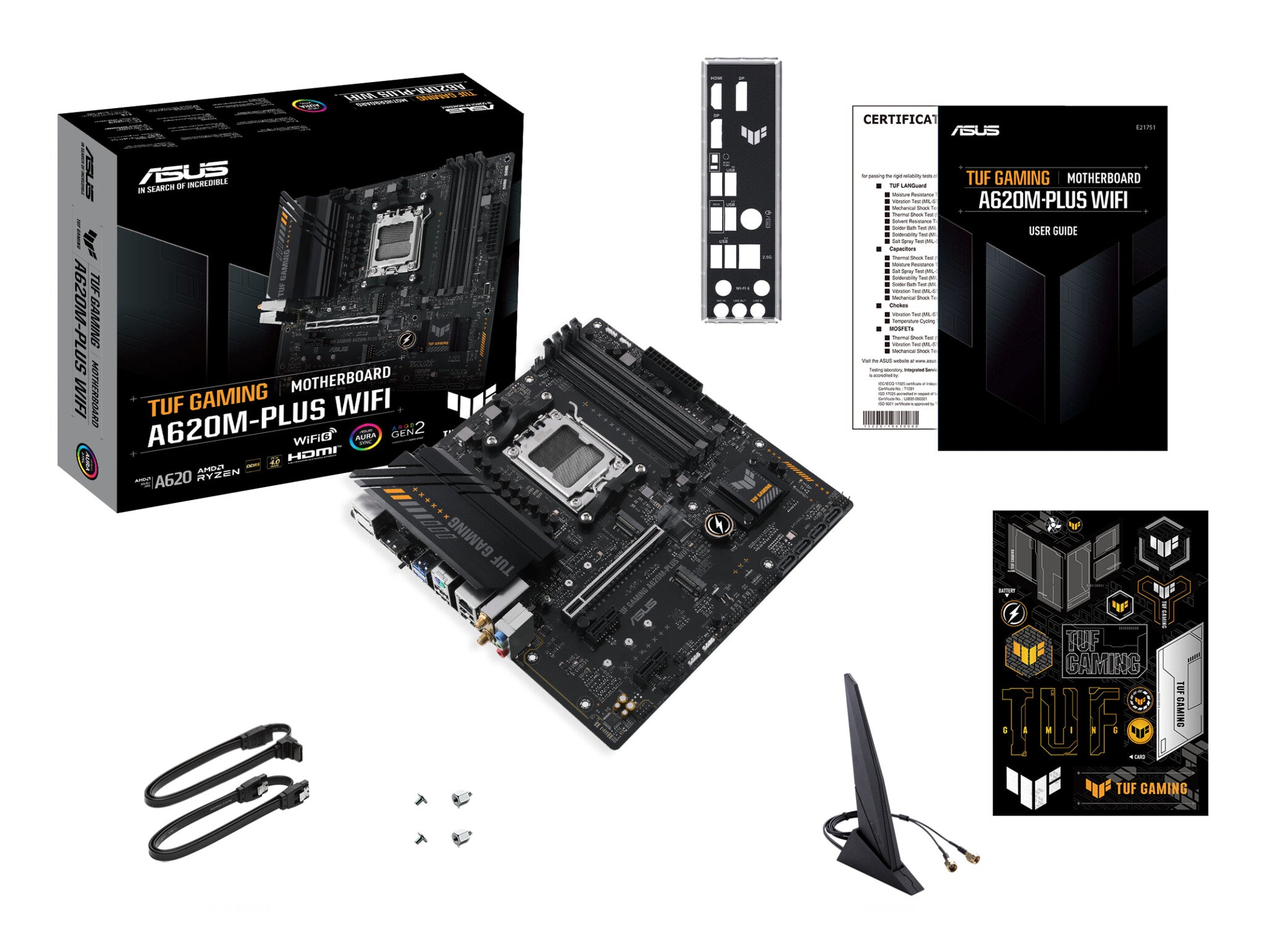

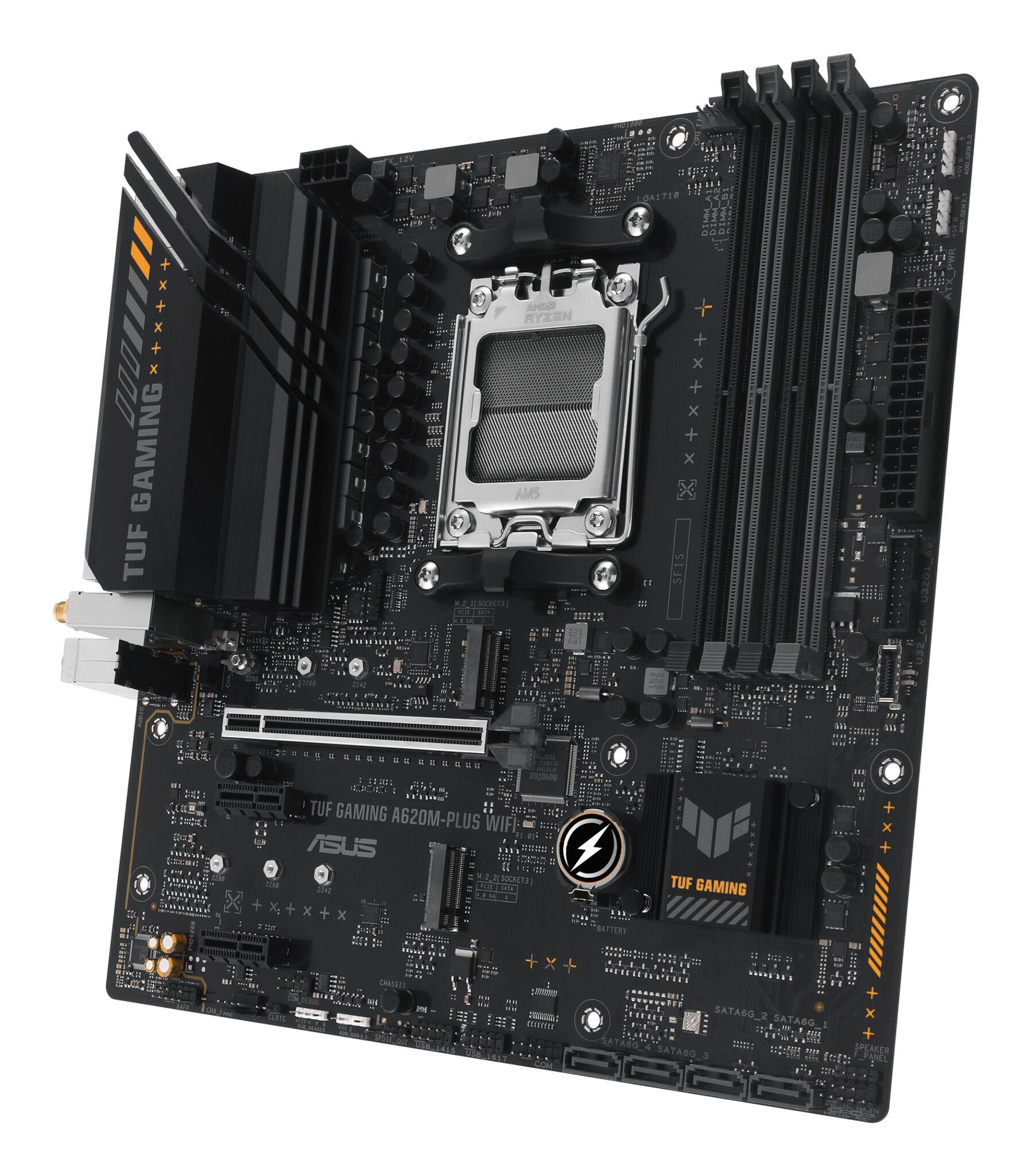

ASUS TUF GAMING A620M-PLUS WIFI AMD A620 Socket AM5 micro ATX
Couldn't load pickup availability
- AMD Socket AM5 AMD Ryzen 7000 Series
- PC micro ATX AMD A620 7.1 channels
- DDR5-SDRAM 4 Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.3
ASUS TUF GAMING A620M-PLUS WIFI takes all the essential elements of AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability
Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
- PCIe 4.0 for M.2 storage
- DDR5 memory module support
- Front-panel USB 3.2 Gen 1 Type-C
- 2.5 Gb Ethernet

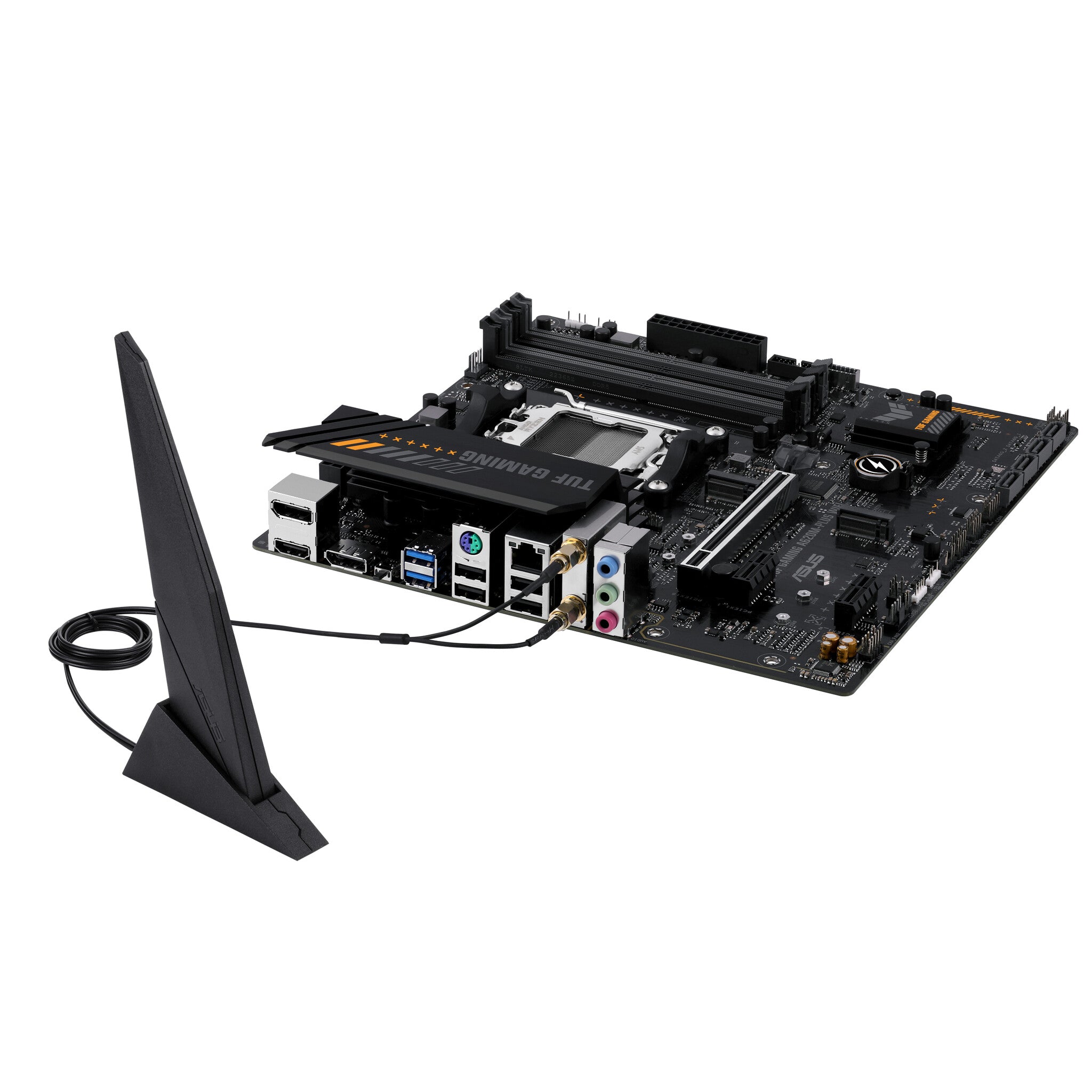

- WiFi 6
- Two-Way AI Noise Cancelation
- Intelligent Control
Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING A620 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
With upgraded power delivery and comprehensive cooling options to fuel AMD's CPUs, plus support for faster memory and storage, TUF GAMING A620 motherboards are the perfect foundation for your next high-core-count AMD battle rig.
The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
TUF GAMING A620 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
** Click here for full product details **
Processor | |
---|---|
Compatible processor series | AMD Ryzen 7000 Series |
Processor socket | Socket AM5 |
Processor manufacturer | AMD |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 128 GB |
Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
ECC сompatibility | ECC & Non-ECC |
Memory channels | Dual-channel |
Number of memory slots | 4 |
Supported memory types | DDR5-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 10 |
RAID support | Yes |
Number of storage drives supported | 6 |
Number of HDDs supported | 4 |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
On-board graphics card | No |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
Number of COM connectors | 1 |
12V power connector | Yes |
EPS power connector (8-pin) | Yes |
Number of chassis fan connectors | 2 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
S/PDIF out connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 2.0 connectors | 2 |

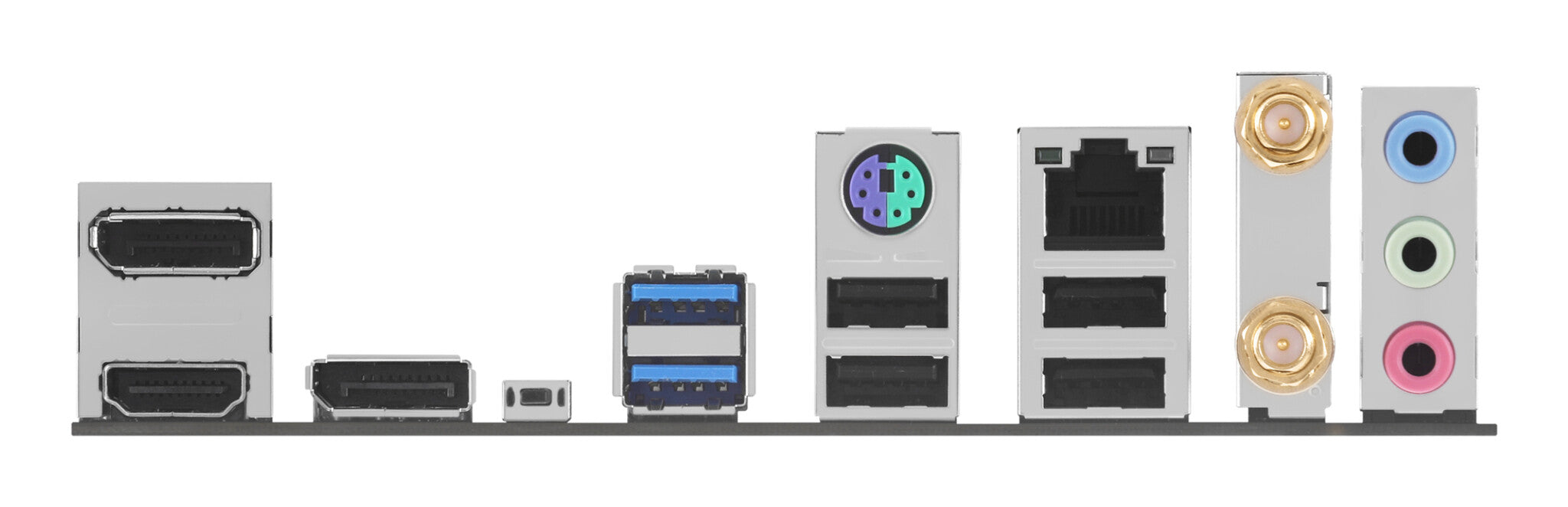

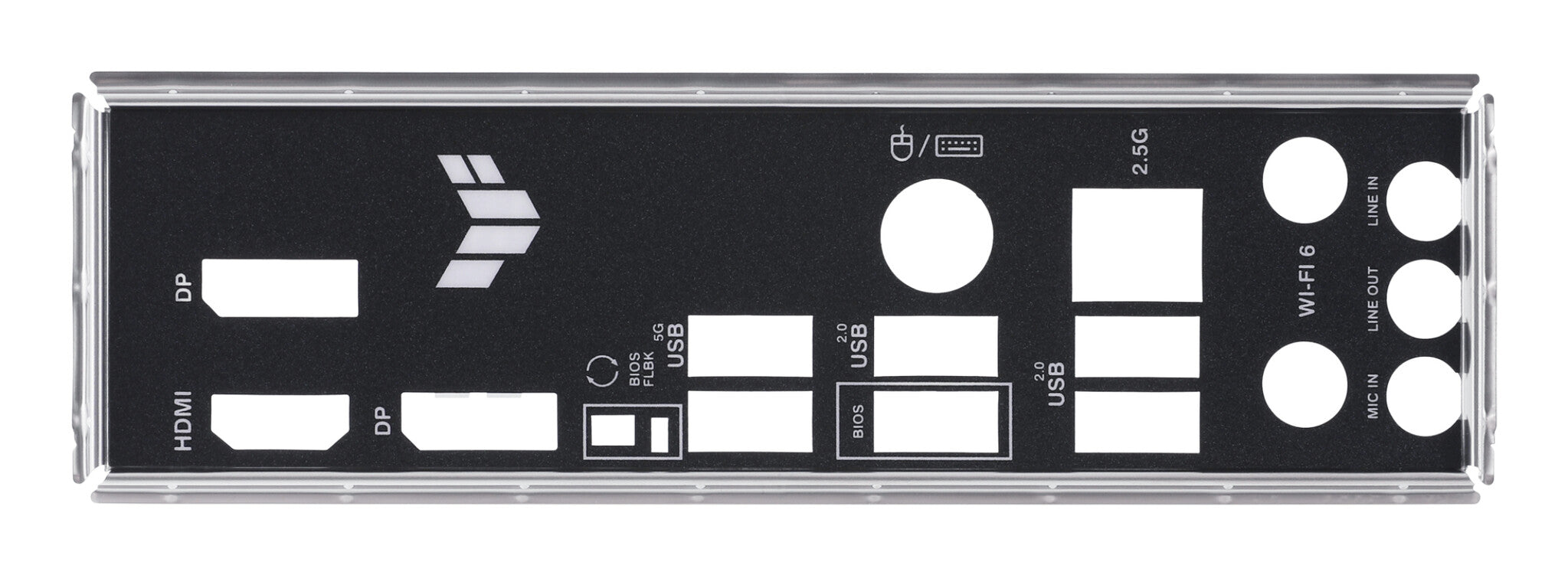

Rear panel I/O ports | |
---|---|
Microphone in | Yes |
Headphone outputs | 1 |
DisplayPorts quantity | 2 |
HDMI ports quantity | 1 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 4 |
Network | |
---|---|
Bluetooth version | 5.3 |
Bluetooth | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Wi-Fi | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 |
Cooling type | Passive |
Audio output channels | 7.1 channels |
Motherboard chipset | AMD A620 |
Motherboard chipset family | AMD |
Motherboard form factor | micro ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 2 |
PCI Express x1 (Gen 3.x) slots | 2 |
BIOS | |
---|---|
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Packaging data | |
---|---|
Package weight | 920 g |
Package height | 67.5 mm |
Package depth | 275 mm |
Package width | 275 mm |
Weight & dimensions | |
---|---|
Height | 50 mm |
Depth | 244 mm |
Width | 244 mm |
Other features | |
---|---|
Weight | 800 g |
