ASUS RS520QA-E13-RS8U/3200W Socket SP5 Rack (2U) Silver
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £3,328.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview

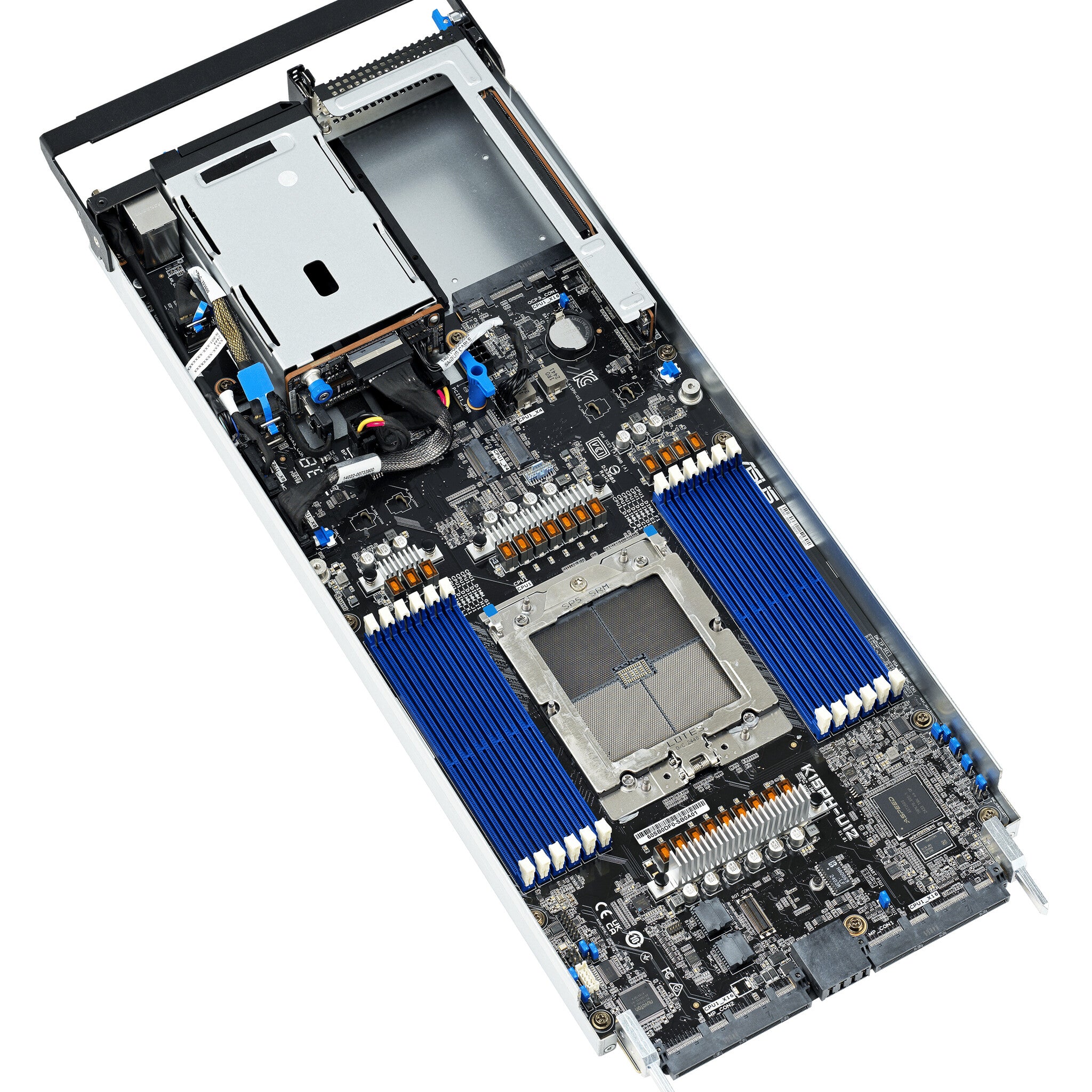

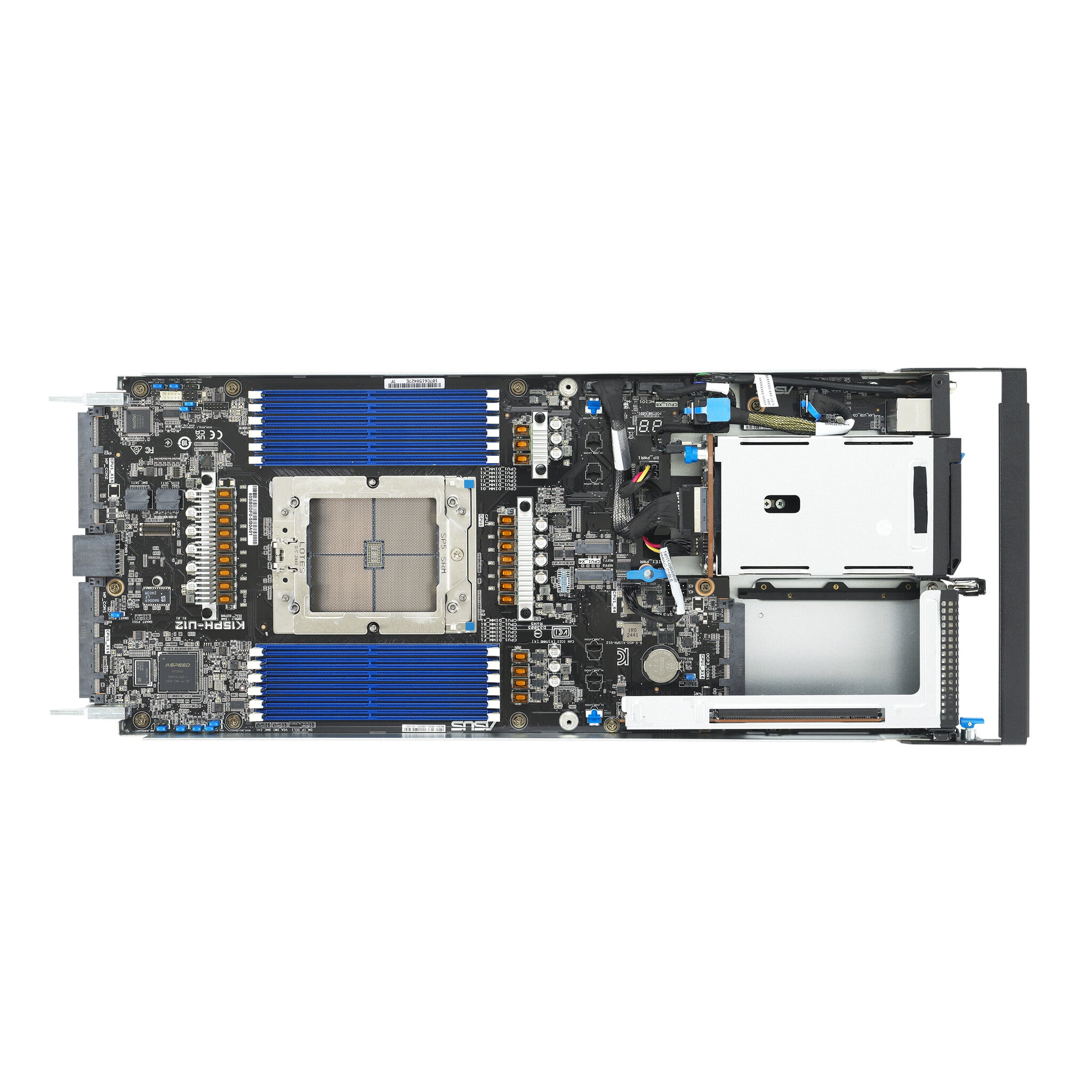

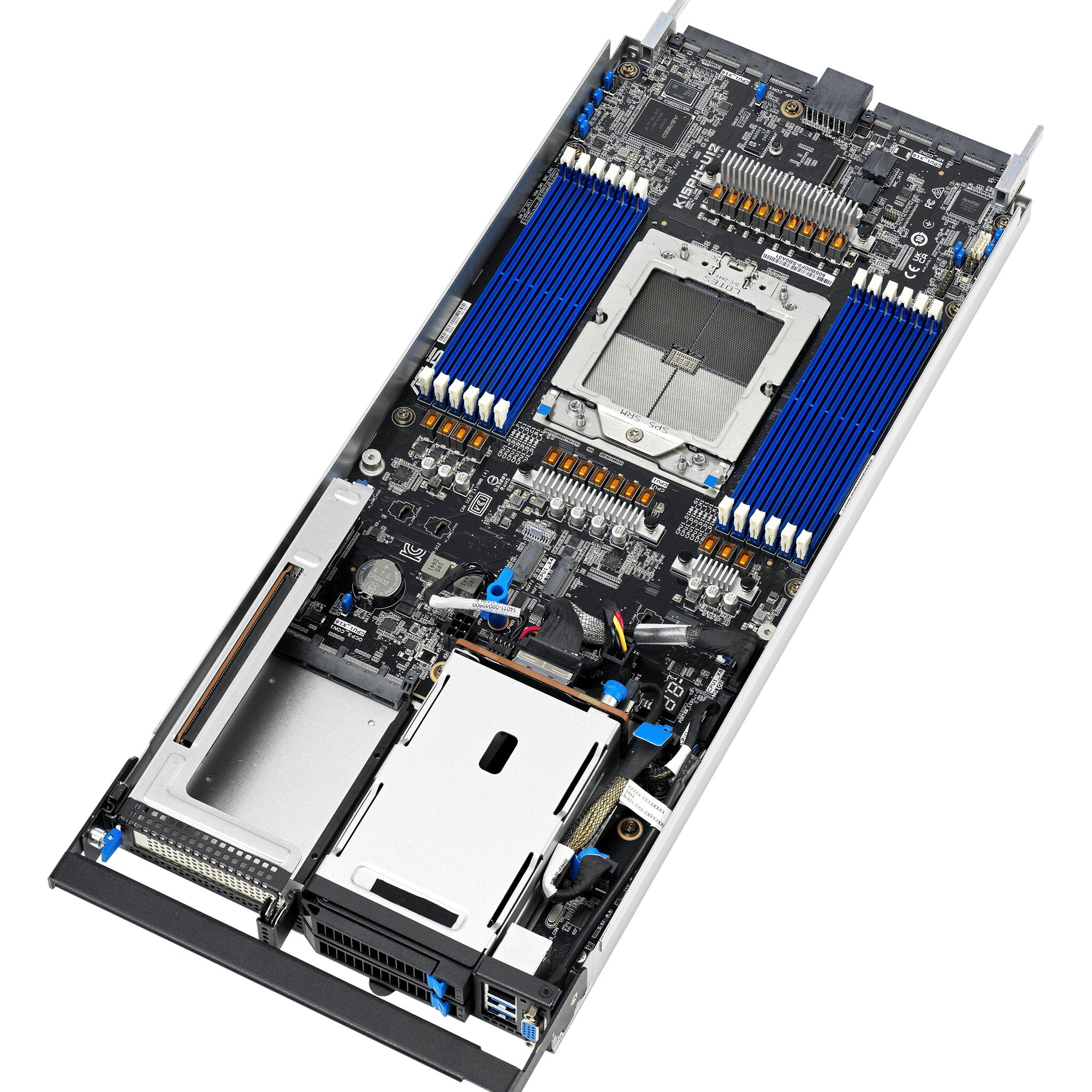

- Powerful performance: Powered by a single AMD EPYC 9005 Turin processor with 12 DIMMs supporting up to 6400MHz (1DPC), built for high scalability, dense computing, and diverse workloads
- High memory expansion: Optional CXL-enabled design supports eight additional DIMMs per node at 4400MHz (2DPC), delivering high capacity and cost-efficient scalability

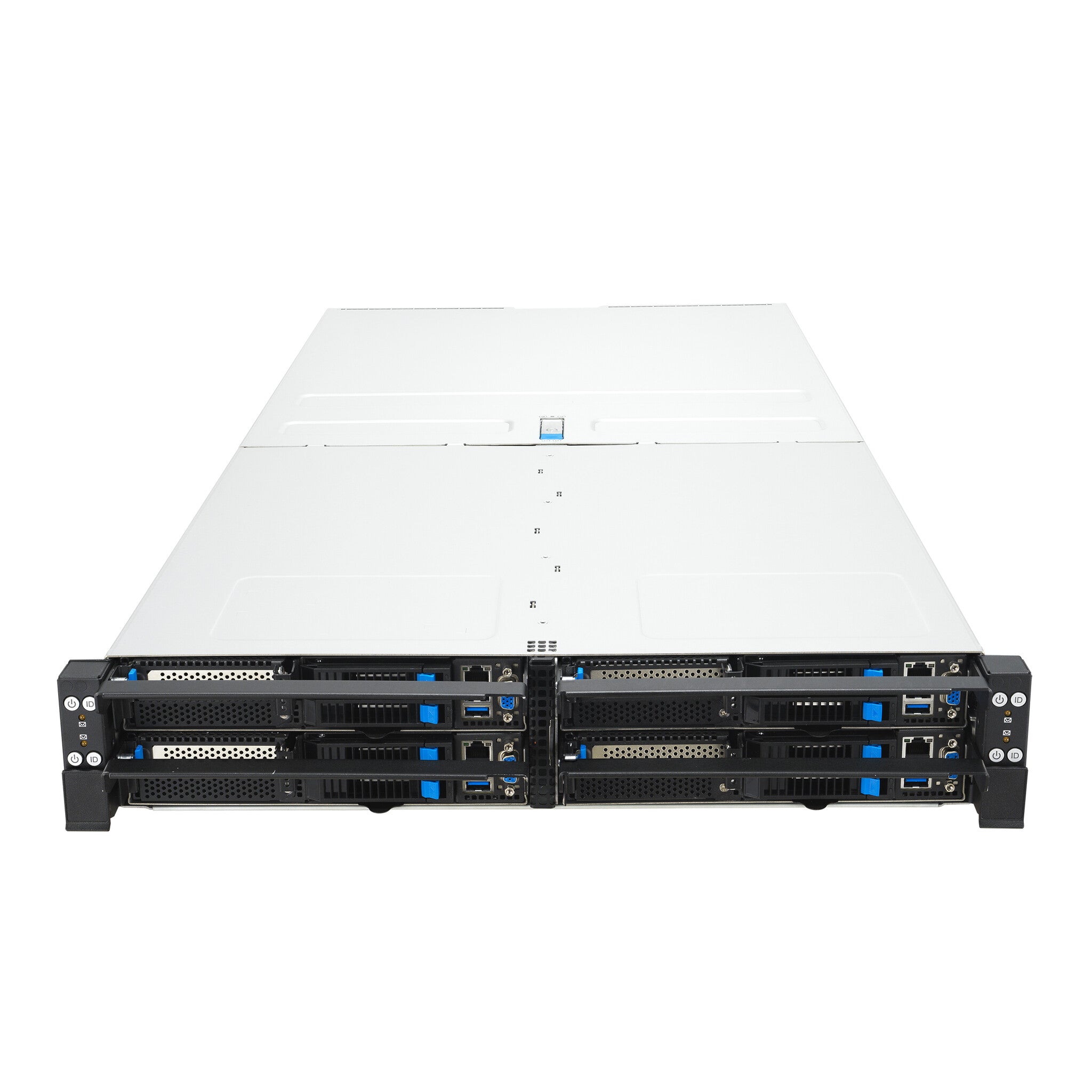

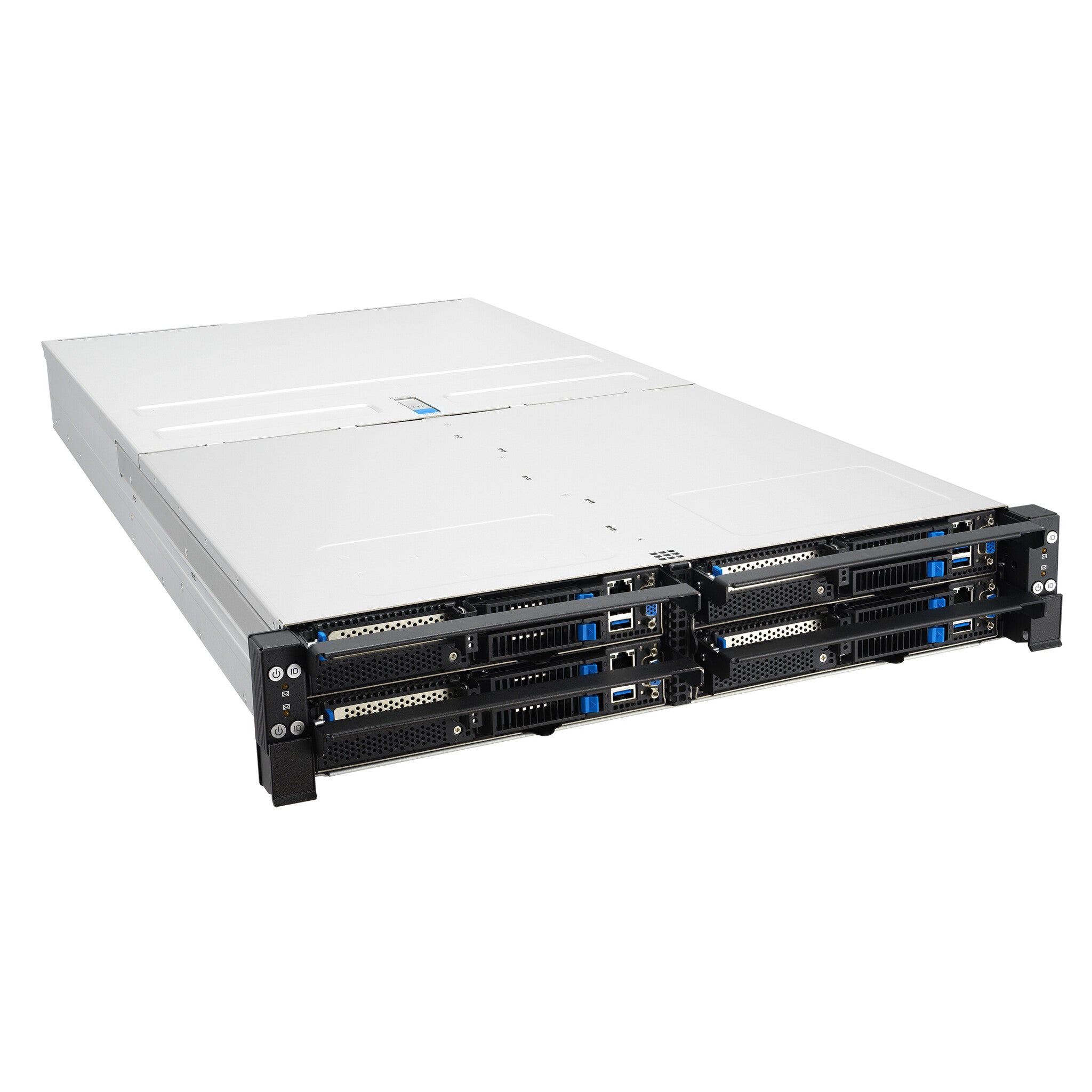

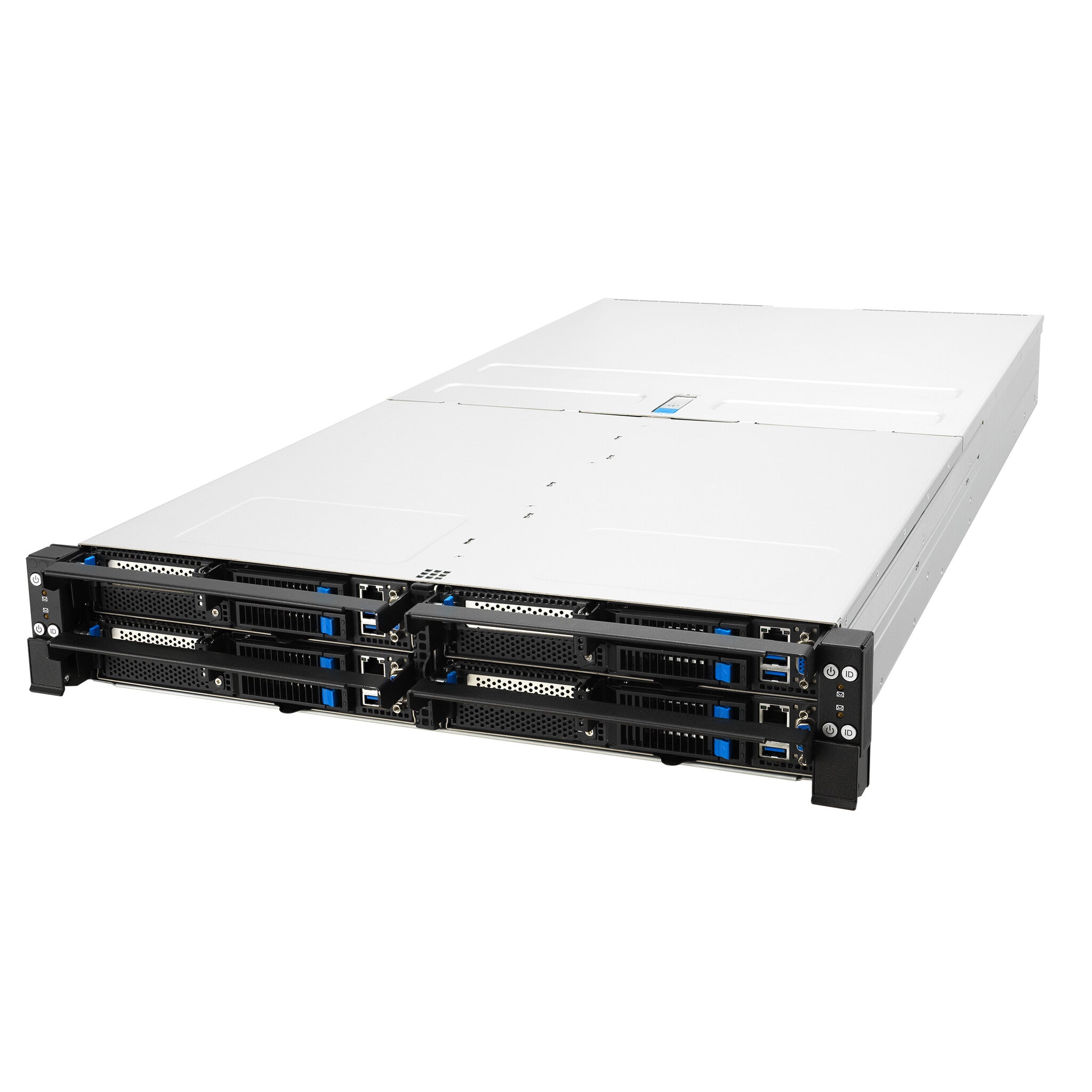

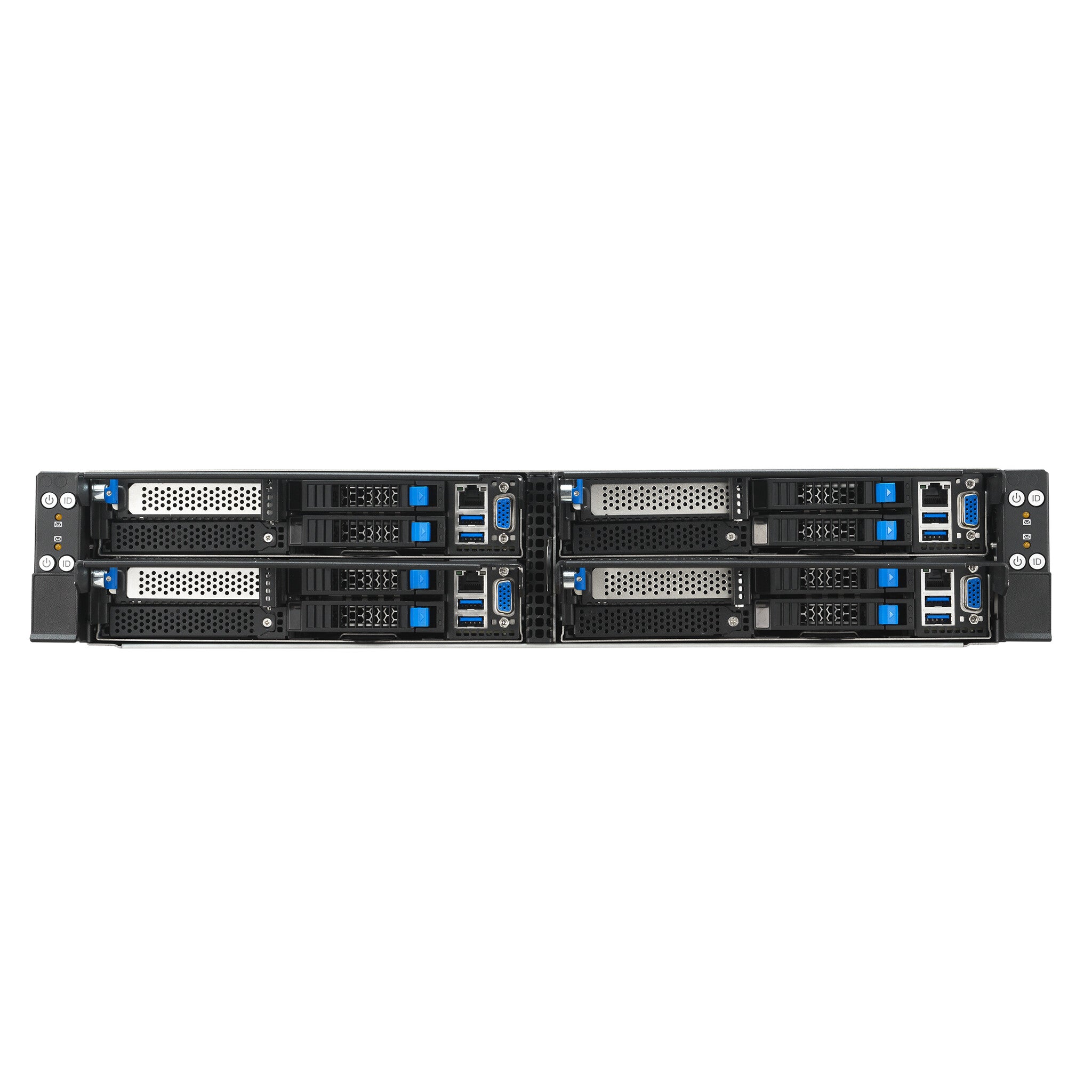

- Flexible-access design: Front-access layout allows IT staff to service the server without entering hot aisles, enhancing convenience and uptime

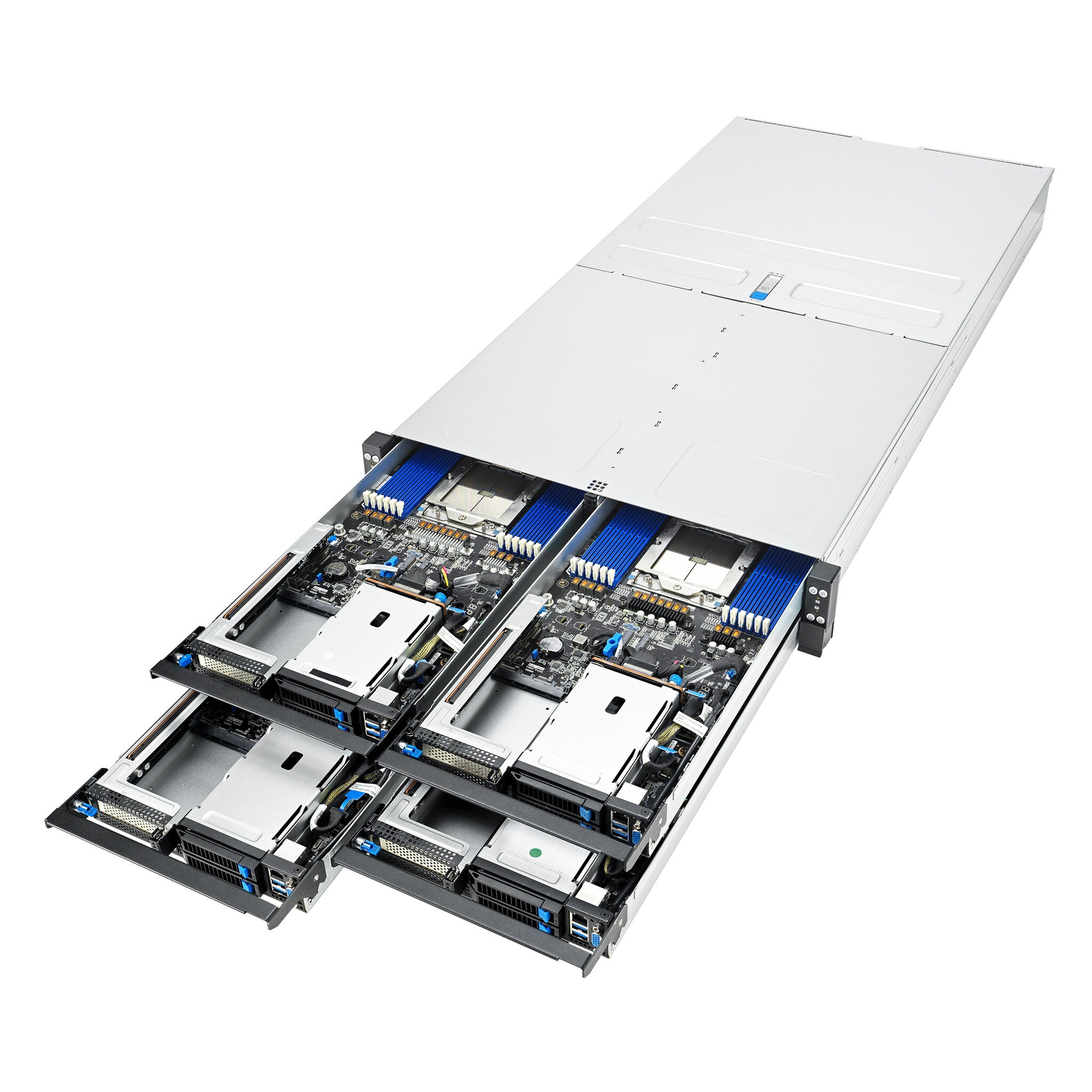

- Tool-less maintenance: Ergonomic handle, quick-release top cover, and tool-less brackets for PCIe, M.2 riser, and backplane simplify servicing and upgrades
- Advanced air cooling: Supports up to 500W TDP CPUs with exceptional thermal performance using air-cooling, improving power efficiency
- Smarter IT management: Includes ASUS ASMB12-iKVM with ASPEED AST2600, ASUS Control Center, and Root-of-Trust for secure, centralized management
CXL Memory Expander Ready
High memory capacity, High density computing
ASUS RS520QA-E13 supports optional CXL memory expansion in a single-socket 2U4N form factor, enabling greater flexibility and scalability for high-density workloads. It achieves up to 5TB of memory capacity per node with CPU memory operating at 1DPC speed to deliver high memory bandwidth –making it an ideal solution for memory-intensive applications in modern data centers, especially suited for EDA workloads and HPC.
Specifications
Processor
| Number of processors supported | 1 |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket SP5 |
| Built-in processor | No |
Memory
| Maximum internal memory | 2.56 TB |
|---|---|
| Supported DIMM module capacities | 32GB, 64GB, 128GB, 96GB |
| Supported memory types | DDR5-SDRAM |
| Number of DIMM slots | 20 |
Show all 34 specificationsShow fewer specifications
Storage
| Supported storage drive interfaces | M.2, Serial ATA, Serial Attached SCSI (SAS) |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Number of 2.5" bays | 2 |
| Hot-swap HDD bays | Yes |
| Number of storage drives supported | 4 |
Graphics
| On-board graphics card memory | 64 MB |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
Network
| Ethernet LAN | Yes |
|---|
Ports & interfaces
| VGA (D-Sub) ports quantity | 1 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Expansion slots
| PCI Express x16 (Gen 5.x) slots | 1 |
|---|
Design
| Number of fans | 4 fan(s) |
|---|---|
| Cooling type | Active |
| LED indicators | Power, LAN, HDD |
| Product colour | Silver |
| Chassis type | Rack (2U) |
Power

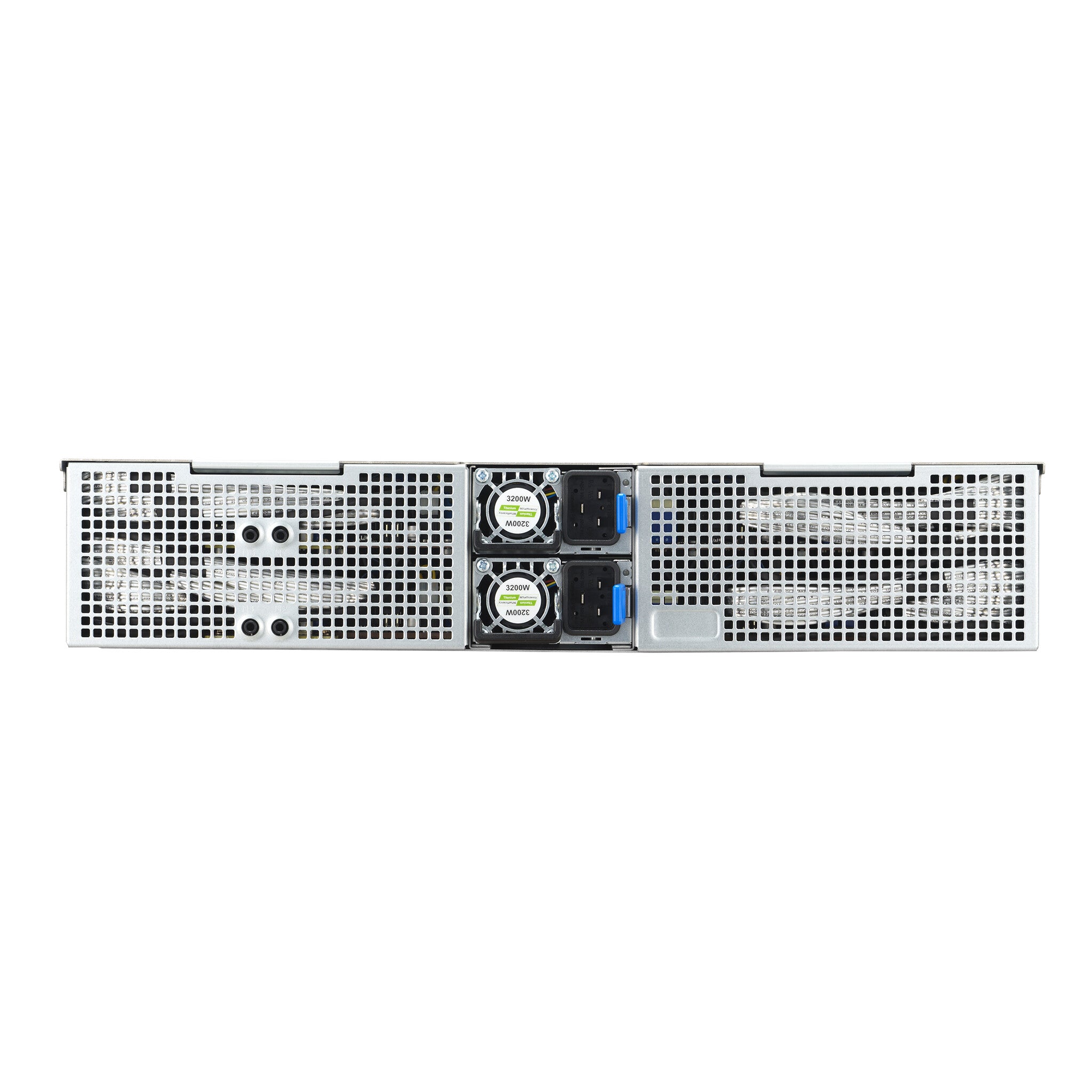

| Power supply | 3200 W |
|---|
Operational conditions
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Width | 446 mm |
|---|---|
| Depth | 900 mm |
| Height | 87.2 mm |
| Weight | 23.7 kg |
