ASUS · MPN: 90SF0051-M06810
£2,674.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £891.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Poweredby the latest 2nd Gen Intel Xeon Scalable processors withIndustry-leading 2TB memory capability
  • 205W CPU with 16 DIMMs support

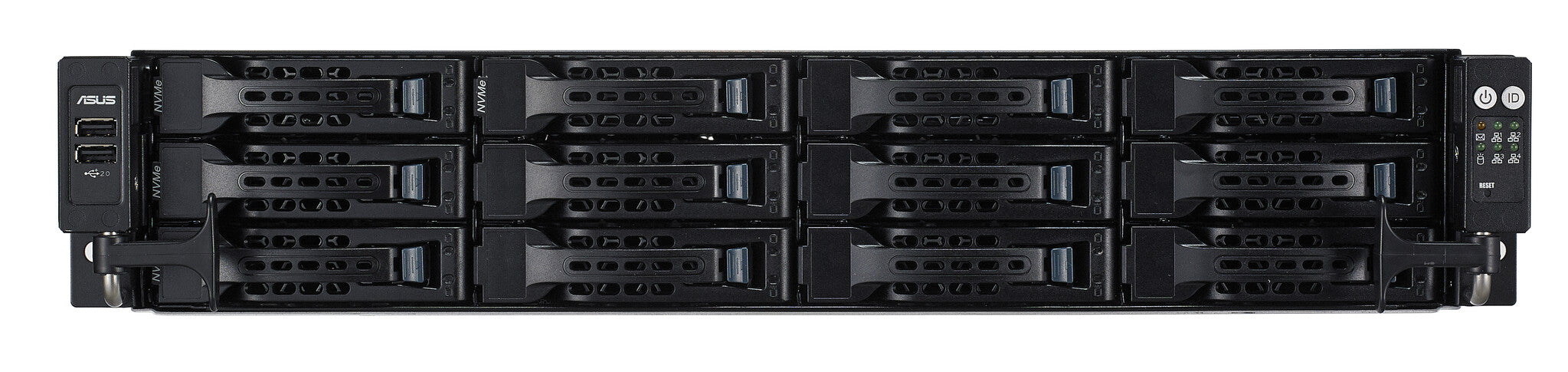

  • 12 x 3.5” Hot-Swap HDD Bays (8 x NVMe Supported)
  • Comprehensive IT infrastructure management solution - ASMB9-iKVM and ASUS Control Center (ACC)
  • Thermal Radar and Auto Fan Control
  • Rack-optimized Design
  • 6PCIe + 1 OCP Expansion Slots in 2U
  • Dual M.2 Support
  • OCP 2.0 Mezzanine

Industry-leading memory capability
With 16 RAM slots that support up to 2TB of fast, DDR4-2933MHz 3DS ECC RDIMMs or LRDIMMs, ASUS RS520-E9-RS12UV2 delivers industry-leading memory capability for your business.

The best storage interface combination for software-defined storage management

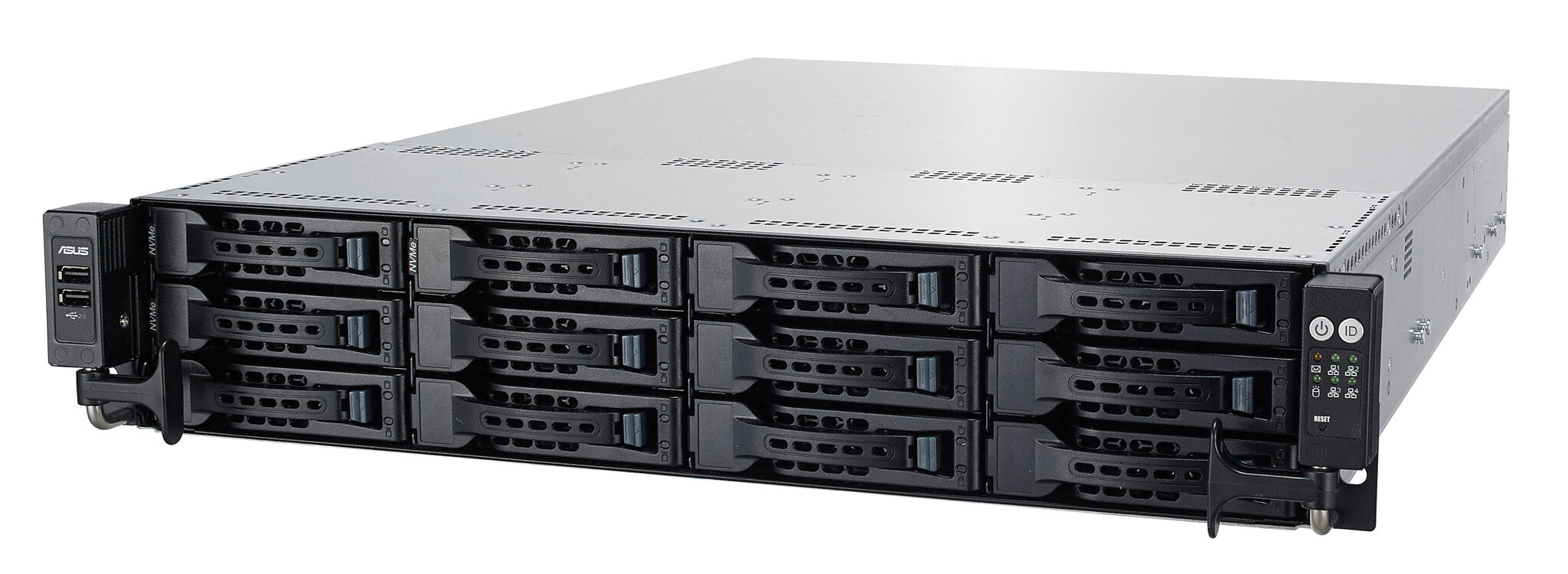

12 x 3.5" / 2.5’’ hot-swap storage bays (supports 4 x 2.5’’ NVMe or SAS or SATA devices)

Optimized storage with hot-swap bays and dual M.2

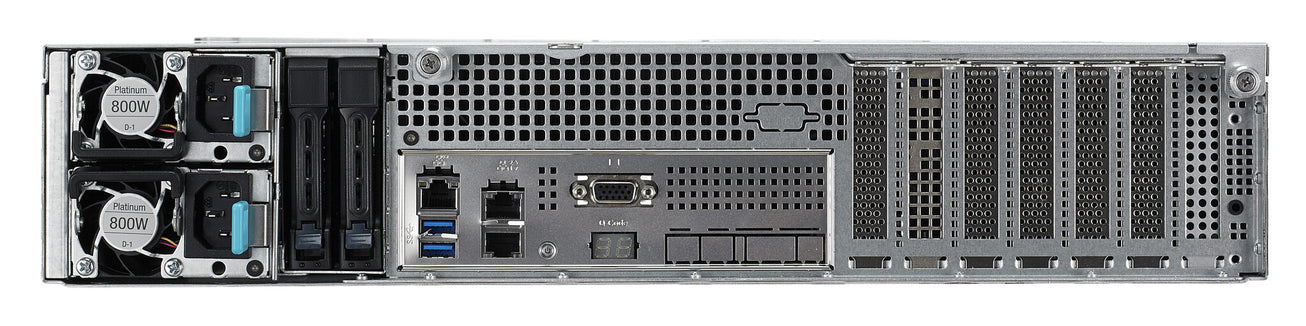

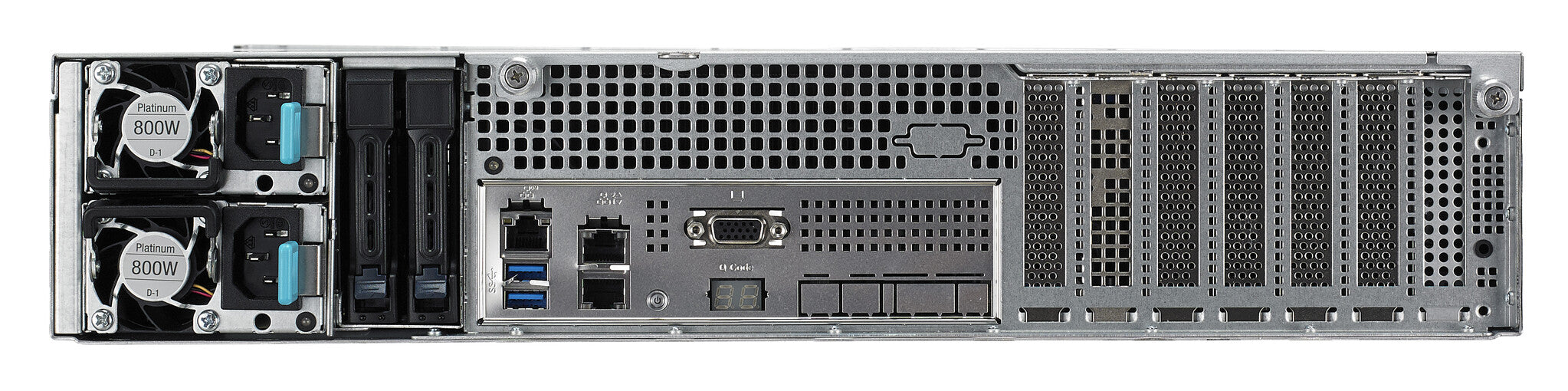

ASUS RS520-E9-RS12UV2 features two additional 2.5" hot-swap storage bays on its back panel and dual onboard M.2 slots that can be used for the main system disk as well as for memory caching. The dual M.2 SSDs can be configured as PCI-E RAID with Intel® VROC to speed up storage caching.

Powered by the latest 2nd Gen Intel Xeon Scalable processors
RS520-E9-RS12UV2 is built on the latest 2nd Gen Intel Xeon Scalable processors to deliver incredible 2U server performance, packing incredible power into minimal space. RS520-E9-RS12UV2 offers breakthrough performance with the latest Intel Optane™ DC persistent memory with an over 88% gain in input/output operations per second (IOPS) compared with the same configuration in SSD. Featuring the latest Intel Deep Learning Boost technology to enhance deep learning capabilities, RS520-E9-RS12UV2 achieves a 3.1X performance improvement in the ResNet-50 and SSD VGG-16 models, fully demonstrating the inference capability of the new platform.

Smart thermal design for energy efficiency
ASUS RS520-E9-RS12UV2 features a smart Thermal Radar and Auto Fan Control design with more ambient thermal sensors for the CPU, memory, GPU and front-panel board that provide improved temperature monitoring and enable dynamic fan speed adjustment for better power efficiency.

Comprehensive IT infrastructure management solution
The latest ASMB9-iKVM module enables remote BIOS updates, fans control, standalone KVM/Java utilities, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics — even if the server operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching. Learn more about ACC

Rack-optimized thermal performance

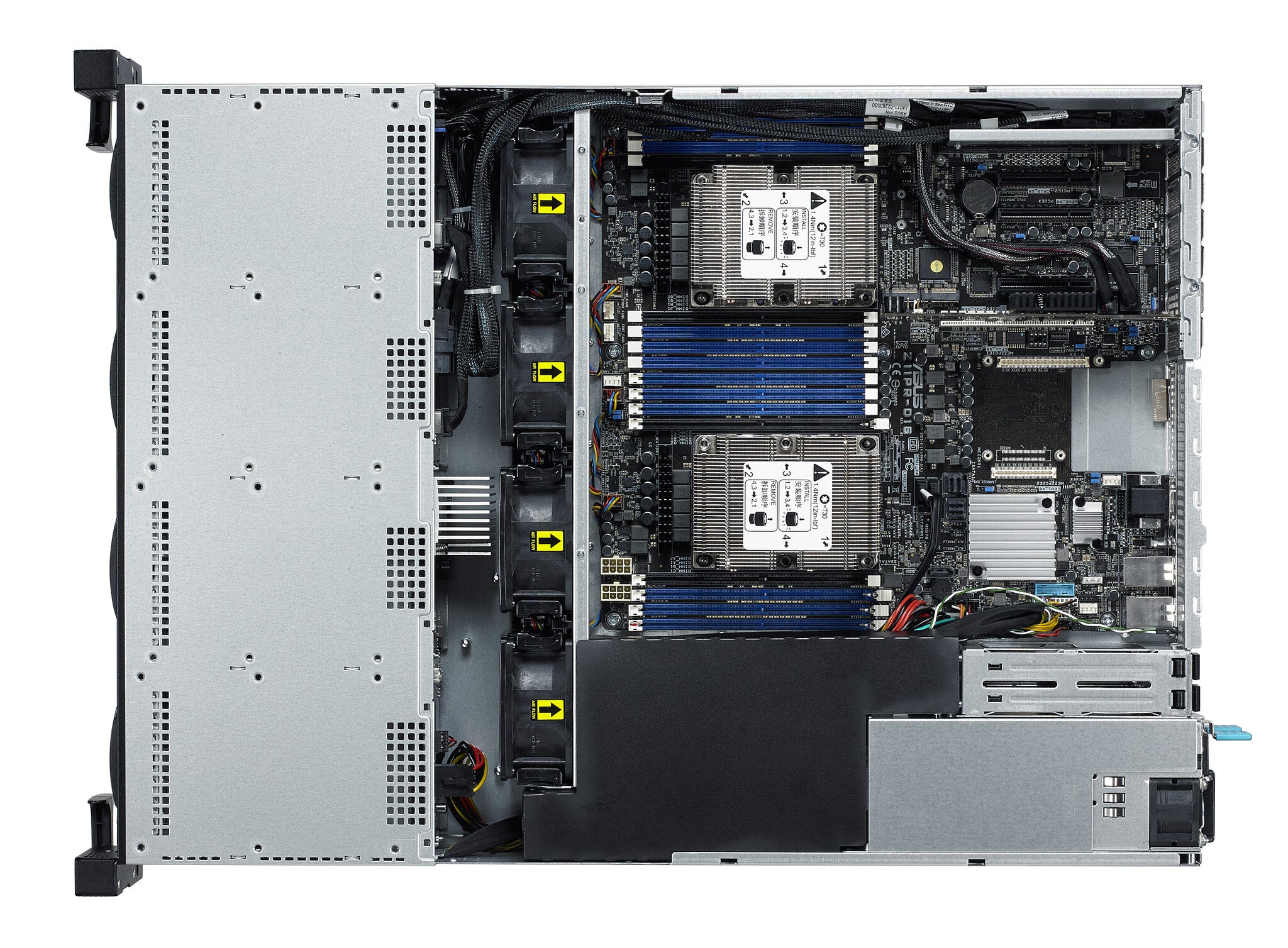

With the CPU and memory configured in a front parallel design that enables efficient airflow for excellent thermal performance, ASUS RS520-E9-RS12UV2 is optimized for rack placement.

Flexibility to grow with your business
ASUS RS520-E9-RS12UV2 comes with a wide range of ports to provide a flexible and cost-effective computing environment with the ability to grow together with your business.

Specifications

Processor

Number of processors supported2
Processor familyIntel® Xeon® Scalable
Processor manufacturerIntel
Processor socketLGA 3647 (Socket P)
Motherboard chipsetIntel® C621
Built-in processorNo

Memory

Supported RDIMM clock speeds2133,2400,2666,2933 MHz
Maximum internal memory4.1 TB
Supported DIMM module capacities4GB, 8GB, 32GB, 64GB, 128GB, 256MB
Supported memory typesDDR4-SDRAM
Number of DIMM slots16
Show all 54 specificationsShow fewer specifications

Storage

RAID levels0, 1, 5, 10
Supported storage drive interfacesM.2, Serial ATA III
Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,3.5,M.2
Hot-swap HDD baysYes
Number of storage drives supported16

Graphics

On-board graphics card memory64 MB
On-board graphics card modelAspeed AST2500

Network

LAN controllerIntel® I350-AM2
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Ports & interfaces

Number of SATA III connectors11
VGA (D-Sub) ports quantity1
IPMI LAN (RJ-45) portYes
Ethernet LAN (RJ-45) ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 2.0 ports quantity2

Expansion slots

Number of M.2 (M) slots2
PCI Express x16 (Gen 3.x) slots2
PCI Express x8 (Gen 3.x) slots4

Features

Compatible operating systemsWindows Server 2019Windows Server 2016RHEL 6.8RHEL 6.9RHEL 7.XSUSE Enterprise 11 SP4SUSE Enterprise 12 SP1SUSE Enterprise 12 SP2SUSE Enterprise 15CentOS 6.8CentOS 7.2 (1511)CentOS 7.3 (1611)Ubuntu 16.04.2 LTSUbuntu 16.10Ubuntu 17.04ESXi 6.5 U1ESXi 6.7 U3RHEL 7.X

Design

Reset buttonYes
On/off switchYes
LED indicatorsHDD, LAN, Power
Product colourBlack
Chassis typeRack (2U)

Power

80 PLUS certification80 PLUS Platinum
Input current9.4 A
AC input frequency47 - 63 Hz
AC input voltage100 - 240 V
Number of redundant power supplies installed1
Number of redundant power supplies supported1
Redundant power supply (RPS) supportYes
Number of main power supplies1
Power supply800 W

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-40 - 60 °C
Storage relative humidity (H-H)20 - 90%

Weight & dimensions

Width444 mm
Depth615 mm
Height88 mm
Weight24.6 kg
