ASUS ROG -THOR-1000P3-GAMING power supply unit 1000 W 20+4 pin ATX ATX Black
Couldn't load pickup availability
- GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation
- "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance
- Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation

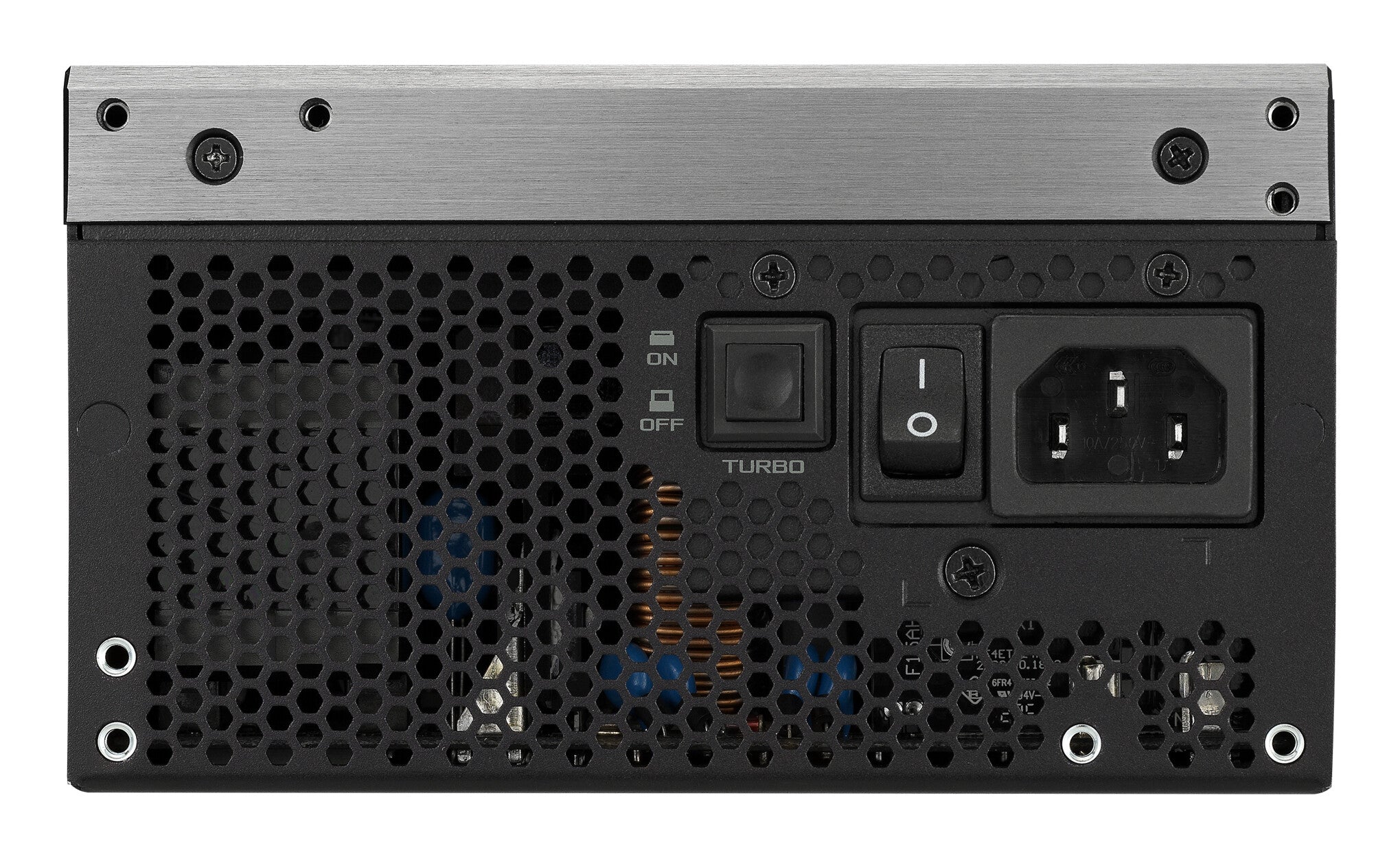

- Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions
- ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control
- Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs
- ATX 3.1 compatible: ROG Thor Platinum III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware
- Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety
- 80 PLUS Platinum certified: ROG Thor III utilizes low-ESR capacitors and premium components for industry-leading power efficiency
Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1000W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC build
ROG THOR 1000W PLATINUM III
ULTIMATE POWER. UNMATCHED STABILITY.
The ROG Thor 1000W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.
The ROG Thor 1000W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under power |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 25 A |
| Max output current (+12V) | 83.33 A |
| Max output current (+3.3V) | 30 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 125 W |
| Combined power (+12V) | 1000 W |
| Combined power (+3.3V) | 125 W |
| Power Factor Correction (PFC) type | Active |
| AC input voltage | 100 - 240 V |
| Total power | 1000 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| CPU power cable length | 100 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 75 cm |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 400,150 mm |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| SATA power cable length | 400,120 mm |
| Number of SATA power connectors | 7 |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 120000 h |
| Bearing technology | DBB |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| Illumination | Yes |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Product colour | Black |
| General | |
|---|---|
| Product family | ROG |
| Packaging content | |
|---|---|
| Cables included | CPU, PCIe, SATA, Peripheral (Molex) |
| Weight & dimensions | |
|---|---|
| Weight | 2.37 kg |
| Height | 86 mm |
| Depth | 150 mm |
| Width | 190 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 5.08 kg |
| Package height | 127 mm |
| Package depth | 241 mm |
| Package width | 379 mm |
