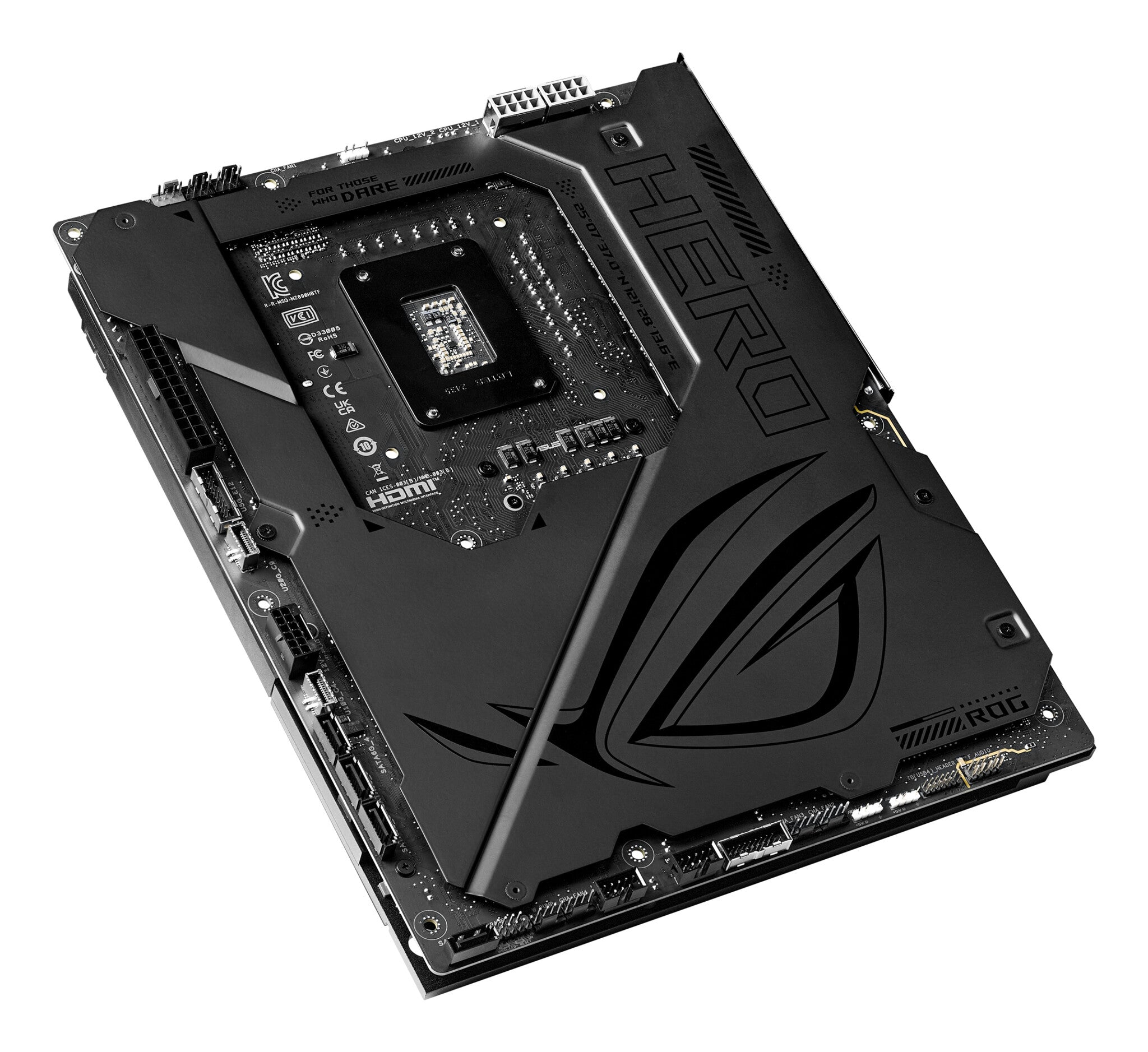

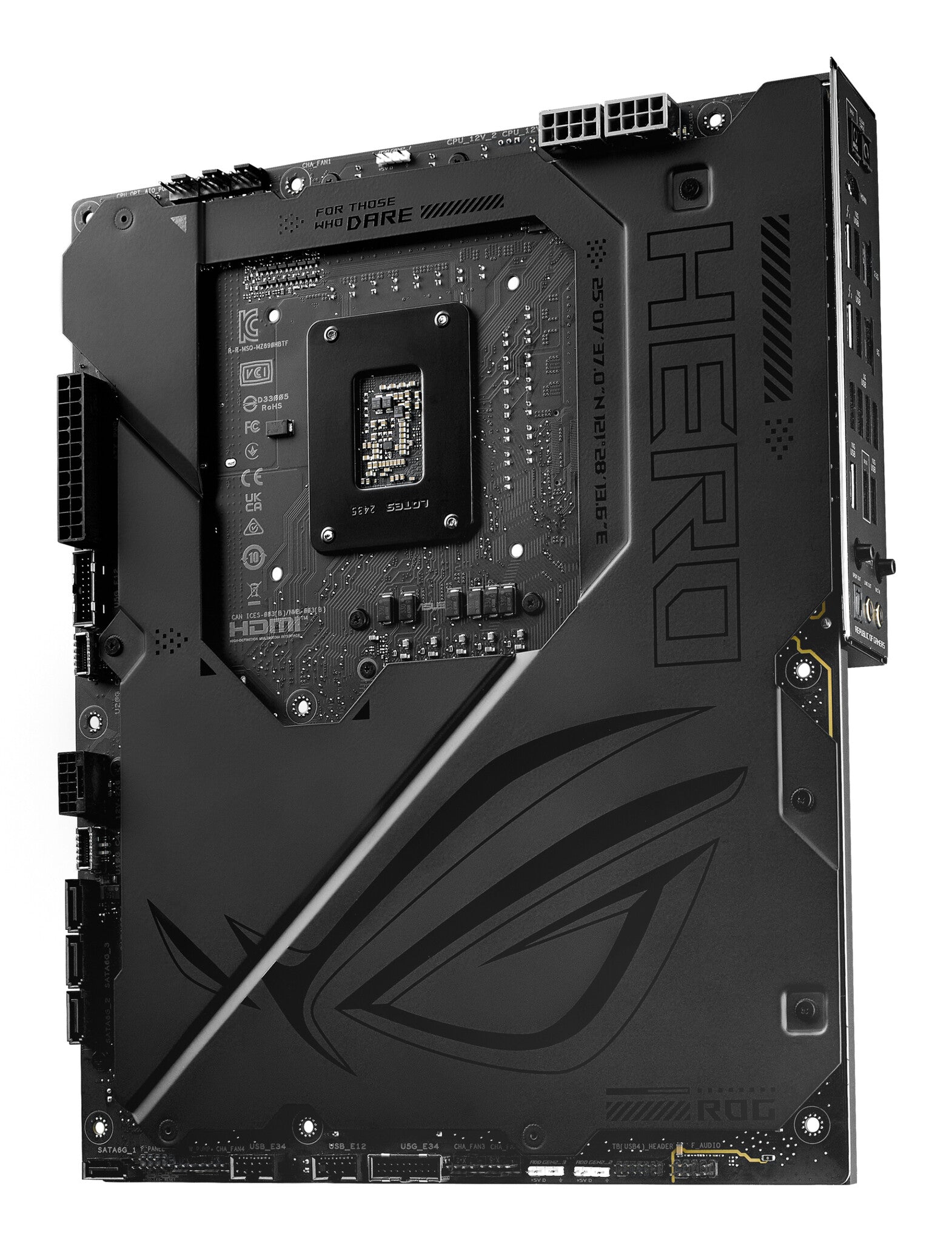

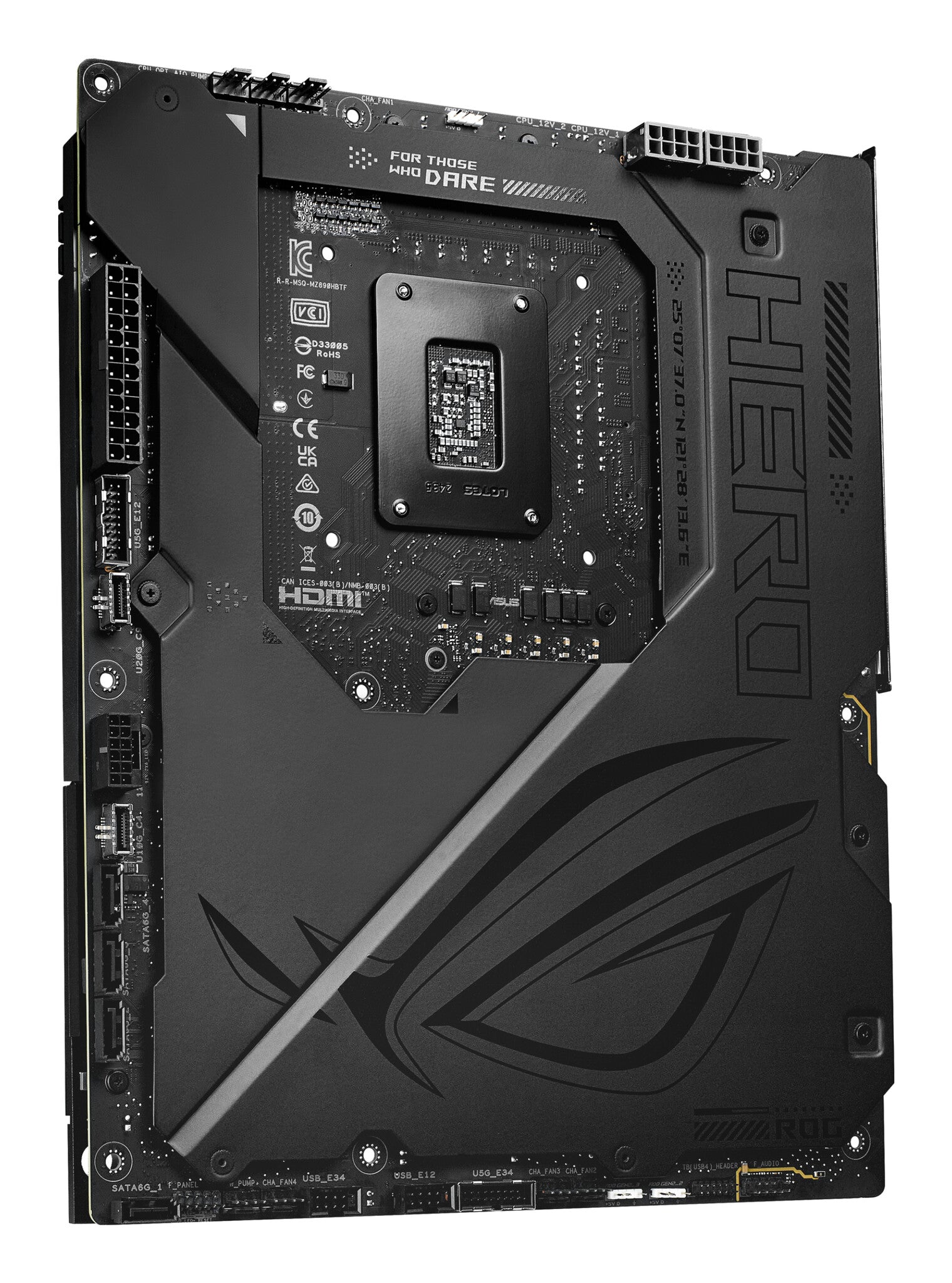

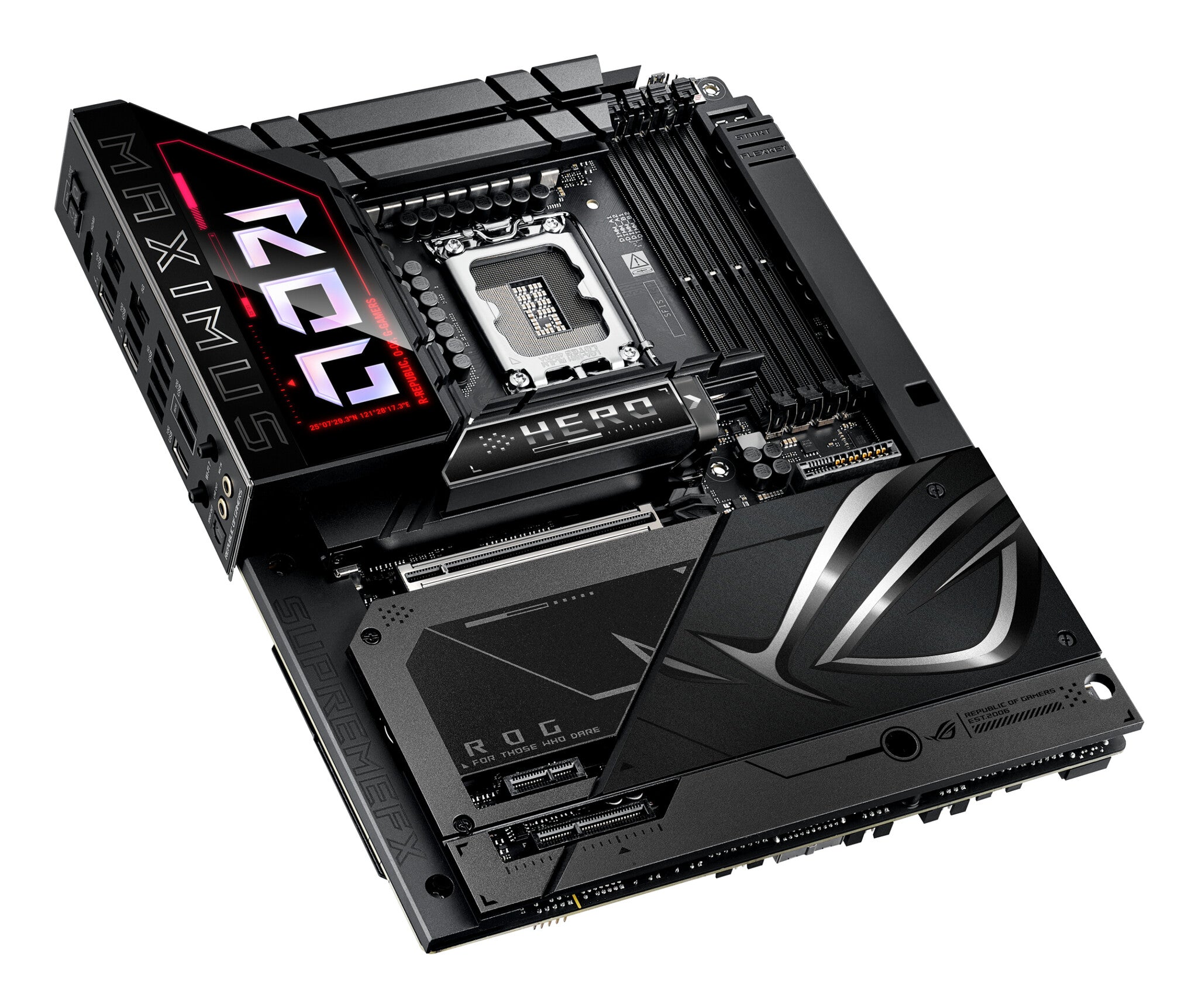

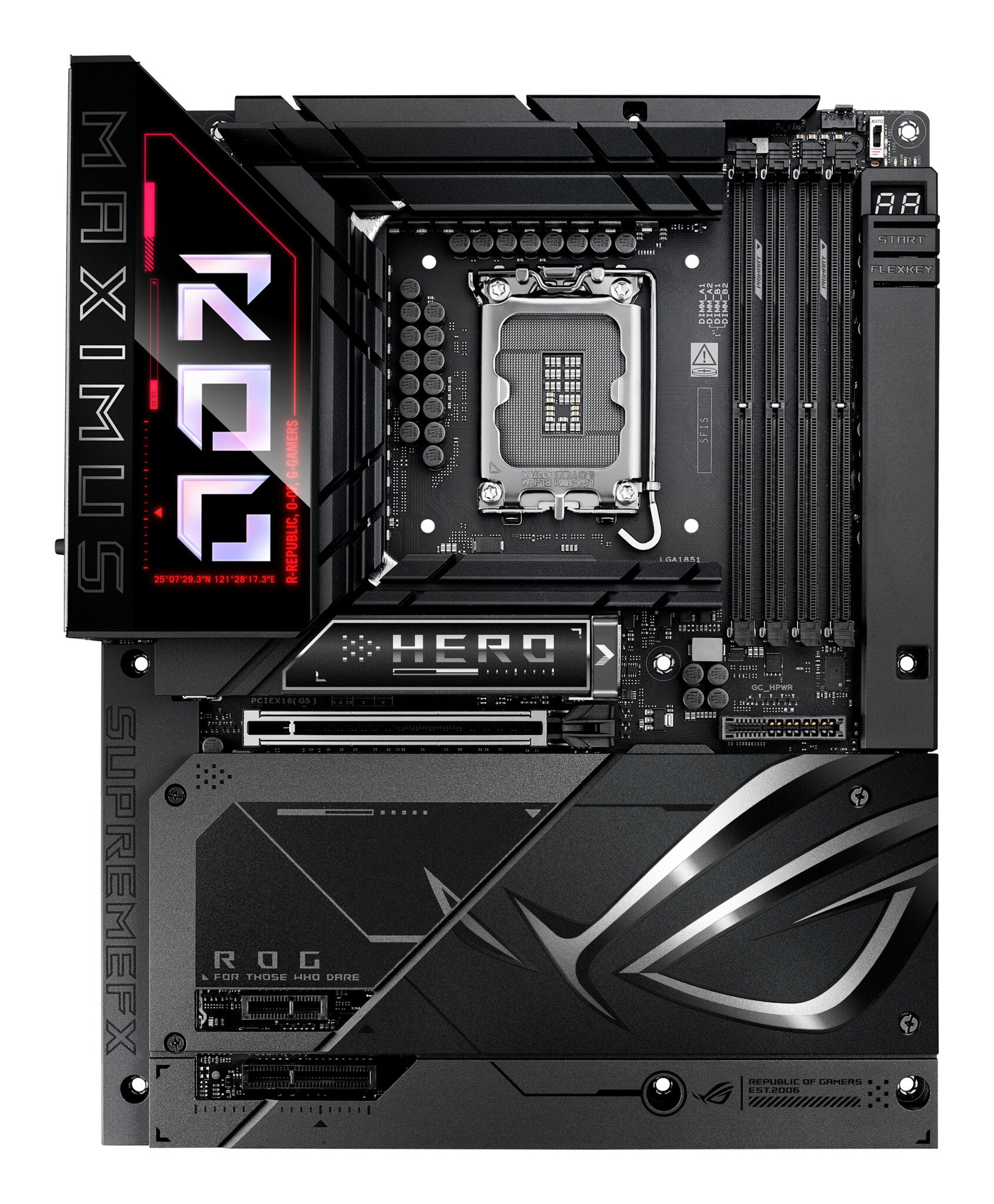

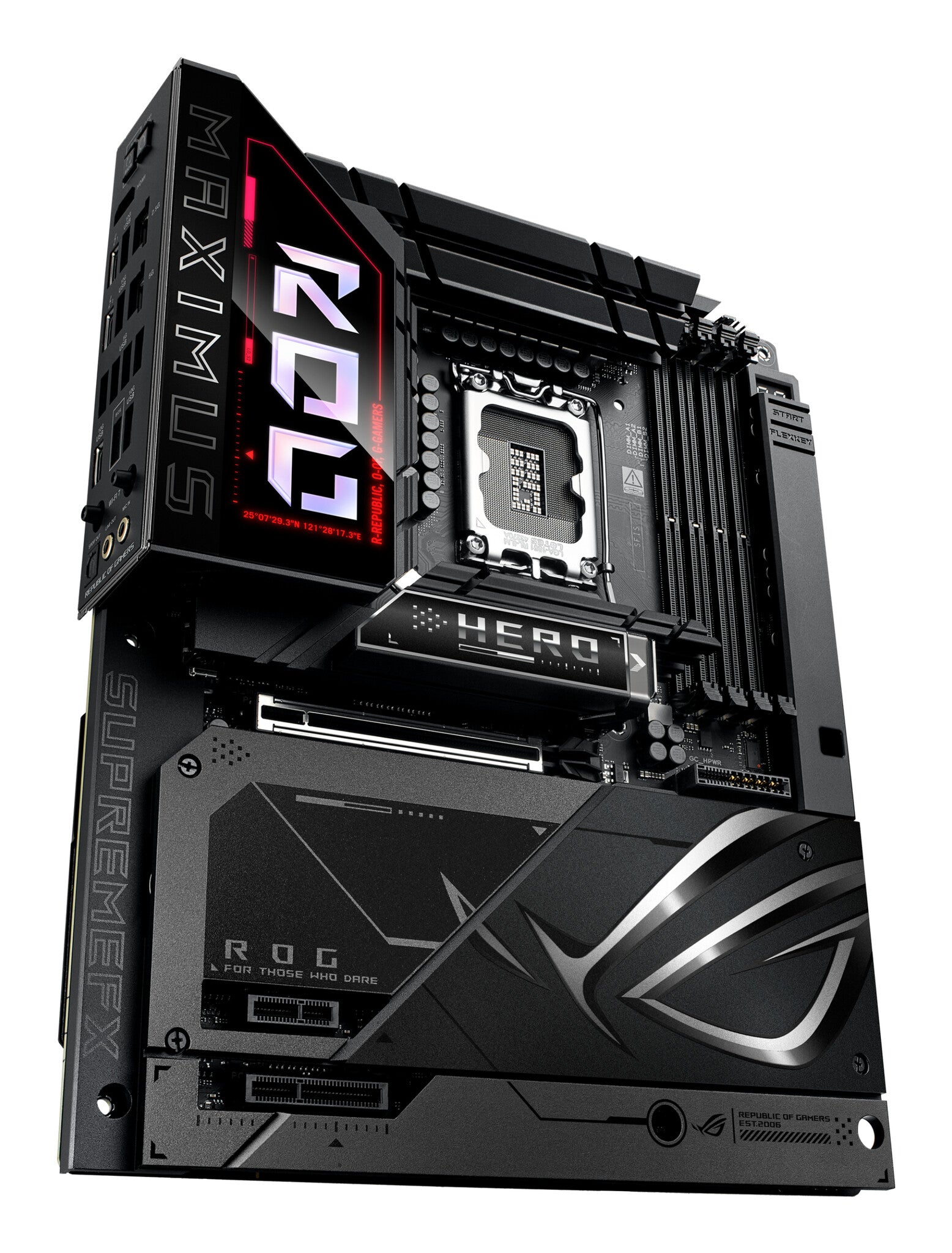

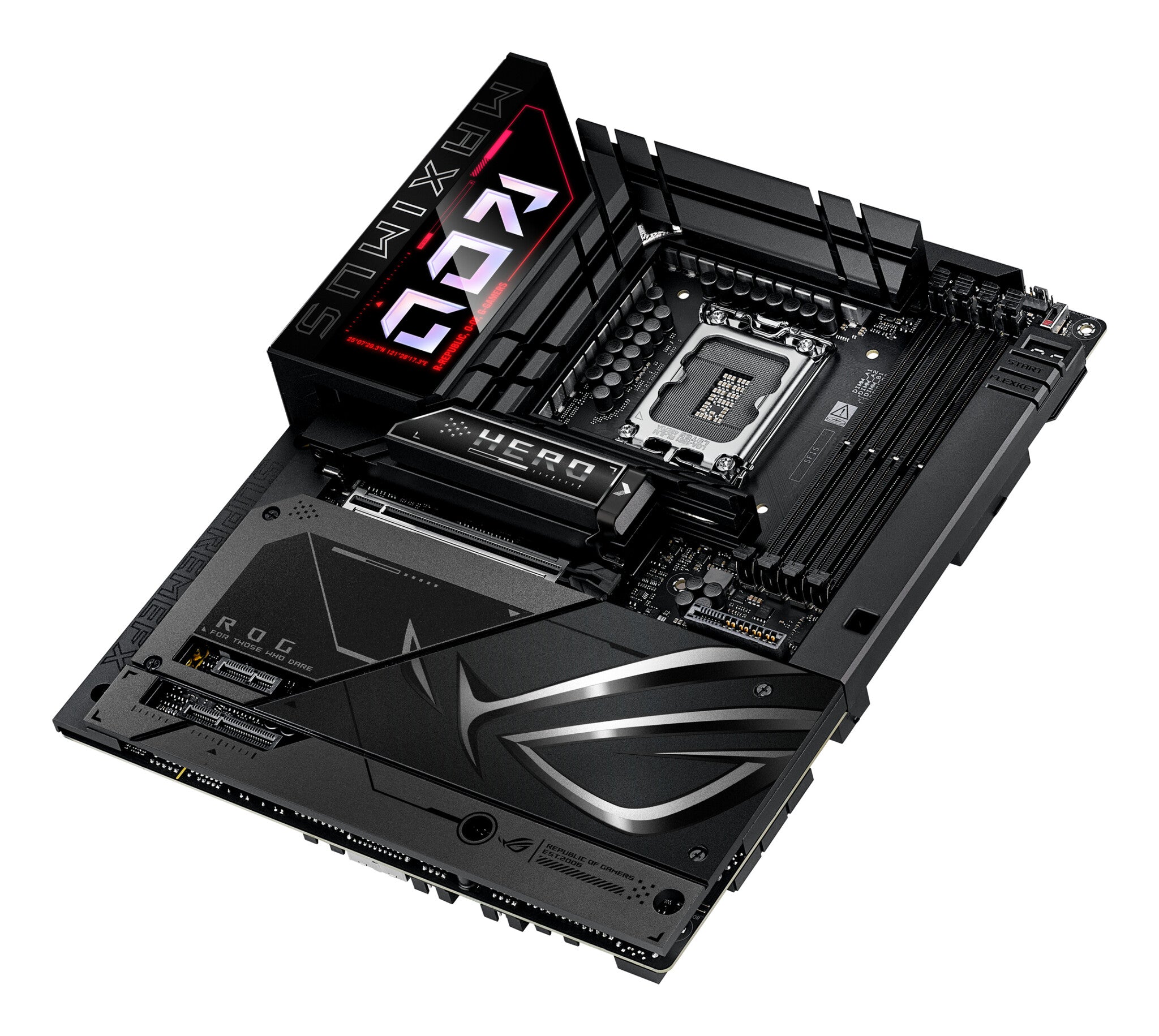

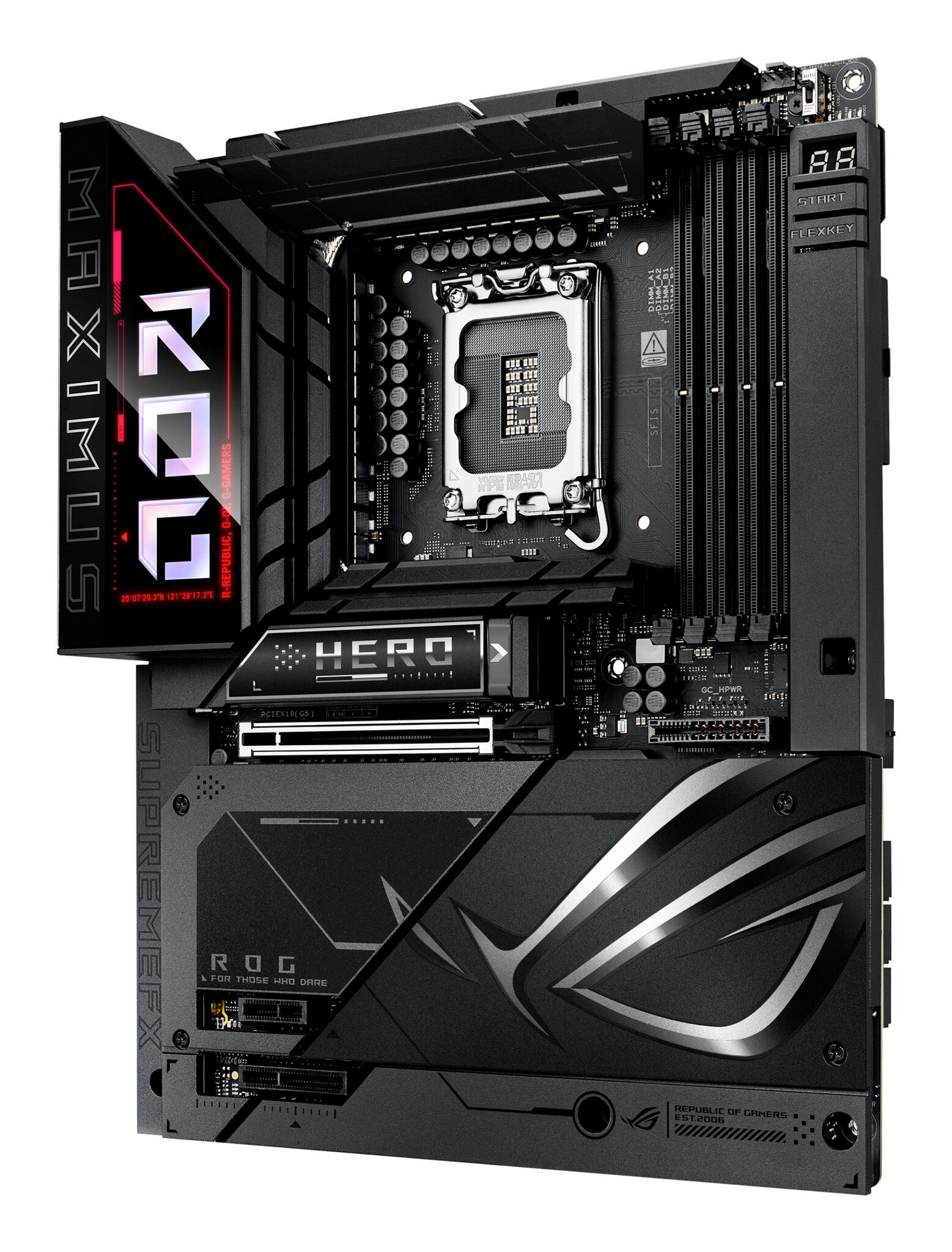

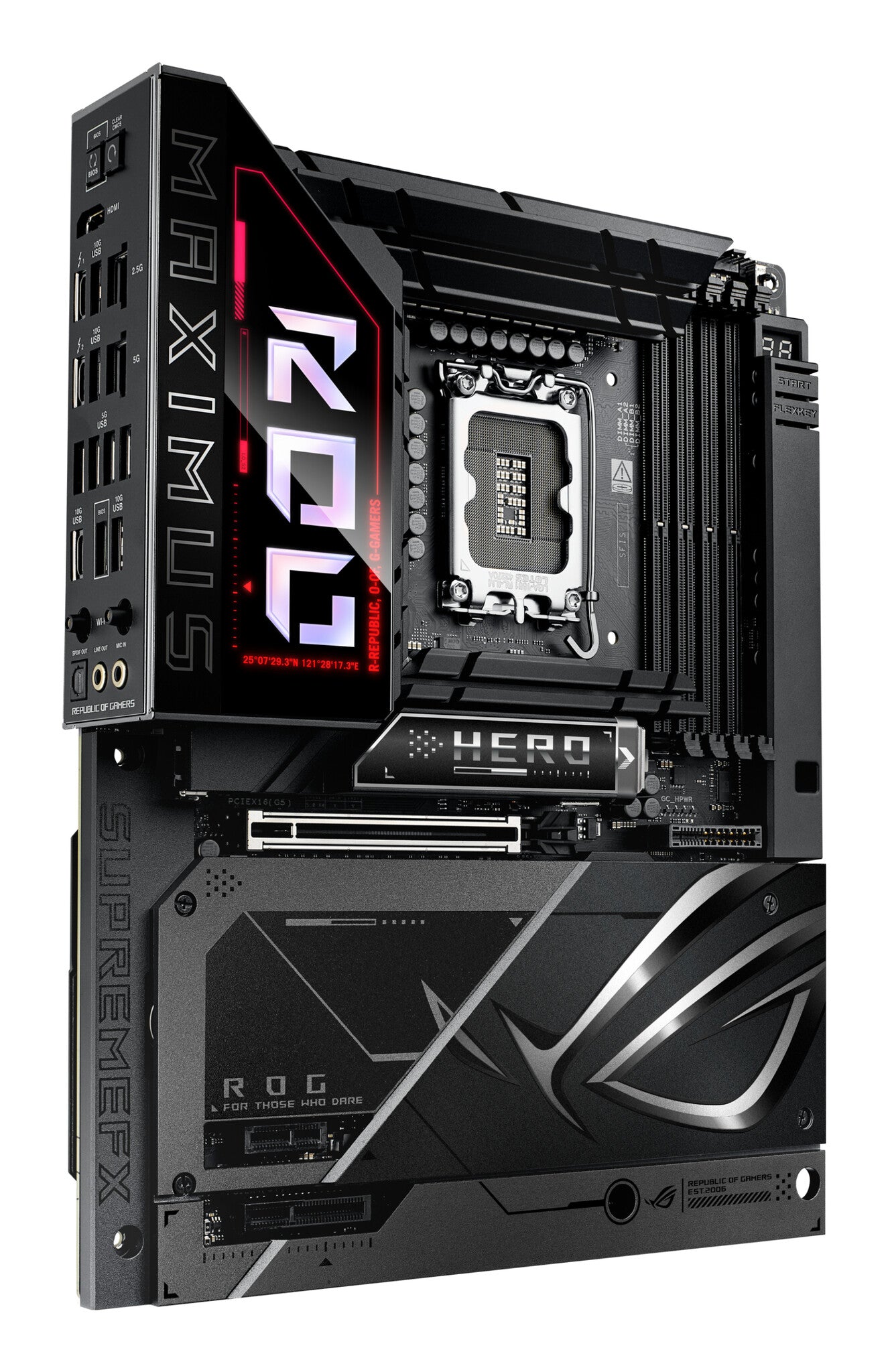

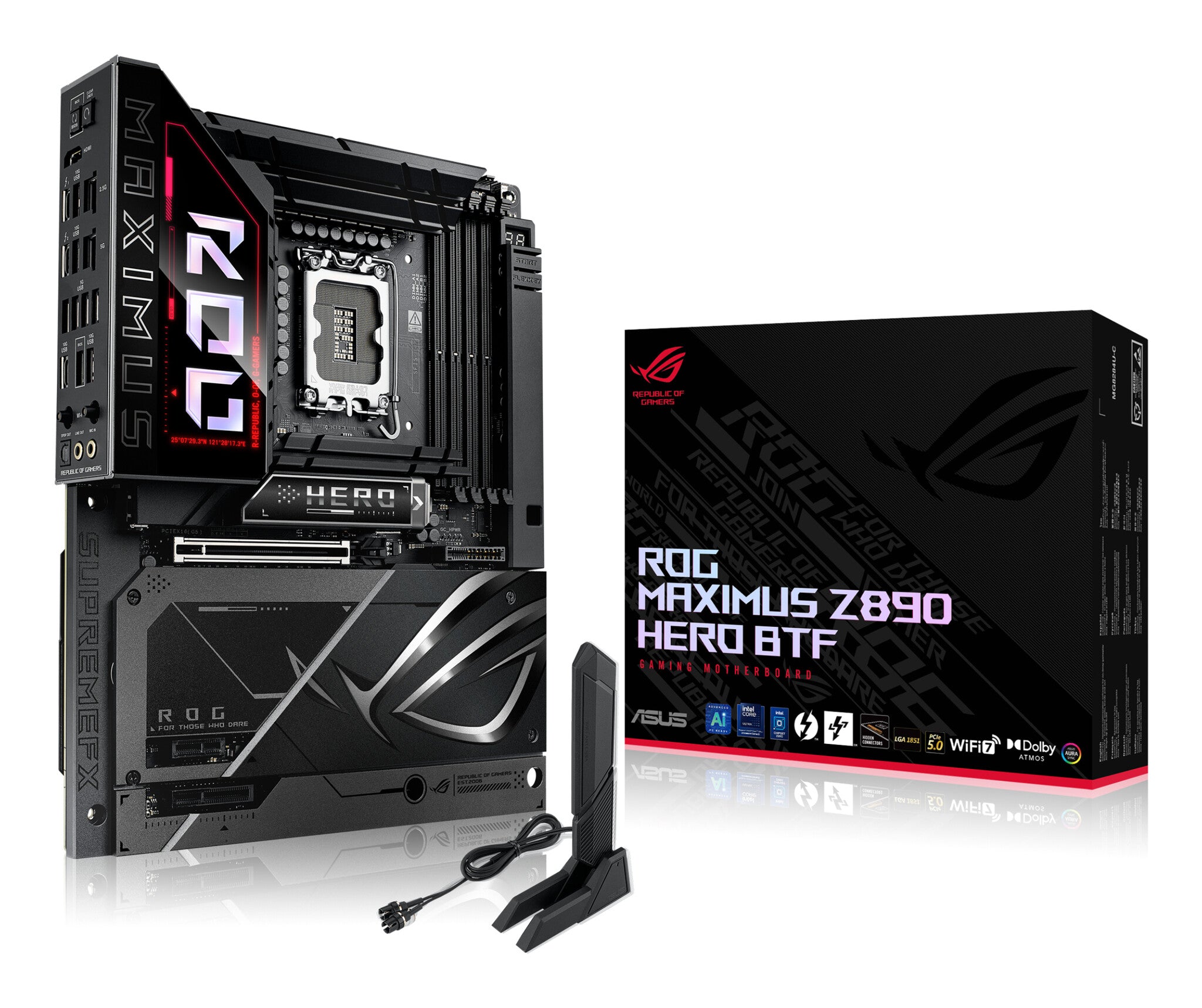

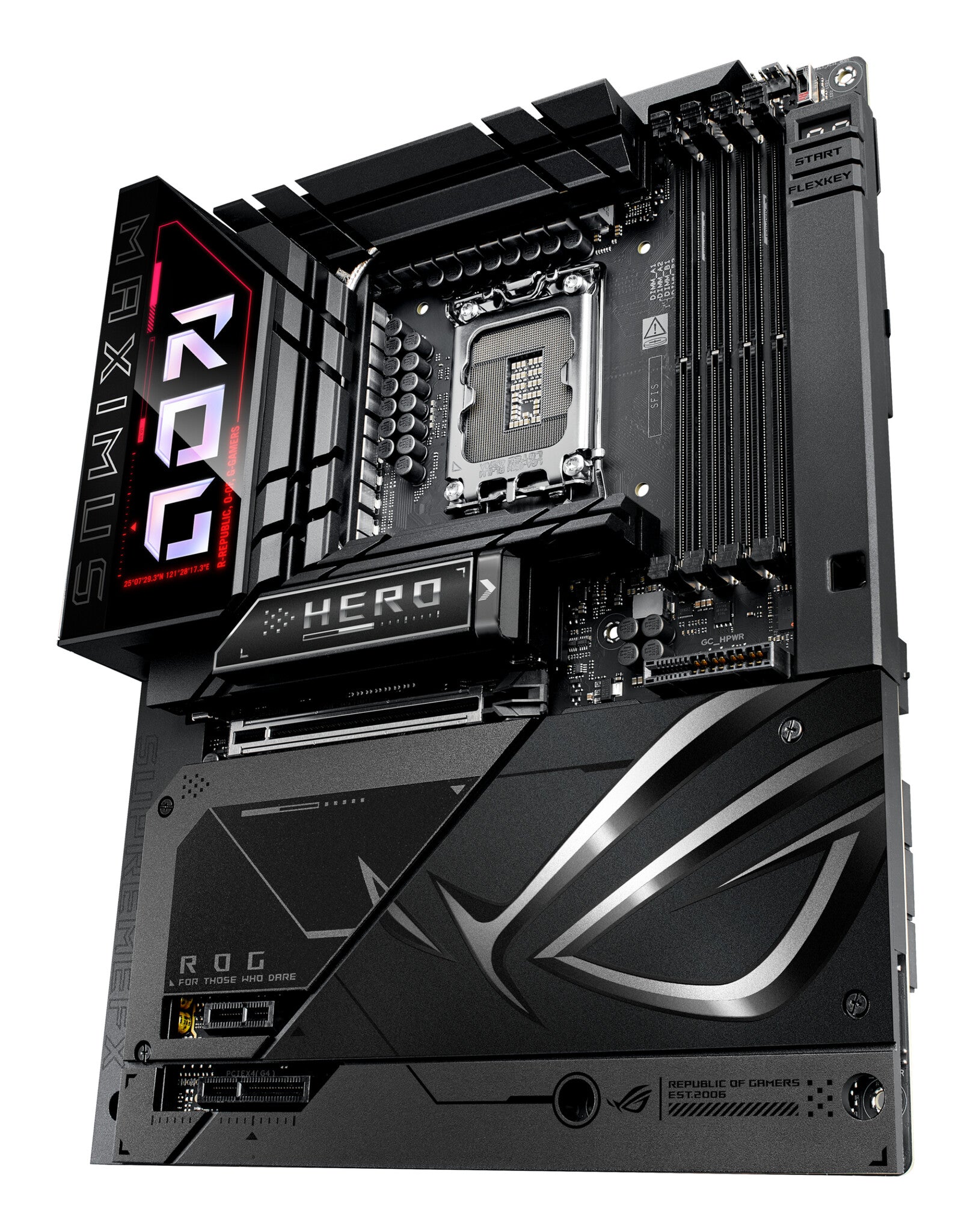

ASUS ROG MAXIMUS Z890 HERO BTF Intel Z890 LGA 1851 (Socket V1) ATX
£708.99
Couldn't load pickup availability
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel Z890 Realtek ALC4082 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 10
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet, 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

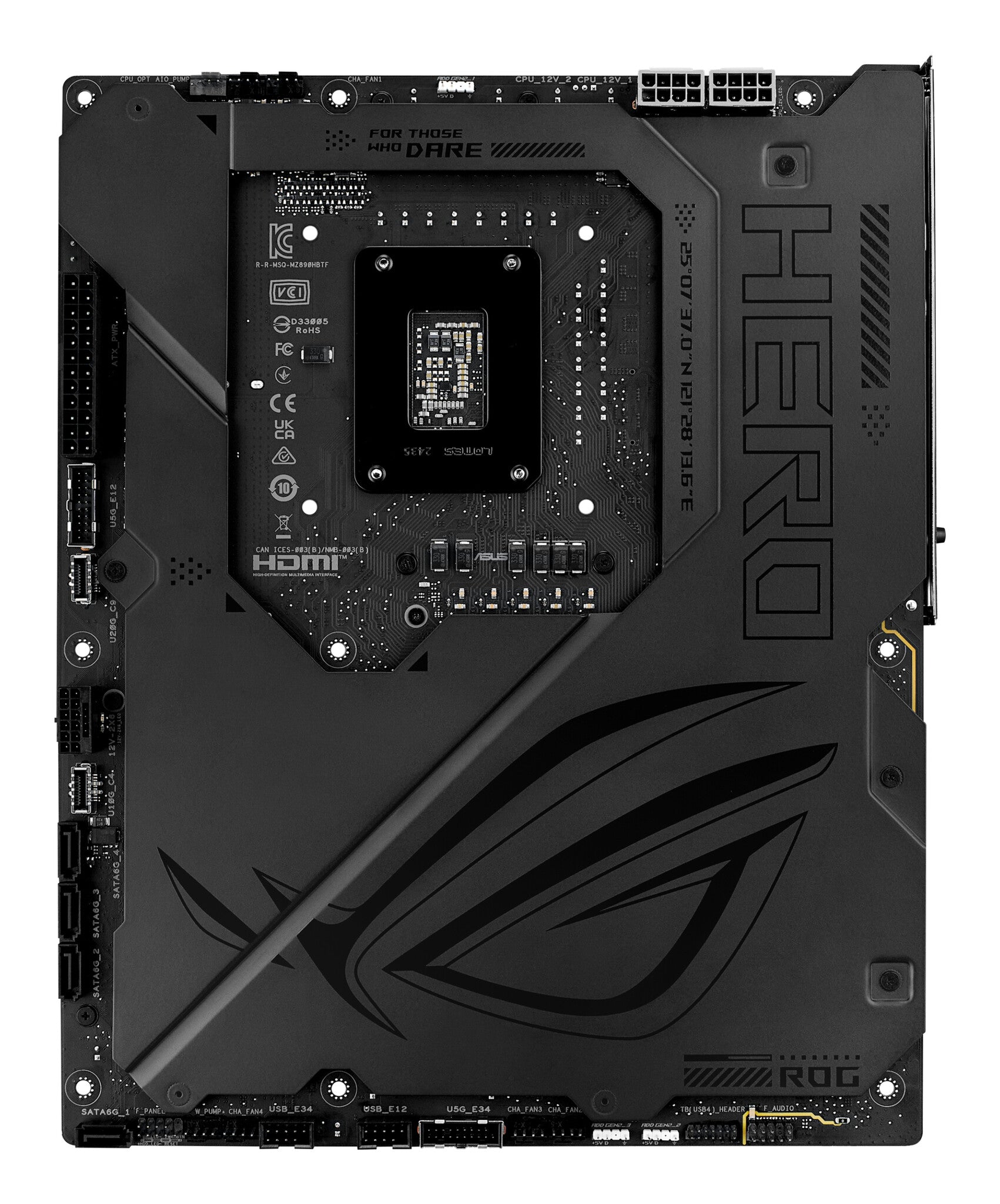

Intel® Z890 LGA 1851 ATX motherboard with a hidden-connector design and graphics card high-power slot for clean cable management, Advanced AI PC-ready, 22+1+2+2 power stages, NPU Boost, DDR5 slots with NitroPath DRAM Technology, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, three PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 PowerBoost, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim and full support for next-gen graphics cards, two Thunderbolt™ 4 ports, USB 20Gbps Type-C® front-panel connector, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting II.
| Processor | |
|---|---|
| Supported processor sockets | LGA 1851 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 256 GB |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of storage drives supported | 10 |
| Number of HDDs supported | 4 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| Thunderbolt headers | 1 |
| 12V power connector | Yes |
| Number of chassis fan connectors | 4 |
| Number of CPU fan connectors | 2 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2x2 connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 2 |
| Rear panel I/O ports | |
|---|---|
| WiFi-AP antenna jack | 1 |
| Thunderbolt ports quantity | 2 |
| S/PDIF out port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Network | |
|---|---|
| Bluetooth version | 5.4 |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 11 |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC4082 |
| Motherboard chipset | Intel Z890 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| 6th M.2 highest PCI Express generation | 4.0 |
| 6th M.2 largest key size | 2280 |
| 5th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 22110 |
| Number of M.2 (M) slots | 6 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| BIOS | |
|---|---|
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 4.62 kg |
| Package height | 108 mm |
| Package depth | 312 mm |
| Package width | 370 mm |
| Weight & dimensions | |
|---|---|
| Depth | 244 mm |
| Width | 305 mm |
| Packaging content | |
|---|---|
| Drivers included | Yes |
| Antenna included | Yes |
| Cables included | SATA |
