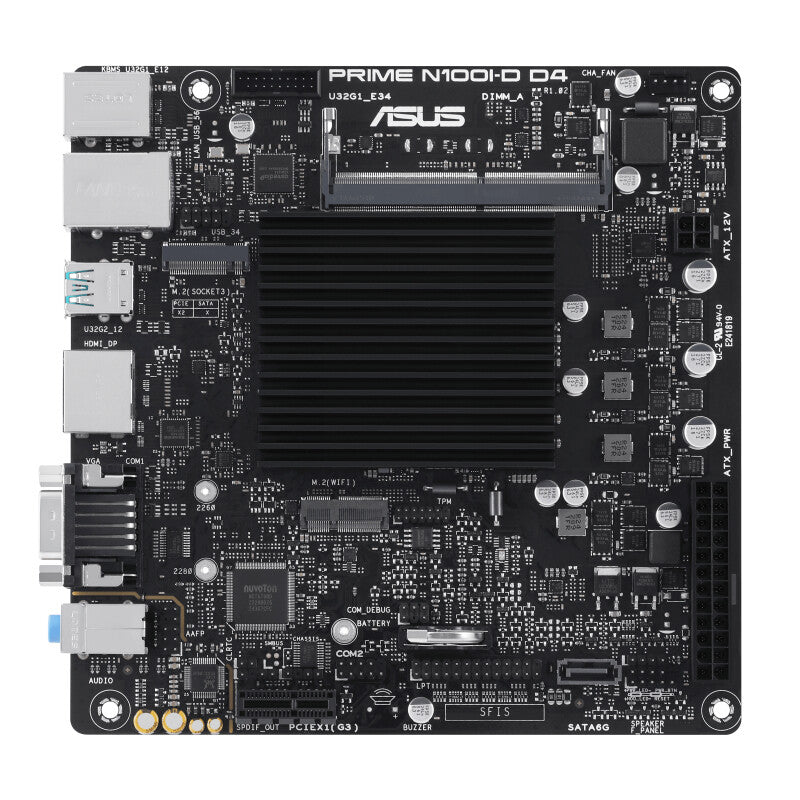

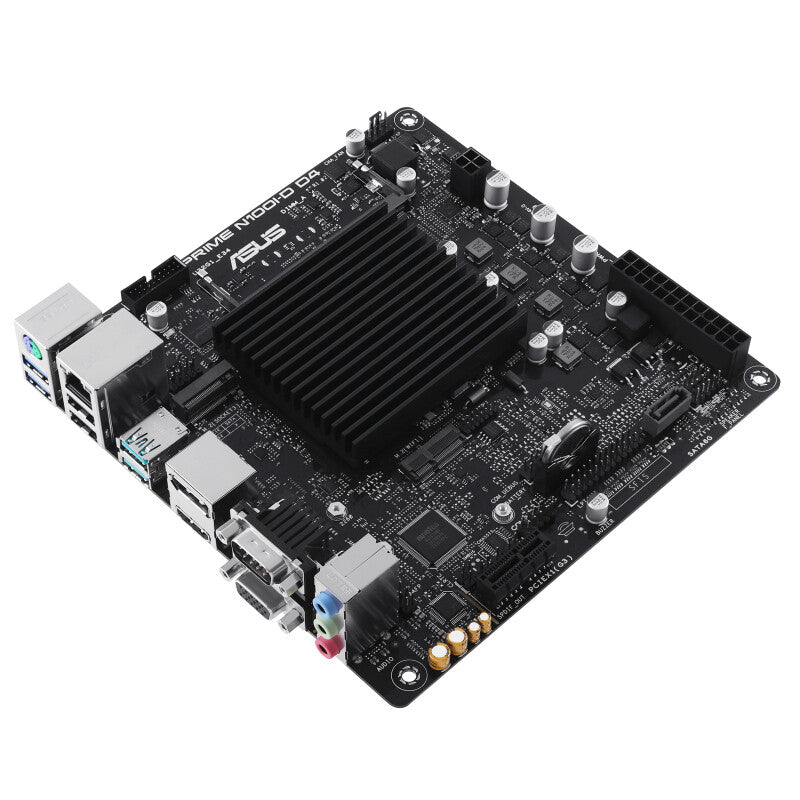

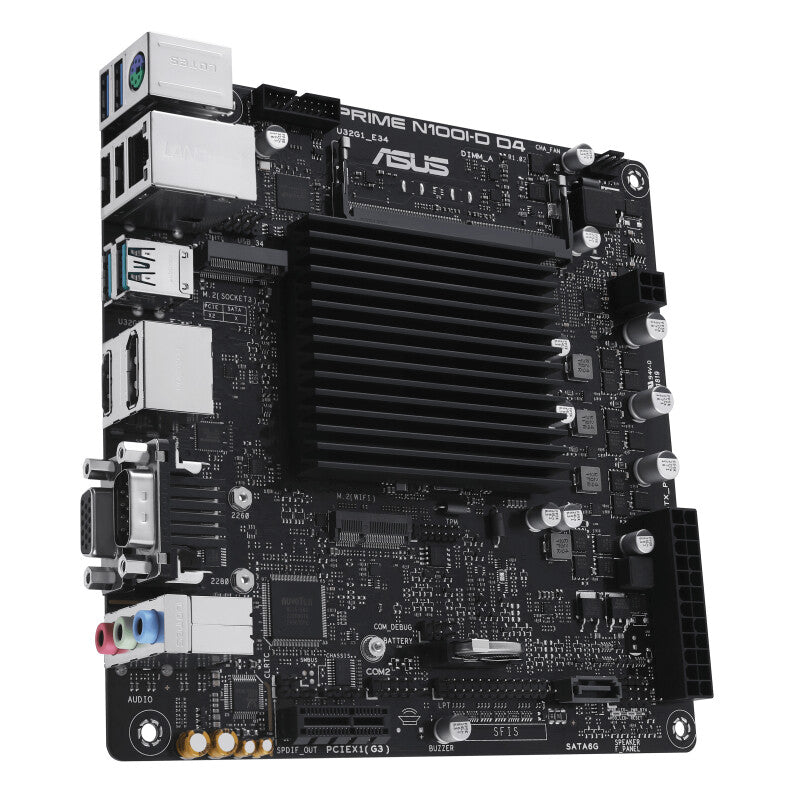

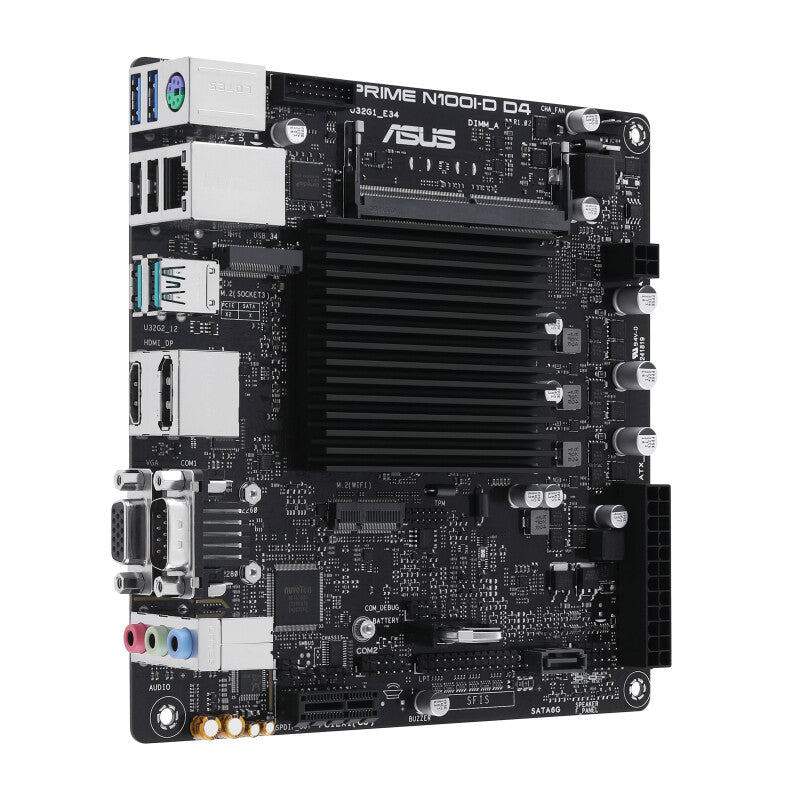

ASUS PRIME N100I-D D4 NA (integrated CPU) mini ITX
Couldn't load pickup availability
- Ultrafast Connectivity: PCIe 3.0 x1 slot, 16Gbps M.2 support, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 and 1Gb Ethernet
- Comprehensive Cooling: CPU heatsink
- Better serviceability: COM debug header to facilitate building and support processes
N100I-D D4
ASUS Prime series motherboards are expertly engineered to unleash the full potential of Intel® Processor N100. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME N100I-D D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
COOLING
PRIME N100I-D D4 engineered with onboard CPU heatsink and a chassis fan header to ensure your rig stays cool and stable under intense workloads.
CPU Heatsink and Thermal Pad
CPU heatsink and thermal pad improve heat transfer from the CPU for better cooling performance.
PERFORMANCE
ASUS N100 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | NA (integrated CPU) |
| Compatible processor series | Intel Processor N |
| Processor model | N100 |
| Processor cores | 4 |
| Maximum internal memory supported by processor | 16 GB |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 1 |
| Memory slots type | SO-DIMM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3200 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 16 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 2 |
| Number of HDDs supported | 1 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 1 |
| S/PDIF out connector | Yes |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Packaging data | |
|---|---|
| Package width | 227 mm |
| Package depth | 185 mm |
| Package height | 60 mm |
| Package weight | 664 g |
| Weight & dimensions | |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |

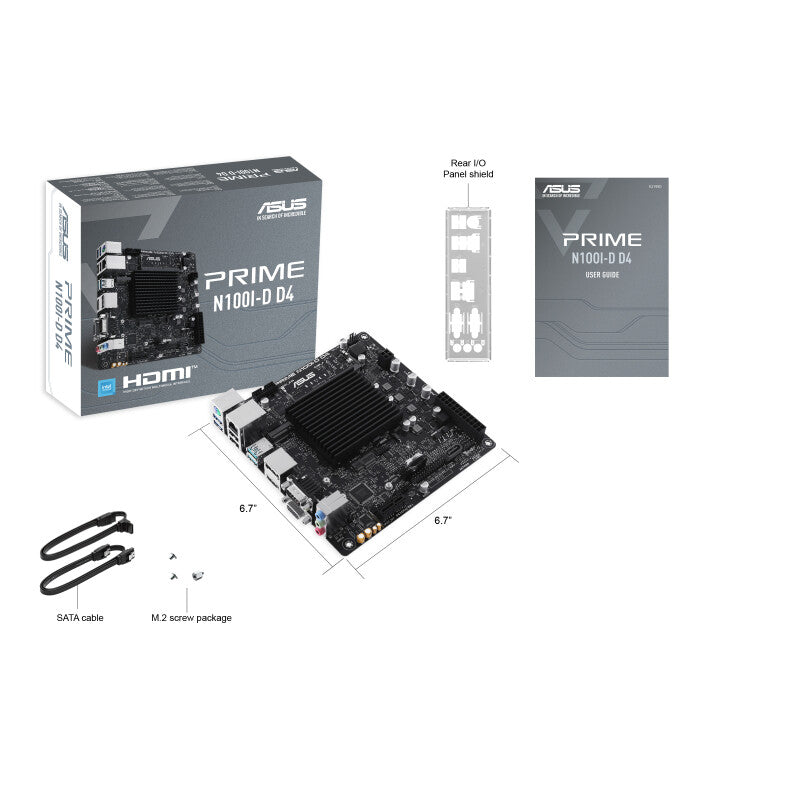

| Packaging content | |
|---|---|
| Cables included | SATA |
