ASUS · MPN: 90SB0C70-M0UAY0
£412.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £137.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Powered by eight-core Intel Xeon E-2400-series processor with support for up to 95 W TDP
  • Flexible expandability with eight native SATA HDDs, one PCIe 5.0 slot and one PCIe 4.0 slot
  • Dual Intel I210-AT gigabit Ethernet with teaming support
  • One M.2 for up to 32 Gbps performance for faster OS booting
  • Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

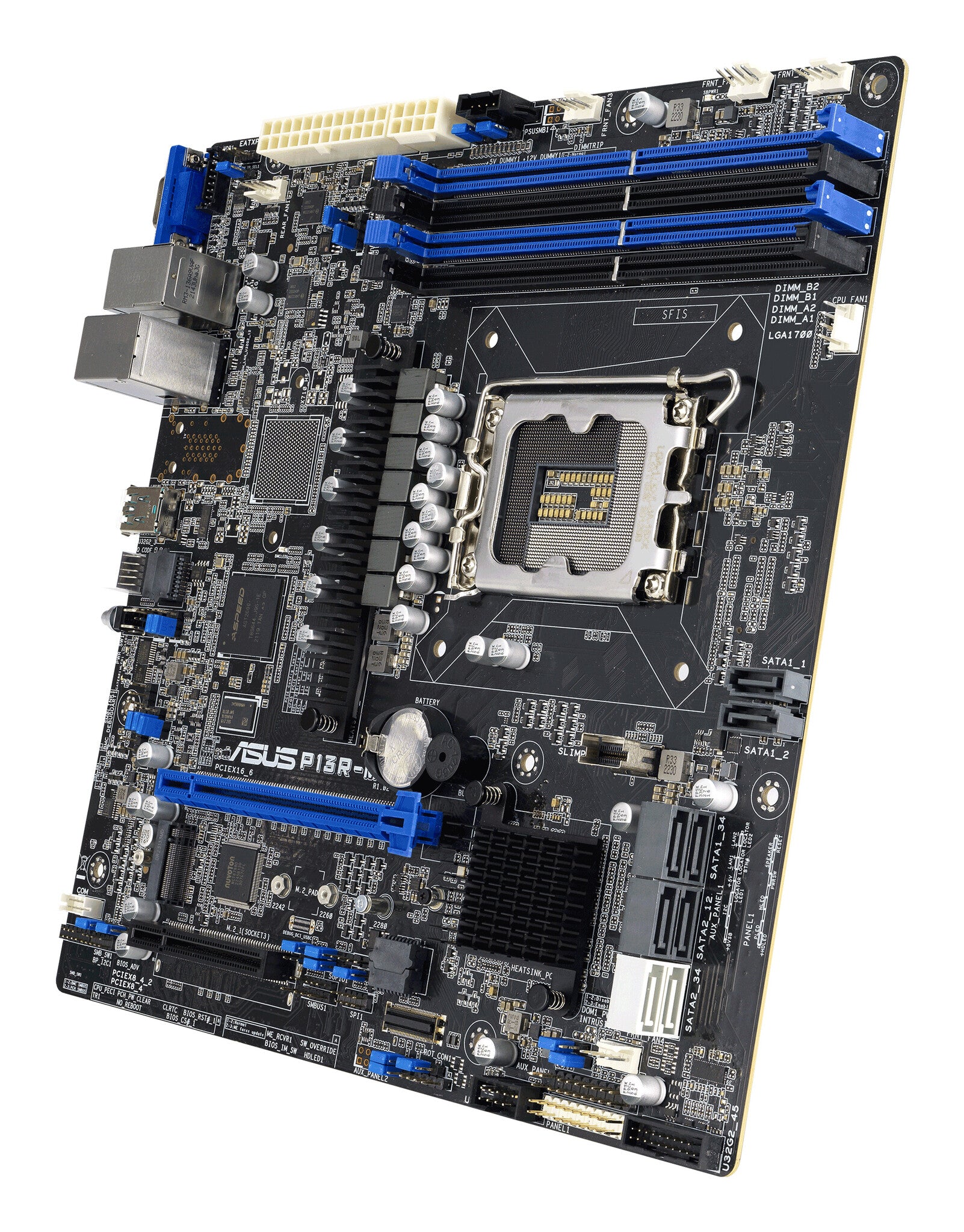

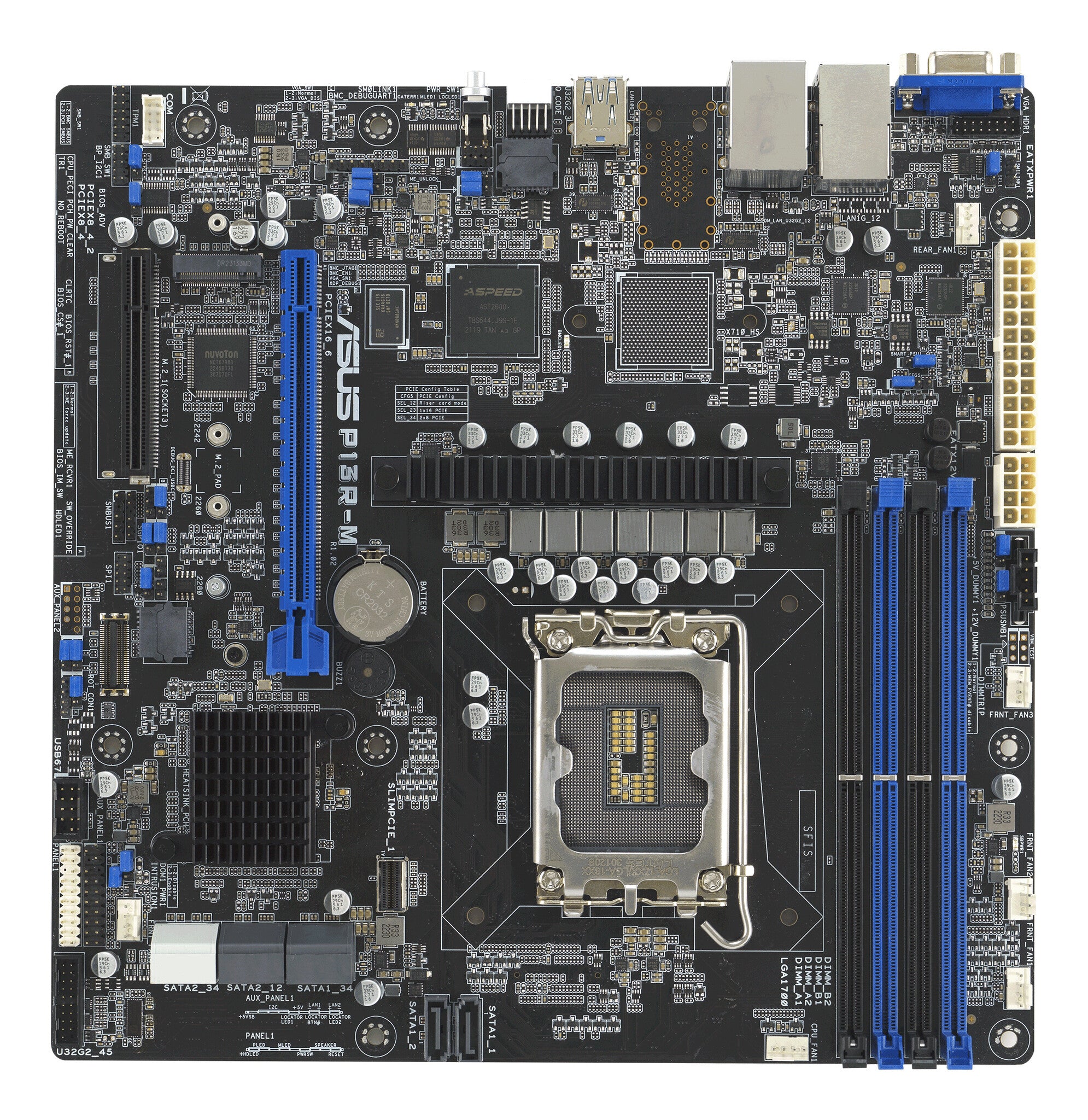

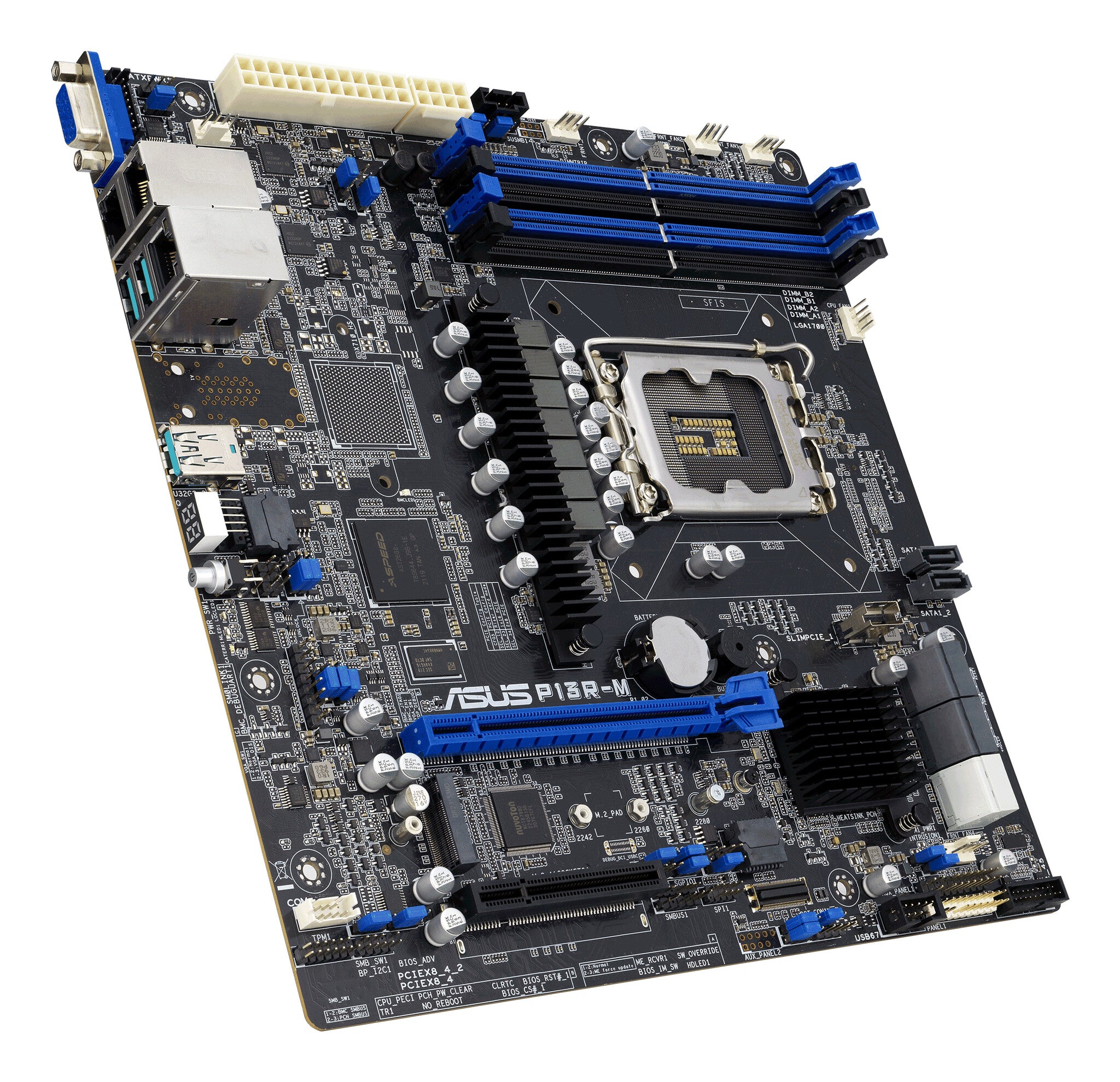

ASUS P13R-M is an Intel® Xeon® E-2400 LGA 1700 micro-ATX server motherboard with support for four DDR5 ECC UDIMM and one M.2 slot, plus dual LAN, eight SATA, one PCIe® 5.0 slot and one PCIe 4.0 slot, three USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and onboard ASUS ASMB11-iKVM.

PCIe 5.0 Ready
Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

Intel Xeon E-2400 processors
Designed for small- to medium-sized businesses (SMBs) and cloud-service providers, offering robust and secure solutions. These processors support up to eight cores and 16 threads, with a maximum frequency of 5.6 GHz and a 95 W TDP, ensuring rapid data processing and application responsiveness. They support up to 128 GB of DDR5 4400 MT/s memory and PCIe 5.0 interfaces, providing server-grade 24/7 reliability for business-critical services and customer data, and cost-effective performance for entry-level bare-metal cloud services.

Three fast USB 3.2 Gen 2 ports
ASUS P13R-M is equipped with three USB 3.2 Gen 2 ports on its rear I/O panel. These high-speed connections offer rapid data-transfer speeds of up to 10 Gbps, for fast, efficient and reliable file transfers. These sockets are also backward compatible, ensuring seamless connectivity with a wide range of USB devices.

Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P13R-M server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.

Comprehensive IT infrastructure management
P13R-M features an embedded iKVM module and is optionally equipped with ASUS Control Center, offering comprehensive out-of-band and in-band management features tailored for small and mid-size businesses. The embedded ASUS ASMB11-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording and BSOD capture, providing around-the-clock remote monitoring and diagnostics. This functionality remains accessible even if the operating system is down or offline, through a user-friendly web-based graphical interface compatible with all major browsers. ASUS Control Center (ACC) further enhances IT infrastructure management, centralizing and integrating monitoring and control for ASUS commercial products, including servers, workstations, and digital signage. ACC enables remote BIOS updates, mobile device system monitoring, and simplified server management through one-click software updates and dispatching.

Enhanced security
ASUS P13R-M server motherboards integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.

In addition, all P13R-M server motherboards servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

Specifications

Processor

Compatible processor seriesIntel® Pentium®, Intel Xeon E
Processor socketLGA 1700
Processor manufacturerIntel

Memory

Supported memory module capacities8GB, 16GB, 32GB
Maximum internal memory128 GB
Supported memory clock speeds3600,4000,4400 MHz
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR5-SDRAM
Show all 39 specificationsShow fewer specifications

Storage controllers

Number of HDDs supported8
Supported storage drive interfacesM.2, SATA III

Graphics

Graphics cardAST2600
Graphics card familyASPEED

Internal I/O

Serial port headers1
TPM connectorYes
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
Number of SATA III connectors8
USB 3.2 Gen 2 (3.1 Gen 2) connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 2.0 connectors1

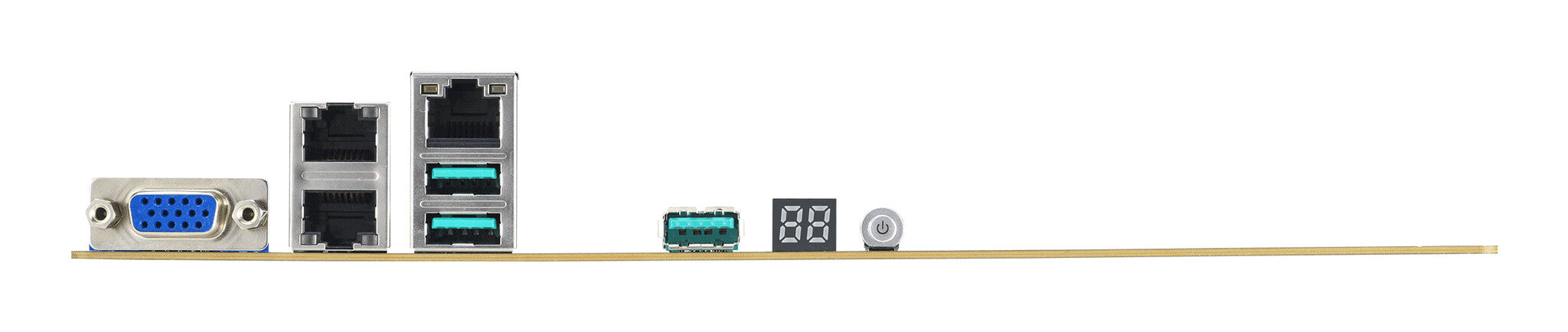

Rear panel I/O ports

VGA (D-Sub) ports quantity1
Ethernet LAN (RJ-45) ports2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3

Network

Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ethernet LANYes

Features

Motherboard chipsetIntel C262
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Component forServer

Expansion slots

Number of M.2 (M) slots1
PCI Express x16 (Gen 5.x) slots1

Operational conditions

Storage relative humidity (H-H)20 - 90%
Operating temperature (T-T)10 - 50 °C
Storage temperature (T-T)-40 - 70 °C

Weight & dimensions

Depth244 mm
Width244 mm

Other features

Weight760 g
