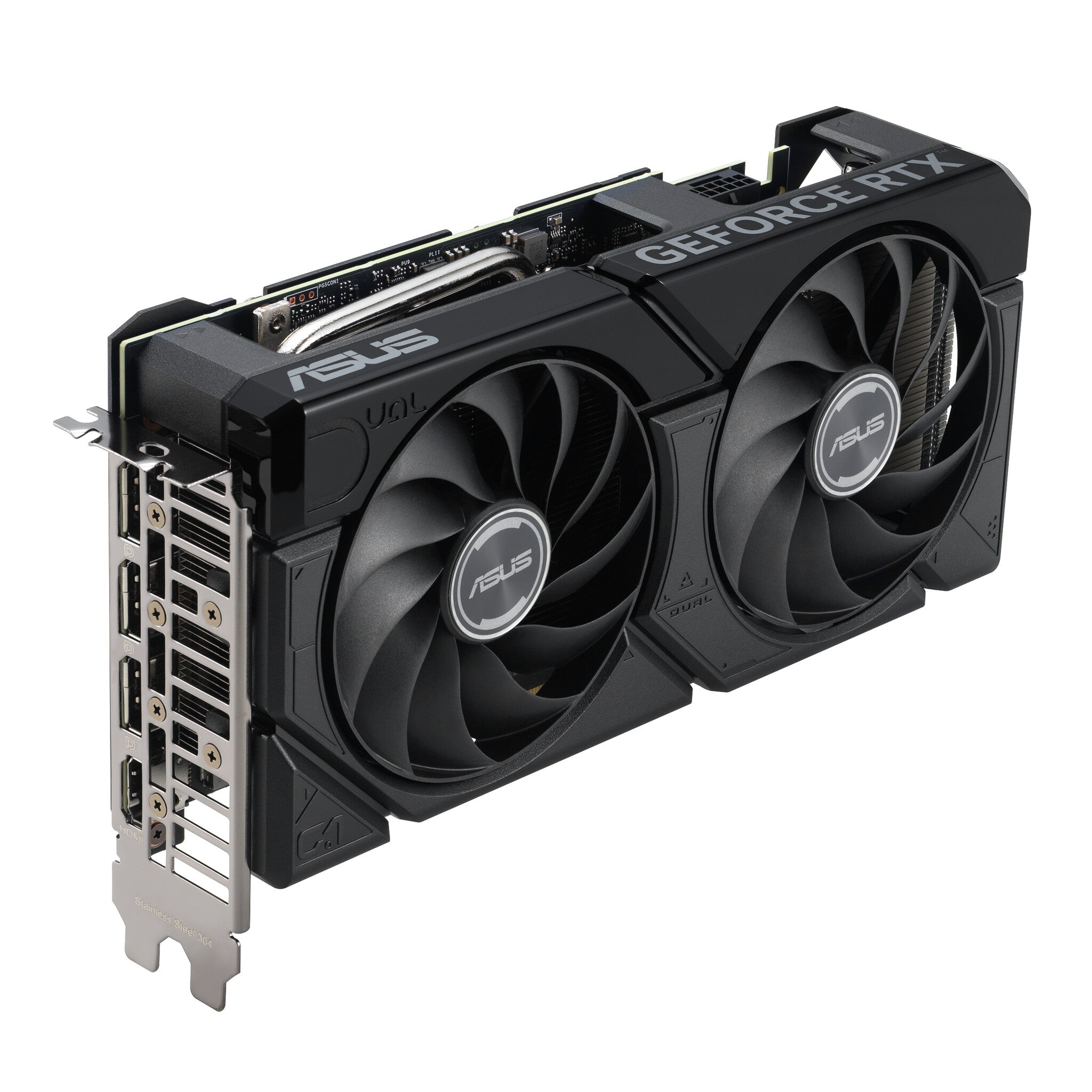

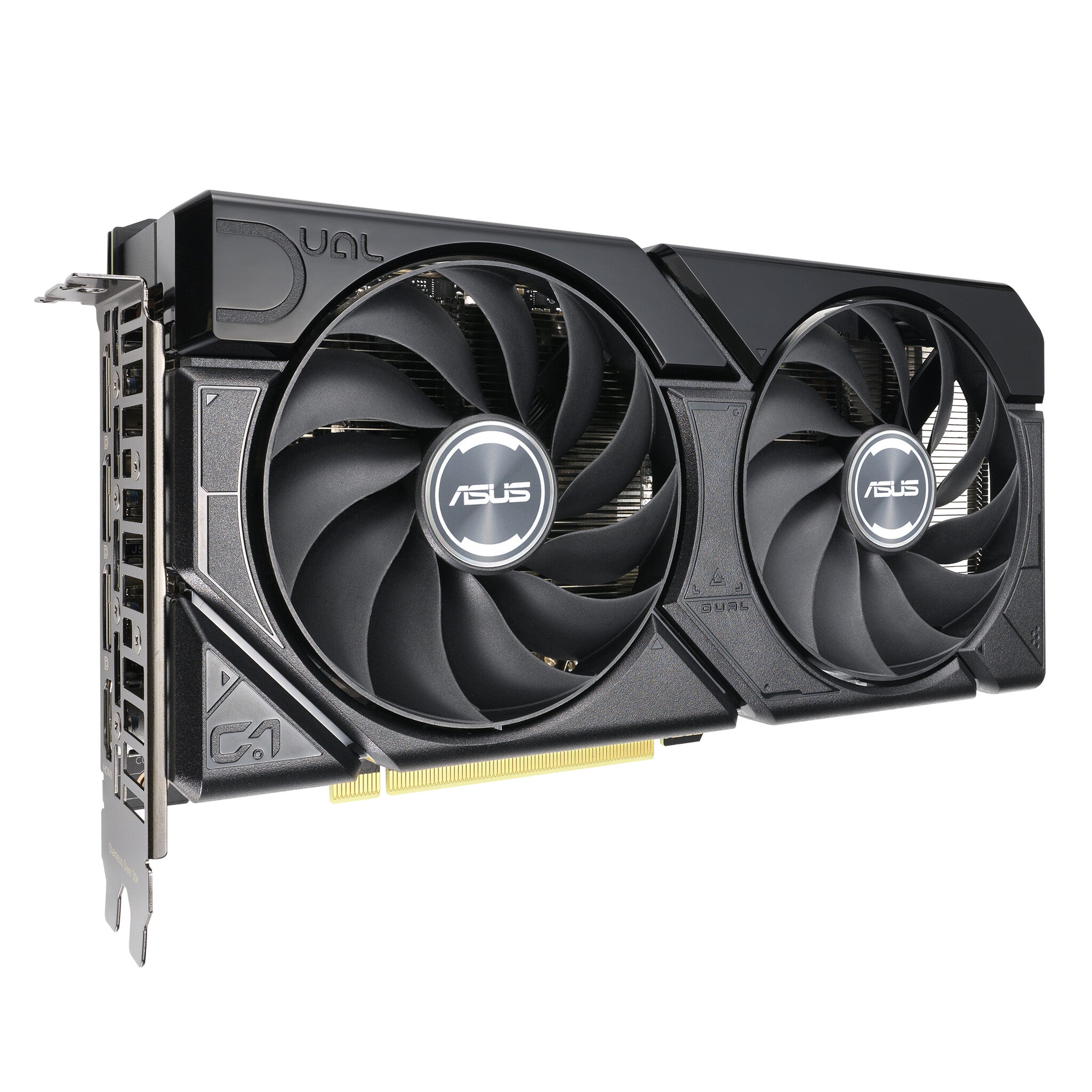

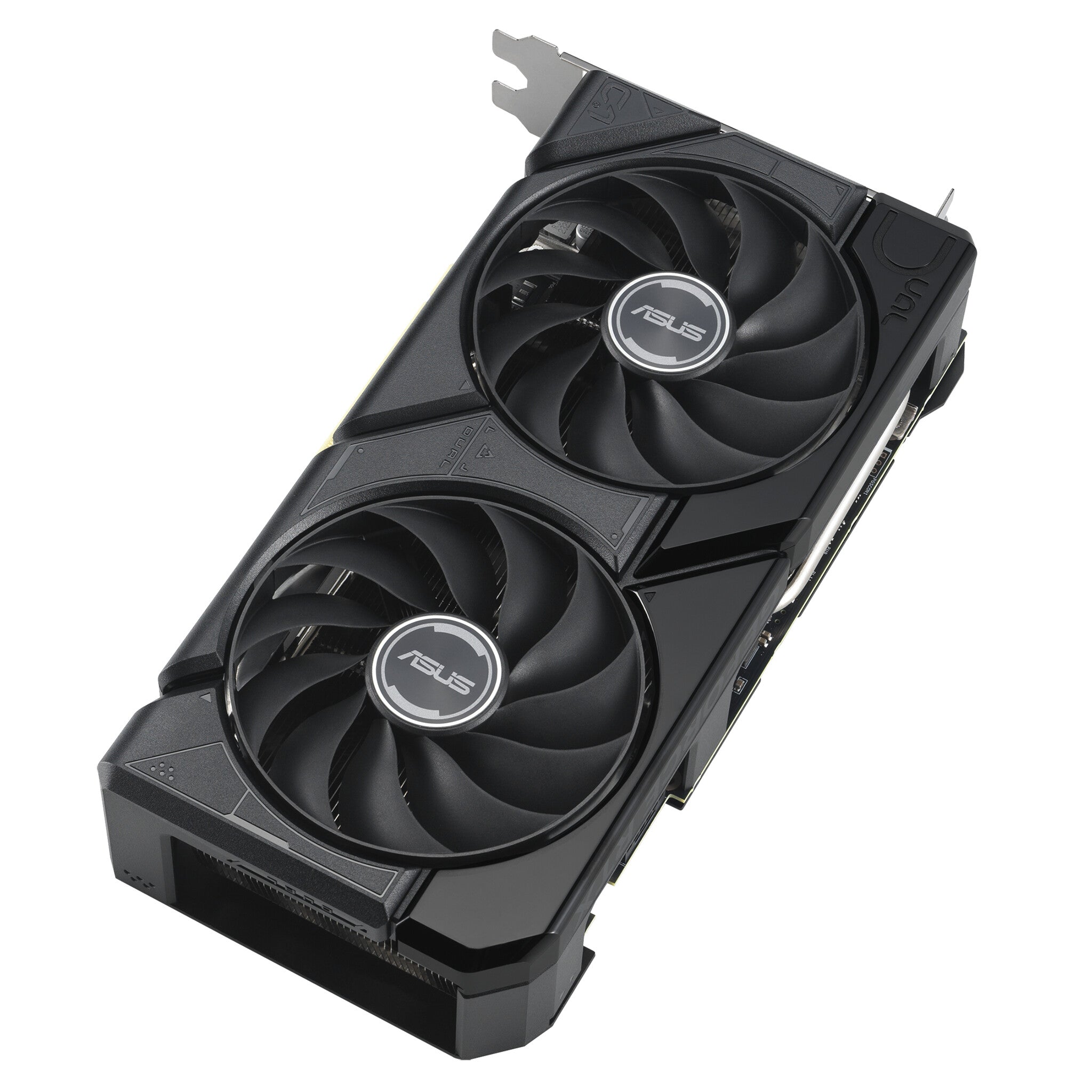

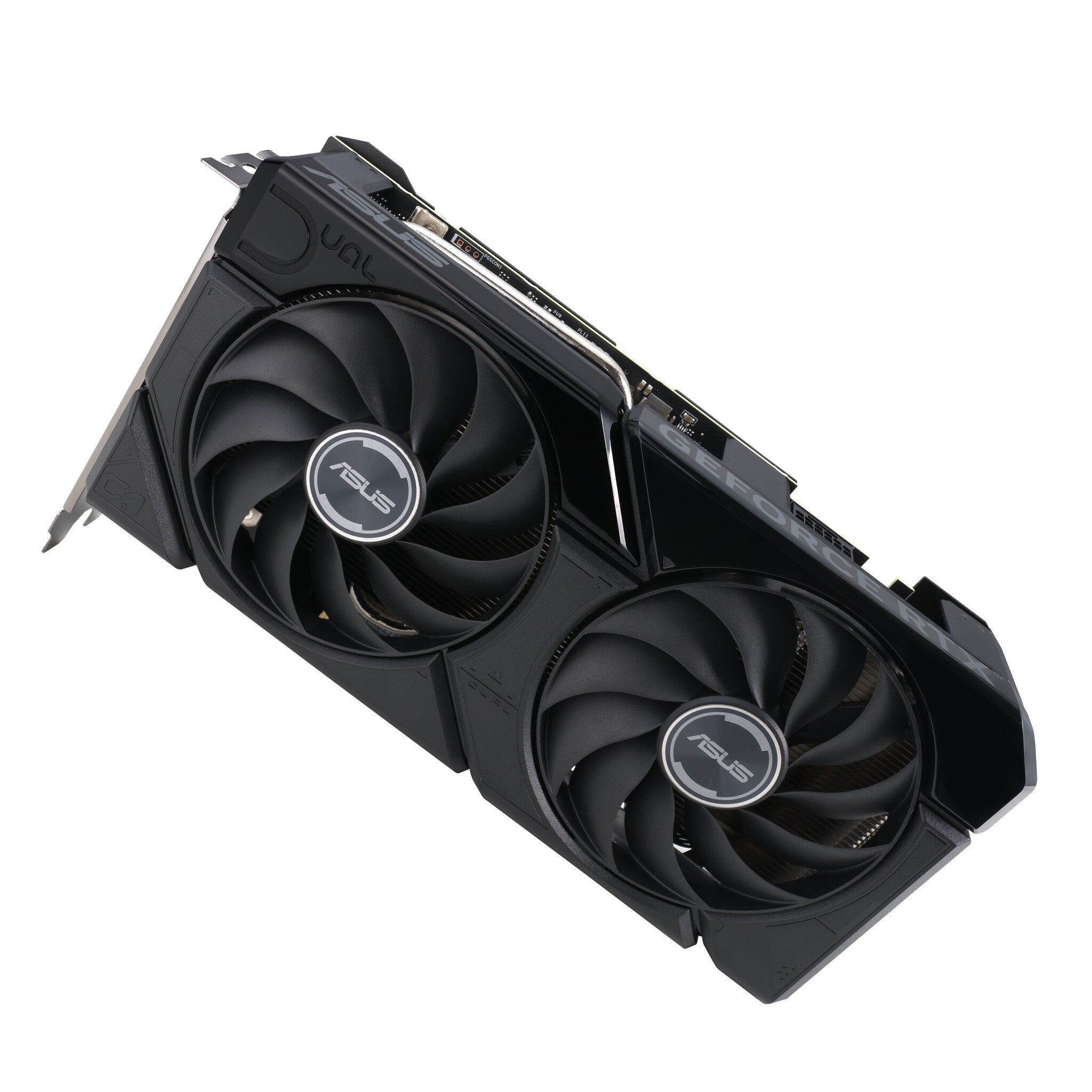

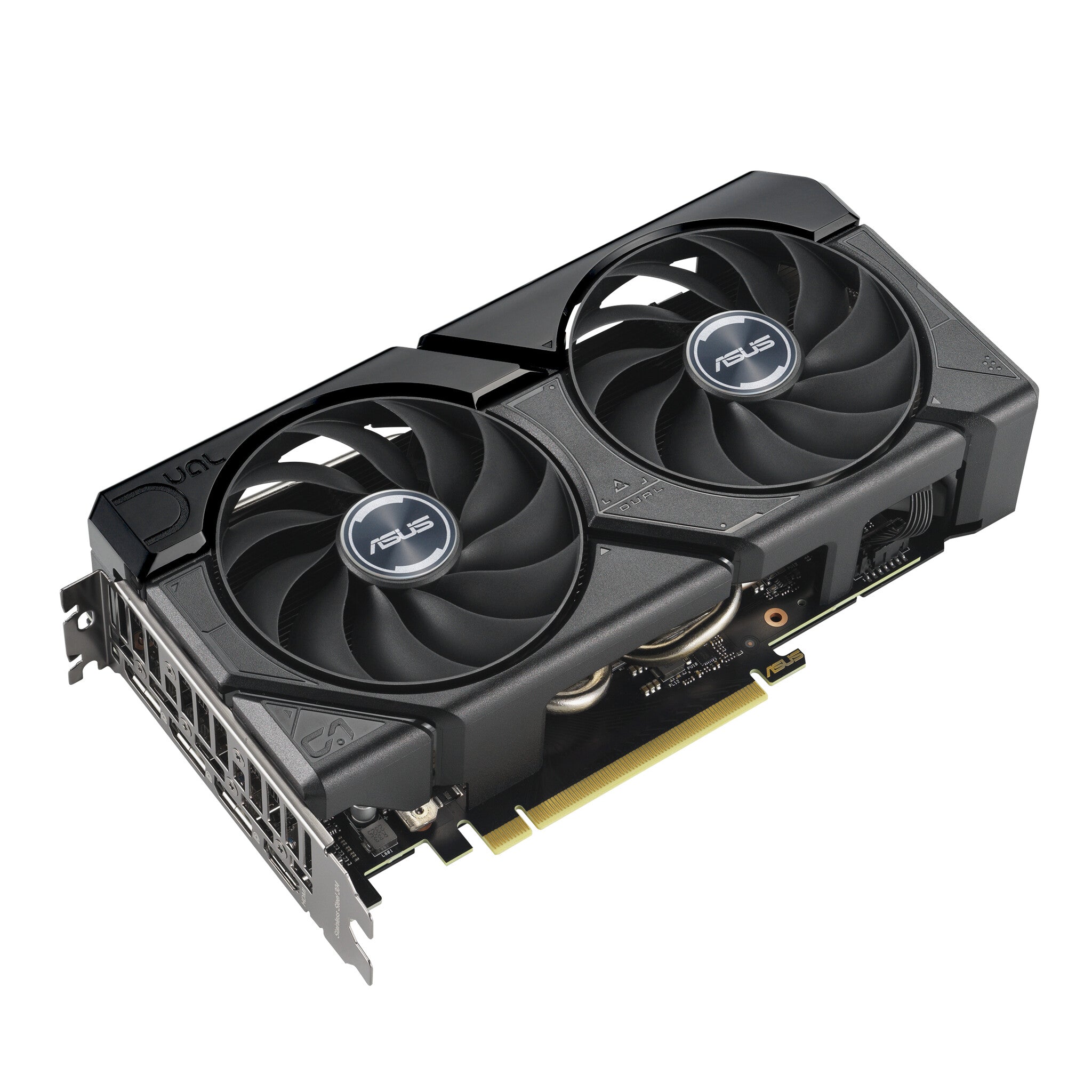

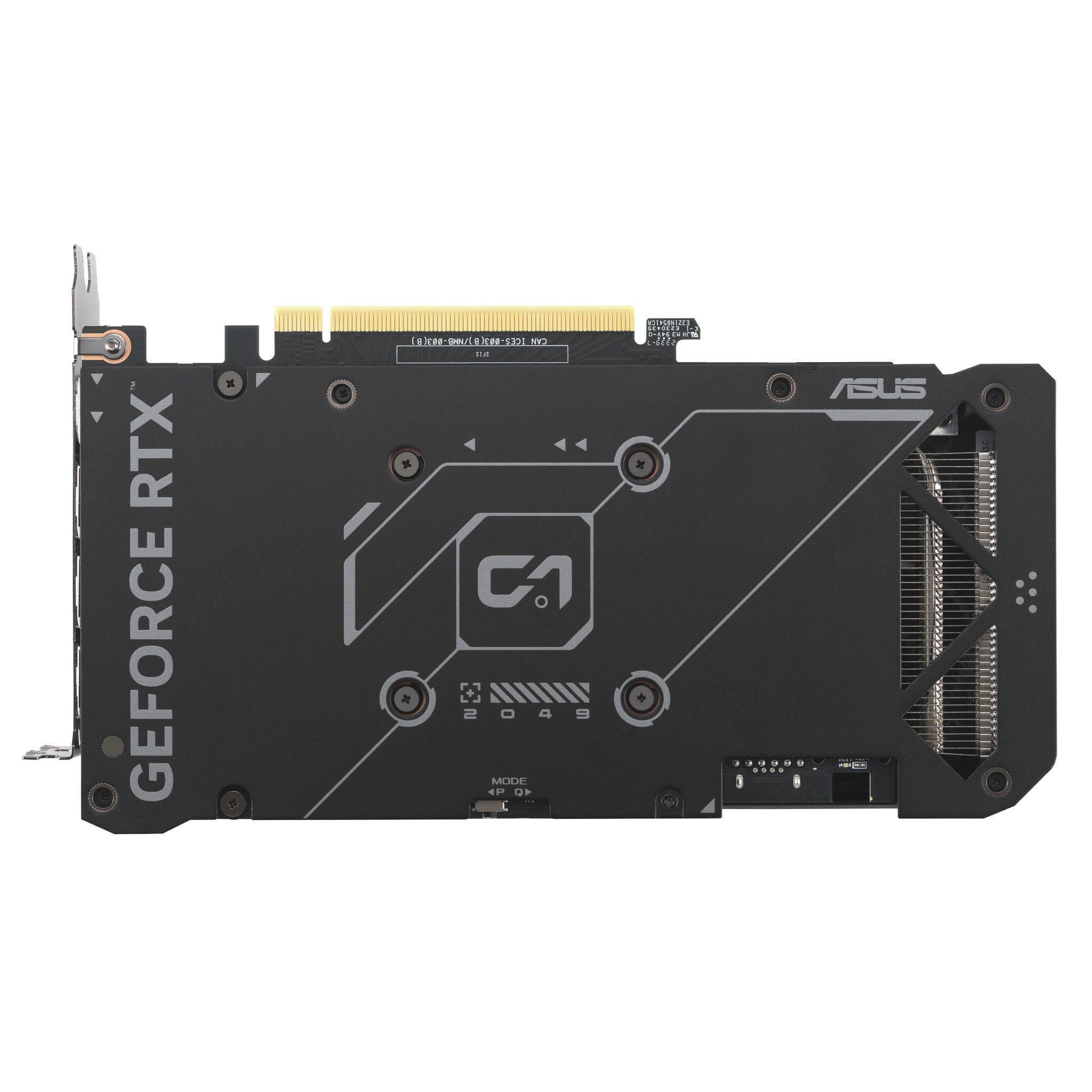

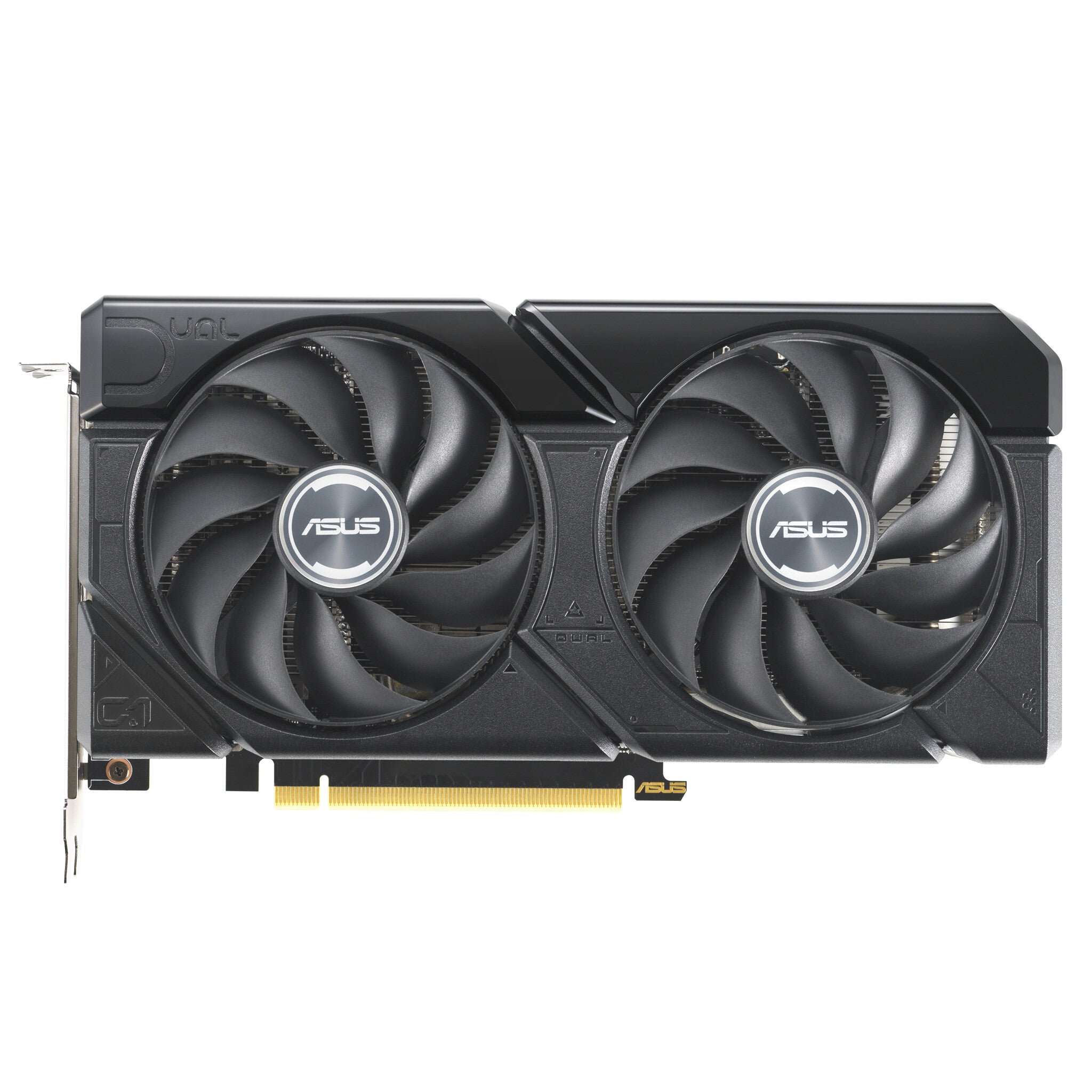

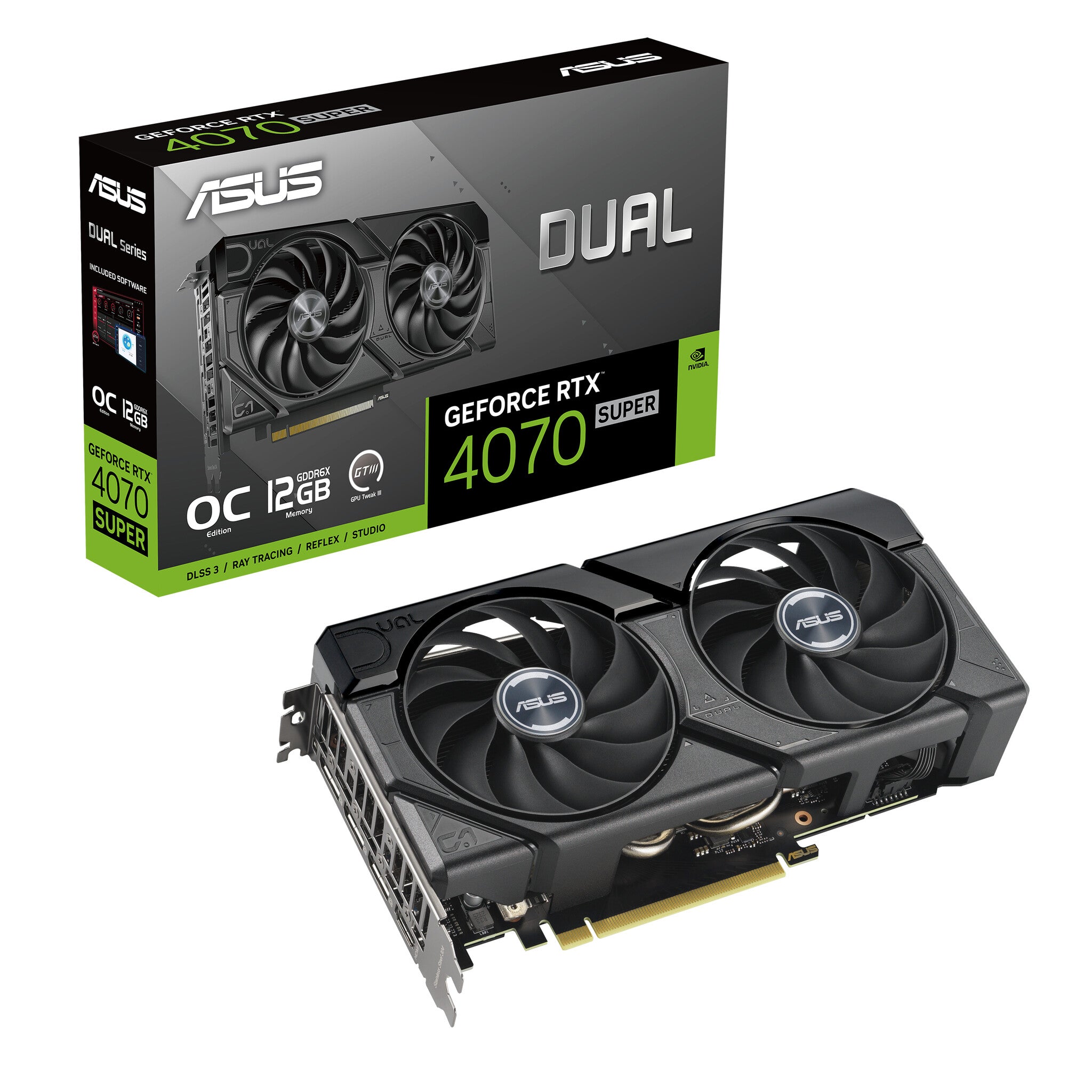

ASUS Dual -RTX4070S-O12G-EVO NVIDIA GeForce RTX 4070 SUPER 12 GB GDDR6X
Couldn't load pickup availability
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
- A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis
- 0dB technology lets you enjoy light gaming in relative silence
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs
2x Fans. 2x Fun.

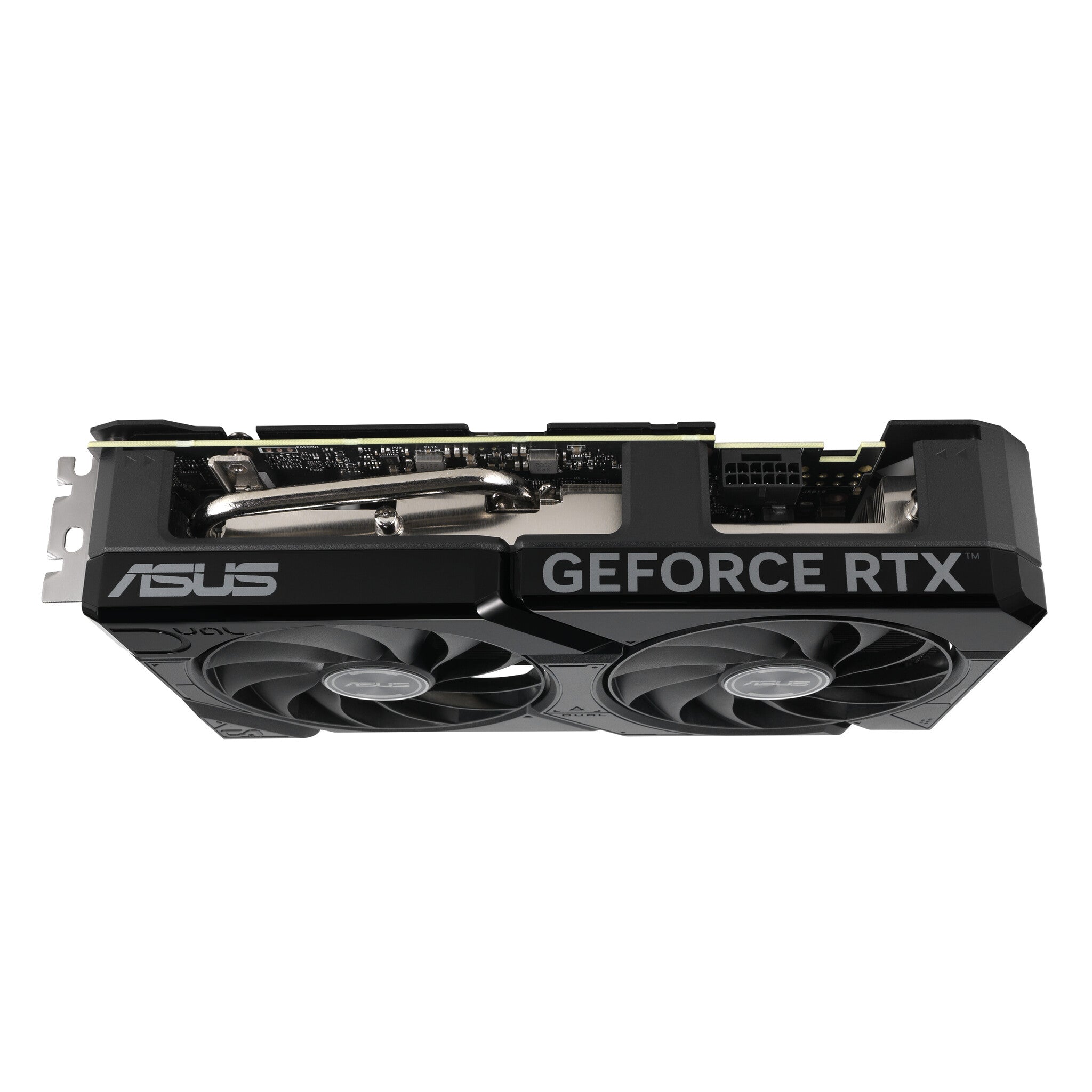

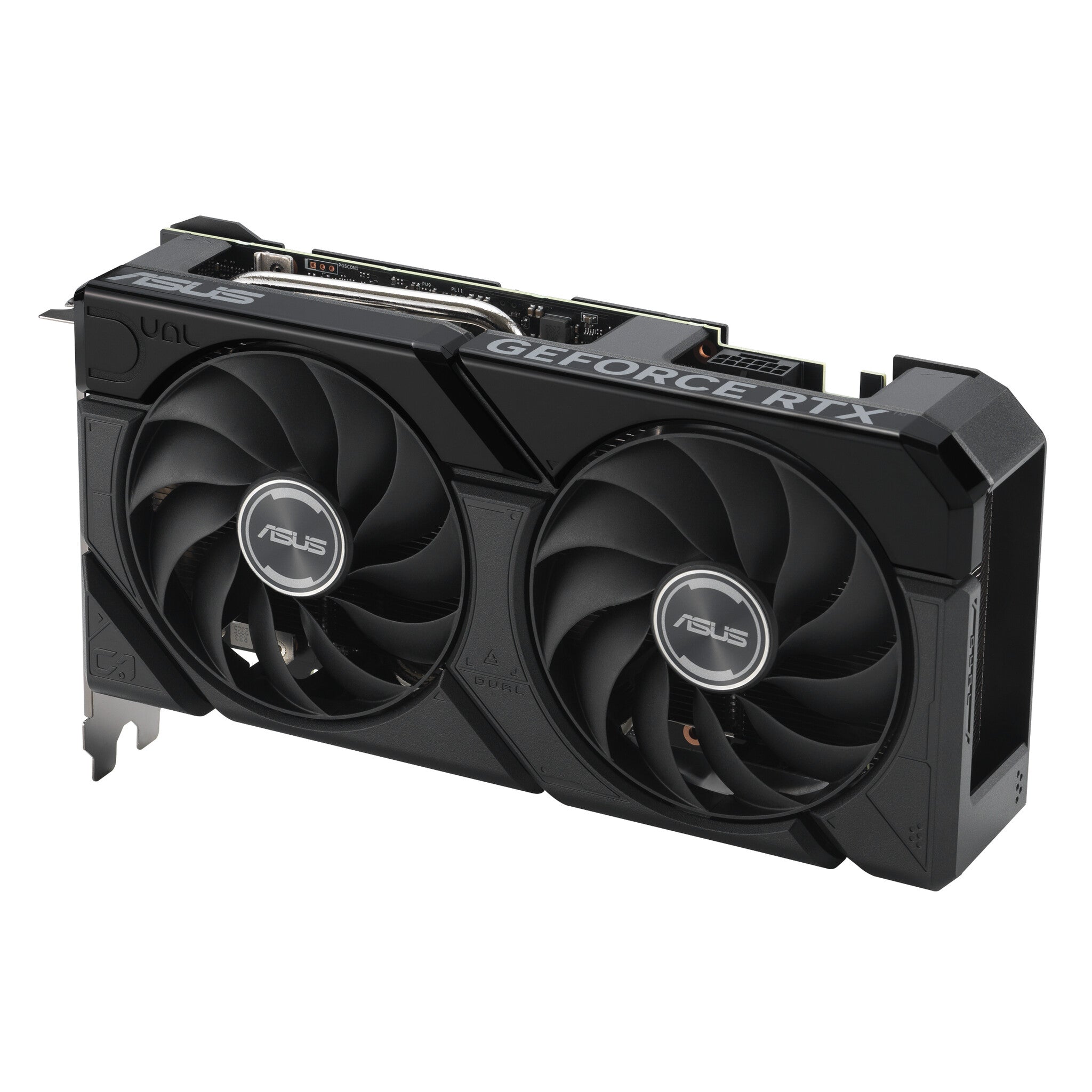

ASUS Dual GeForce RTX™ 4070 SUPER EVO fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 22.7 cm long, 2.5-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Axial-tech Fan Design
Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Processor | |
---|---|
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Processor boost clock speed (OC mode) | 2550 MHz |
Processor boost clock speed | 2520 MHz |
CUDA cores | 7168 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 4070 SUPER |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Data transfer rate | 21 Gbit/s |
Memory bus | 192 bit |
Graphics card memory type | GDDR6X |
Discrete graphics card memory | 12 GB |

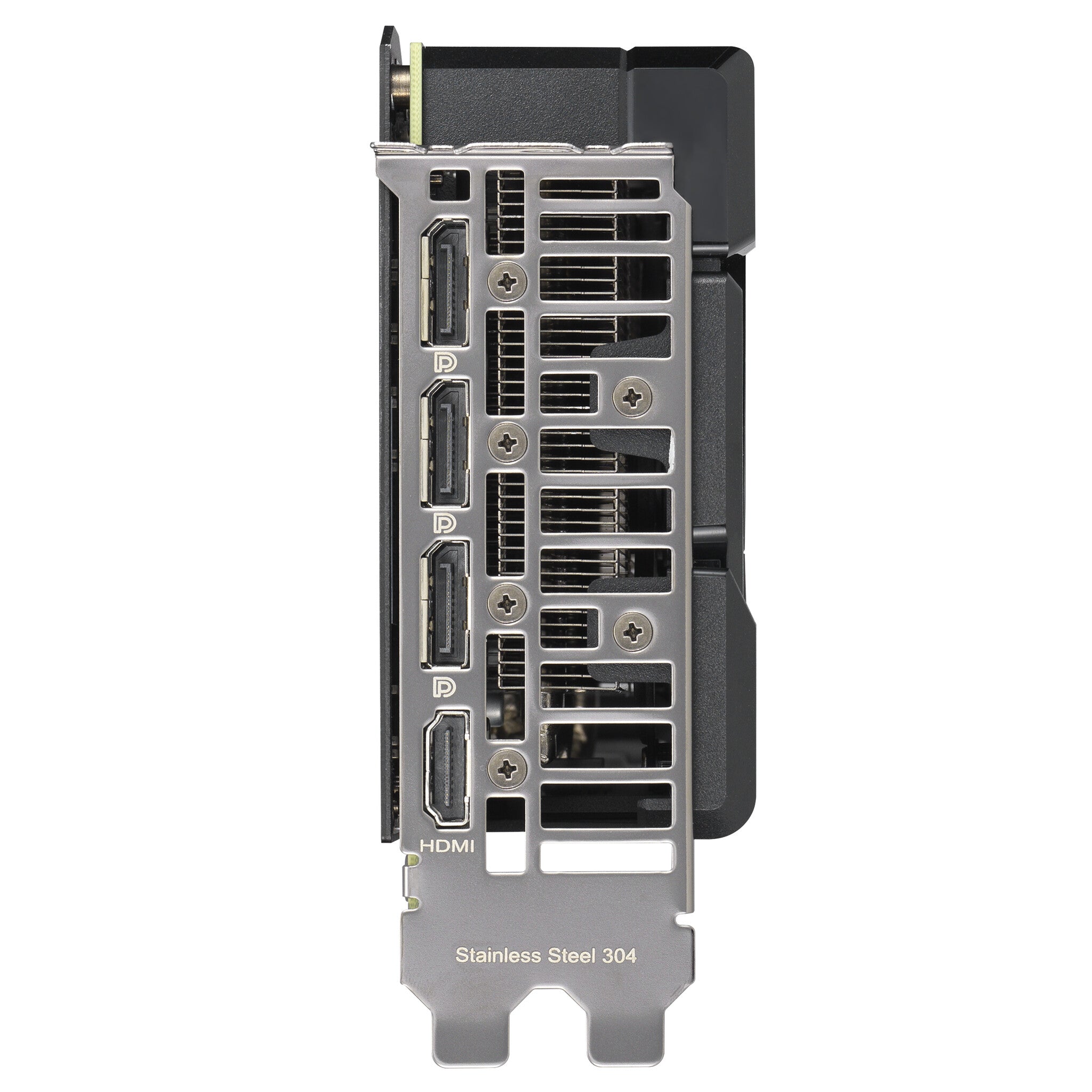

Ports & interfaces | |
---|---|
DisplayPort version | 1.4a |
HDMI version | 2.1a |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express 4.0 |
Performance | |
---|---|
NVIDIA G-SYNC | Yes |
HDCP version | 2.3 |
HDCP | Yes |
OpenGL version | 4.6 |
Design | |
---|---|
Product colour | Black |
Number of slots | 2.5 |
Form factor | Full-Height/Half-Length (FH/HL) |
Number of fans | 2 fan(s) |
Cooling technology | ASUS Axial-tech |
Cooling type | Active |
Power | |
---|---|
Supplementary power connectors | 1x 16-pin |
Minimum system power supply | 750 W |
Weight & dimensions | |
---|---|
Height | 123.2 mm |
Depth | 49.6 mm |
Length | 227.2 mm |
Weight | 684 g |
Packaging data | |
---|---|
Package type | Box |
Package weight | 1.16 kg |
Package height | 68 mm |
Package depth | 220.5 mm |
Package width | 368 mm |
Packaging content | |
---|---|
Manual | Yes |
General | |
---|---|
Product family | Dual |
