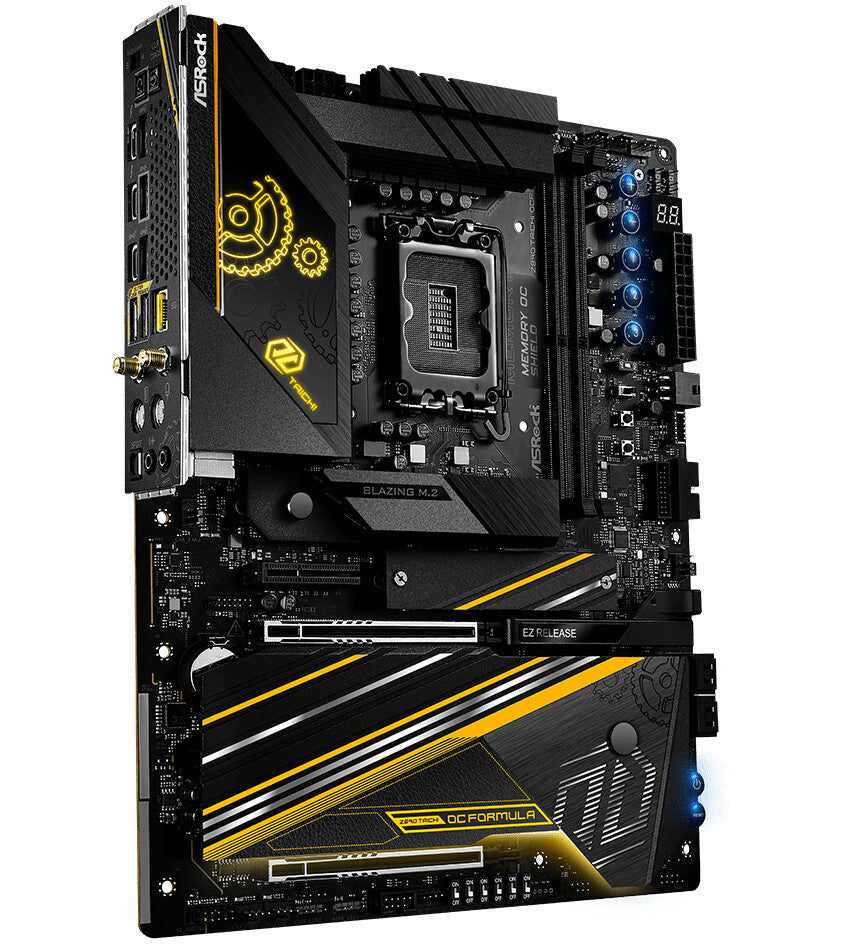

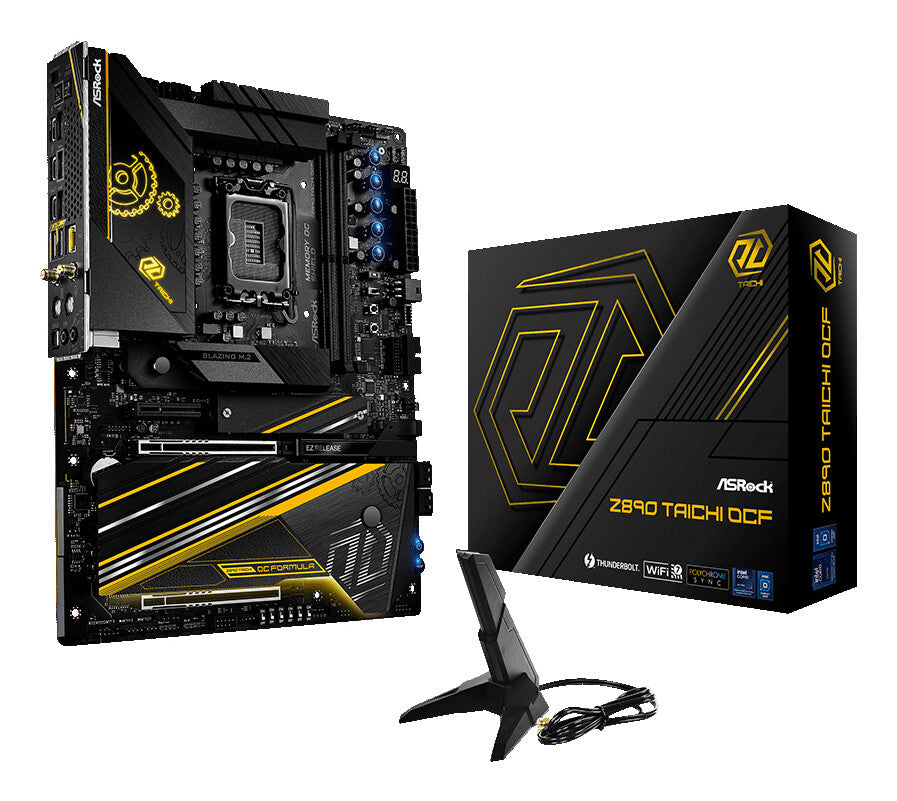

Unleashing Extreme Performance
Designed for hardcore overclockers, this motherboard is engineered to push your system beyond its limits with LN2 cooling. Experience unprecedented performance and stability under extreme conditions, giving you the ultimate edge in breaking records and maximizing hardware potential.
22+1+2+1+1 Power Phase, 110A SPS
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
Extreme Memory Overclocking
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Memory OC Shield
ASRock's exclusive Memory OC Shield is a patented feature engineered to reduce electromagnetic interference (EMI) that could affect memory overclocking. By shielding memory modules from EMI noise and optimizing the layout, the Memory OC Shield enhances stability and reliability during high-frequency operations, enabling users to push their systems to the maximum potential.
Overclocking Toolkit

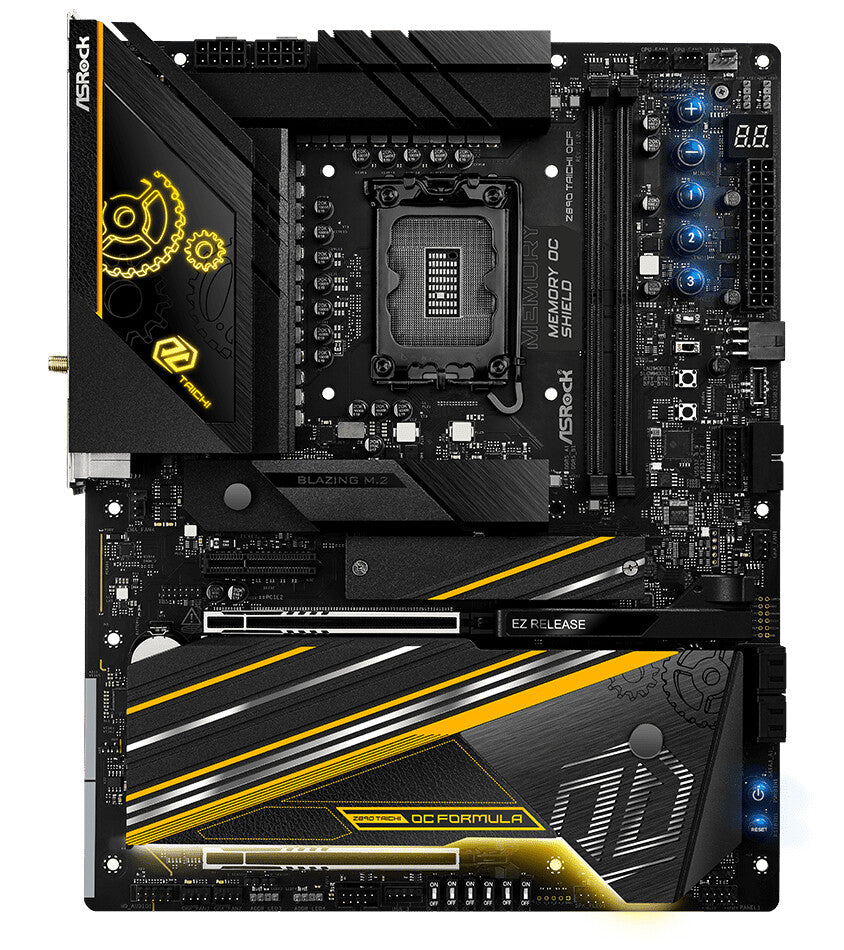

OC Buttons
Taichi OCF's OC Buttons offer hardware-level controls to enhance your overclocking experience and assist with extreme overclocking.
- +/- Rapid OC Buttons: Allow users to quickly and easily adjust OC frenquency in Rapid OC.
- OC Profile 1, 2, 3 Buttons: Use OC Profile Buttons in Rapid OC to quickly load the preset OC Profile 1, 2 or 3.
- LN2 Mode Switch: The LN2 mode aids in eliminating the cold-boot bug issues in processors during extreme overclocking with Liquid Nitrogen.
- Slow Mode Switch: Use Slow Mode to run the processor at its lowest frequency, stabilizing the system for extreme overclocking.
- Retry Button: Restart system immediately when the system needs to be forced shutdown.
- Safe Boot Button: Press button to boot with the BIOS default settings.
V-Probe™
Allow users to detect the current voltage and OC settings via V-Probe™ onboard voltage measurement points.
6 x OC Profiles
You can customize six OC Switch functions via the BIOS. Users can control BIOS overclocking settings with physical buttons, making overclocking faster and more intuitive, greatly enhancing personalization.
Professional Overclocking
CPU Heater Header
Equipped with a heater header for easy connection of ceramic heating pads within the CPU socket, it prevents CPU SoC Tile from freezing during LN2 extreme overclocking with up to 42W of heating power by duty, aiming to enhance overclocking results.
ElmorLabs OC Panel Header
It supports the ElmorLabs OC Panel to enable precise temperature monitoring, voltage adjustments, and enhanced system control.
Dual Thunderbolt™ 4 Type-C
It enables lightning-fast data transfer up to 40Gbps and connects versatile devices with a single Thunderbolt™ 4 cable.
Premium PCB Solution
Server-Grade Ultra Low-Loss PCB
The server grade ultra low-loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
10 Layer 2oz PCB
The 10 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
Deluxe 6xM.2 Sockets
Supports up to 6xNVMe M.2 SSDs and one of which is able to accommodates the latest PCI Express 5.0 standard
DIY Friendly Design
Graphics Card EZ Release
ASRock redesigned the PCIe slot installation method to cater to user needs, allowing for hassle-free installation and removal of the graphics card effortlessly.
M.2 Toolless (SSD & Heatsink)
Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.
M.2 Bottom Heatsink
The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.
Ultra-Fast Networking
802.11be Wi-Fi 7
Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
Optimized 5 Gb/s Ethernet LAN
ASRock's 5Gb/s LAN Connector features an exclusive, patent-pending design, boasting superior electromagnetic interference resistance, ensuring high-speed stable performance and providing users with a better networking experience.
Dual USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
