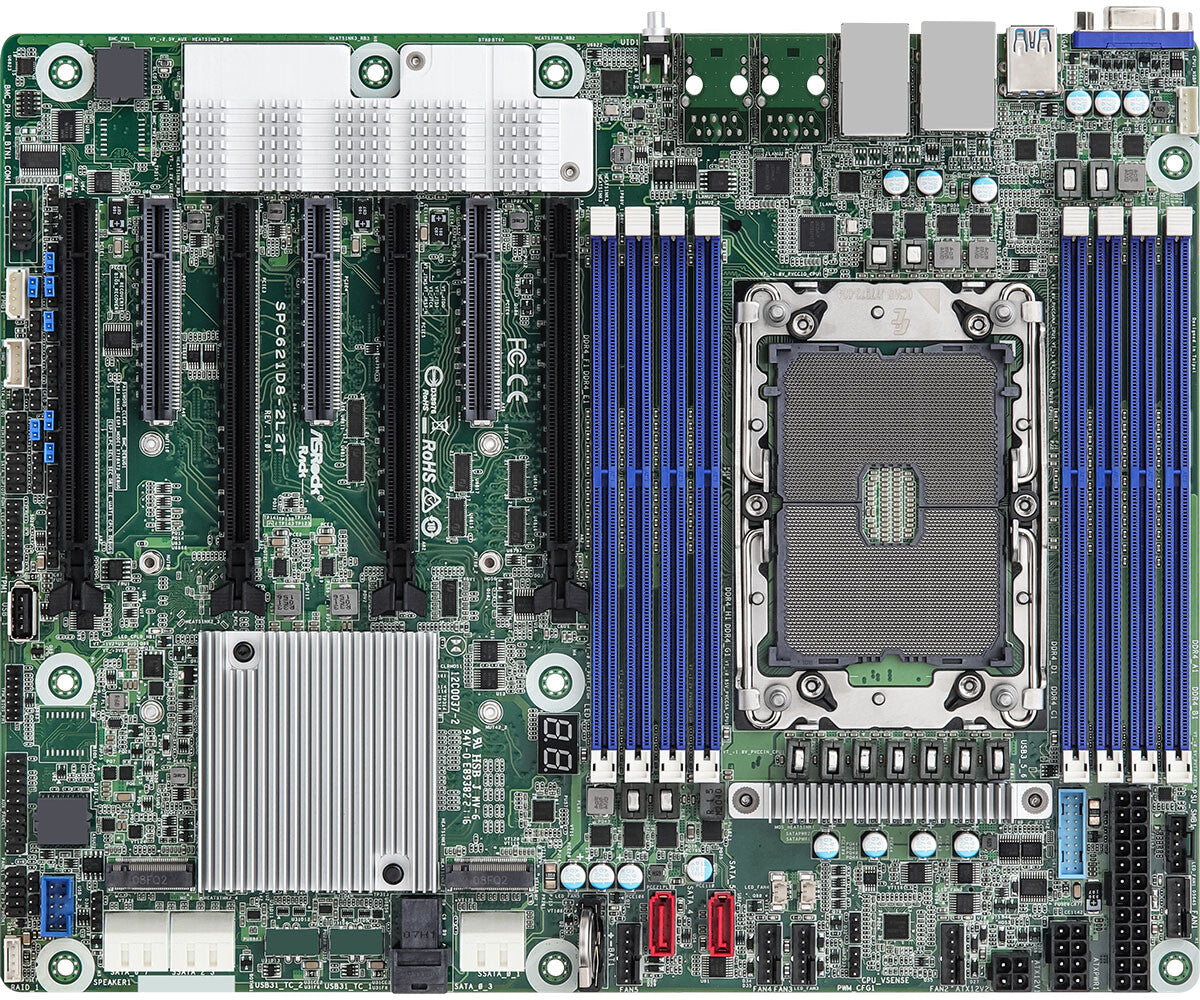

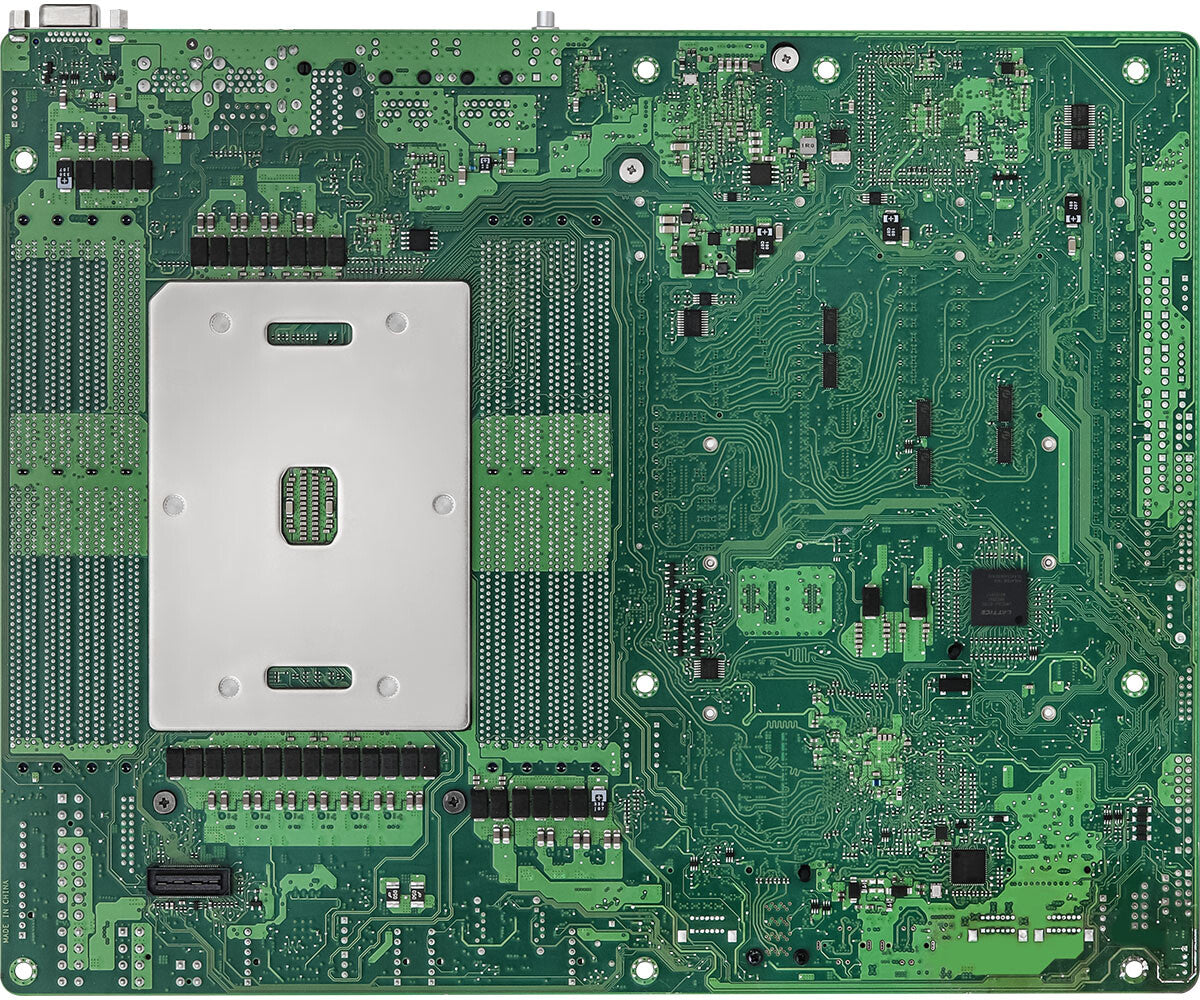

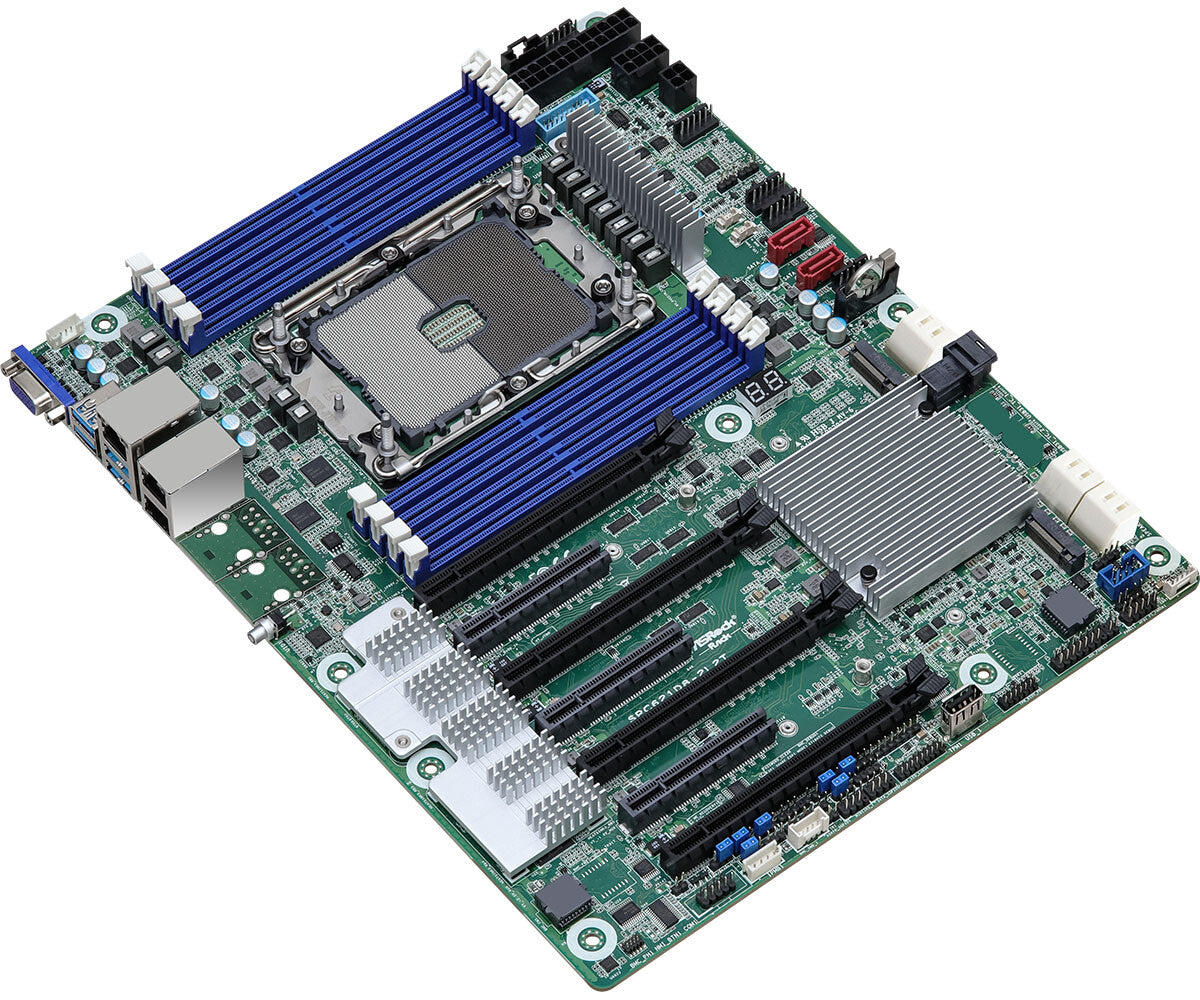

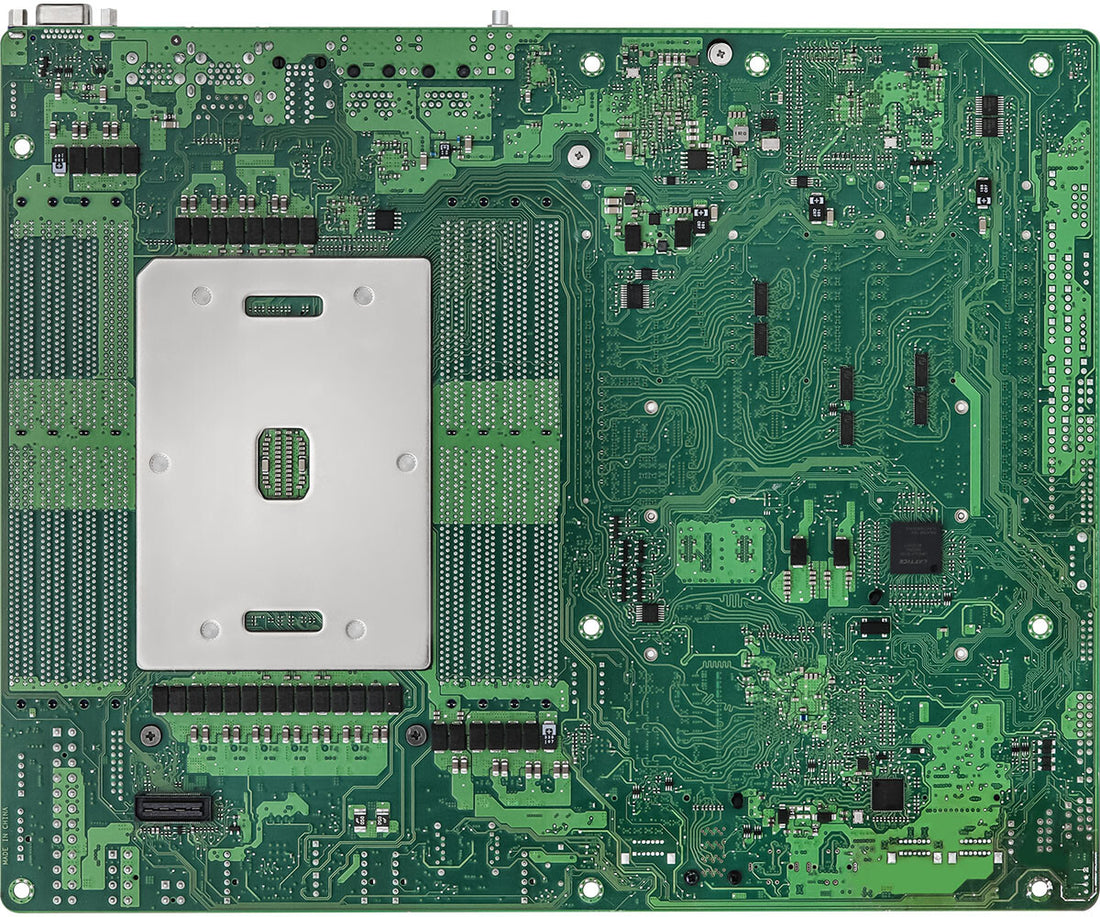

Asrock SPC621D8 motherboard Intel C621A LGA 4189 ATX
£524.99
Couldn't load pickup availability
- ATX (12" x 9.6")
- Supports 3rd Gen Intel® Xeon® Scalable Processors
- 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel® Optane™ Persistent Memory
- 4 PCIe4.0 x16, 3 PCIe4.0 x8
- Supports 1 M.2 (PCIe3.0 x4), 1 M.2 (PCIe3.0 x1 or SATA 6Gb/s)
- 13 SATA 6Gb/s (including 1 port from M.2)
- 2 RJ45 (1GbE) by Intel® i210
- Remote management (IPMI)
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 4189 |
| Compatible processor series | Intel® Xeon® |
| Maximum number of SMP processors | 1 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory voltage | 1.2 V |
| Maximum internal memory | 512 GB |
| Maximum RDIMM memory | 64 GB |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 15 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| On-board graphics card memory | 16 MB |
| On-board graphics card model | Aspeed AST2500 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 13 |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |

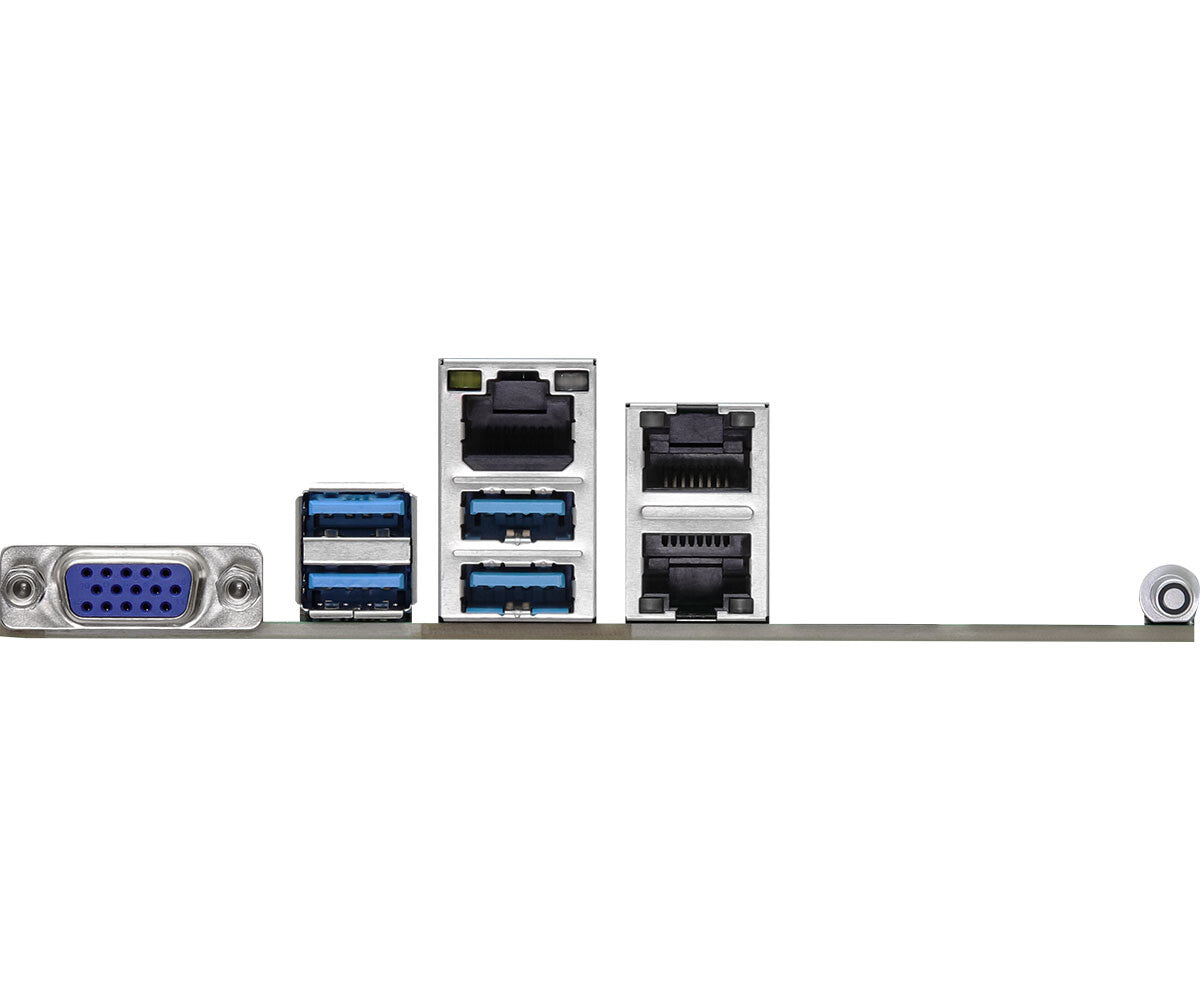

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 3 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210, Realtek RTL8211E |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C621A |
| PC health monitoring | Fan, Temperature, Voltage |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 4 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 304.8 mm |
| Depth | 243.8 mm |
