Asrock ROME2D32GM-2T motherboard AMD SoC Socket SP3
£1,370.99
Couldn't load pickup availability
- Proprietary (16.53" x 14.56")
- Dual Socket SP3 (LGA 4094), supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 series processors
- 16+16 DIMM slots (2DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N
- 6 Low profile SlimSAS (PCIe4.0x8), 5 Low profile SlimSAS (PCIe4.0x8 or 8SATA 6Gb/s), 8 SlimSAS (PCIe4.0x8)
- Supports 1 M.2 (PCIe4.0 x4)
- 32 SATA 6Gb/s
- 2 RJ45 (10GbE) by Intel® X550-AT2
- Remote Management (IPMI)
| Processor | |
|---|---|
| Maximum number of SMP processors | 2 |
| Compatible processor series | AMD EPYC 7002, AMD EPYC 7003 |
| Processor socket | Socket SP3 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory | 256 GB |
| Supported memory clock speeds | 3200 MHz |
| Memory voltage | 1.2 V |
| Memory slot pin count | 288 |
| Memory slots type | DIMM |
| Number of memory slots | 32 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | SATA III |
| Graphics | |
|---|---|
| Graphics card | AST2500 |
| Graphics card family | ASPEED |
| On-board graphics card | Yes |
| Internal I/O | |
|---|---|
| Number of SATA III connectors | 32 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |

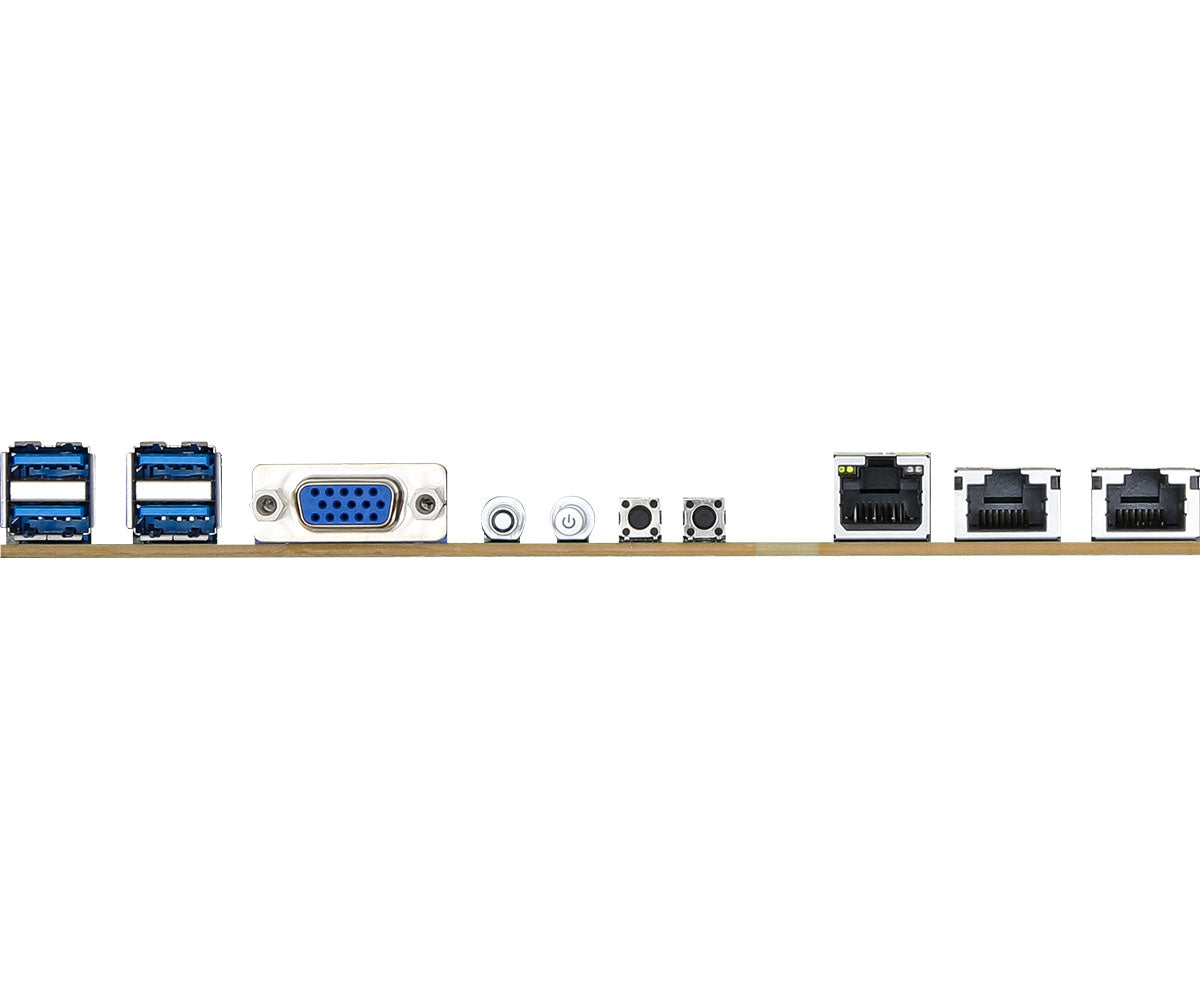

| Rear panel I/O ports | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Network | |
|---|---|
| Wi-Fi | Yes |
| LAN controller | Intel® X550-AT2 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Motherboard chipset | AMD SoC |
| Motherboard chipset family | AMD |
| Component for | Server |
| BIOS | |
|---|---|
| System Management BIOS (SMBIOS) version | 2.8 |
| ACPI version | 2.0 |
| BIOS memory size | 32 Mbit |
| BIOS type | UEFI AMI |
| Weight & dimensions | |
|---|---|
| Depth | 369.8 mm |
| Width | 419.9 mm |
