£92.99

Stock Available: 0

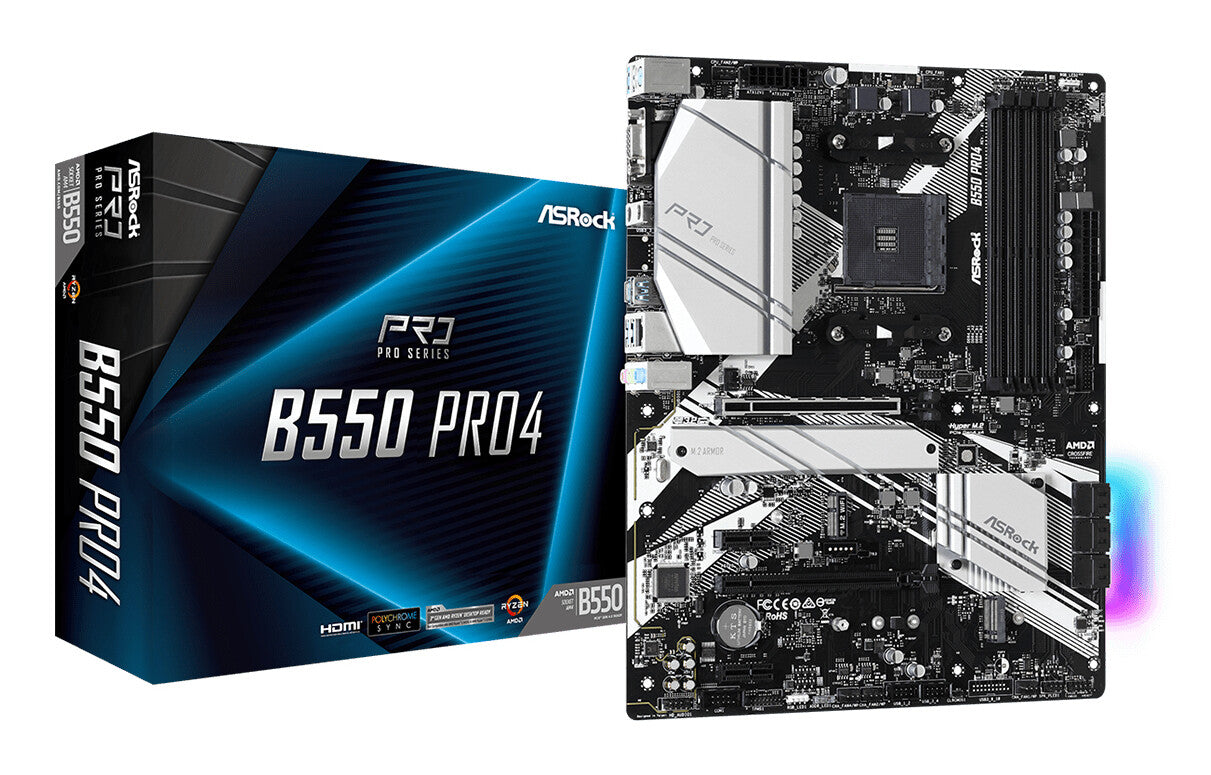

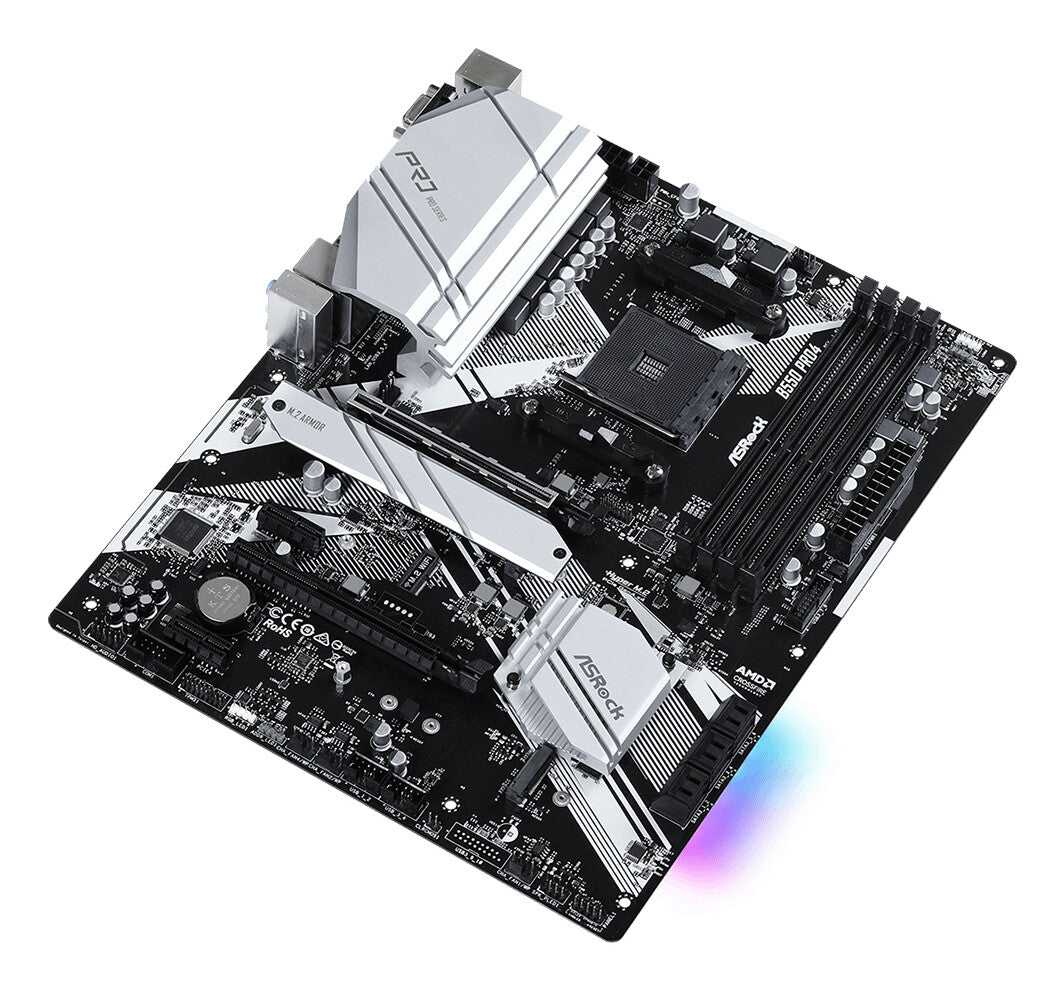

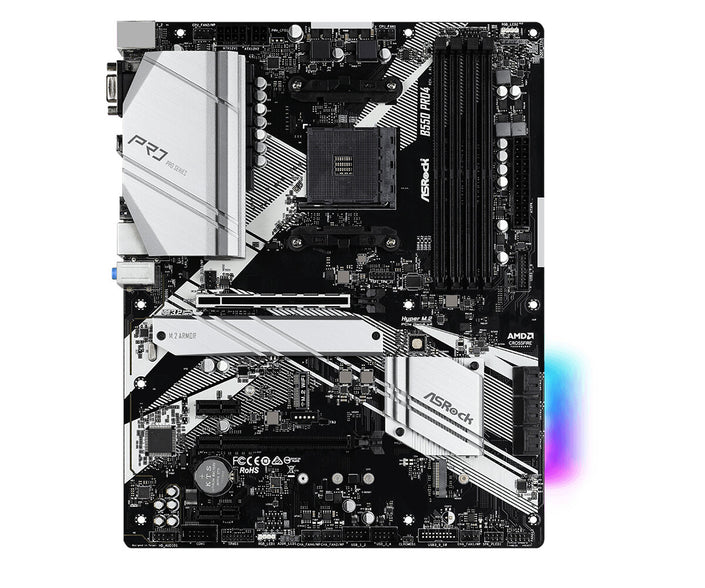

  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
  • 8 Power Phase Design, Digi Power
  • Supports DDR4 4733+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, D-Sub
  • AMD CrossFireX™
  • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
  • 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
  • 2 USB 3.2 Gen2 (Rear Type A+C), 6 USB 3.2 Gen1 (2 Front, 4 Rear)
  • Gigabit LAN

IT’S TIME FOR B550 MOTHERBOARDS
Everything You Need For Computing

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

A SOLID M.2-SOLUTION PERFORMER
Dual M.2 For SSD, Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.
M.2 Armors
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + D-SUB combo, you have more graphics output options now.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Processor
Supported processor sockets Socket AM4
Maximum number of SMP processors 1
Compatible processor series AMD Ryzen 3000 Series
Processor socket Socket AM4
Processor manufacturer AMD
Memory
Unbuffered memory Yes
Supported memory module capacities 4GB, 8GB, 16GB, 32GB
Maximum internal memory 128 GB
Supported memory clock speed (max) 4533 MHz
Supported memory clock speeds 2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533 MHz
ECC сompatibility ECC & Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR4-SDRAM
Storage controllers
RAID levels 0, 1, 10
RAID support Yes
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Graphics
DirectX version 12.0
HDCP Yes
Parallel processing technology support CrossFireX, Quad-GPU CrossFireX
Internal I/O
RGB LED pin header Yes
Number of COM connectors 1
TPM connector Yes
12V power connector Yes
EPS power connector (8-pin) Yes
Peripheral (Molex) power connectors (4-pin) 1
Number of chassis fan connectors 4
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel connector Yes
Front panel audio connector Yes
Number of SATA III connectors 6
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 connectors 2

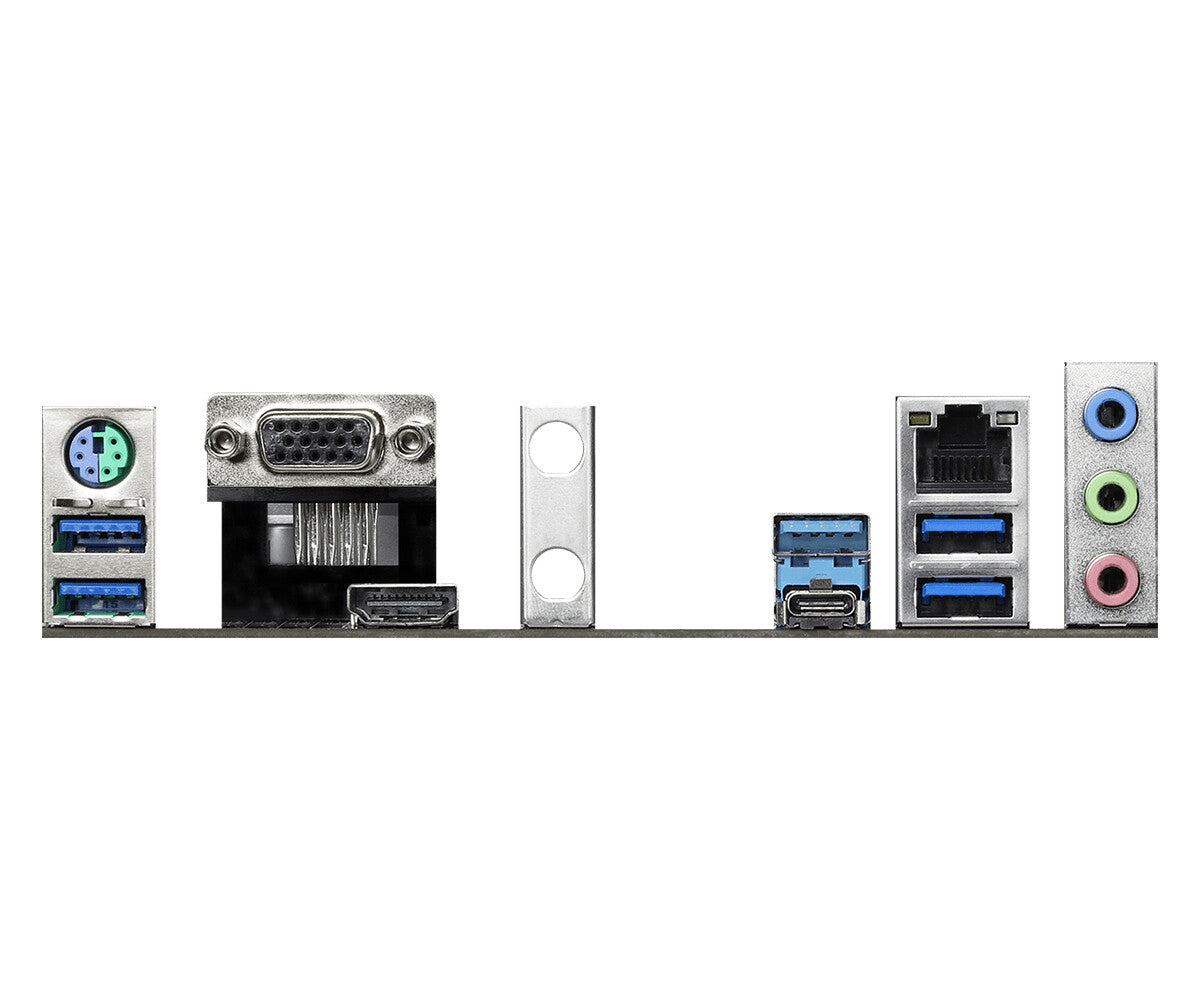

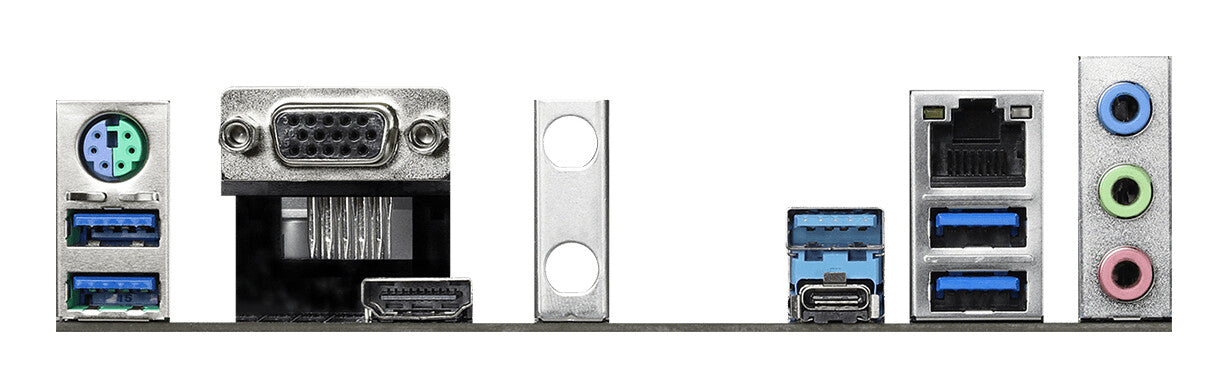

Rear panel I/O ports
Microphone in Yes
HDMI ports quantity 1
VGA (D-Sub) ports quantity 1
PS/2 ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Network
Wi-Fi No
Wake-on-LAN ready Yes
LAN controller Realtek RTL8111H
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Features
PC health monitoring CPU, Fan, Temperature, Voltage, Water cooling
Audio output channels 7.1 channels
Audio chip Realtek ALC1200
Motherboard chipset AMD B550
Motherboard chipset family AMD
Motherboard form factor ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 2
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x1 (Gen 3.x) slots 2
BIOS
System Management BIOS (SMBIOS) version 2.3
ACPI version 5.1
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Logistics data
Harmonized System (HS) code 84733020
Weight & dimensions
Height 87 mm
Depth 244 mm
Width 305 mm
Packaging content
Drivers included Yes
Cables included SATA
Other features
Weight 465 g
