£114.99

Stock Available: 0
  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 6+2+1 Power Phase, Dr.MOS, 120W CPU Ready
  • Supports DDR5 6000+ MHz (OC)1 PCIe 4.0 x16
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec,Nahimic Audio
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),1 M.2 (PCIe Gen3x2)
  • 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  • Realtek Gigabit LAN802.11ax Wi-Fi 6E + Bluetooth
  • Supports ASRock Auto Driver Installer,BIOS Flashback

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

Optimized VRM Design
Featuring sturdy components optimized for AMD Ryzen™ 7000X3D series processors, offering enhanced performance for gamers.

6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, giving a stable and reliable system.

Reinforced Steel Slot
[PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

SMA cable is easy to loose, this is an unacceptable situation for every users. Now we fixed this issue with a little Key-E module cap.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.

Processor
Maximum number of SMP processors 1
Compatible processor series AMD Ryzen 7000 Series
Processor socket Socket AM5
Processor manufacturer AMD
Memory
Maximum internal memory 192 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR5-SDRAM
Storage controllers
RAID levels 0, 1, 10
RAID support Yes
Supported storage drive interfaces M.2, SATA
Supported storage drive types HDD & SSD
Graphics
Graphics card AMD RDNA 2
Graphics card family AMD
On-board graphics card Yes
Internal I/O
RGB LED pin header Yes
TPM connector Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel connector Yes
Number of SATA III connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 2.0 connectors 2

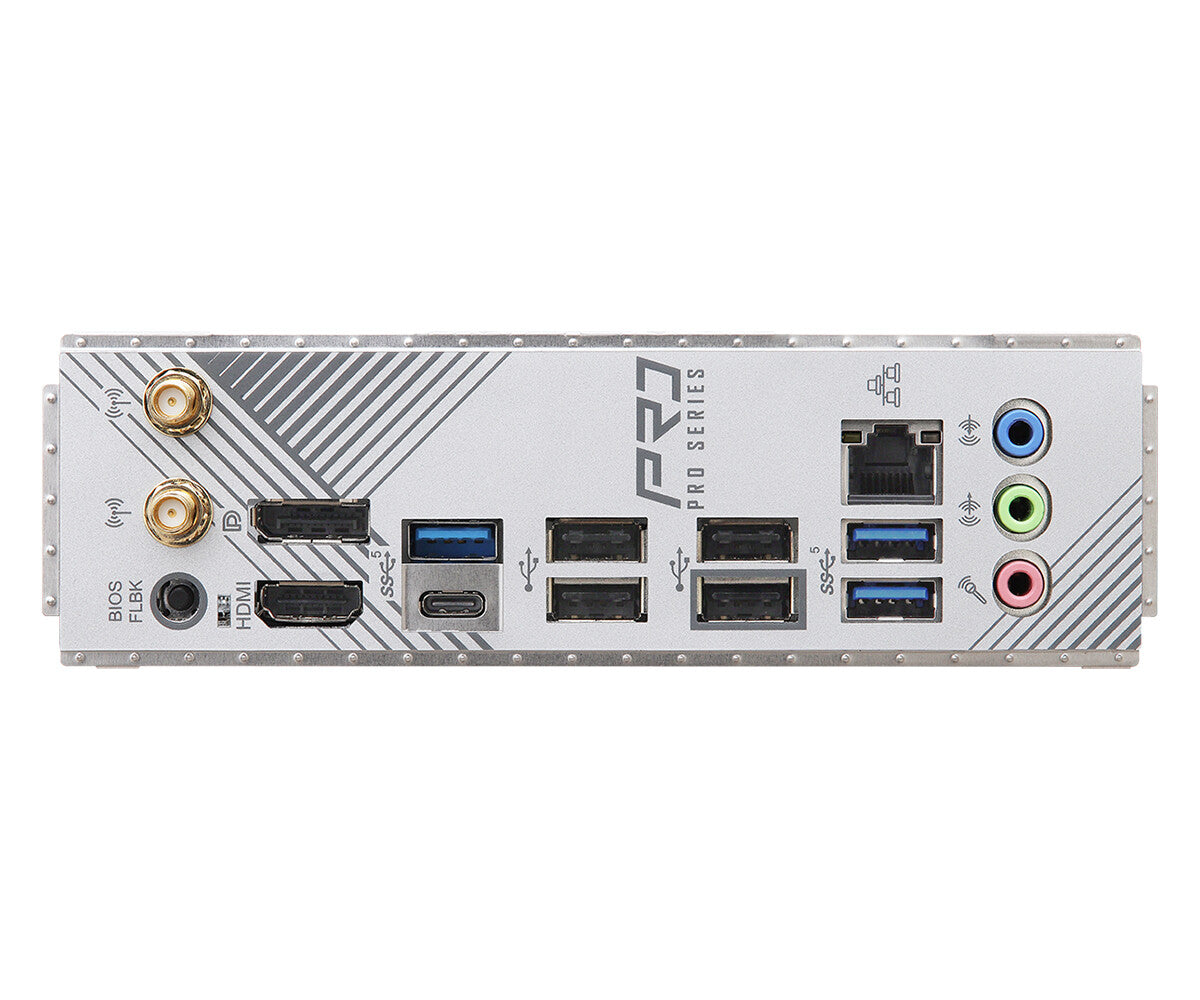

Rear panel I/O ports
WiFi-AP antenna jack 2
Microphone in Yes
Line-in Yes
DisplayPort version 1.4
DisplayPorts quantity 1
HDMI version 2.1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 2.0 ports quantity 4
Network
Bluetooth version 5.2
Bluetooth Yes
Wi-Fi standards 802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
LAN controller Realtek 8111H
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Features
Certification FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
Windows operating systems supported Windows 10 x64, Windows 11 x64
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Motherboard chipset AMD A620
Motherboard chipset family AMD
Motherboard form factor micro ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 3
PCI Express x16 (Gen 4.x) slots 1
BIOS
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Weight & dimensions
Depth 244 mm
Width 244 mm
Packaging content
Bundled software - ASRock Motherboard Utility (A-Tuning)- ASRock Polychrome SYNC- ASRock XFast LAN- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash
