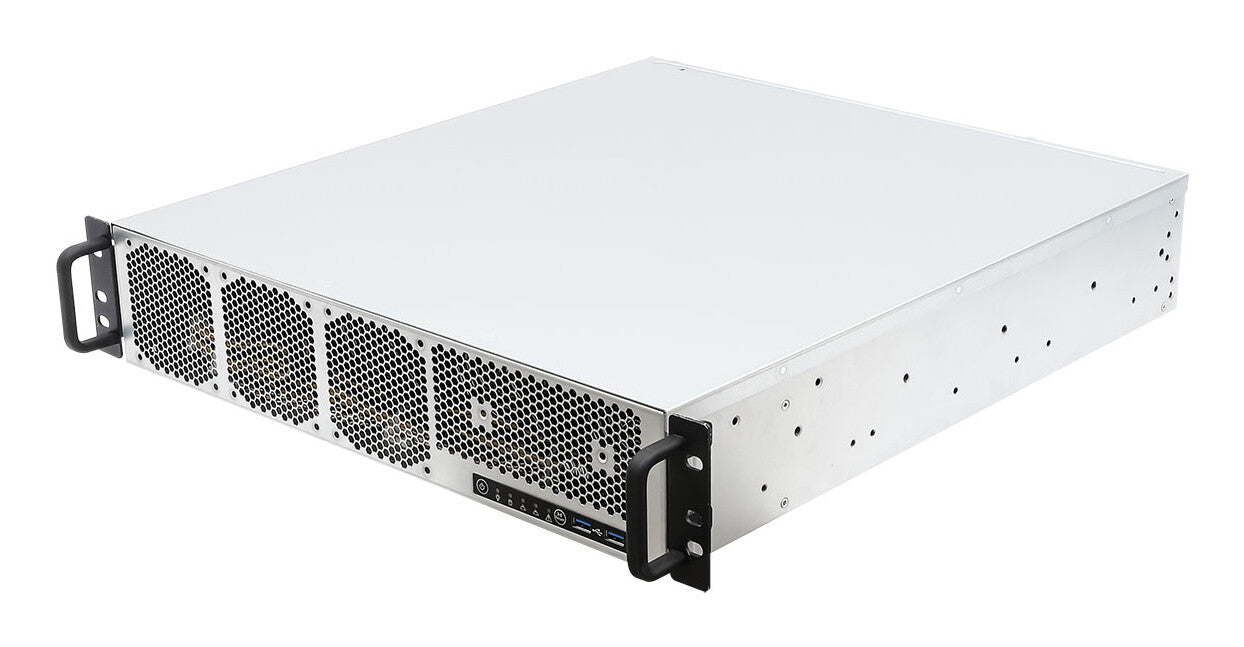

?System |
Form Factor |
2U Rackmount |
Dimensions |
477.7 x 430.4 x 88 mm (18.8'' x 16.9'' x 3.5'') |
Support MB |
B650D4U |

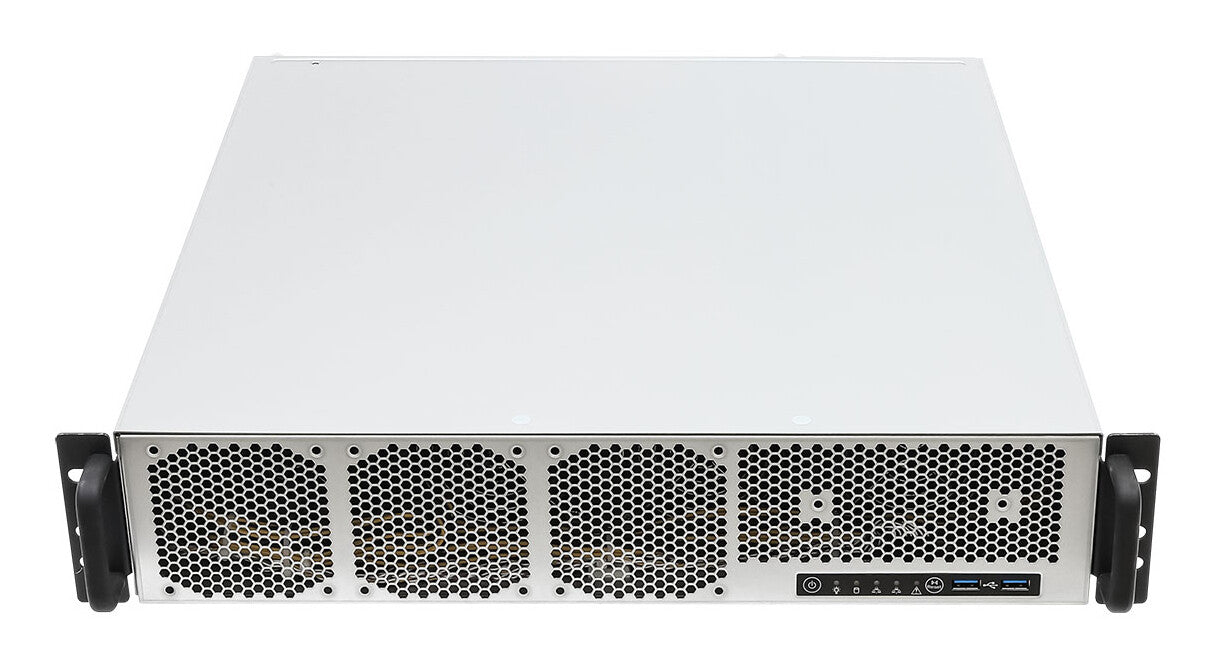

?Front Panel |
Buttons |
Power button w/ LED, System Reset button |
LEDs |
System Fail LED, LAN1/LAN2 Activity, Power Status LED |
I/O Ports |
2 Type-A (USB3.2 Gen1) |
?External Drive Bay / Storage |
Internal Side |
1 optional fixed 2.5' drive bay
1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
1 M-key (PCIe4.0 x4), supports 2280/2242 form factor [FCH] |
?Power Supply |
Type |
1+1 Hot-swap CRPS |
Output Watts |
1000W @ 100-127Vac input / 1200W @ 200-240Vac input |
Efficiency |
80-PLUS Platinum |
AC Input |
AC 100-127V/12A, 50-60Hz; AC 200-240V/7.5A, 50-60Hz |
?System Fan |
Fan |
4 PWM easy-swap 80x38 mm fans |
?Processor System |
CPU |
Supports AMD EPYC? 4004 and AMD Ryzen? 9000/8000/7000 Series Processors |
Socket |
Single Socket AM5 (LGA 1718) |
Thermal Design Power |
Up to 170W |
Chipset |
AMD B650E |
?System Memory |
Supported DIMM Quantity |
4 DIMM slots (2DPC) |
Supported Type |
DDR5 288-pin ECC/non-ECC UDIMM |
Max. Capacity per DIMM |
48GB |
Max. DIMM Frequency |
5200 MHz (1DPC); 3600 MHz (2DPC) |
Voltage |
1.1V |
?PCIe Expansion Slots (SLOT7 close to CPU) |
PCIe x 16 |
1 FHFL dual-slot PCIe5.0 x16 via RB2UX16L_G5_RDV |
PCIe x 4 |
1 FHHL PCIe4.0 x4 via riser cable |
?Ethernet |
Additional GbE Controller |
Intel??i210: 2 RJ45 (1GbE) |
?Server Management |
BMC Controller |
ASPEED AST2600 |
IPMI Dedicated GLAN |
1 Realtek RTL8211F for dedicated management GLAN |
?Graphics |
Controller |
ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header
AMD Processors with Graphics:
1 HDMI, 1 DisplayPort |
?Rear I/O |
UID Button/LED |
1 UID button w/ LED |
VGA Port |
1 DB15 (VGA), 1 DisplayPort, 1 HDMI |
Serial Port |
1 DB9 (COM) |
USB 3.2 Gen1 Port |
4 Type-A (USB3.2 Gen1) |
RJ45 |
2 RJ45 (1GbE)
1 dedicated IPMI |
?System BIOS |
BIOS Type |
AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM |
BIOS Features |
Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5 |
?Hardware Monitor |
Temperature |
CPU, DDR, MB, Card Side, Chipset, M.2 slot |
Fan |
Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) |
Voltage |
VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V |
?Environment |
Temperature |
Operation temperature: 10?C ~ 35?C / Non operation temperature: -40?C ~ 70?C |
Humidity |
Non operation humidity: 20% ~ 90% ( Non condensing) |
