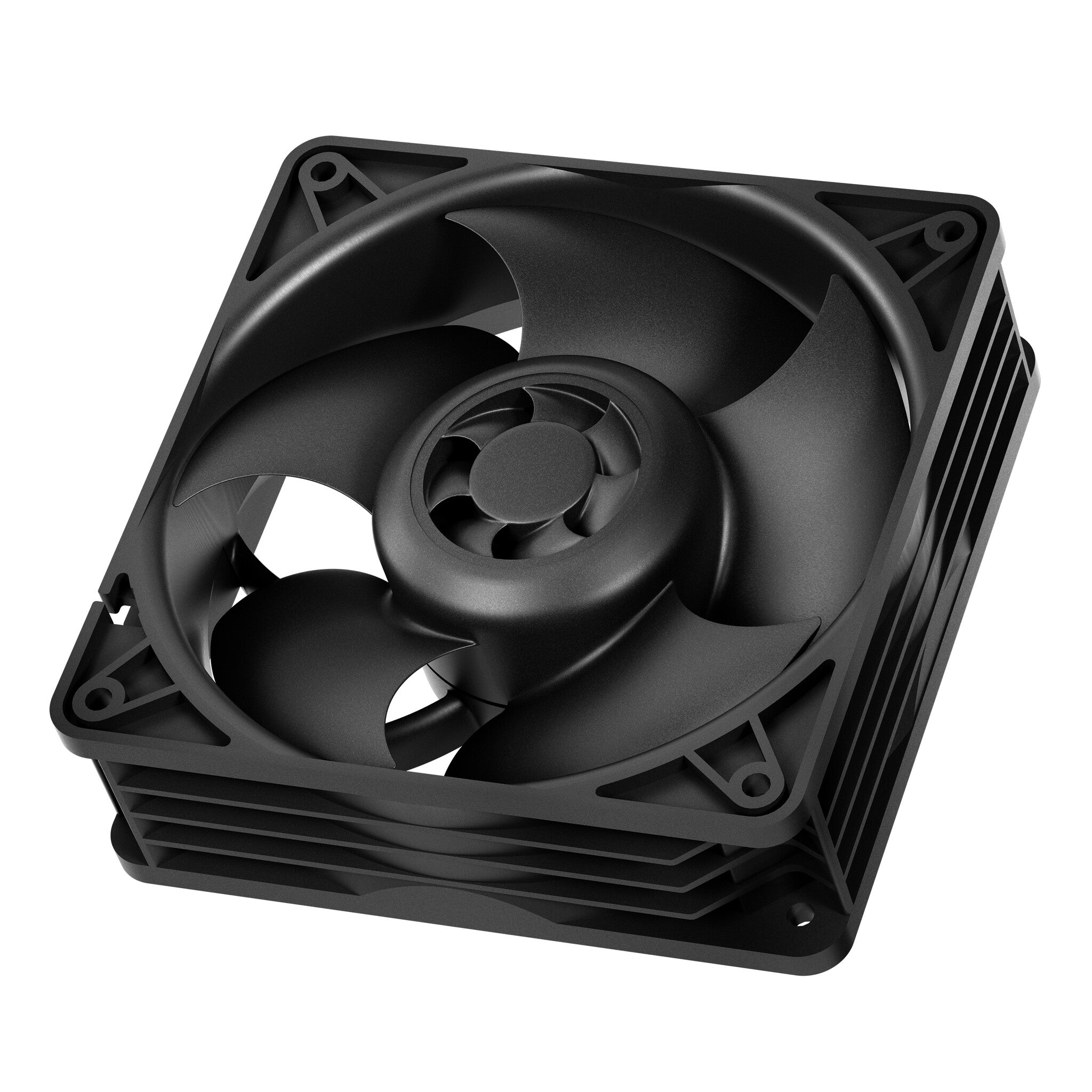

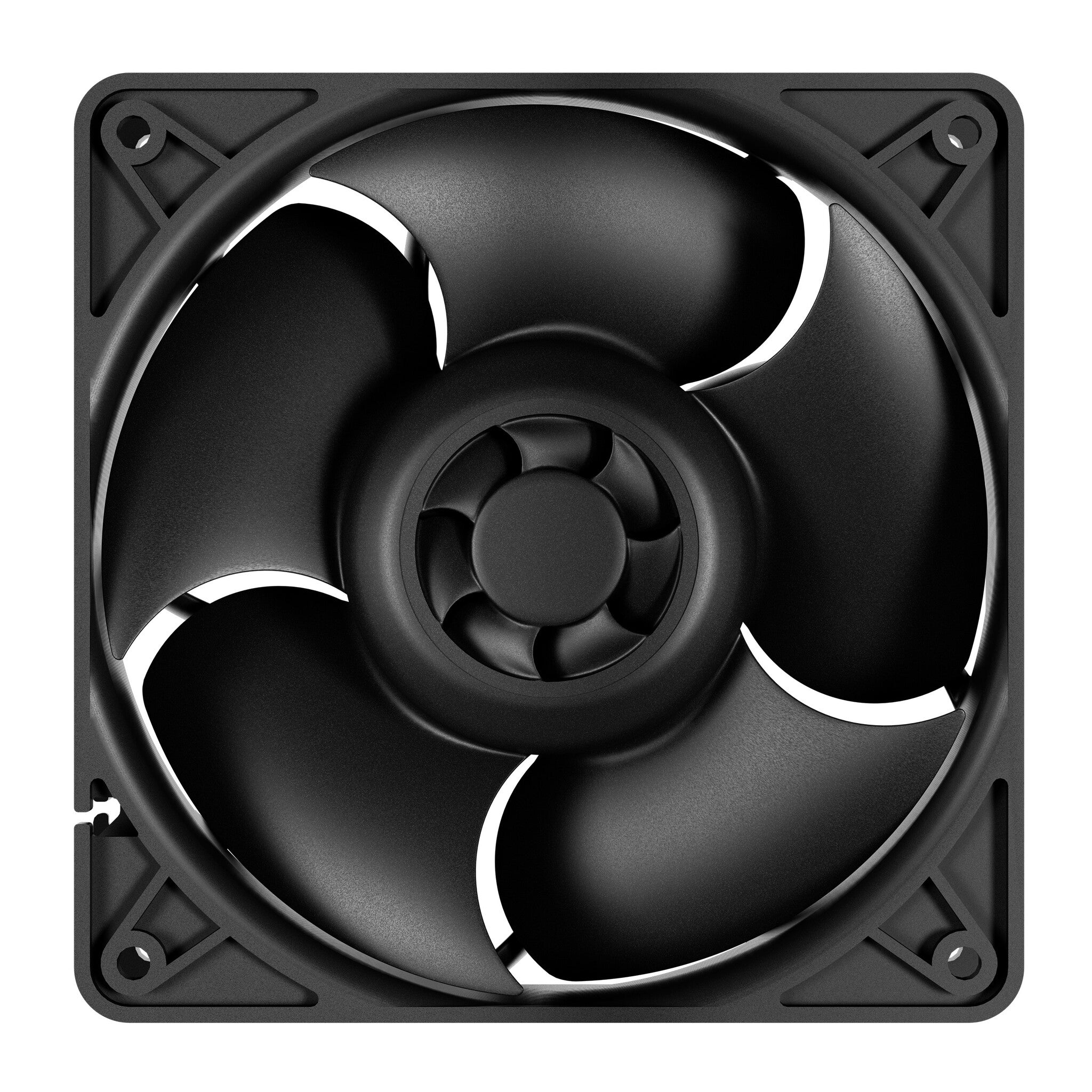

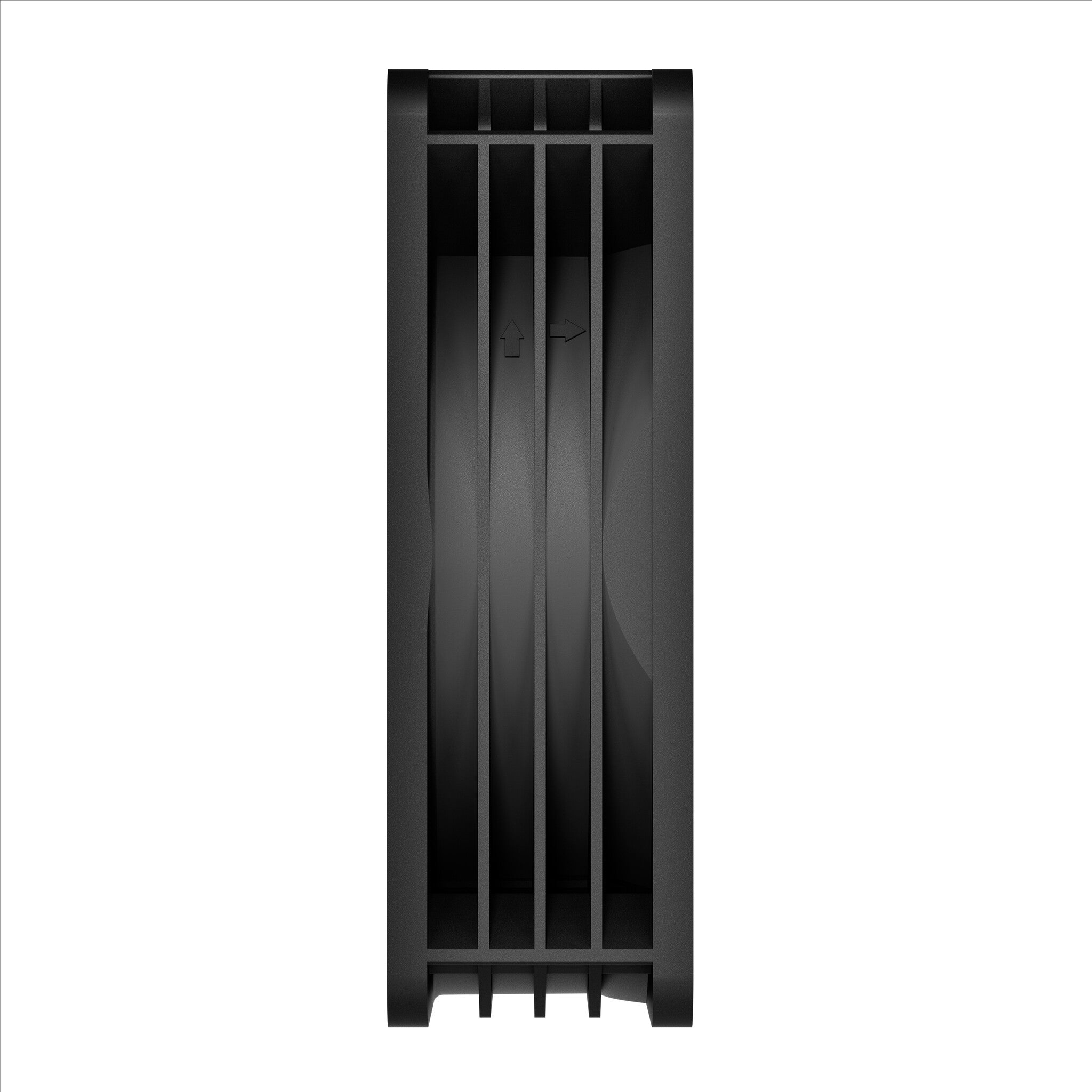

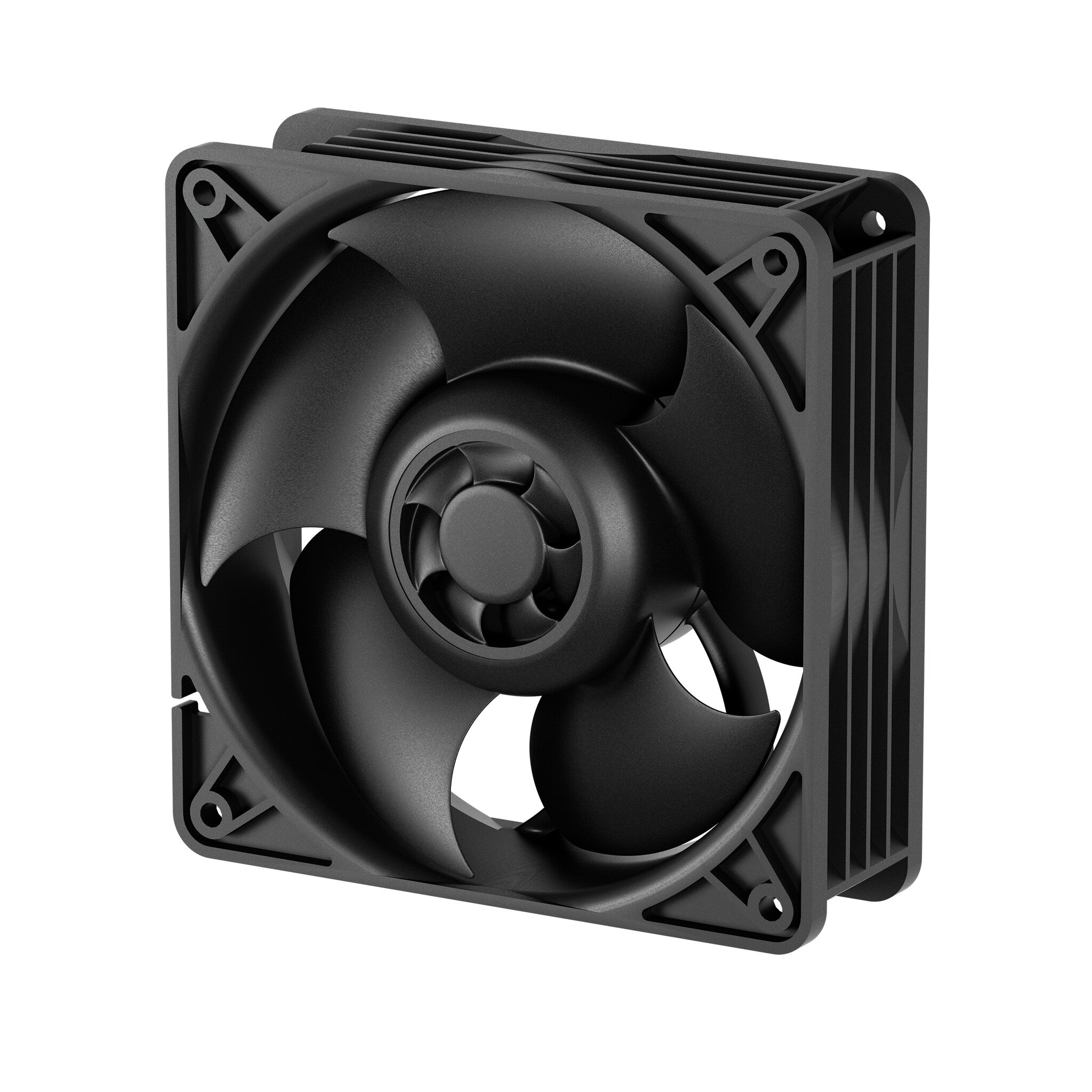

ARCTIC S12038-4K 120 mm 4k rpm Server Fan
iFrame
£19.99
Couldn't load pickup availability
- Computer case Fan 12 cm 4000 RPM
- 106 cfm 11.45 mmH2O Dual ball bearing
- Pulse-width modulation (PWM) support
- Black
- 1 pc(s)
Workstation & Server Cooling
Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.
| Performance | |
|---|---|
| Operating temperature (T-T) | -10 - 70 °C |
| Quantity per pack | 1 pc(s) |
| Bearing type | Dual ball bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 11.45 mmH2O |
| Airflow | 180 m³/h |
| Maximum airflow | 106 cfm |
| Rotational speed (max) | 4000 RPM |
| Rotational speed (min) | 600 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Product colour | Black |
| Power | |
|---|---|
| Maximum current | 0.6 A |
| Rated current | 0.33 A |
| Starting voltage | 3.1 V |
| Rated voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Package weight | 362 g |
| Package height | 43 mm |
| Package depth | 125 mm |
| Package width | 125 mm |
| Cable length | 0.3 m |
| Weight | 320 g |
| Height | 38 mm |
| Depth | 120 mm |
| Width | 120 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
- leaflet
- 12038-4K 4000RPM P-Q Curve
- S12038 Series 2D Drawing
- S12038 mounting pattern
- S12038-4K PWM Curve
- S12038-4k MTTF Report
- ACFAN00296A - S12038-4K - CE Declaration
- ACFAN00296A - S12038-4K - COO
- ACFAN00296A - S12038-4K - RoHS & REACH declaration of Compliance
- ACFAN00296A - S12038-4K - UKCA Declaration
