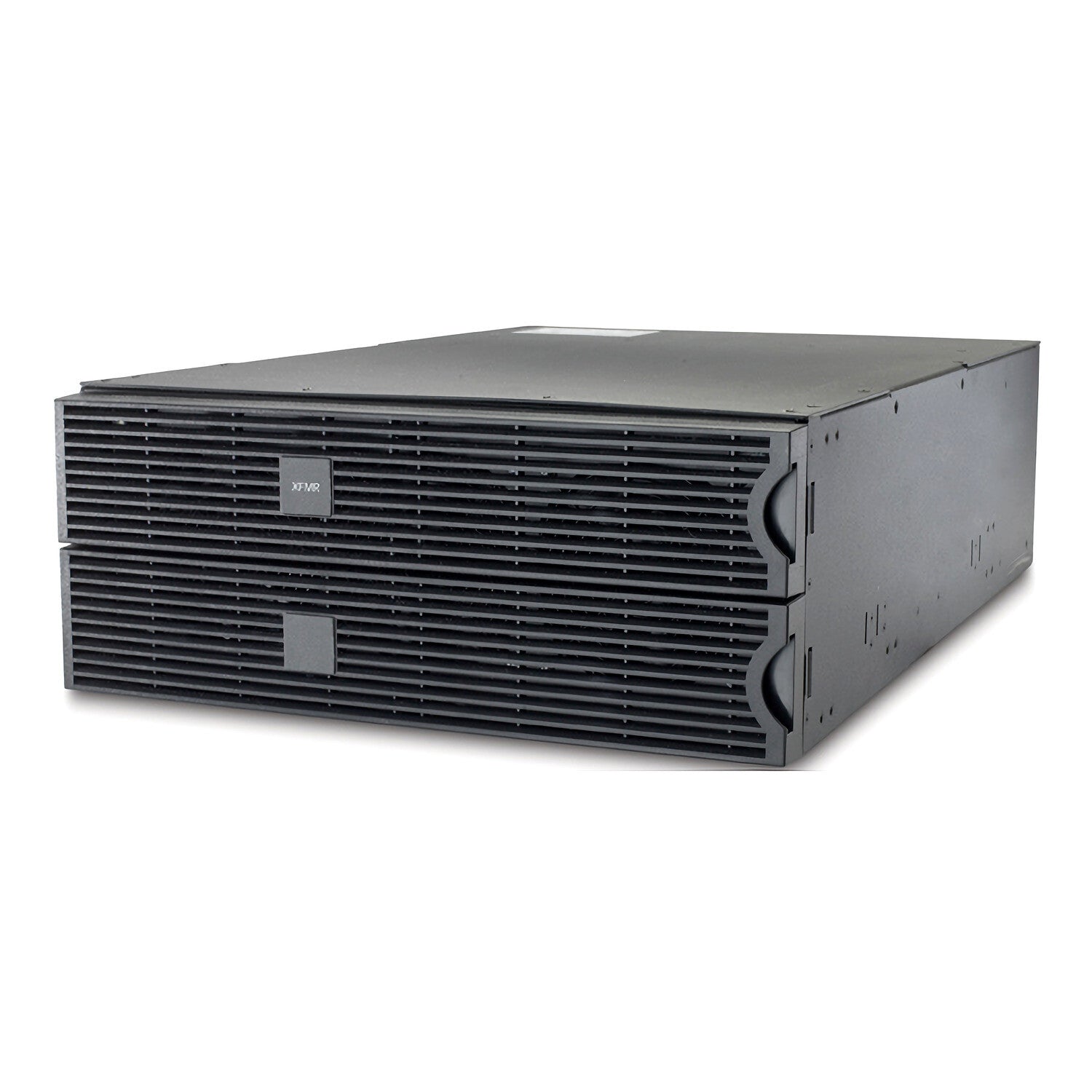

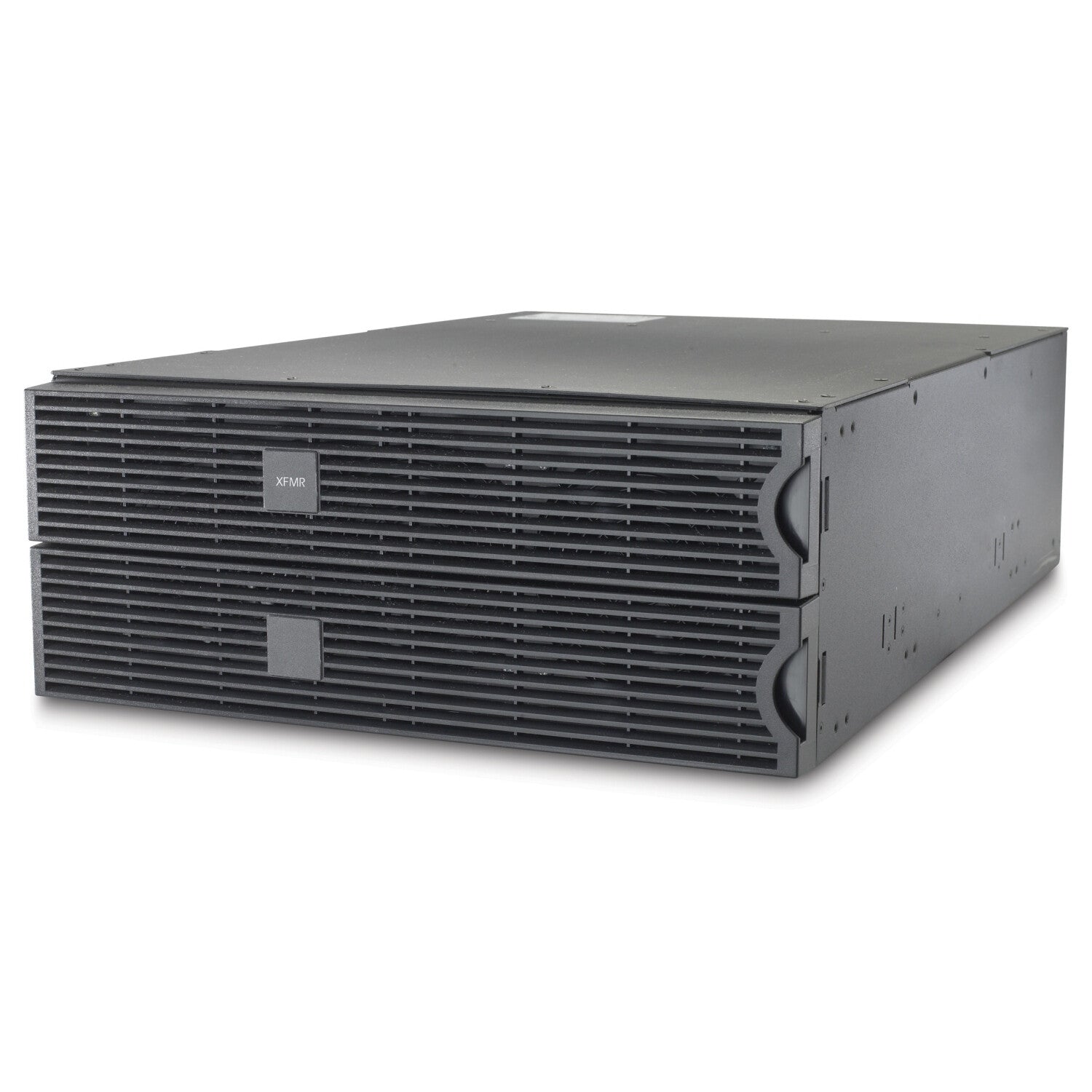

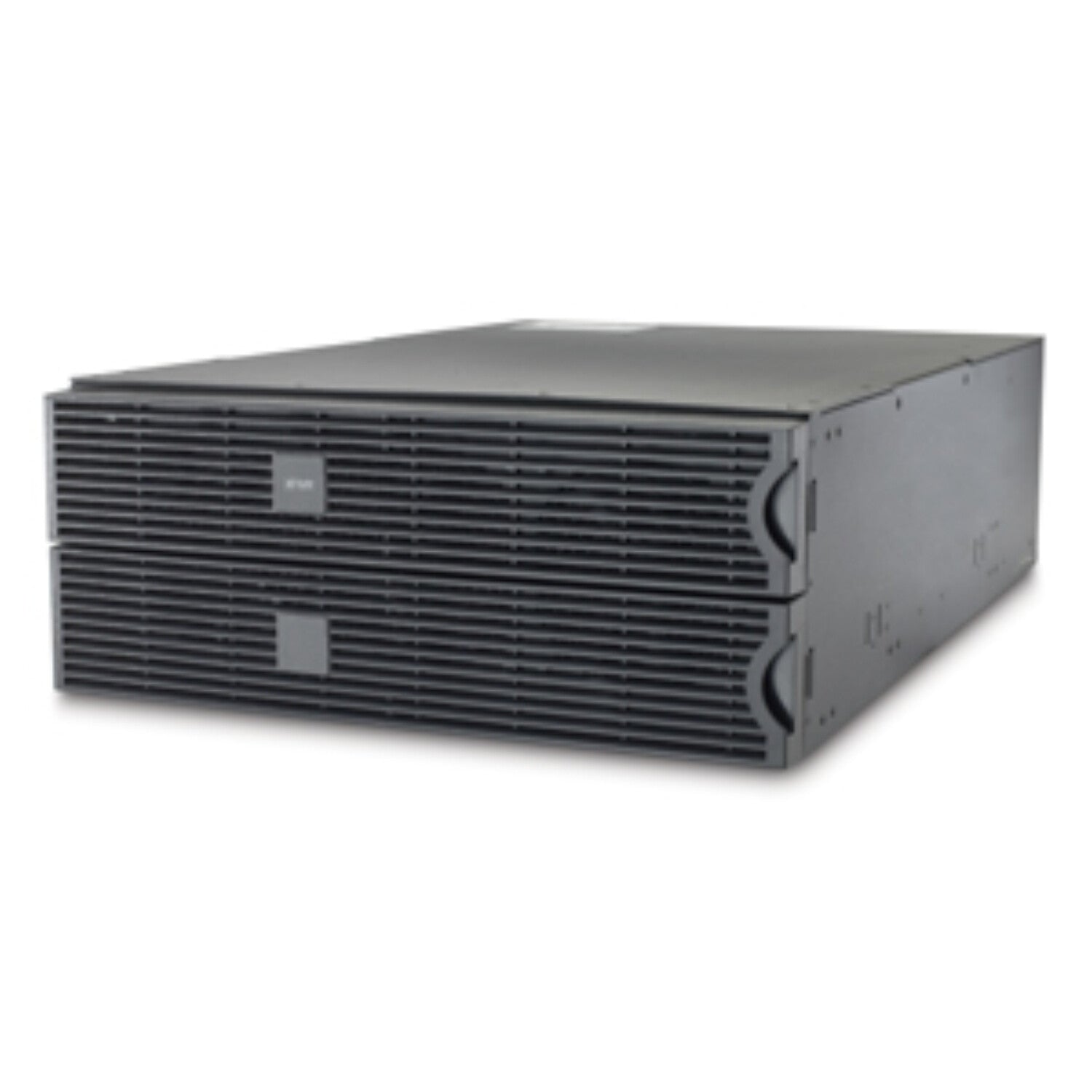

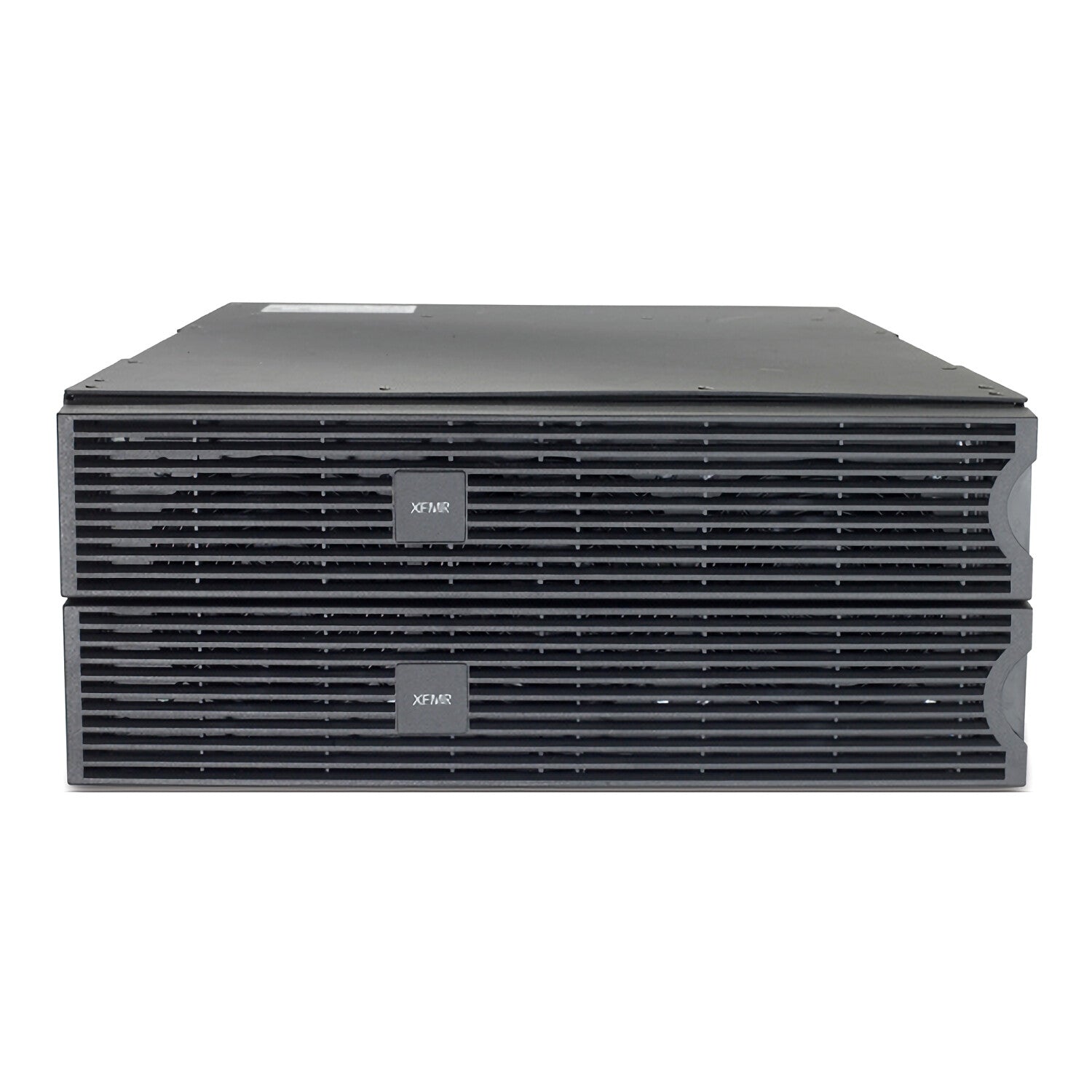

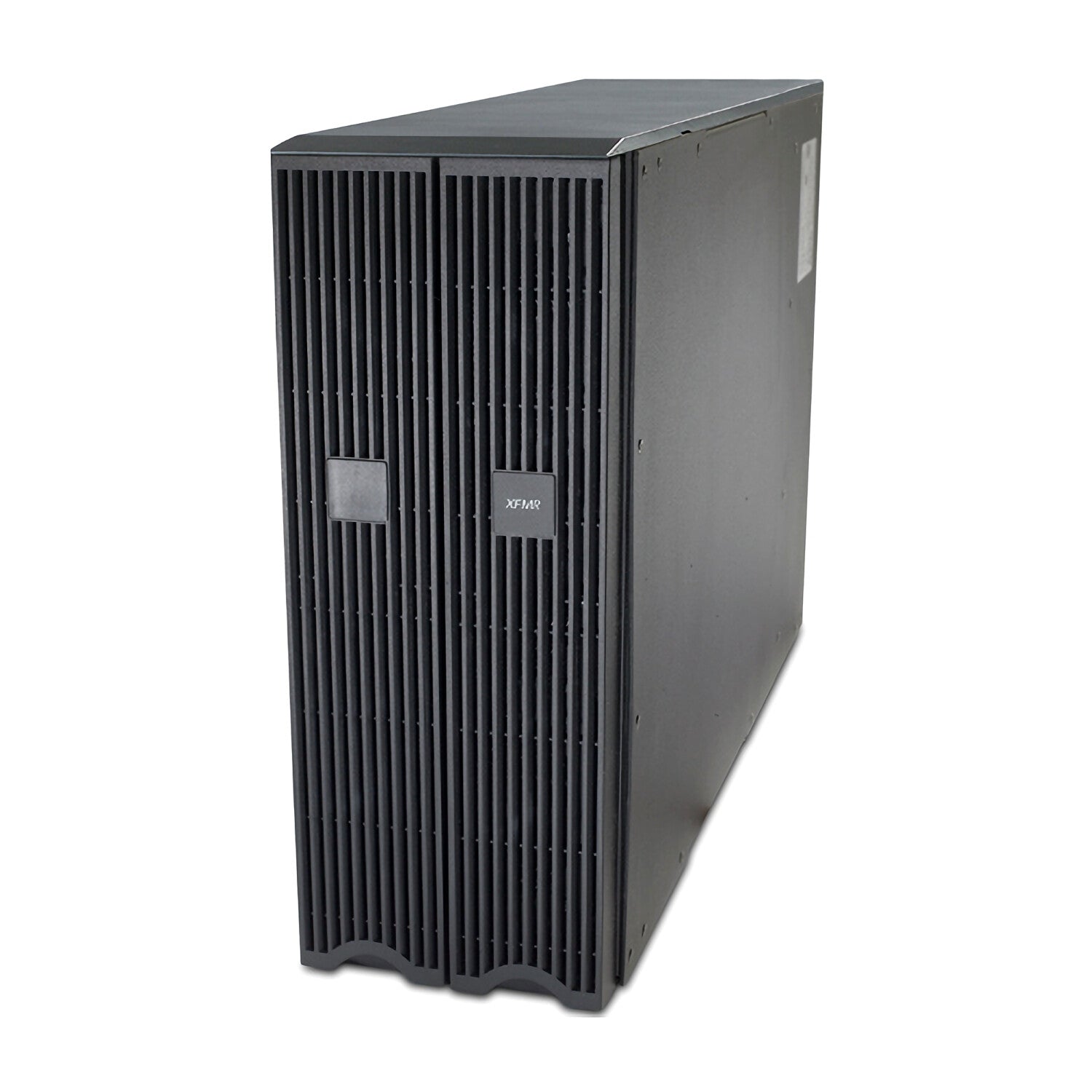

APC WW 10KVA Isolation Transformer
APC WW 10KVA Isolation Transformer
APC WW 10KVA Isolation Transformer
APC WW 10KVA Isolation Transformer

APC WW 10KVA Isolation Transformer

APC
£2,981.99
Stock Available: 0

The Step-Down Transformer converts high voltage (208 or 200 VAC) output into low voltage (120 or 100 VAC) output for powering low voltage AC equipment.

Design
Product colour Black
Ports & interfaces
Output connections 1x Hard Wire 3-wire (H N + G)
Input connection type Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G)
Power
Maximum total current draw per phase 60 A
Maximum input current per phase 60 A
Load capacity 10000 VA
Nominal output voltage 230 V
Nominal input voltage 230 V
Certificates
Certification C-tick,CE,CSA,EN 55022 Class A,EN 55024,EN 61000-3-2,EN 61000-3-3,GOST,UL Listed,VDE
Operational conditions
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -25 - 65 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 100 kg
Height 175 mm
Depth 749 mm
Width 432 mm
Logistics data
Total carbon footprint (kg of CO2e) 10587.81
