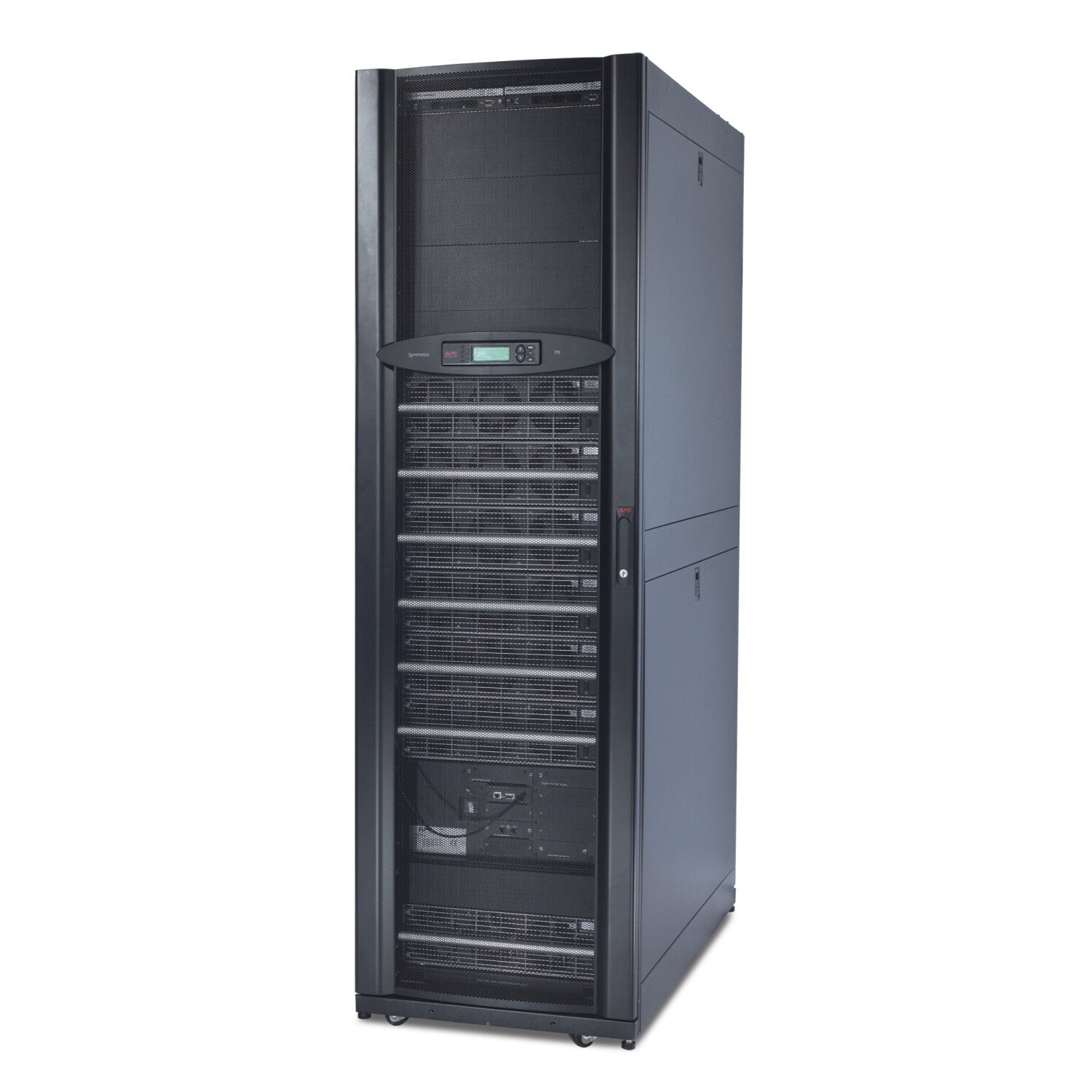

APC Symmetra PX 96kW Scalable to 160kW, without Bypass, Distribution, or Batteries, 400V
£42,594.99
Couldn't load pickup availability
- Double-conversion (Online)
- 160 kVA 160000 W
- Waveform: Sine
- Tower Black
A high-efficiency, modular 3-phase UPS that offers internal redundancy for your data center requirements. With scalable power, this UPS grows with your data center up to 160 kW/160 kVA. Pair with the Classic Battery Cabinet and the wall mount or 300 mm maintenance bypass panel to complete your power protection solution. Suitable for small to medium data centers or individual zones of large data centers.
| Features | |
|---|---|
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| Audible alarm(s) | Yes |
| Power protection features | Overload, Short circuit |
| Noise level | 63 dB |
| Input current Total Harmonic Distortion (THD) | 5% |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Emergency Power Off (EPO) | Yes |
| Input power factor | 0.99 |
| Efficiency | 95% |
| Number of output phases | 3 |
| Maximum current | 197 A |
| Output frequency regulation | +/- 3 Hz |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 415 V |
| Output operation voltage (min) | 230 V |
| Input frequency | 40/70 Hz |
| Input operation voltage (max) | 477 V |
| Input operation voltage (min) | 340 V |
| Waveform | Sine |
| Output power | 160000 W |
| Output power capacity | 160 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| SmartSlot | Yes |
| RS-232 ports | 1 |
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| Design | |
|---|---|
| International Protection (IP) code | IP20 |
| LED indicators | Yes |
| Display type | LCD |
| Rack capacity | 42U |
| Product colour | Black |
| Form factor | Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 1000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Manual | Yes |
| Certificates | |
|---|---|
| Certification | EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, ISO 14001, ISO 9001, VFI-SS-111 |
| Weight & dimensions | |
|---|---|
| Weight | 496 kg |
| Height | 1991 mm |
| Depth | 1070 mm |
| Width | 600 mm |
| Packaging data | |
|---|---|
| Package weight | 547 kg |
| Package height | 2140 mm |
| Package depth | 1210 mm |
| Package width | 848 mm |
