APC · MPN: AP8681
£2,188.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £729.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Price drop alert

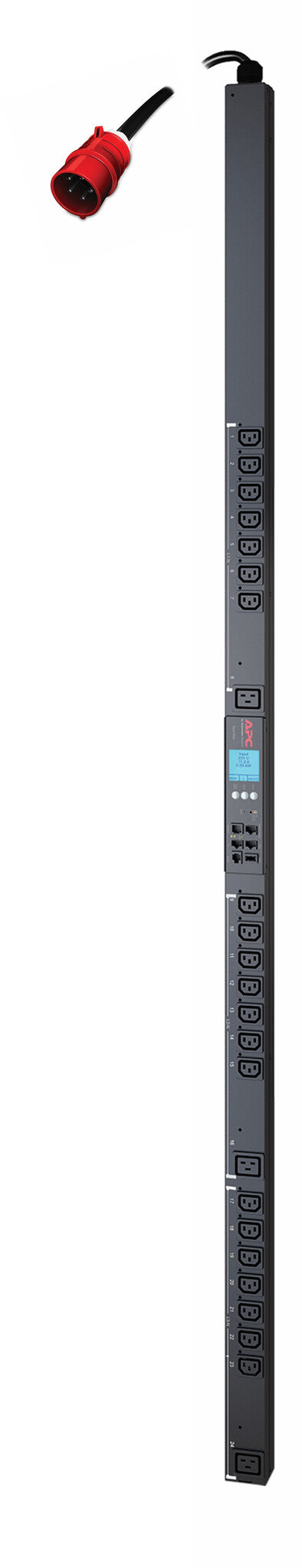

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19
Now £2,188.99

We'll only use your email for this alert unless you tick the box. Unsubscribe any time.

We'll watch the price for 6 months and email you if it drops. Unsubscribe in one click.

Overview

  • Metered, Metered-by-outlet, Switched 0U Black
  • 24 AC outlet(s) C13 coupler, C19 coupler
  • 11040 W

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

Specifications

Design

Product colourBlack
MountingVertical
Rack capacity0U
PDU typesMetered, Metered-by-outlet, Switched

Ports & interfaces

AC outlet typesC13 coupler, C19 coupler
AC outlets quantity24 AC outlet(s)
Show all 28 specificationsShow fewer specifications

Features

Cable length1.83 m

Management features

Outlet controlLock-out, Recycle, Turn off, Turn on
MonitoringCurrent, Power, Voltage

Power

Maximum power11040 W
Maximum total current draw per phase16 A
Maximum input current per phase16 A
Load capacity11040 VA
Nominal output voltage230 V
Maximum current16 A
AC input frequency50 - 60 Hz
Nominal input voltage400 V

Certificates

CertificationEN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE
Compliance certificatesRoHS

Operational conditions

Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating temperature (T-T)-5 - 45 °C

Weight & dimensions

Weight8.23 kg
Height1829 mm
Depth51 mm
Width56 mm

Manuals & downloads
