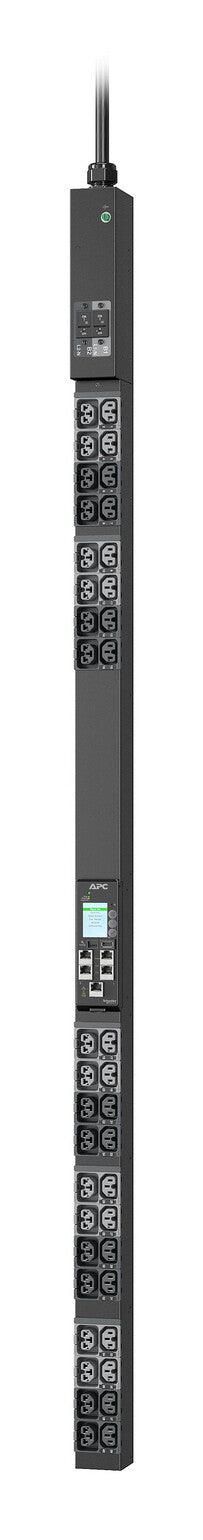

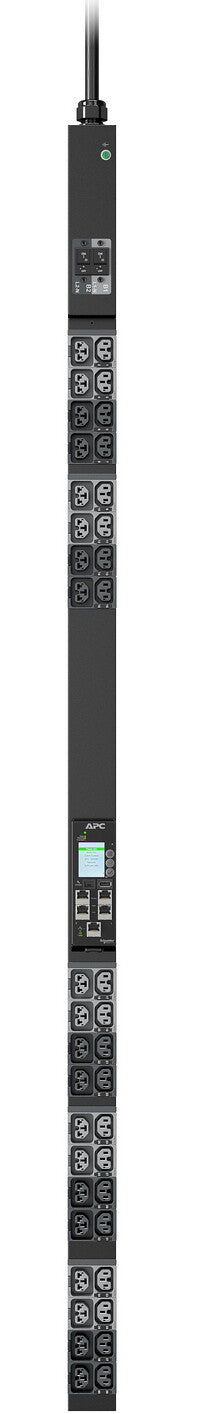

APC NetShelter Rack PDU Advanced Gen 2, Metered, 7.4kW, 1Phase, 230V, 32A, 332P6, 40 Outlets
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £327.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 1-Year Secure Network Management Card subscription included
- Ideal for high-density applications
- Next-gen PDU speeds up IT deployments — one PDU for every type of device
- 4-in-1 combination outlet design acts as C13, C15, C19, and C21 in one outlet

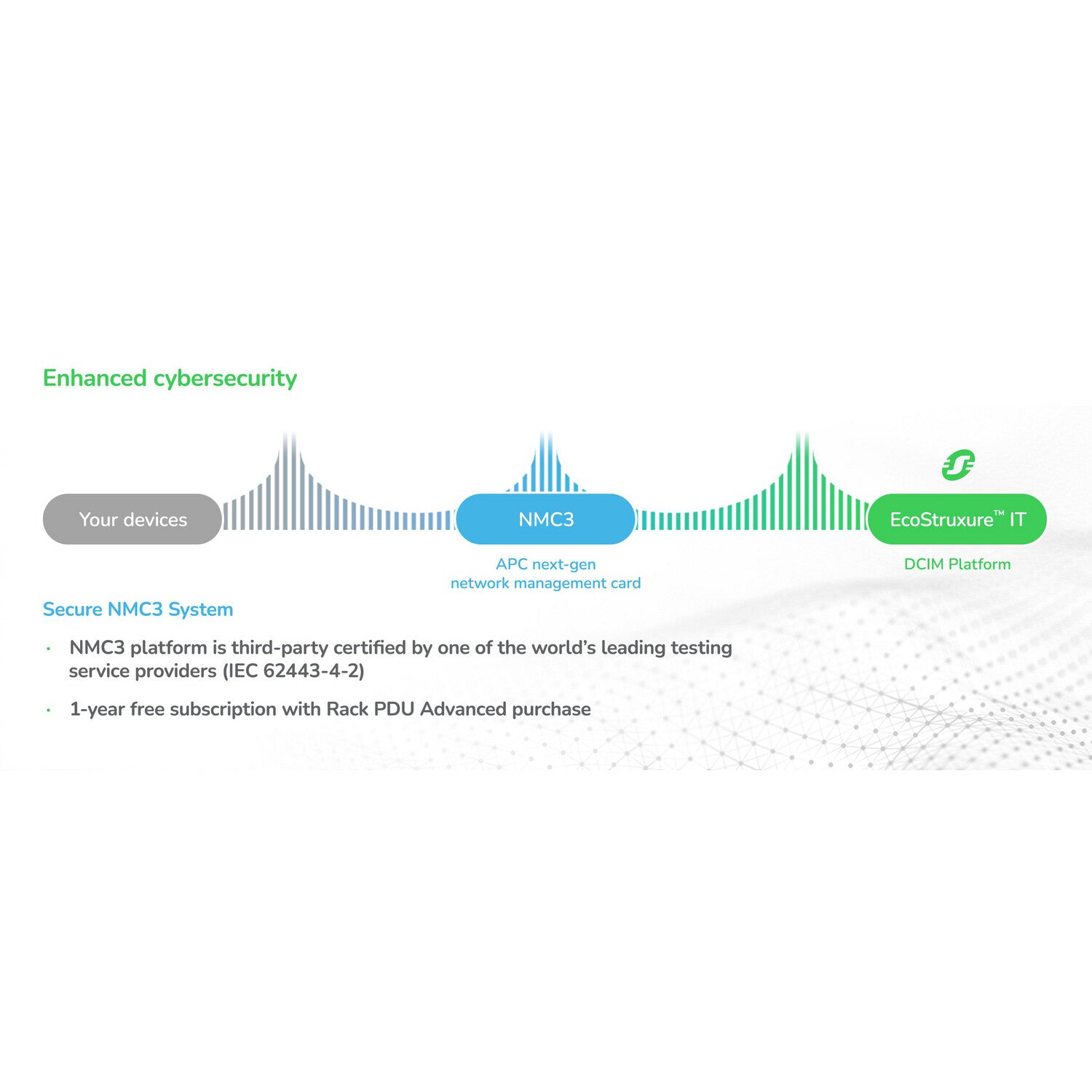

- Enhanced cybersecurity and EcoStruxureTM IT compatible

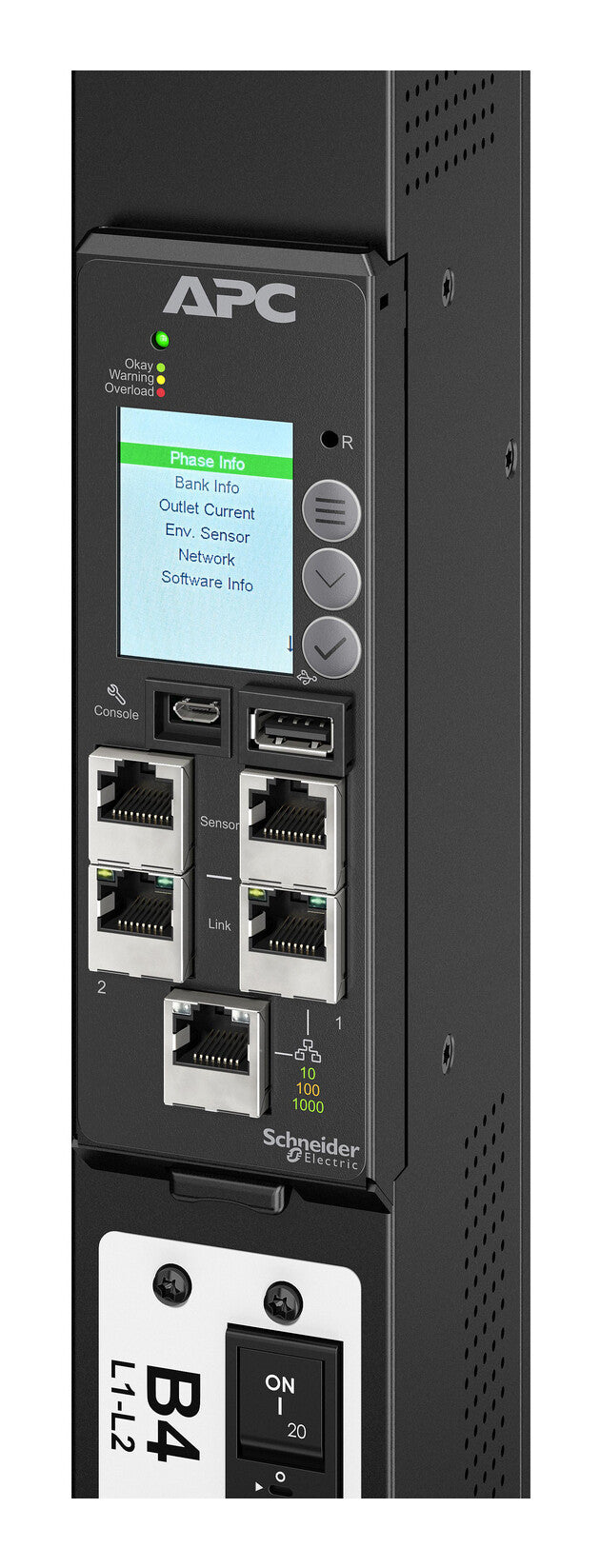

APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. PDU level power metering provides power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is IEC-309 32 A and features 20 count C13/C15/C19/C21 combo outlets and 20 count C13/C15 outlets.
Specifications
Design
| PDU types | Metered |
|---|---|
| Type | Single-phase |
| Rack capacity | 0U |
| Product colour | Black |
Ports & interfaces
| AC outlets quantity | 40 AC outlet(s) |
|---|---|
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Ethernet LAN (RJ-45) ports | 5 |
| USB ports quantity | 1 |
| Input connection type | IEC 60309 32 A 2P + PE |
Show all 32 specificationsShow fewer specifications
Features
| Cable length | 3 m |
|---|
Management features
| Management platform | NMC3 |
|---|
Power
| Nominal input voltage | 230 1 phase |
|---|---|
| AC input frequency | 50/60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 7400 VA |
| Number of phases | 1 |
| Battery replacement accessibility | Non-removable |
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | UKCA |
Weight & dimensions
| Width | 56 mm |
|---|---|
| Depth | 75 mm |
| Height | 1490 mm |
| Weight | 6.2 kg |
Technical details
| Preferred mounting position | no preference |
|---|---|
| Removable battery | No |
| Packaging without single use plastic | No |
| Take-back system | No |
| SCIP number | 31346aed-552c-4a16-81d9-e683a383b6da |
| Sustainable packaging | No |
