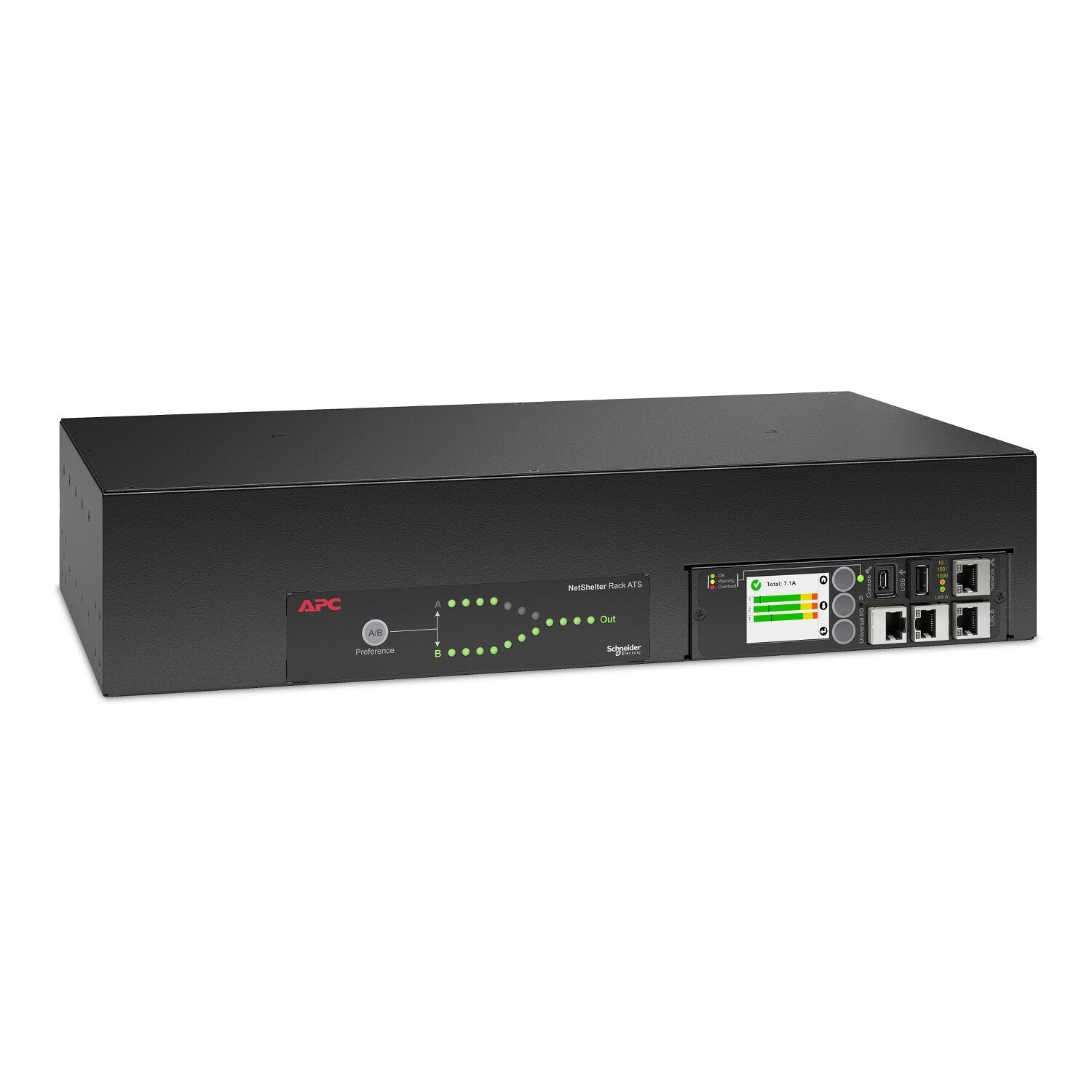

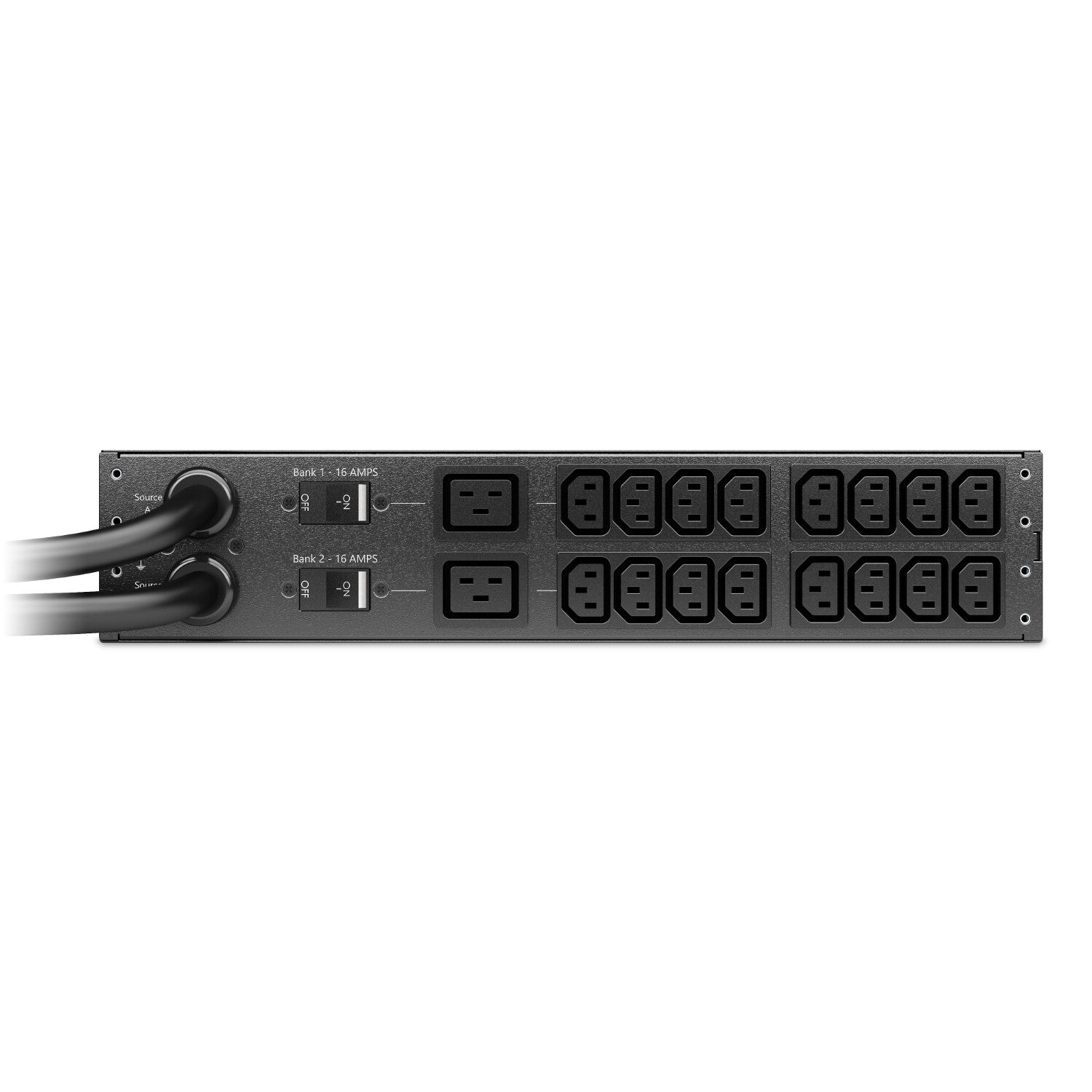

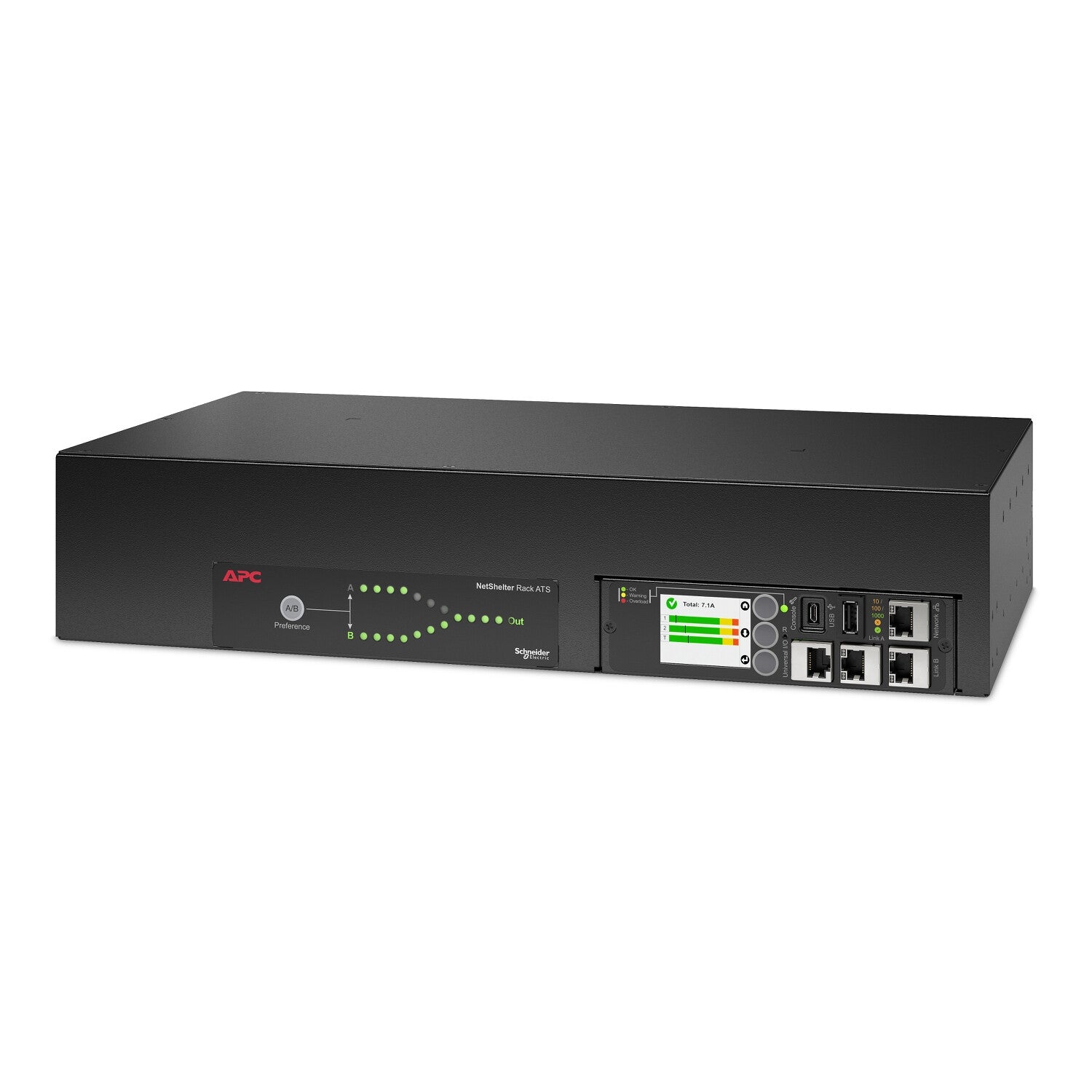

APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £418.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4424A is single phase 2U Rack ATS with 32A rated current, 230V rated voltage and 7400VA load capacity. It comes with inbuilt circuit breaker protection, 2 IEC 309 inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Specifications
Power
| Output current | 32 A |
|---|---|
| Input current | 32 A |
| AC input frequency | 50 - 60 Hz |
| Input operation voltage (max) | 253 V |
| Input operation voltage (min) | 207 V |
Design
| Certification | EN 55022 class A, FCC part 15 class A |
|---|---|
| Product colour | Black |
| Rack capacity | 2U |
| Form factor | Rackmount |
Show all 19 specificationsShow fewer specifications
Ports & interfaces
| AC outlet types | C13 coupler, C19 coupler |
|---|---|
| AC outlets quantity | 18 AC outlet(s) |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95% |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | -5 - 45 °C |
Technical details
| Total carbon footprint (kg of CO2e) | 794.41 |
|---|
Weight & dimensions
| Weight | 6.94 kg |
|---|---|
| Height | 88 mm |
| Depth | 236 mm |
| Width | 432 mm |
