APC · MPN: AP4434A
£1,063.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £354.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Price drop alert

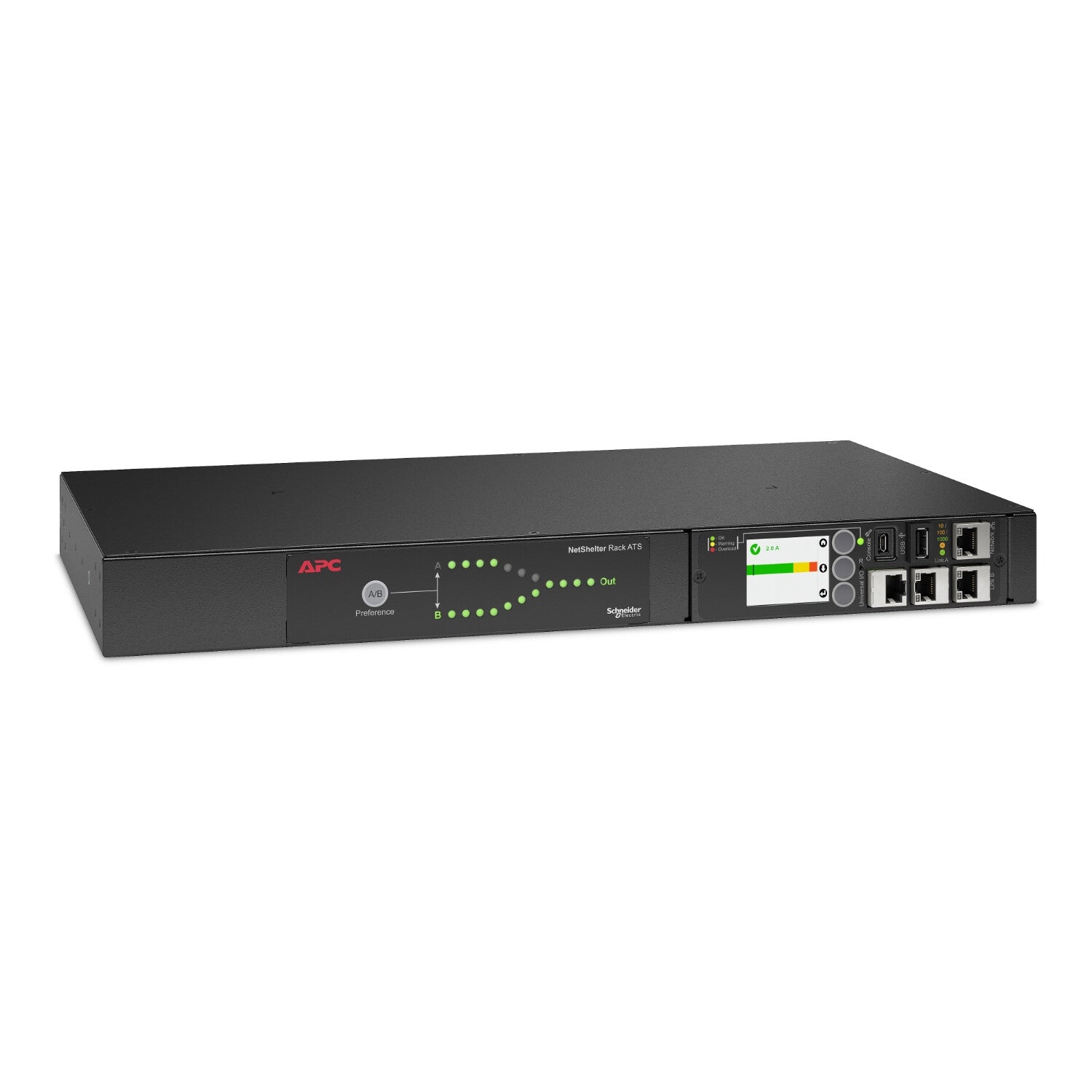

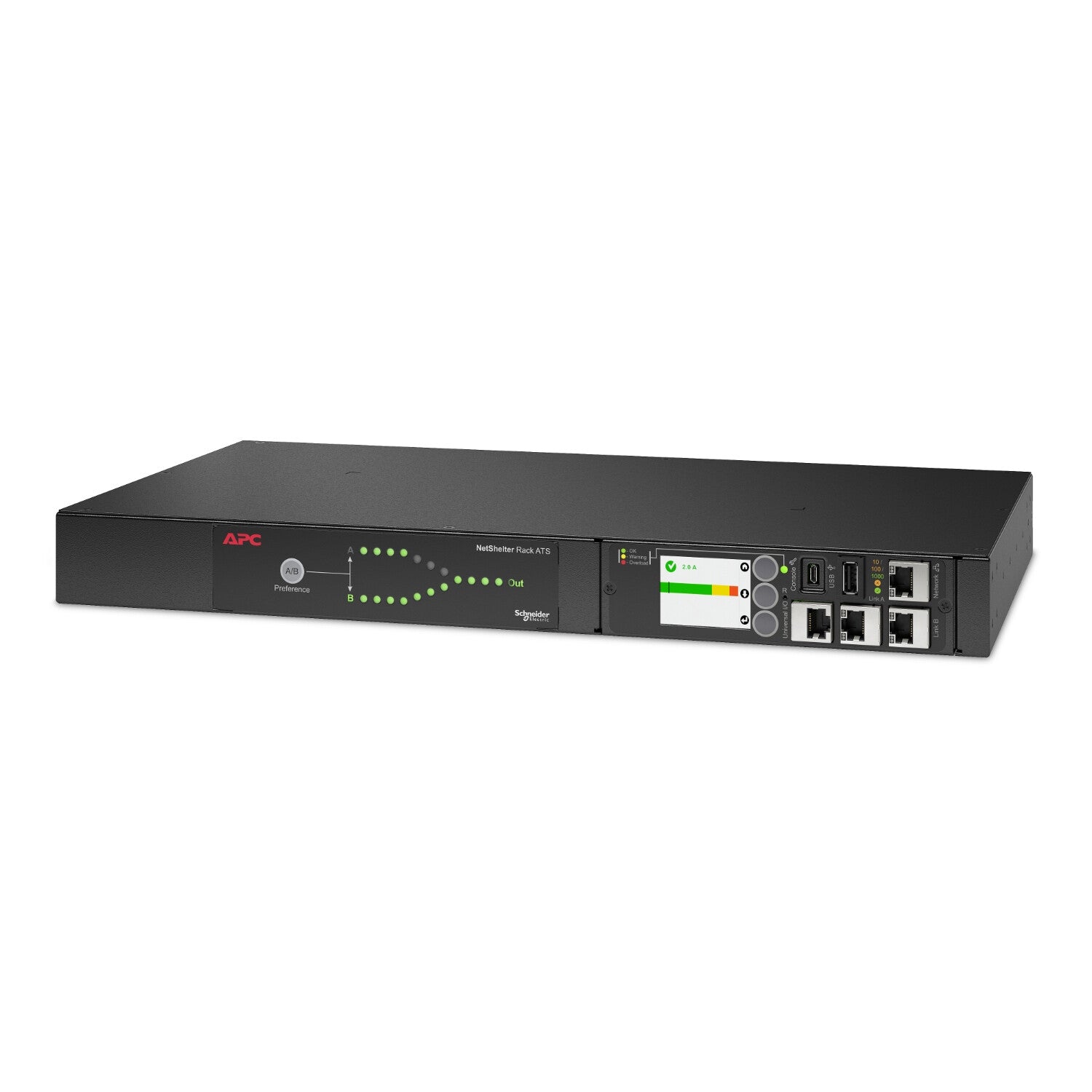

APC Netshelter Rack Automatic Transfer Switch, 1U, 20 A, 208V, 2 C20 IN, 8 C13, 1 C19 OUT, 50/60Hz
Now £1,063.99

We'll only use your email for this alert unless you tick the box. Unsubscribe any time.

We'll watch the price for 6 months and email you if it drops. Unsubscribe in one click.

Overview

  • Minimized downtime disruption with Field-replaceable NMC
  • Monitor temperature and humidity efficiently
  • Dual input power cords to enhance uptime for critcal loads
  • Connect and manage up to 32 Rack ATSs from one IP address
  • Seamless switching with transfer time 10ms
  • Supports APC Wi-fi USB device for cableless installation & setup
  • Gigabit Ethernet support for faster Communication
  • Remote management via Web UI, CLI, SNMP or EcoStruxure expert
  • APC NMC3 integrated for enhanced cyber security

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4434A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4434A is single phase 1U Rack ATS with 20A rated current, 208V rated voltage and 3300VA load capacity. It comes with 2 IEC C20- inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Specifications

Power

Input operation voltage (min)187 V
Input operation voltage (max)228 V
AC input frequency50/60 Hz
Input current20 A
Output operation voltage (min)208 V
Output operation voltage (max)208 V
Output current20 A

Design

Form factorRackmount
Rack capacity1U
Product colourBlack
CertificationcUL listed; CE; UL listed
Show all 35 specificationsShow fewer specifications

Ports & interfaces

AC inlet typeC20 coupler
AC outlet typesIEC 60320

Operational conditions

Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

Certificates

Waste Electrical and Electronic Equipment (WEEE) complianceYes

Technical details

Preferred mounting positionno preference
Halogen freeNo
Removable batteryYes
Mountingfront; rear; horizontal
Packaging recycled materialsRecycled cardboard
Compliance certificatesRoHS, REACH, WEEE
Sustainability certificatesUL ECOLOGO
Total carbon footprint (kg of CO2e)1230.5930512182
Packaging without single use plasticNo
Take-back systemNo
Proposition 65Yes
Sustainable packagingNo
Sustainability complianceYes

Weight & dimensions

Width432 mm
Depth236 mm
Height44 mm
Weight3.74 kg
