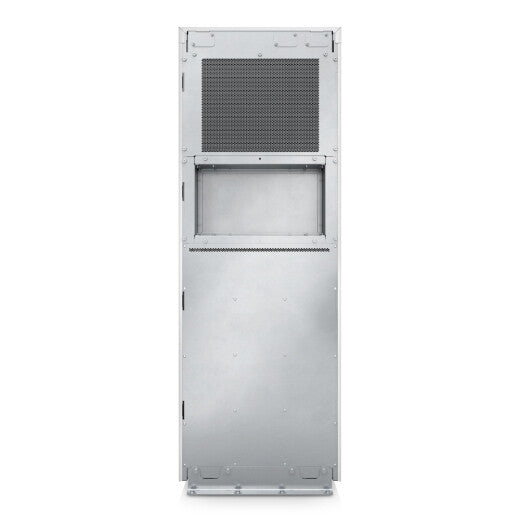

APC Galaxy VS UPS 50kW 400V for up to 4 internal 9Ah smart modular battery strings, Start-up 5x8
£13,264.99
inc. VATSpread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £4,421.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Up to 99% efficient in eConversion mode
- Maximize availability with modular architecture
- Live Swap: Third party verified module replacement with no scheduled downtime
- EcoStruxure IT option: Enables resilient, secure, and sustainable IT environments
- 1-year Secure NMC Subscription, allowing the customer to access future firmware updates, is included with purchase
Highly efficient, easy-to-deploy 50 kW, 400 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 4 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
Specifications
Features
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 50 kVA |
| Output power | 50000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 90 A |
| Heat dissipation | 6151 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Crest factor | 2.5:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 61 dB |
| Audible alarm(s) | Yes |
Ports & interfaces
| SmartSlot | Yes |
|---|---|
| SmartConnect port | No |
Show all 41 specificationsShow fewer specifications
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 9 Ah |
| Battery voltage | 480 V |
Design
| Form factor | Tower |
|---|---|
| Product colour | White |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1005.8 m |
Sustainability
| Sustainability compliance | Yes |
|---|
Certificates
| Compliance certificates | CE |
|---|---|
| Certification | IEC 62040-1-1, IEC 62040-2, OSHPD |
Weight & dimensions
| Width | 521 mm |
|---|---|
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 200 kg |
