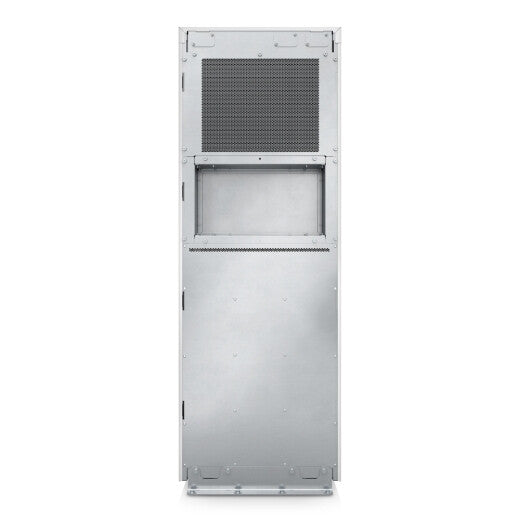

APC Galaxy VS UPS 30kW 400V for up to 4 internal 9Ah smart modular battery strings, Start-up 5x8
APC Galaxy VS UPS 30kW 400V for up to 4 internal 9Ah smart modular battery strings, Start-up 5x8
APC Galaxy VS UPS 30kW 400V for up to 4 internal 9Ah smart modular battery strings, Start-up 5x8
APC Galaxy VS UPS 30kW 400V for up to 4 internal 9Ah smart modular battery strings, Start-up 5x8
APC Galaxy VS UPS 30kW 400V for up to 4 internal 9Ah smart modular battery strings, Start-up 5x8
APC Galaxy VS UPS 30kW 400V for up to 4 internal 9Ah smart modular battery strings, Start-up 5x8
APC Galaxy VS UPS 30kW 400V for up to 4 internal 9Ah smart modular battery strings, Start-up 5x8
APC Galaxy VS UPS 30kW 400V for up to 4 internal 9Ah smart modular battery strings, Start-up 5x8

APC Galaxy VS UPS 30kW 400V for up to 4 internal 9Ah smart modular battery strings, Start-up 5x8

APC
£11,171.99
Stock Available: 0
  • Up to 99% efficient in eConversion mode
  • Maximize availability with modular architecture
  • Live Swap: Third party verified module replacement with no scheduled downtime
  • EcoStruxure IT option: Enables resilient, secure, and sustainable IT environments
  • 1-year Secure NMC Subscription, allowing the customer to access future firmware updates, is included with purchase

Highly efficient, easy-to-deploy 30 kW, 400 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 4 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.

Features
UPS topology Double-conversion (Online)
Output power capacity 30 kVA
Output power 30000 W
Waveform Sine
Input operation voltage (min) 340 V
Input operation voltage (max) 460 V
Input frequency 40/70 Hz
Output operation voltage (min) 380 V
Output operation voltage (max) 415 V
Output frequency 50/60 Hz
Output voltage regulation 1%
Maximum current 54 A
Number of input phases 3
Number of output phases 3
Input power factor 0.99
Crest factor 2.5:1
ECO mode Yes
Output voltage Total Harmonic Distortion (THD) 3%
Input current Total Harmonic Distortion (THD) 3%
Noise level 65 dB
Audible alarm(s) Yes
Ports & interfaces
AC outlet types Hard Wire 5-wire (3PH + N + G)
SmartSlot Yes
SmartConnect port No
Battery
Battery technology Sealed Lead Acid (VRLA)
Battery voltage 480 V
Design
Form factor Tower
Product colour White
Display type LCD
International Protection (IP) code IP20
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 40 °C
Operating relative humidity (H-H) 0 - 95%
Operating altitude 0 - 1005.8 m
Non-operating altitude 0 - 3048 m
Packaging content
Manual Yes
Certificates
Certification IEC 62040-1-1, IEC 62040-2, OSHPD
Weight & dimensions
Width 521 mm
Depth 847 mm
Height 1485 mm
Weight 200 kg
Packaging data
Management card included Yes
Package width 640 mm
Package depth 990 mm
Package height 1680 mm
Package weight 200 kg
Logistics data
Harmonized System (HS) code 85078000
