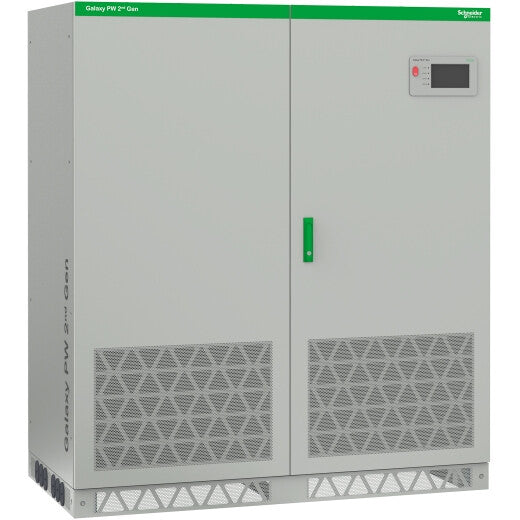

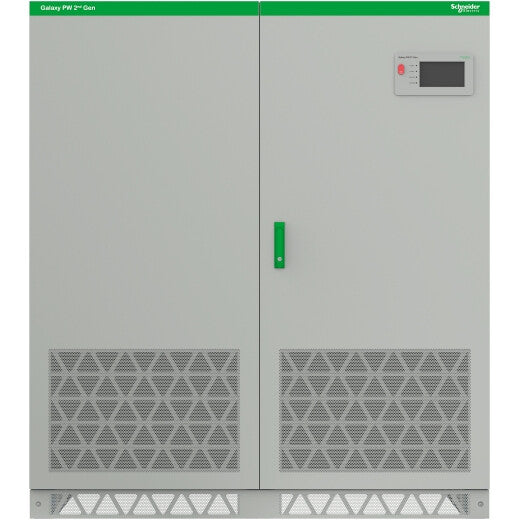

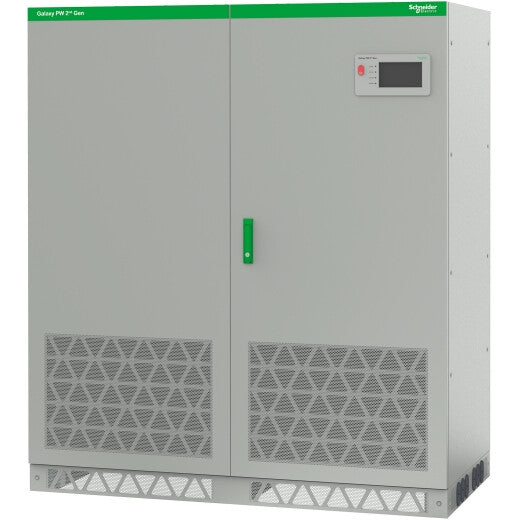

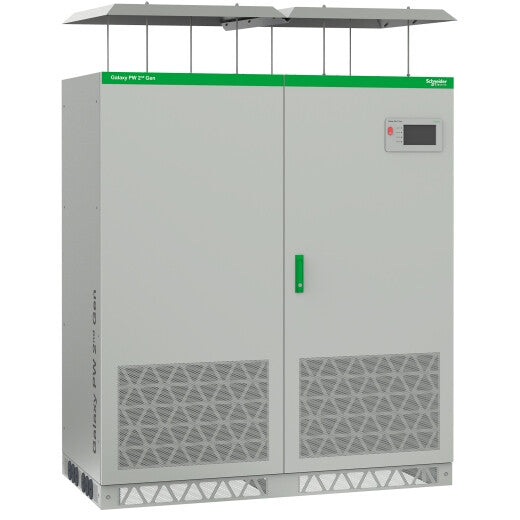

APC Galaxy PW uninterruptible power supply (UPS) Double-conversion (Online) 120 kVA 96000 W
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £11,423.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Double-conversion (Online)
- 120 kVA 96000 W
- Waveform: Sine
- Tower Grey
Transformer-based 120 kVA 3-phase input, single-phase output UPS with 12-pulse SCR technology and a 220 VDC internal DC bus. Ideal for industrial applications, this UPS includes 5x8 start-up service.
Network management capability
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.
Parallel-capacity capability
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
Generator compatible
Ensures clean, uninterrupted power to the loads in the event of an extended power outage
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
Specifications
Features
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 120 kVA |
| Output power | 96000 W |
| Waveform | Sine |
| Input operation voltage (min) | 380 V |
| Input operation voltage (max) | 415 V |
| Input frequency | 45/55 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50 Hz |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Audible alarm(s) | Yes |
Design
| Form factor | Tower |
|---|---|
| Product colour | Grey |
| Display type | LCD |
| International Protection (IP) code | IP31 |
Show all 30 specificationsShow fewer specifications
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000.05 m |
| Non-operating altitude | 0 - 9999.9 m |
Sustainability
| Sustainability compliance | Yes |
|---|
Certificates
| Compliance certificates | CE, RoHS |
|---|
Weight & dimensions
| Width | 1600 mm |
|---|---|
| Depth | 800 mm |
| Height | 1800 mm |
| Weight | 1338 kg |
