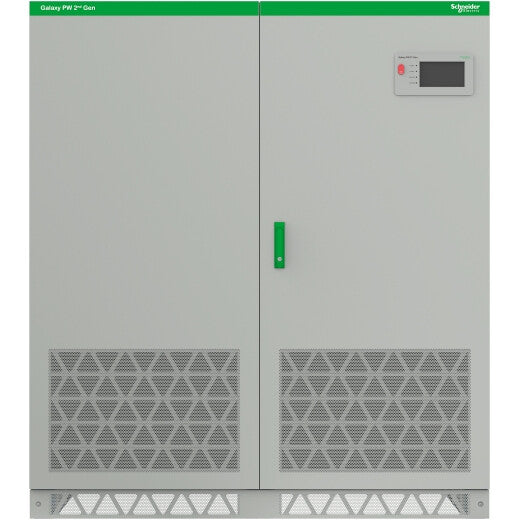

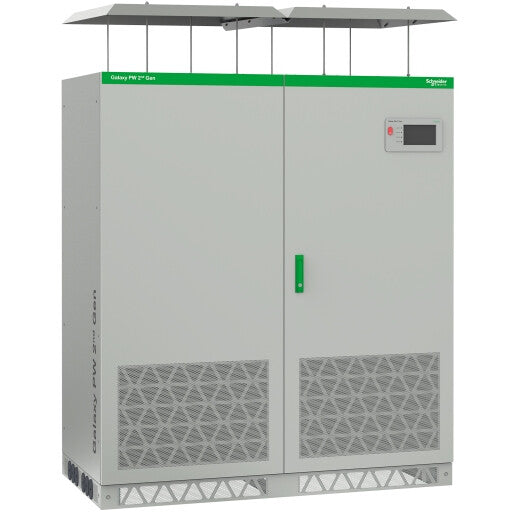

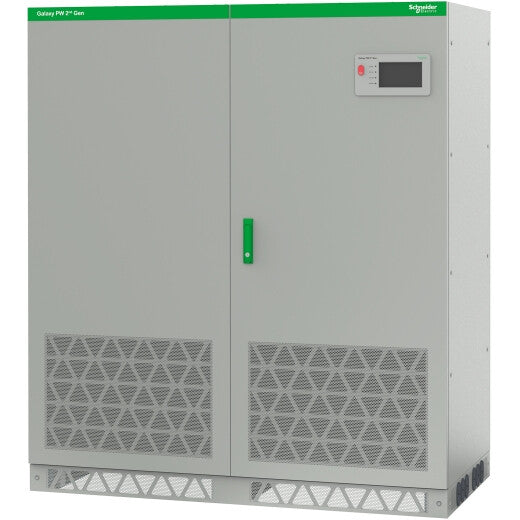

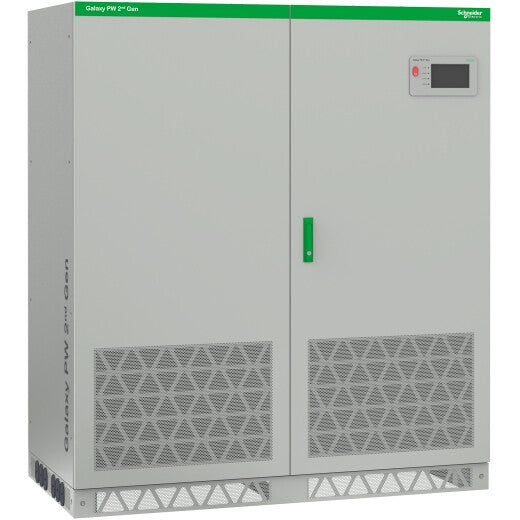

APC Galaxy PW uninterruptible power supply (UPS) Double-conversion (Online) 100 kVA 80000 W
£31,663.99
Couldn't load pickup availability
- Double-conversion (Online)
- 100 kVA 80000 W
- Waveform: Sine
- Large tower Grey
Network management capability
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.
Parallel-capacity capability
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
Generator compatible
Ensures clean, uninterrupted power to the loads in the event of an extended power outage
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sour
| Features | |
|---|---|
| Audible alarm(s) | Yes |
| Noise level | 70 dB |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Output voltage regulation | 1% |
| Output frequency | 50 Hz |
| Output operation voltage (max) | 415 V |
| Output operation voltage (min) | 380 V |
| Input frequency | 45/55 Hz |
| Input operation voltage (max) | 415 V |
| Input operation voltage (min) | 380 V |
| Waveform | Sine |
| Output power | 80000 W |
| Output power capacity | 100 kVA |
| UPS topology | Double-conversion (Online) |
| Design | |
|---|---|
| International Protection (IP) code | IP31 |
| Display type | LCD |
| Product colour | Grey |
| Form factor | Large tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 9999.9 m |
| Operating altitude | 0 - 1000.05 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Certificates | |
|---|---|
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 1239 kg |
| Height | 1800 mm |
| Depth | 800 mm |
| Width | 1600 mm |
