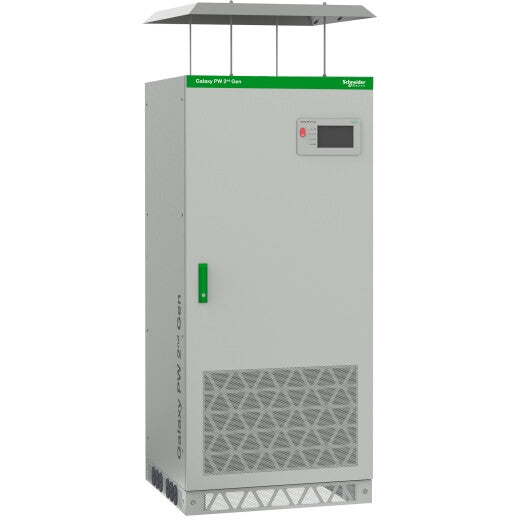

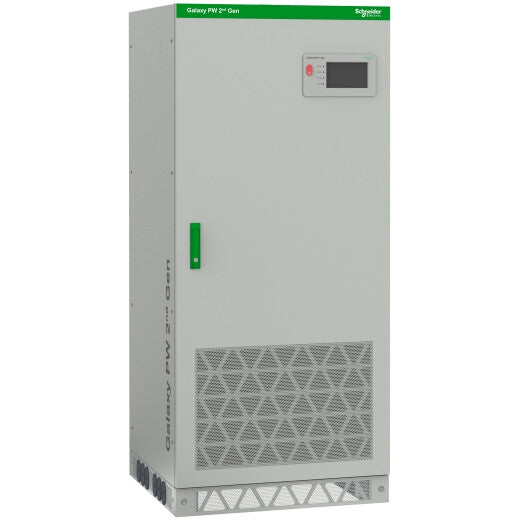

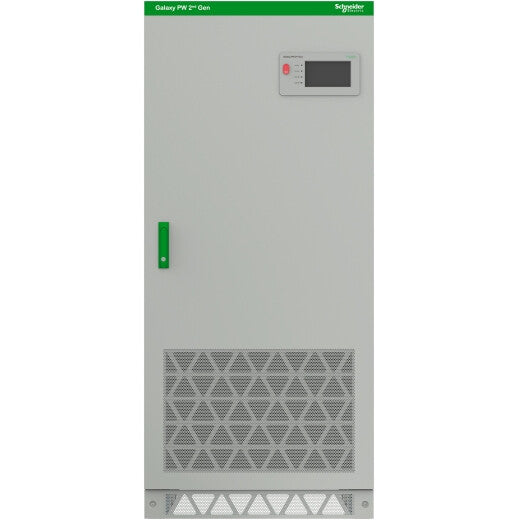

APC Galaxy PW uninterruptible power supply (UPS) 30 kVA 24000 W
£11,609.99
Couldn't load pickup availability
- 30 kVA 24000 W
- Waveform: Sine
- Tower Grey
Transformer-based 30 kVA 3-phase input, single-phase output UPS with 6-pulse SCR technology and a 220 VDC internal DC bus. Ideal for industrial applications, this UPS includes 5x8 start-up service.
Network management capability
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.
Parallel-capacity capability
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
Generator compatible
Ensures clean, uninterrupted power to the loads in the event of an extended power outage
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
| Features | |
|---|---|
| Audible alarm(s) | Yes |
| Noise level | 70 dB |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Output frequency | 50 Hz |
| Output operation voltage (max) | 220 V |
| Input frequency | 45/55 Hz |
| Input operation voltage (max) | 415 V |
| Input operation voltage (min) | 380 V |
| Waveform | Sine |
| Output power | 24000 W |
| Output power capacity | 30 kVA |
| Design | |
|---|---|
| International Protection (IP) code | IP31 |
| Display type | LCD |
| Product colour | Grey |
| Form factor | Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 10000 m |
| Operating altitude | 0 - 2000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 512 kg |
| Height | 1800 mm |
| Depth | 800 mm |
| Width | 800 mm |
| Packaging data | |
|---|---|
| Package weight | 558 kg |
| Package height | 2085 mm |
| Package depth | 928 mm |
| Package width | 928 mm |
