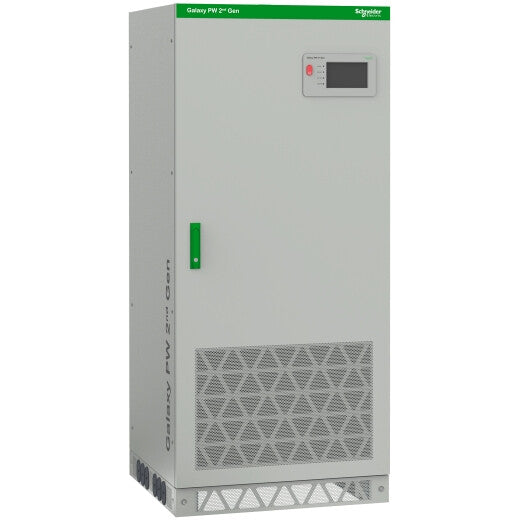

APC Galaxy PW uninterruptible power supply (UPS) 20 kVA 16000 W

APC Galaxy PW uninterruptible power supply (UPS) 20 kVA 16000 W

APC
£8,771.99
Stock Available: 0
  • 20 kVA 16000 W
  • Waveform: Sine
  • Tower Grey

Transformer-based 20 kVA 3-phase input, single-phase output UPS with 6-pulse SCR technology and a 384 VDC internal DC bus. Ideal for industrial applications, this UPS includes 5x8 start-up service.

Network management capability
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.

Parallel-capacity capability
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
Generator compatible
Ensures clean, uninterrupted power to the loads in the event of an extended power outage
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.

Features
Audible alarm(s) Yes
Noise level 70 dB
Output voltage Total Harmonic Distortion (THD) 2%
Number of input phases 3
Output frequency 50 Hz
Output operation voltage (max) 384 V
Input frequency 45/55 Hz
Input operation voltage (max) 415 V
Input operation voltage (min) 380 V
Waveform Sine
Output power 16000 W
Output power capacity 20 kVA
Design
International Protection (IP) code IP31
Display type LCD
Product colour Grey
Form factor Tower
Operational conditions
Non-operating altitude 0 - 10000 m
Operating altitude 0 - 2000 m
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -25 - 55 °C
Operating temperature (T-T) 0 - 40 °C
Sustainability
Sustainability compliance Yes
Certificates
Compliance certificates CE, RoHS
Weight & dimensions
Weight 491 kg
Height 1800 mm
Depth 800 mm
Width 800 mm
Packaging data
Package weight 565 kg
Package height 2085 mm
Package depth 928 mm
Package width 928 mm
