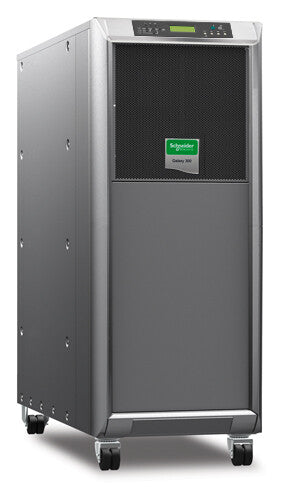

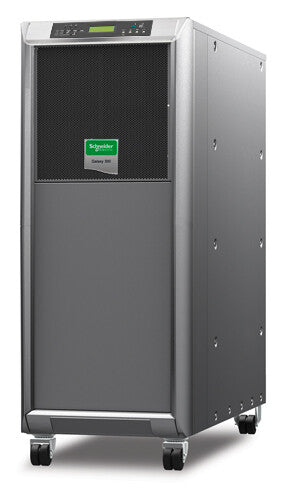

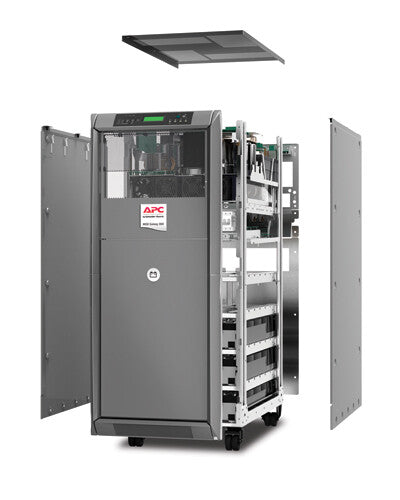

APC G3HT30KHB2S uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 24000 W 1 AC outlet(s)
£8,528.99
Couldn't load pickup availability
- Double-conversion (Online)
- 30 kVA 24000 W
- Waveform: Sine
- 1 AC outlet(s)
- Sealed Lead Acid (VRLA) 192 V
- Tower Black, Grey
| Features | |
|---|---|
| Noise level | 54.5 dB |
| Input current Total Harmonic Distortion (THD) | 5% |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Emergency Power Off (EPO) | Yes |
| Crest factor | 2.5:1 |
| Input power factor | 0.99 |
| Maximum current | 65 A |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 415 V |
| Output operation voltage (min) | 380 V |
| Input frequency | 45/65 Hz |
| Input operation voltage (max) | 477 V |
| Input operation voltage (min) | 323 V |
| Waveform | Sine |
| Output power | 24000 W |
| Output power capacity | 30 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| AC outlets quantity | 1 AC outlet(s) |
| Power plug | Terminal |
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| Battery | |
|---|---|
| Battery life (max) | 5 year(s) |
| Battery voltage | 192 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| International Protection (IP) code | IP20 |
| Display type | LCD |
| Product colour | Black, Grey |
| Form factor | Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 9000 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Certificates | |
|---|---|
| Certification | CE, CSA C22.2 No. 60960 , EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 61000-4-5, IEC 62040-2, TUV, VFI-SS-111 |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 609 kg |
| Height | 1300 mm |
| Depth | 950 mm |
| Width | 500 mm |
| Packaging data | |
|---|---|
| Package weight | 635 kg |
| Package height | 1440 mm |
| Package depth | 965 mm |
| Package width | 800 mm |
