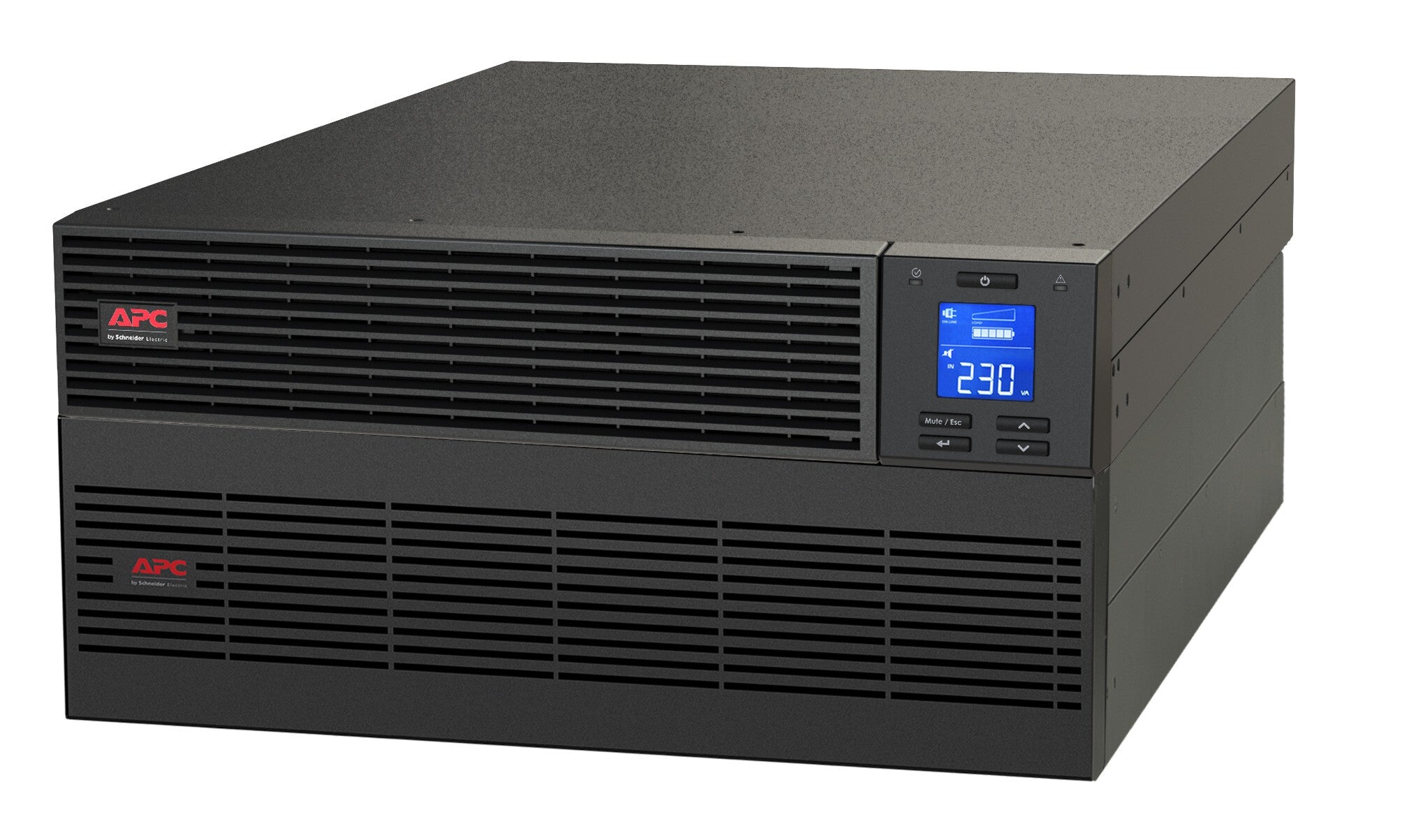

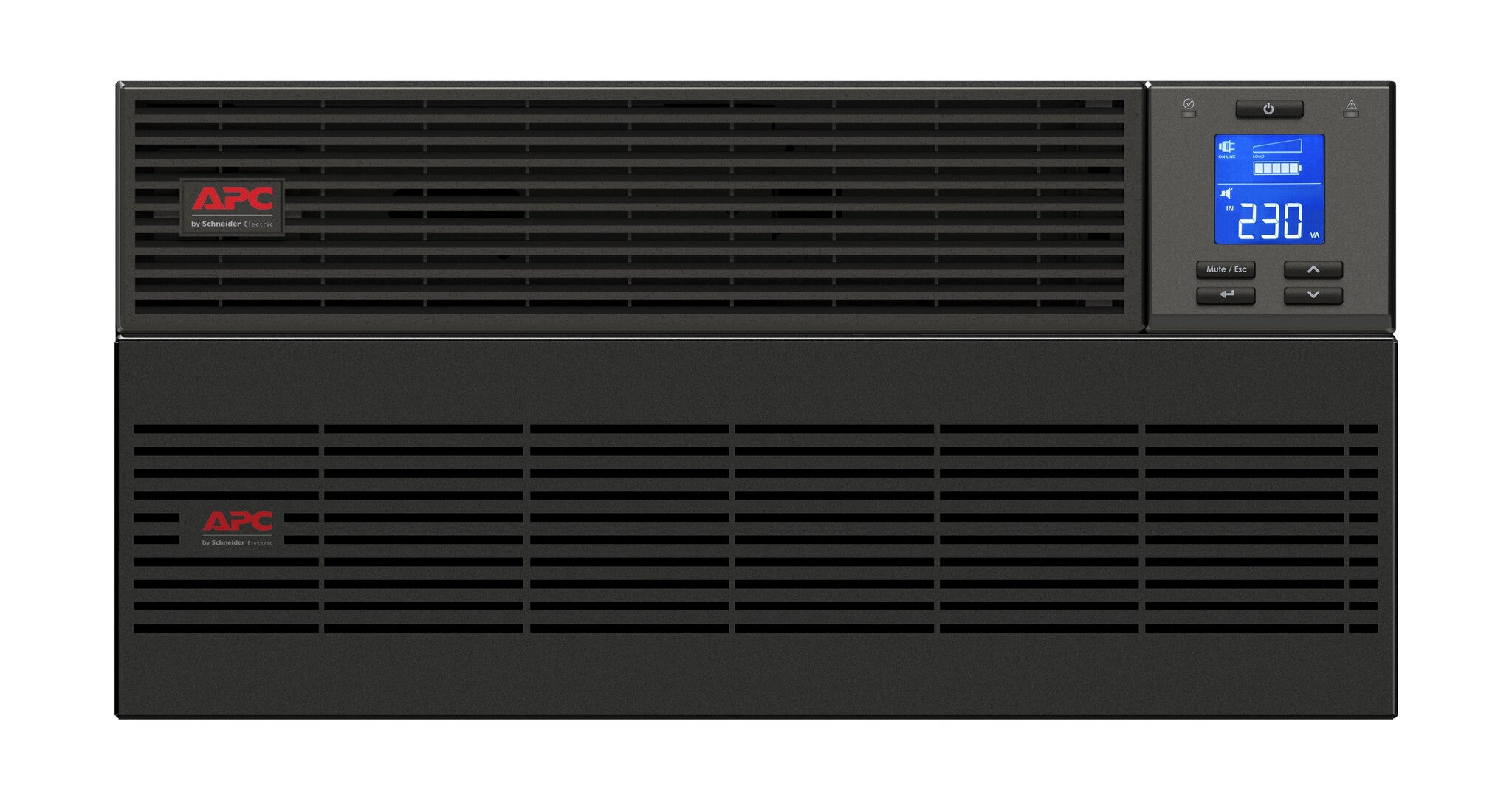

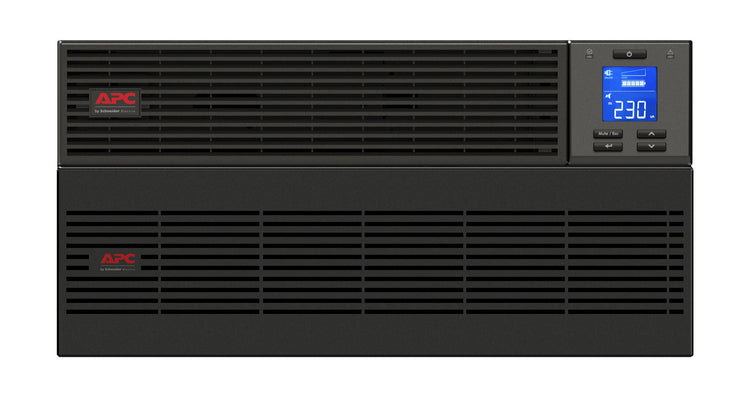

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/O rail kit
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £2,248.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Double-conversion (Online)
- 10 kVA 10000 W
- Waveform: Sine
- Sealed Lead Acid (VRLA)
- Mini Tower Black
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 and SRVRK2 rail kits sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Specifications
Features
| Audible alarm(s) | Yes |
|---|---|
| Power protection features | Overload |
| Noise level | 58 dB |
| Emergency Power Off (EPO) | Yes |
| Crest factor | 3:1 |
| Input power factor | 0.99 |
| Power factor | 0.99 |
| Efficiency | 94% |
| Surge energy rating | 600 J |
| Maximum current | 4 A |
| Output voltage regulation | 1% |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 300 V |
| Input operation voltage (min) | 110 V |
| Waveform | Sine |
| Output power | 10000 W |
| Output power capacity | 10 kVA |
| UPS topology | Double-conversion (Online) |

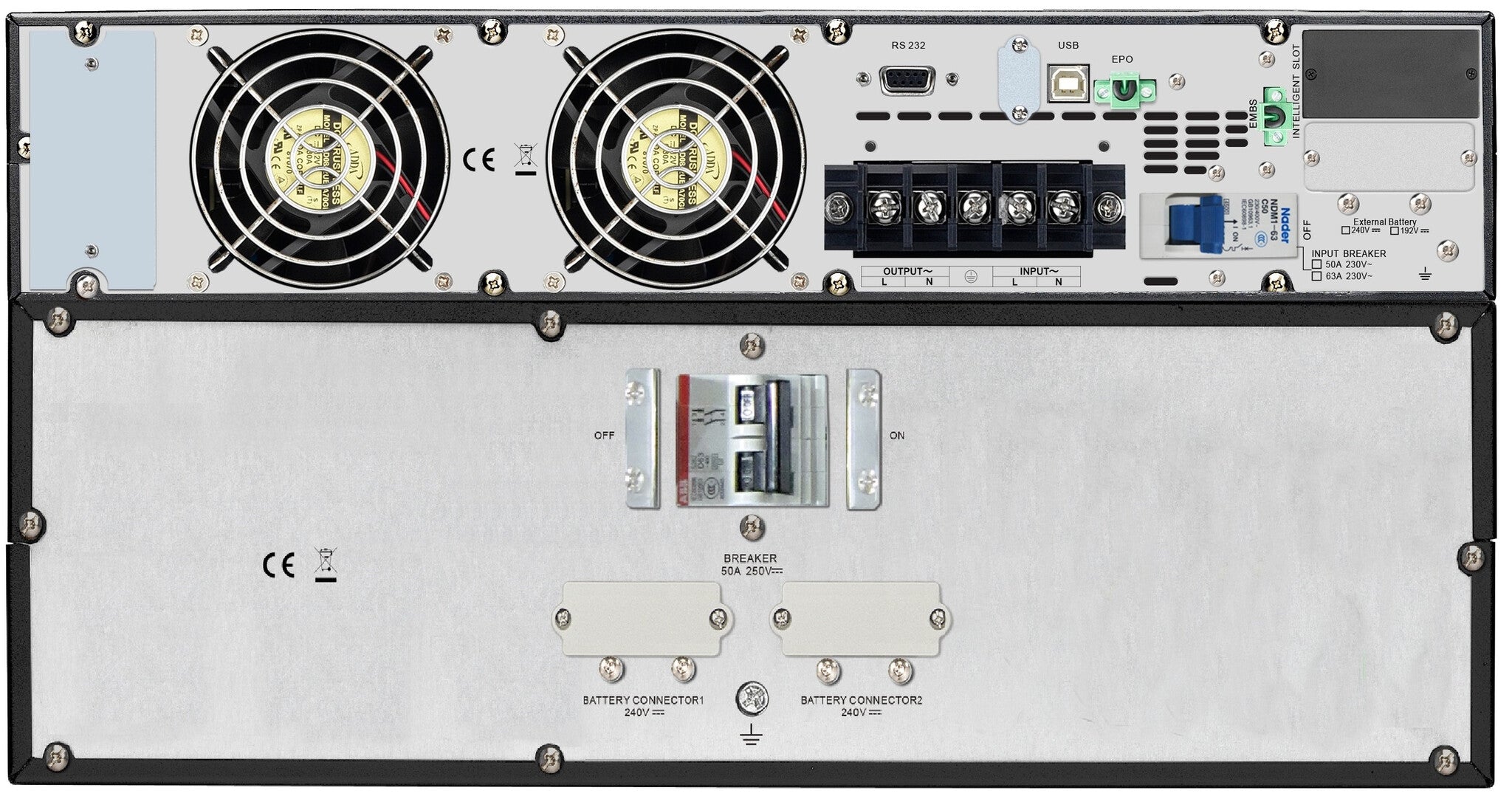

Ports & interfaces
| Serial interface type | RS-232 |
|---|---|
| Serial interface | Yes |
| USB port | Yes |
| AC outlet types | C13 coupler, C19 coupler |
Show all 44 specificationsShow fewer specifications
Battery
| Charging current | 9 A |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
Design
| LED indicators | Fault |
|---|---|
| Display type | LCD |
| Built-in fan | Yes |
| Cooling type | Active |
| Rack capacity | 2U |
| Product colour | Black |
| Form factor | Mini Tower |
Operational conditions
| Storage temperature (T-T) | 0 - 95 °C |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Packaging content
| Manual | Yes |
|---|---|
| Cables included | USB cable |
Certificates
| Certification | CE |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Weight | 16 kg |
|---|---|
| Height | 86.5 mm |
| Depth | 615 mm |
| Width | 438 mm |
