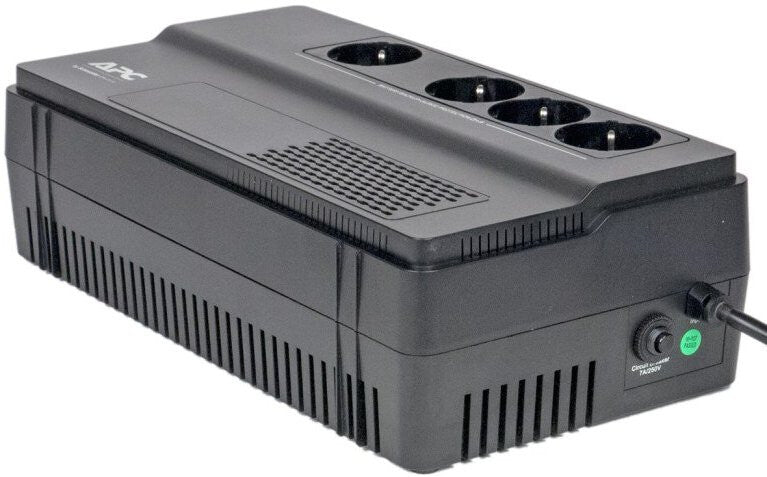

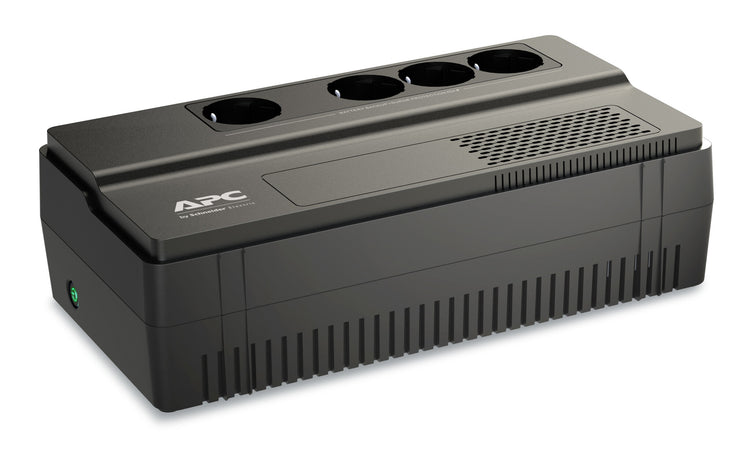

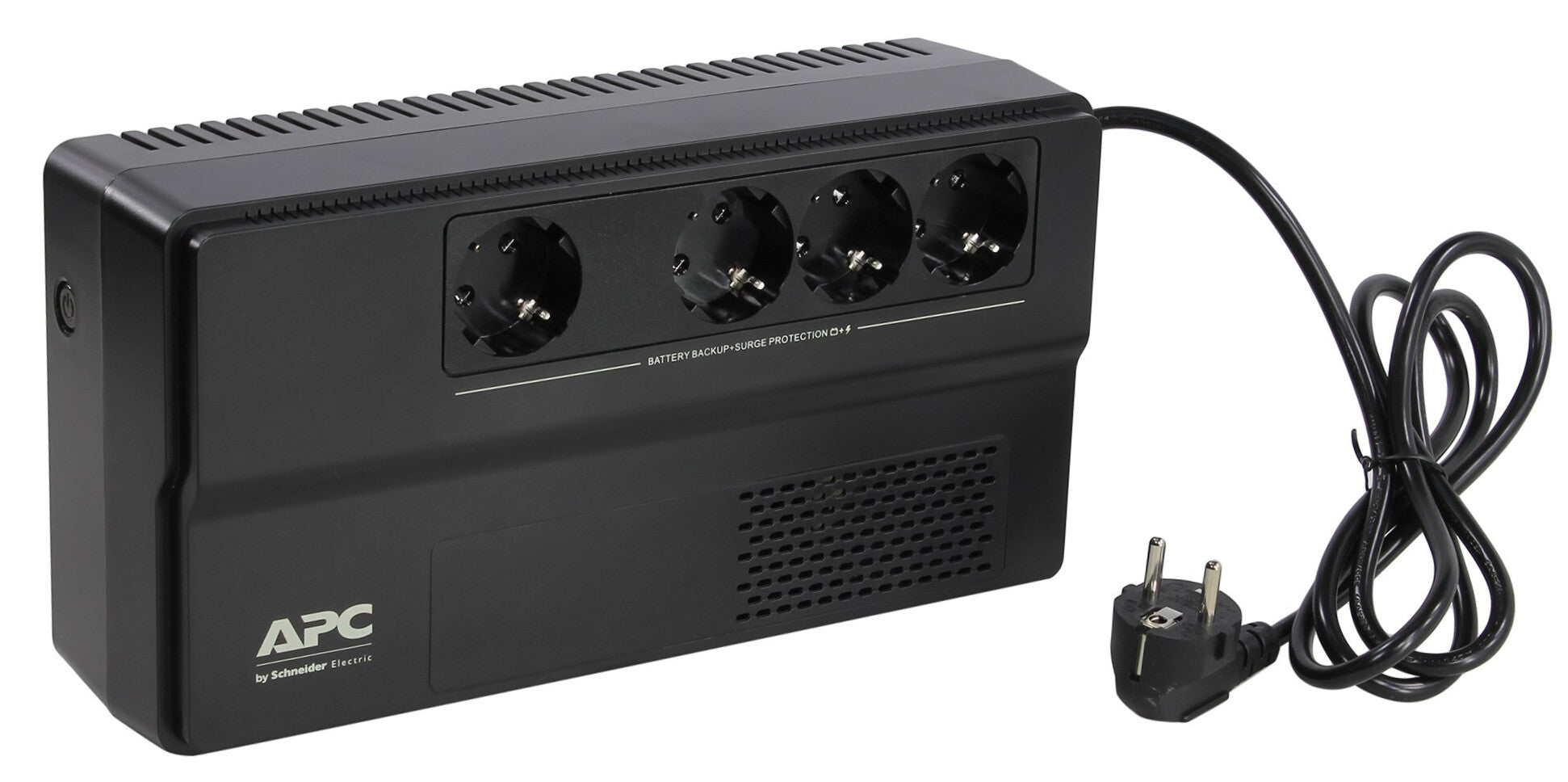

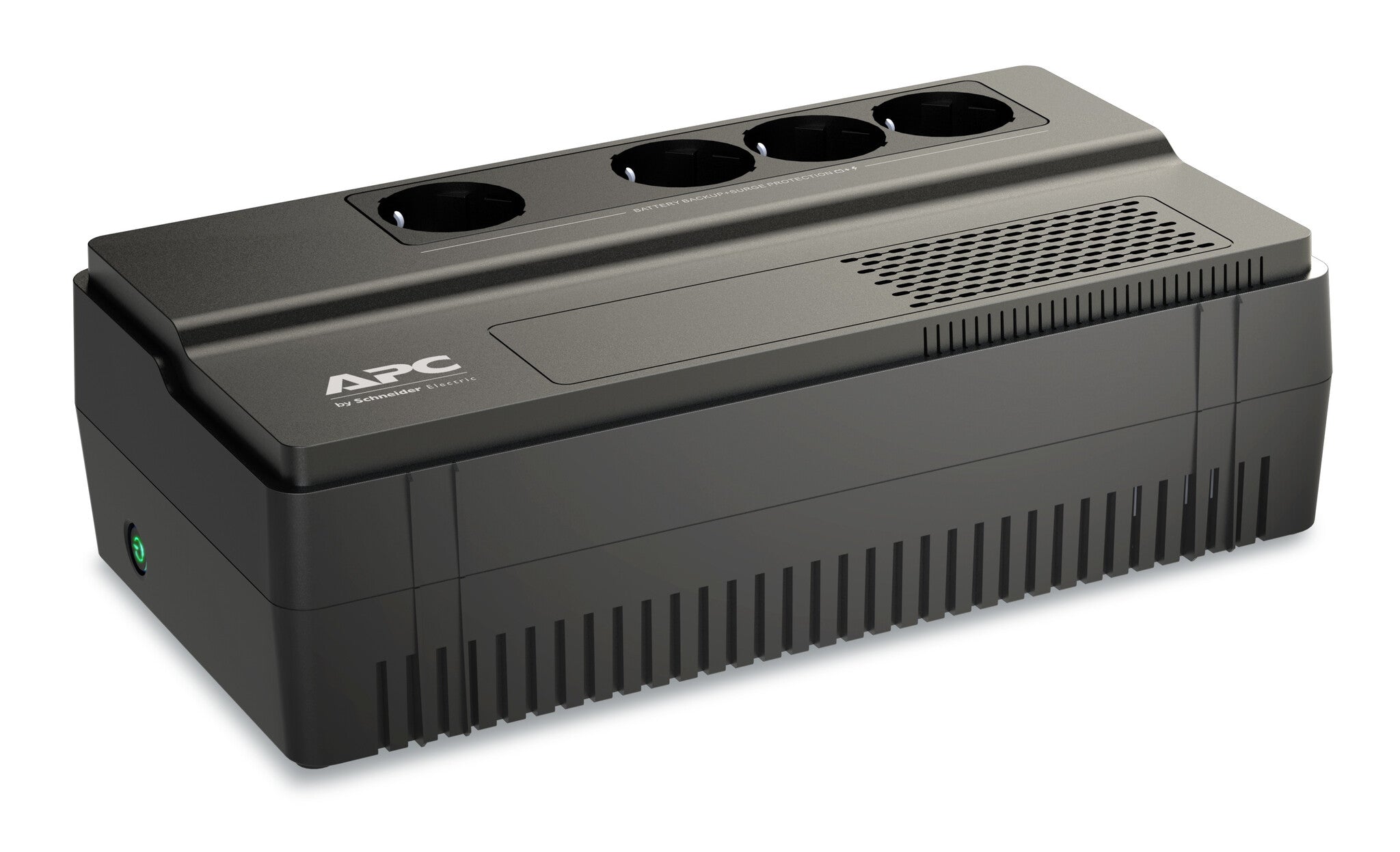

APC Easy-UPS BV500I-GR - 4x Schuko socket, 500VA
Couldn't load pickup availability
- Compact size acommodates installation in a variety of environments
- AVR corrects voltage variations to provide reliable power
- LED display provides easy-to-read status of unit and utility power conditions
- Cold start function allows you to reboot the UPS even when utility power is unavailable
Security through emergency power
An APC Easy-UPS has a built-in battery that ensures that all connected devices, such as a NAS, router, modem and media box, continue to work if the power goes out. This prevents downtime, damage to equipment, and loss of data.
Safety and convenience

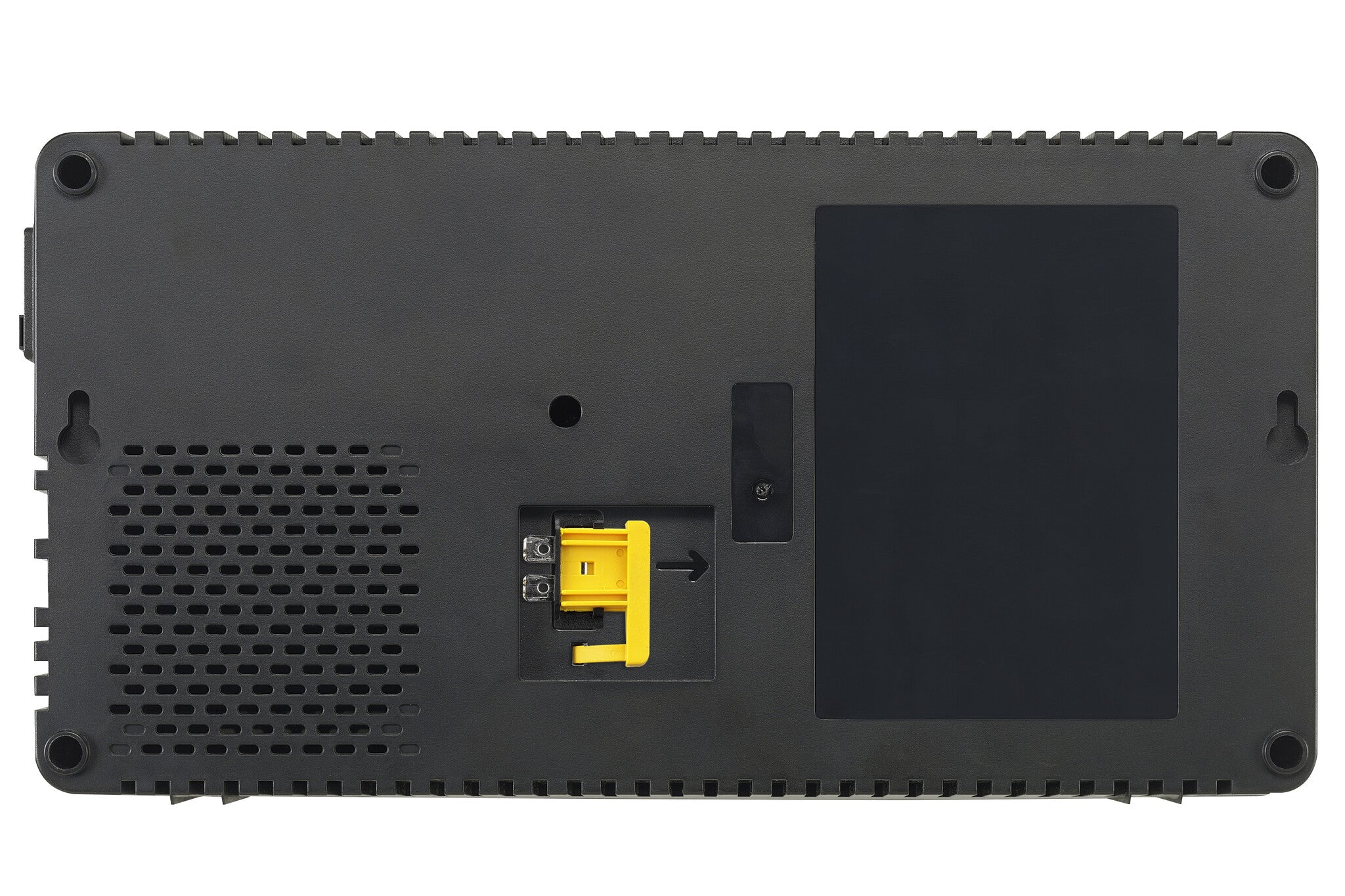

In addition, this safe APC UPS protects valuable equipment against peak voltage caused, for example, by lightning strikes. Because the APC Easy-UPS BV500I-GR can also be mounted on the wall and is equipped with 4 rotated sockets (45°), this APC emergency power supply is also a suitable UPS for the meter cupboard.
Expected battery life
Load in Watts, battery life in Minutes:
10W = 100 Min.
40W = 40 Min.
80W = 18 Min.
120W = 5 Min.
180W = 3 Min.
240W = 0.5 Min.
Extends battery life
The AVR function extends both the expected battery life and the expected runtime by correcting both low and high voltages without discharging the battery.
Warranty extension
The factory warranty of the BV500I-GR is 2 years and you can upgrade to 5 years with the APC service pack (WBEXTWAR3YR-SP-01A).
| Features | |
|---|---|
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Audible alarm(s) | Yes |
| Surge protection | Yes |
| Noise level | 40 dB |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Transfer time (Line Mode to Battery Mode) | 6 ms |
| Surge energy rating | 156 J |
| Automatic Voltage Regulation (AVR) | Yes |
| Output frequency | 50/60 Hz |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 280 V |
| Input operation voltage (min) | 170 V |
| Waveform | Sine |
| Output power | 300 W |
| Output power capacity | 0.5 kVA |
| UPS topology | Line-Interactive |
| Ports & interfaces | |
|---|---|
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | Type F |
| Battery | |
|---|---|
| Cold start | Yes |
| Battery recharge time | 8 h |
| Battery voltage | 12 V |
| Battery capacity | 4.5 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| LED indicators | Yes |
| Cable length | 1.52 m |
| Product colour | Black |
| Form factor | Compact |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 1968.3 m |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | CEREACH |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 3.9 kg |
| Height | 92 mm |
| Depth | 305 mm |
| Width | 160 mm |
| Packaging data | |
|---|---|
| Package weight | 4.2 kg |
| Package height | 237 mm |
| Package depth | 143 mm |
| Package width | 373 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Other features | |
|---|---|
| Nominal output voltage | 230 V |
