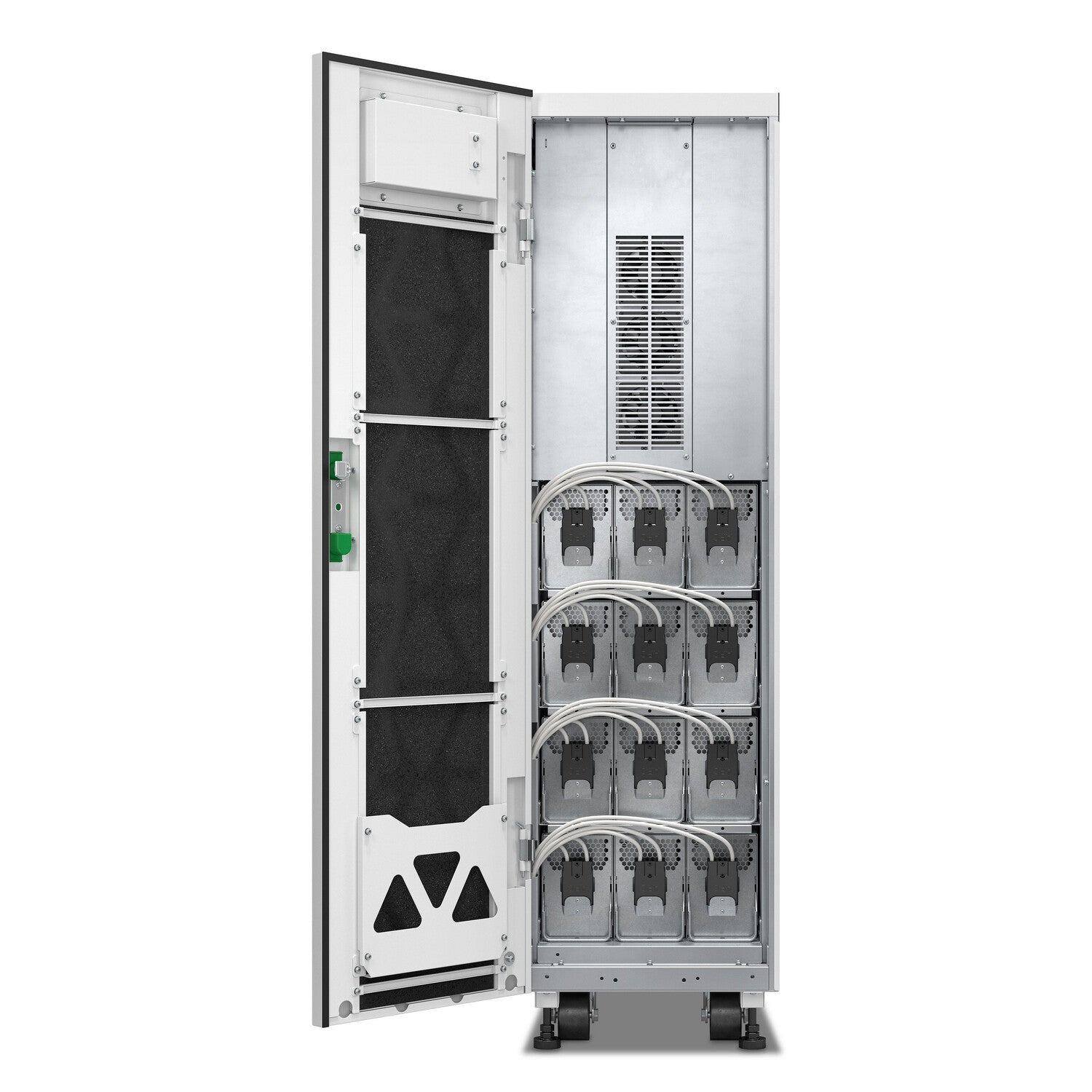

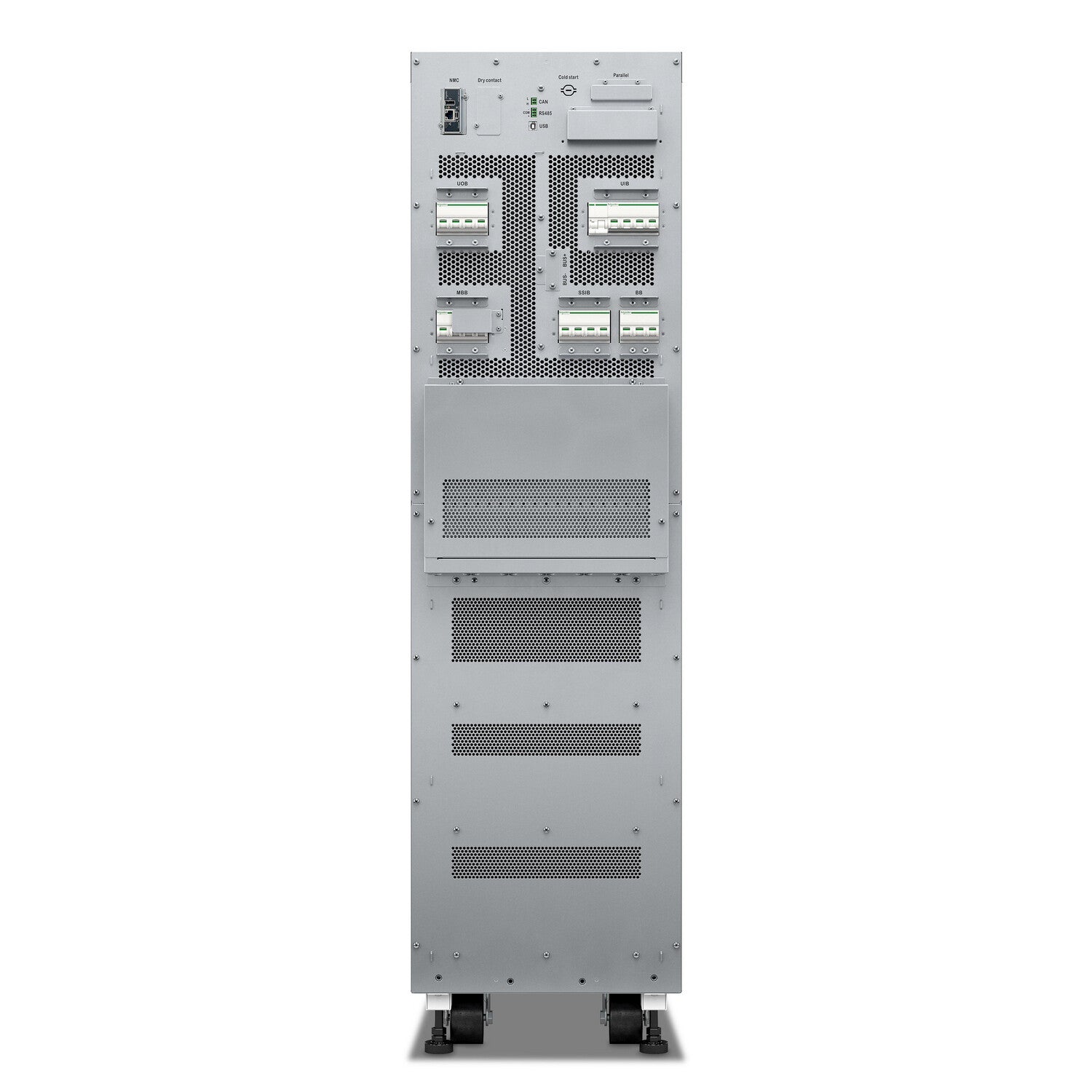

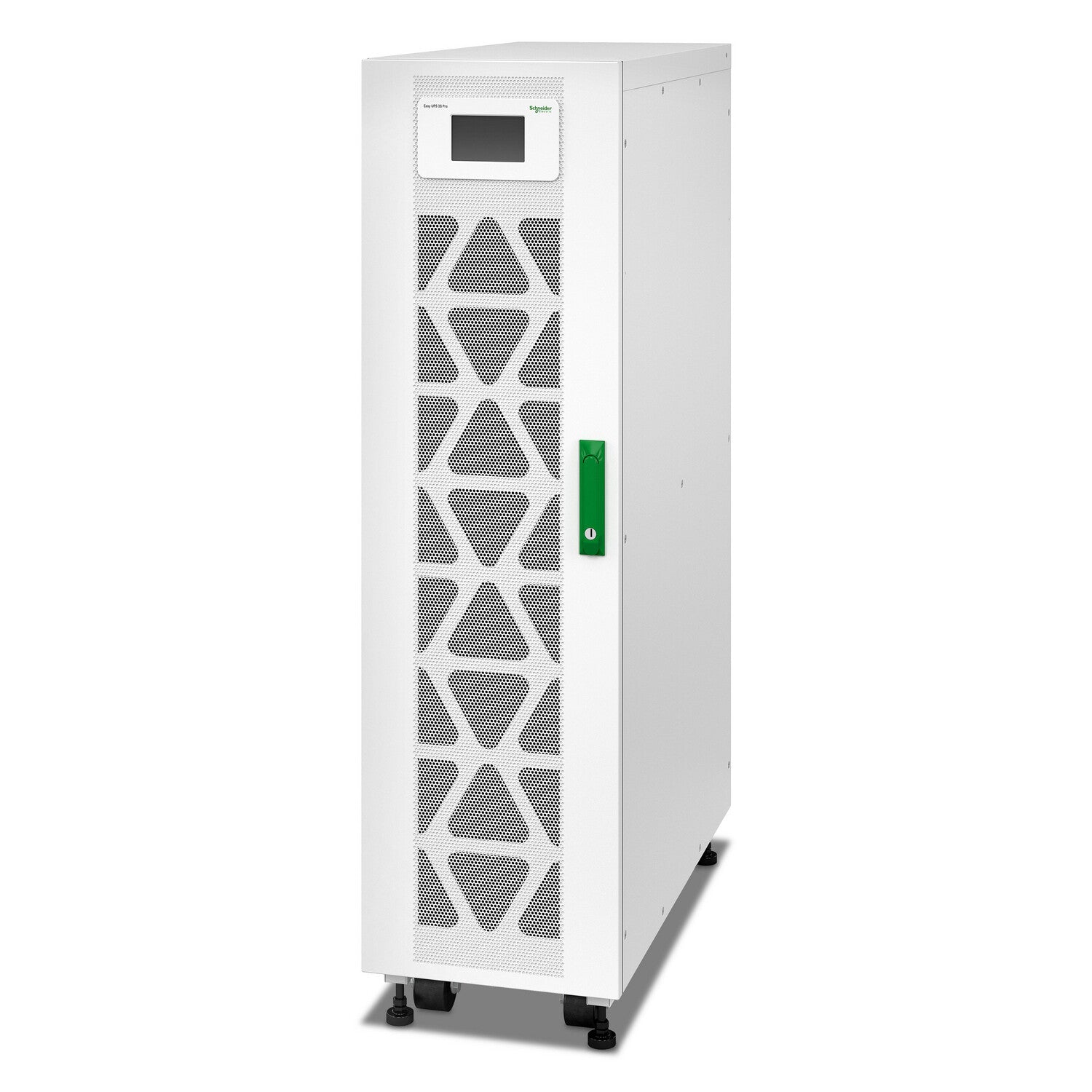

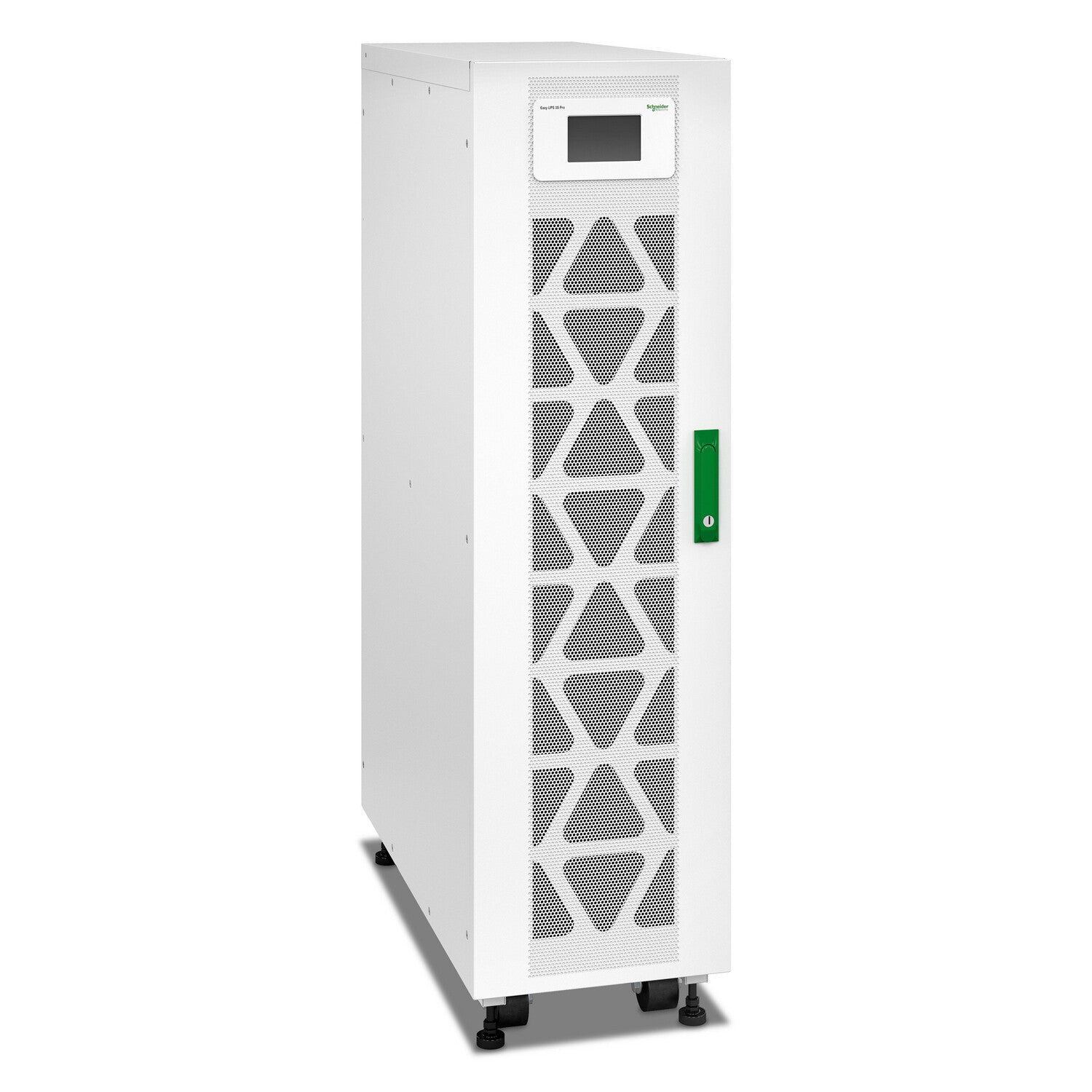

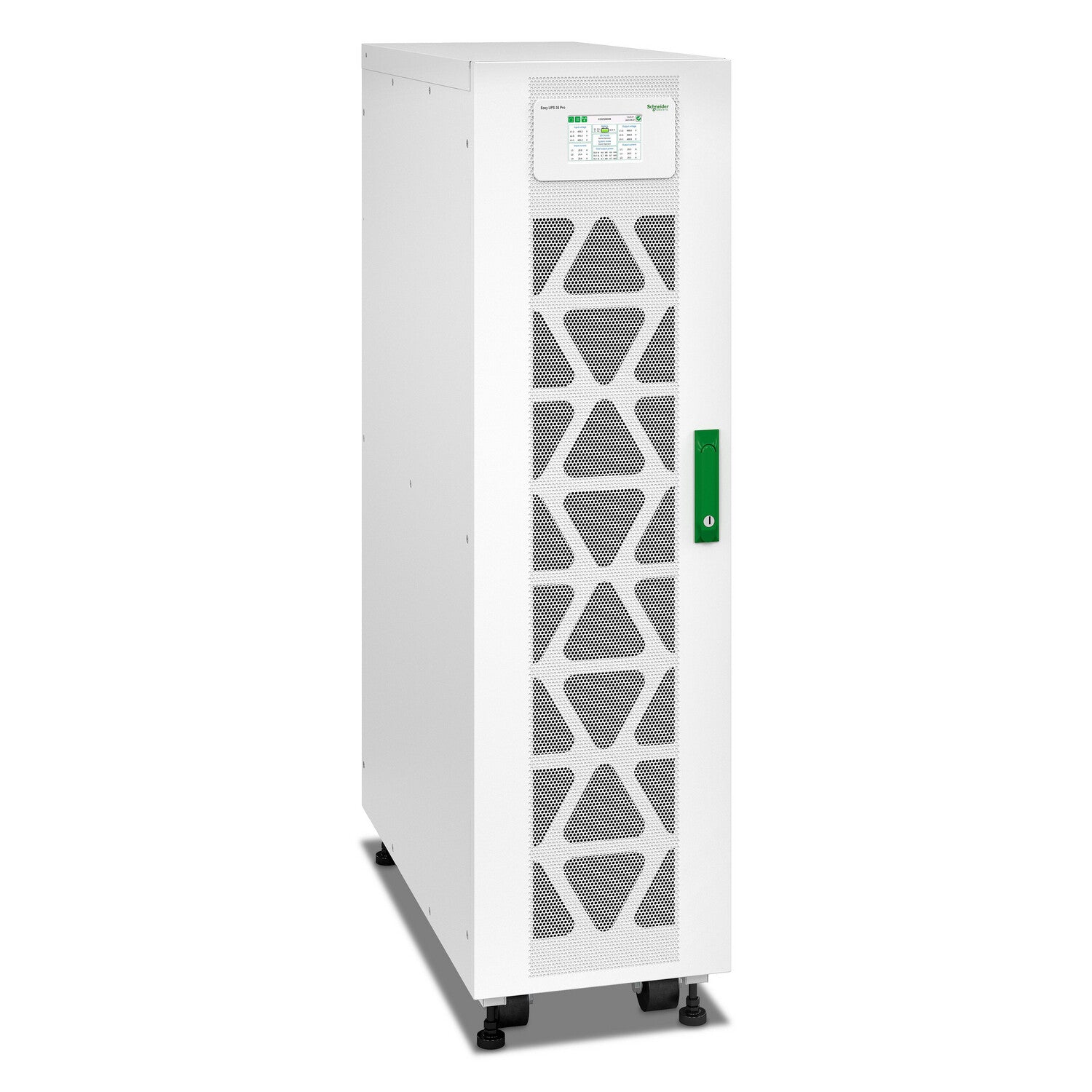

APC Easy UPS 3S Pro 10kVA 400V 3:3 UPS for internal batteries
£4,789.99
Couldn't load pickup availability
- Easy UPS 3S Pro is easy to install and start up
- Parallel up to 4 UPSs for capacity or redundancy
- Extended runtime options available
- EcoStruxure IT: Enables resilient, secure, and sustainable IT environments
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Input operation voltage (min) | 380 V |
| Input operation voltage (max) | 415 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Heat dissipation | 2156 BTU/h |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Battery | |
|---|---|
| Battery technology | Lead-Acid |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | White |
| Control type | Touch |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Power | |
|---|---|
| Input current (max) | 16 A |
| Weight & dimensions | |
|---|---|
| Width | 380 mm |
| Depth | 907 mm |
| Height | 1400 mm |
| Weight | 119 kg |
| Packaging data | |
|---|---|
| Package width | 380 mm |
| Package depth | 907 mm |
| Package height | 1400 mm |
| Package weight | 141 kg |
