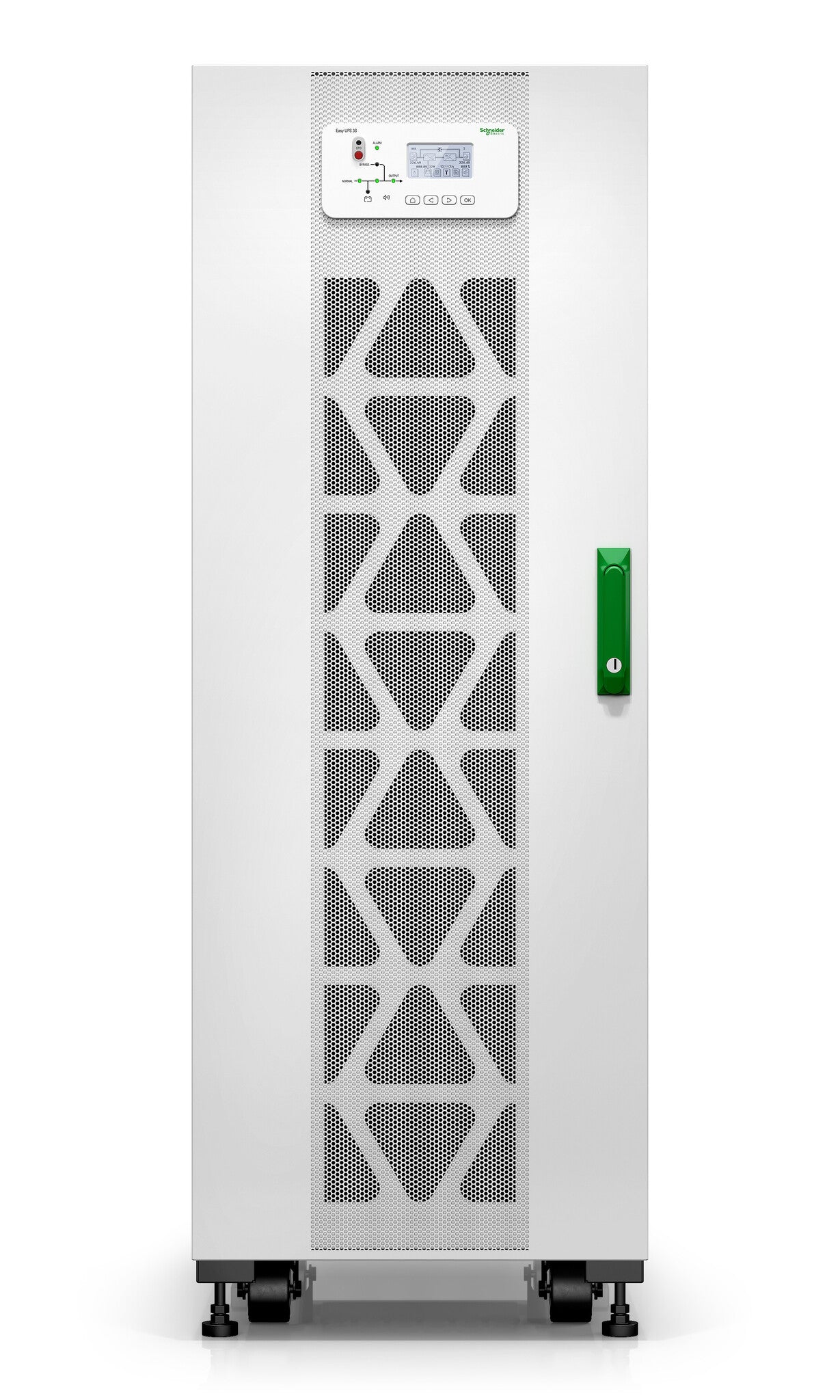

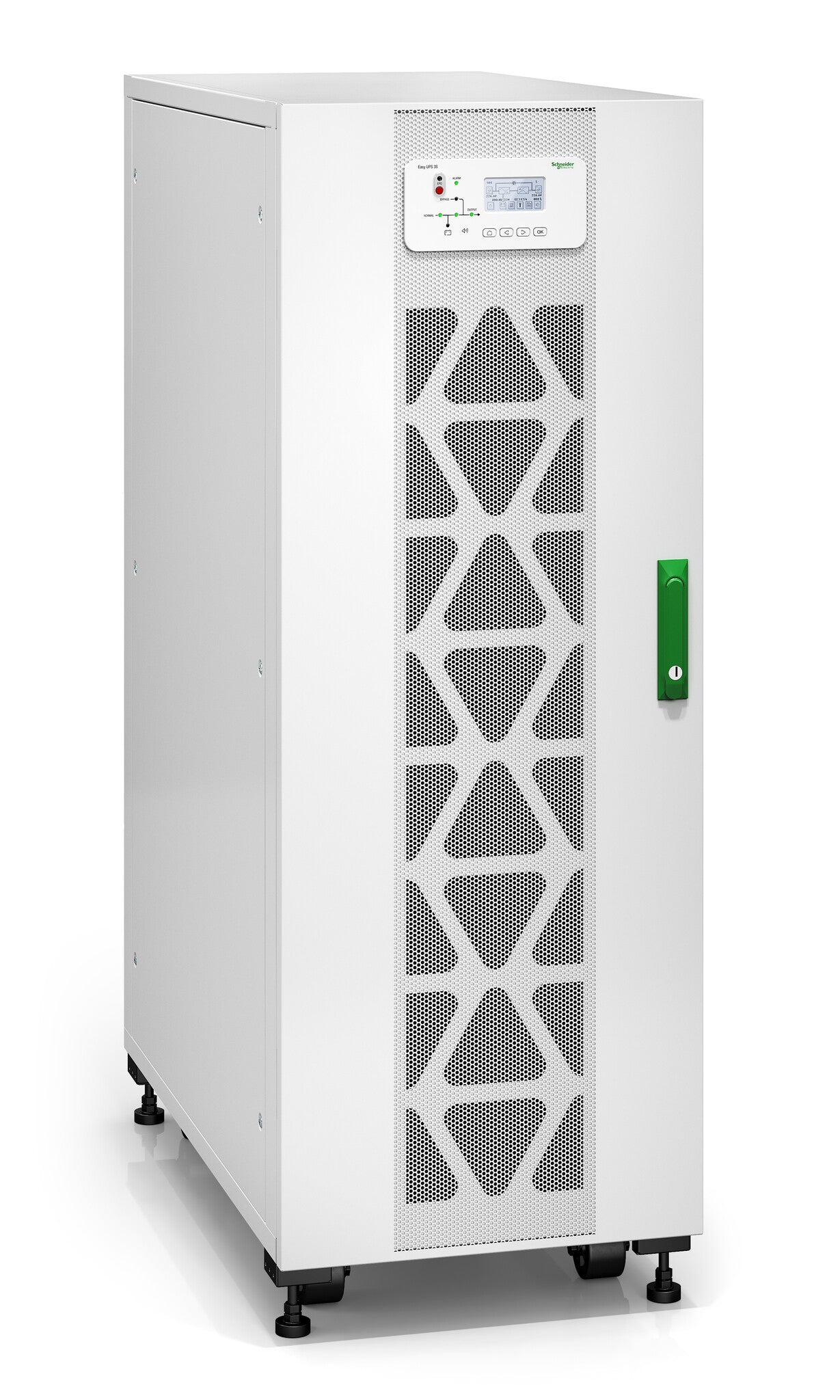

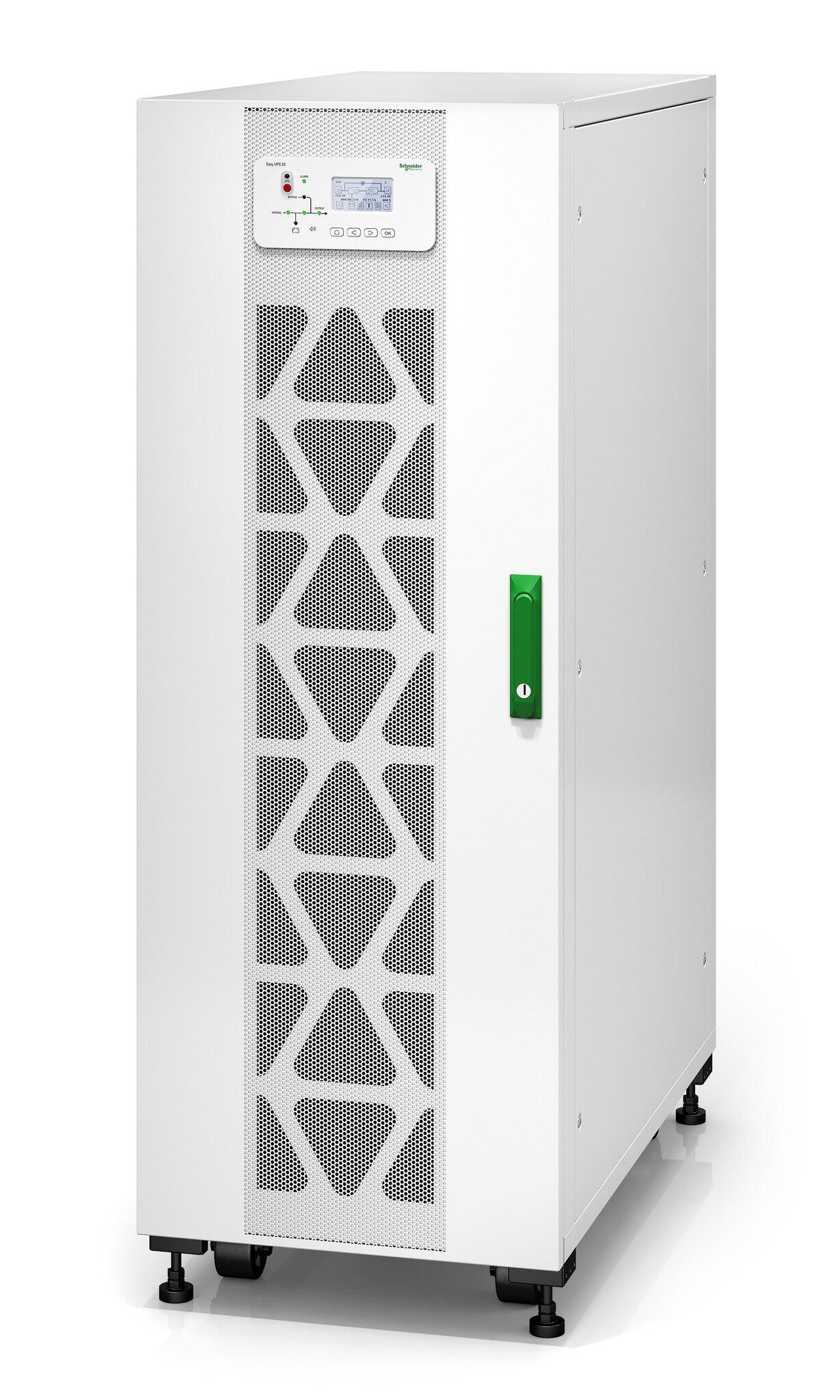

APC Easy UPS 3S 30 kVA 400 V 3:1 UPS for internal batteries
£7,112.99
Couldn't load pickup availability
- 30kVA UPS ideal for small and medium businesses
- Accepts internal modular batteries
- Includes dust filter and conformance-coated boards
- Easy to install, operate, maintain, and service
This high-efficiency 3-phase UPS E3SUPS30K3IB features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Maximum current | 55 A |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 1.5% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Noise level | 63 dB |
| Ports & interfaces | |
|---|---|
| AC outlet types | Hardwire |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Number of batteries supported | 4 |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 984.3 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Certification | REACH, CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Weight & dimensions | |
|---|---|
| Width | 500 mm |
| Depth | 996 mm |
| Height | 1400 mm |
| Packaging data | |
|---|---|
| Package width | 683 mm |
| Package depth | 1114 mm |
| Package height | 1640 mm |
| Package weight | 185 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
