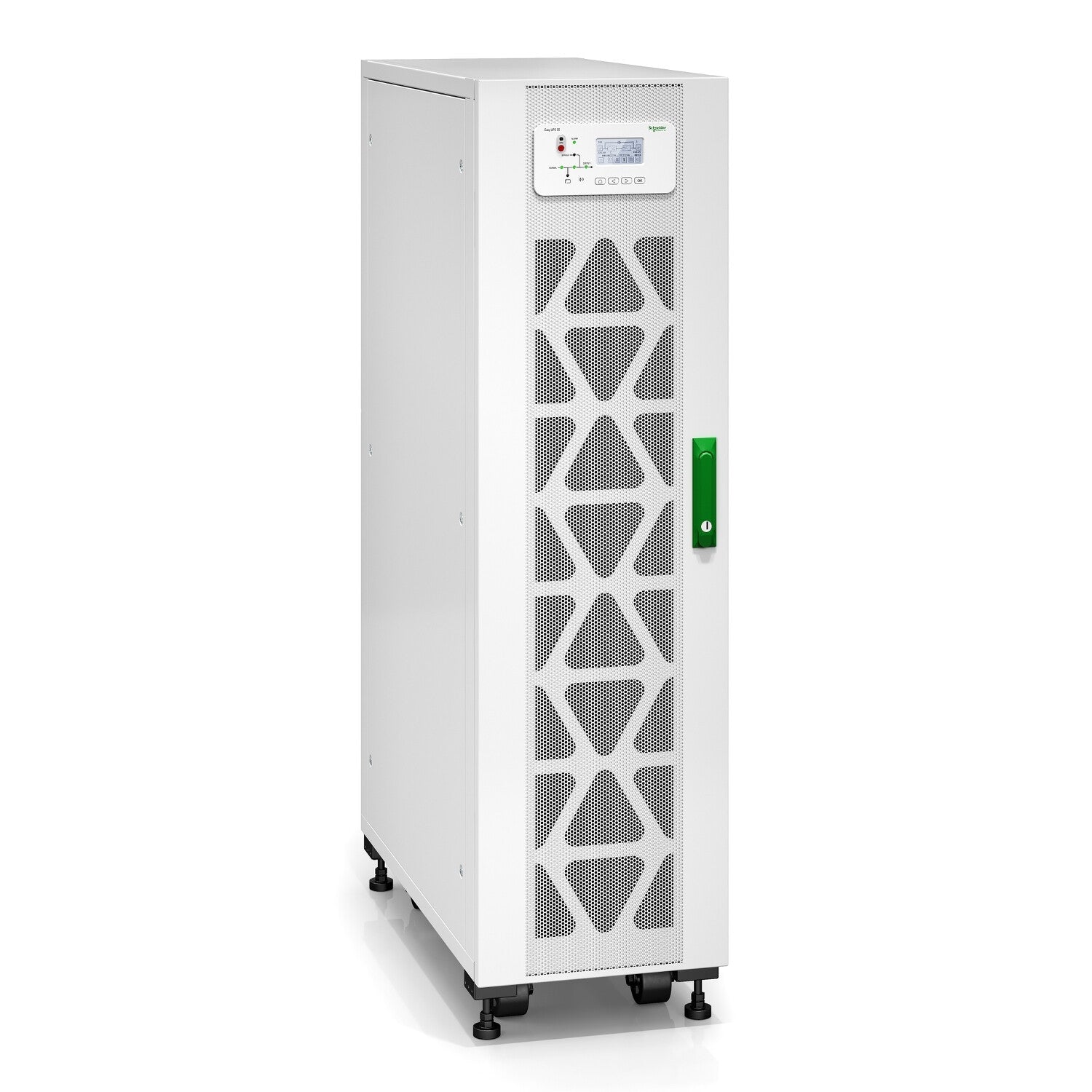

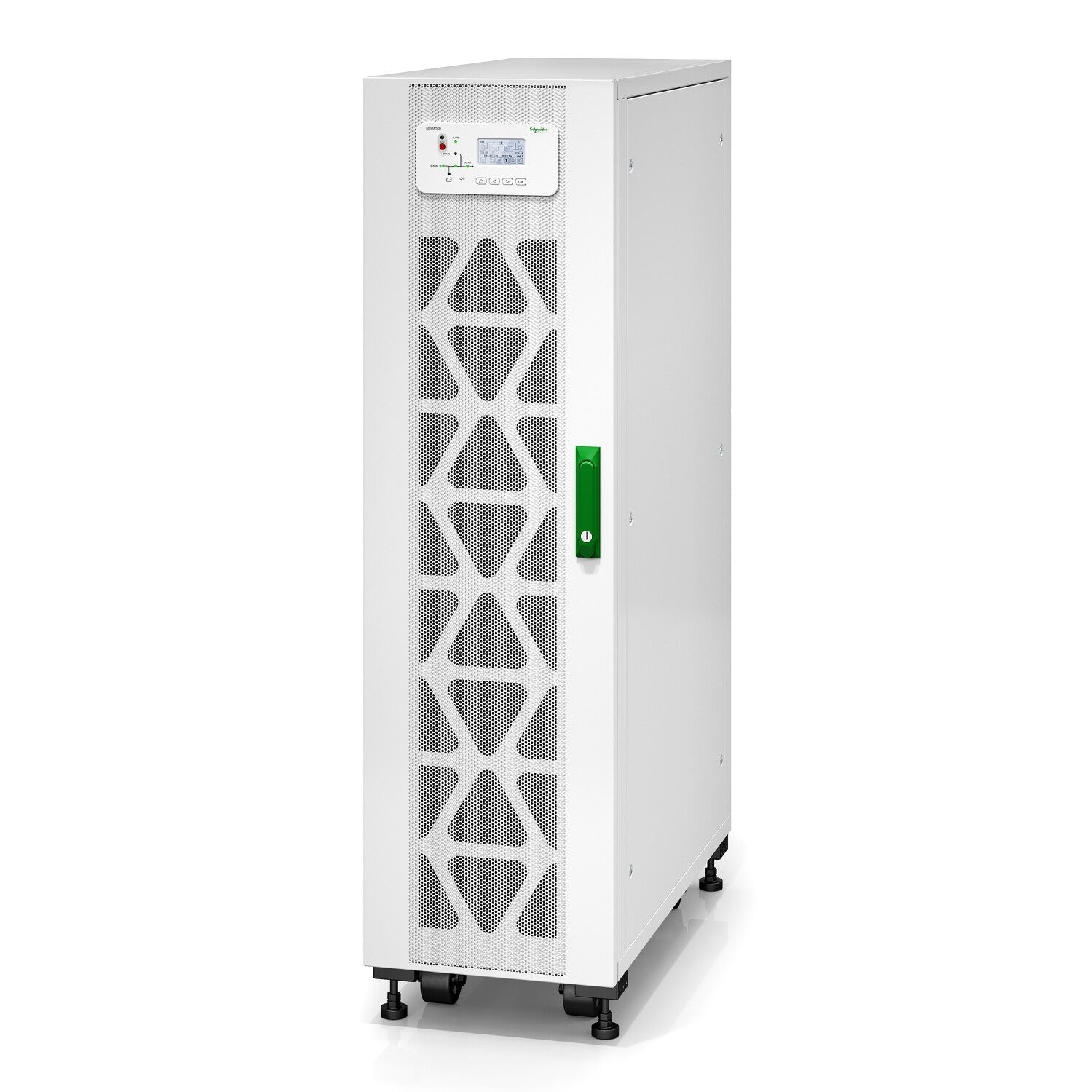

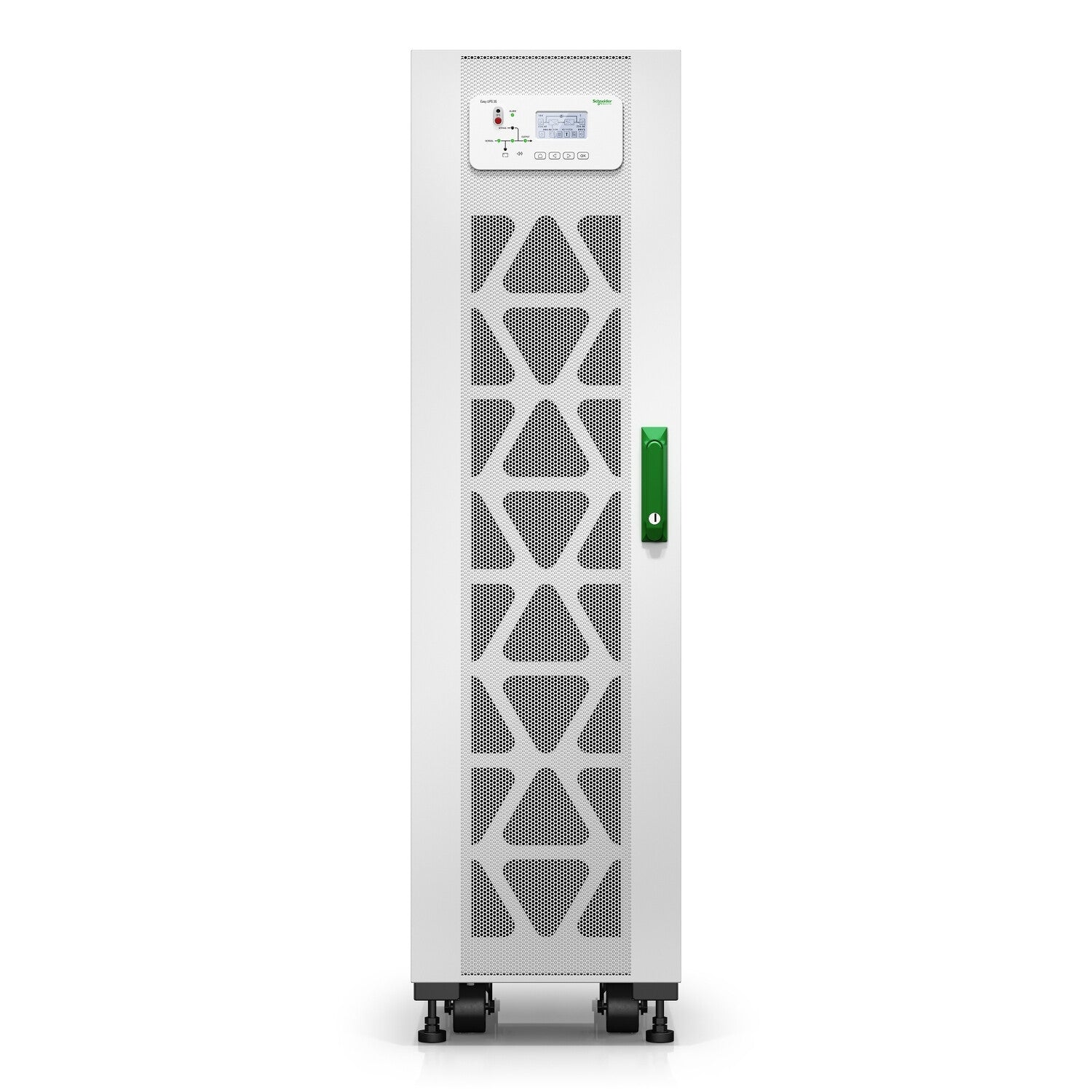

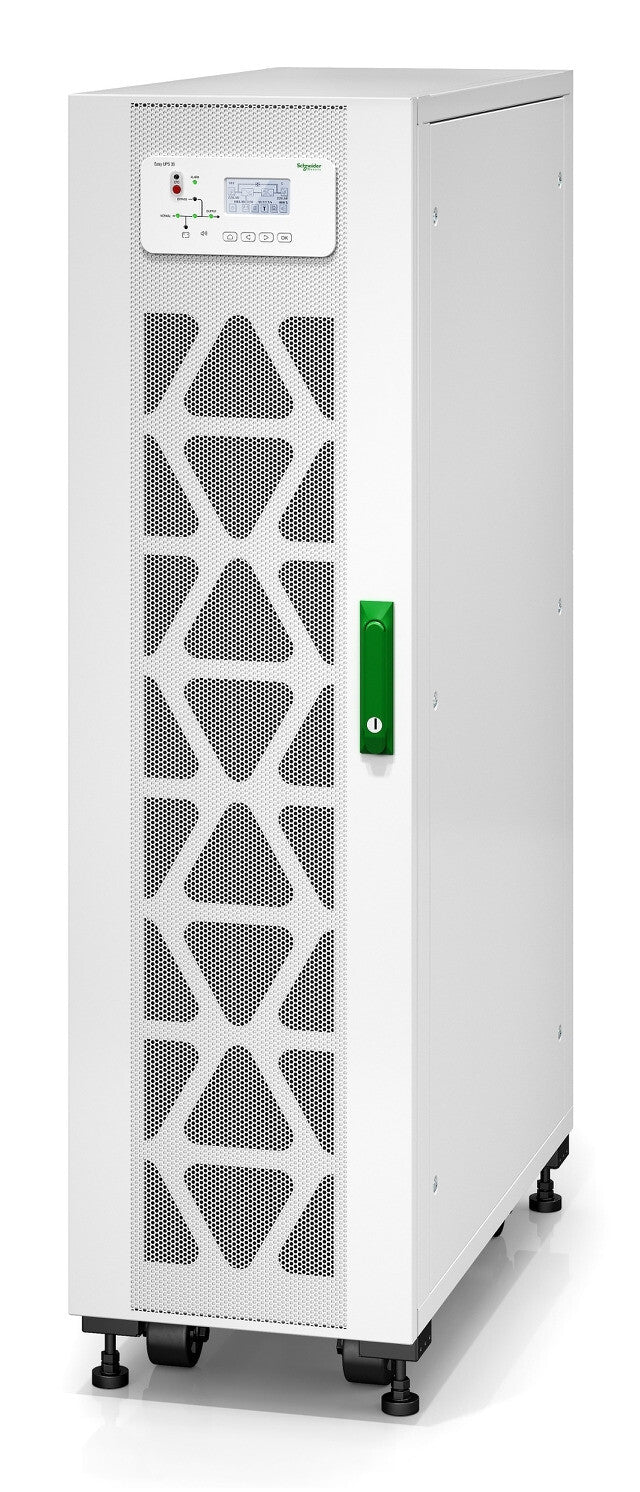

APC Easy UPS 3S 20 kVA 400 V 3:1 UPS for internal batteries
£6,030.99
Couldn't load pickup availability
- Easy UPS 3S is easy to install and start up
- Parallel up to 4 UPSs for capacity or redundancy
- Extended runtime options available
- EcoStruxure IT: Enables resilient, secure, and sustainable IT environments
This high-efficiency 3-phase UPS E3SUPS20K3IB features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Maximum current | 37 A |
| Power factor | 0.99 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 5.5% |
| Ports & interfaces | |
|---|---|
| AC outlet types | Hardwire |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Design | |
|---|---|
| Form factor | Rackmount |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Weight & dimensions | |
|---|---|
| Width | 380 mm |
| Depth | 907 mm |
| Height | 1400 mm |
| Weight | 150 kg |
| Packaging data | |
|---|---|
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Package weight | 158 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
