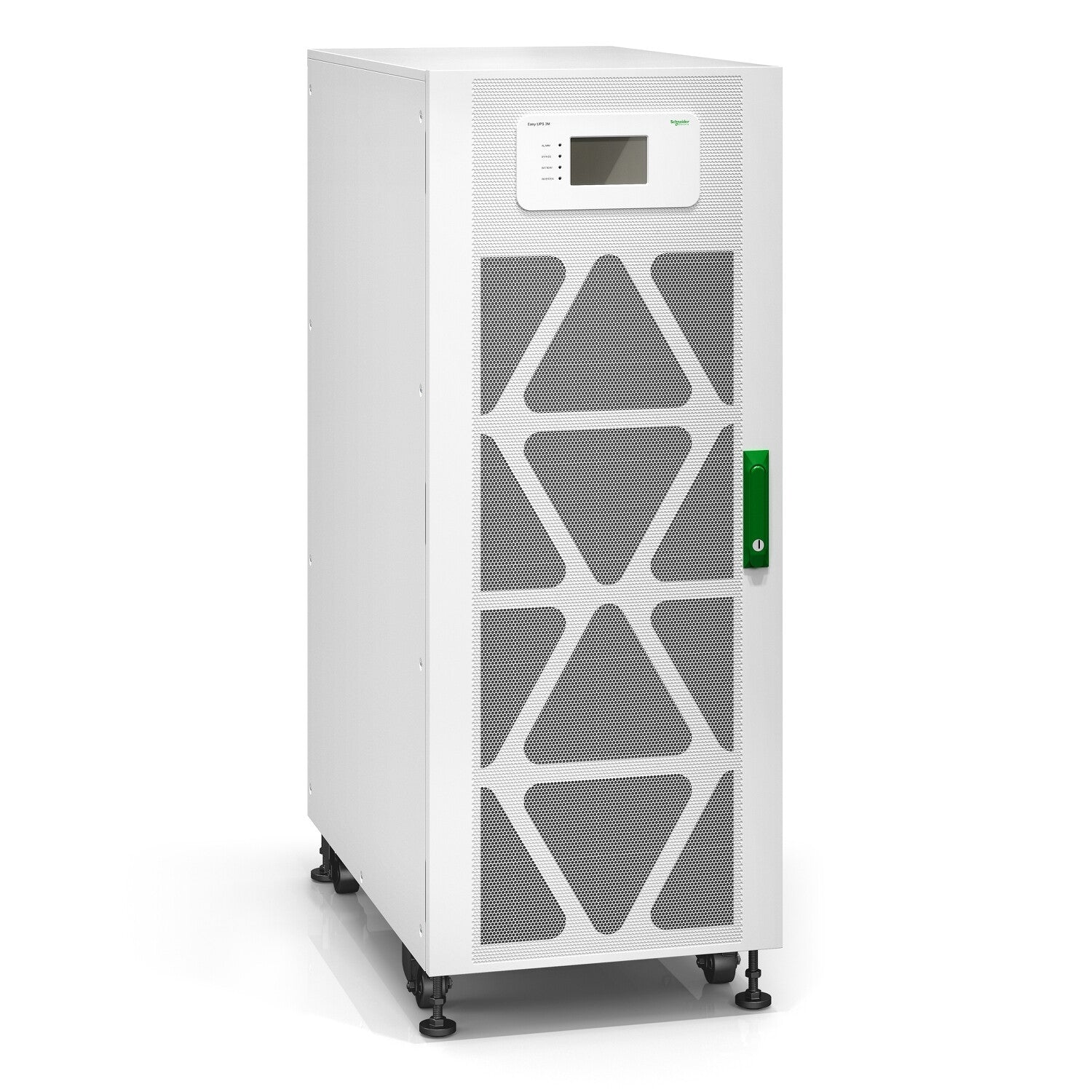

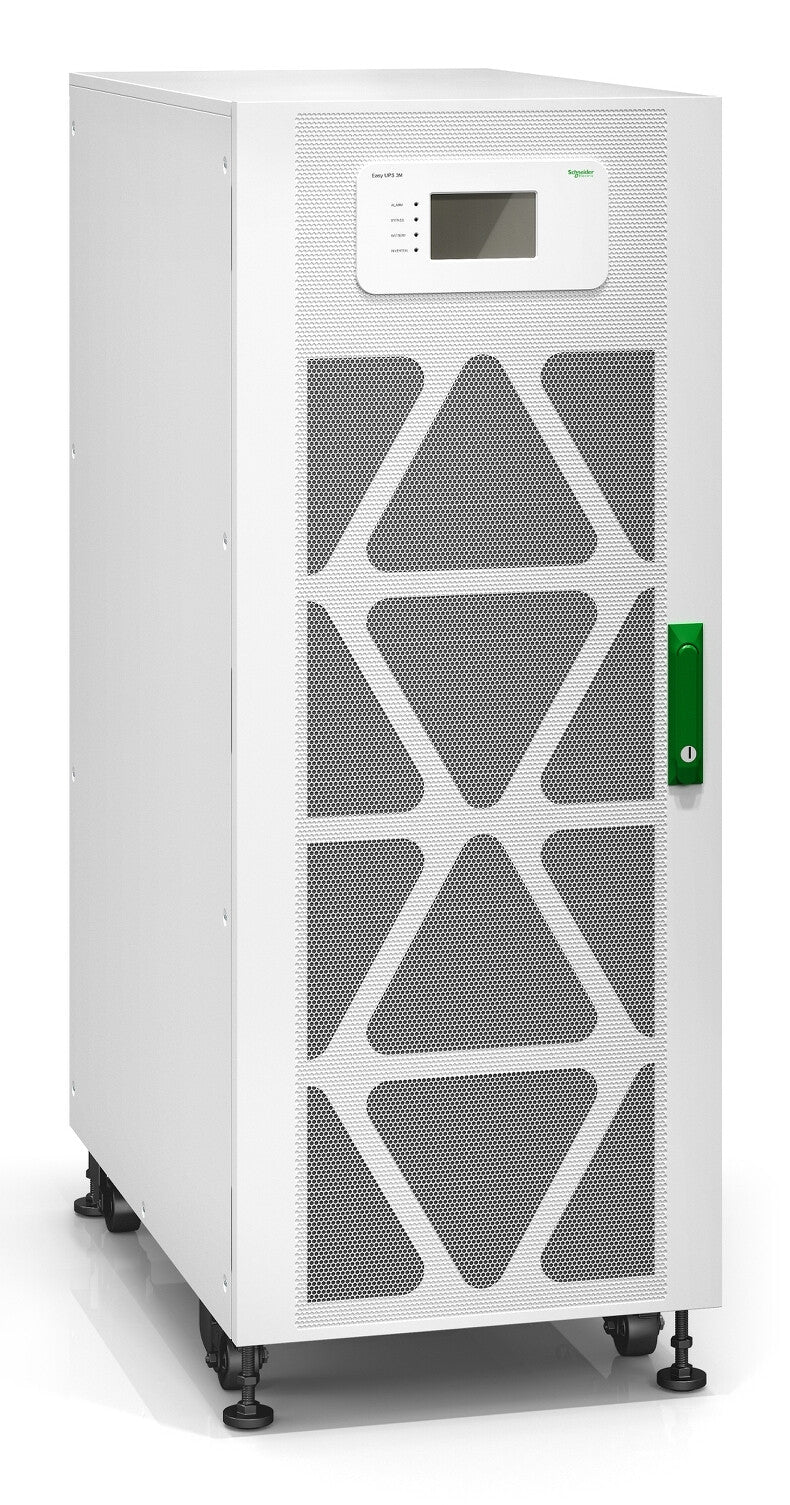

APC Easy UPS 3M 160kVA 400V 3:3 UPS for external batteries, Start-up 5x8
£19,123.99
Couldn't load pickup availability
- Parallel up to 6 Easy UPS 3M UPSs for capacity or redundancy
- Battery flexibility, including compatibility with Galaxy Lithium-ion battery cabinets
- IP20 rated (IP30 with optional kit)
- EcoStruxure IT: Enables resilient, secure, and sustainable IT environments
This Easy UPS 3M E3MUPS160KHS is easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 160 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5x8 start-up service.
| Features | |
|---|---|
| Audible alarm(s) | Yes |
| Noise level | 72 dB |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| ECO mode | Yes |
| Crest factor | 3:1 |
| Power factor | 0.99 |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Maximum current | 262 A |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 415 V |
| Output operation voltage (min) | 380 V |
| Input frequency | 40/70 Hz |
| Input operation voltage (max) | 477 V |
| Input operation voltage (min) | 342 V |
| Waveform | Sine |
| Output power | 160000 W |
| Output power capacity | 160 kVA |
| UPS topology | Double-conversion (Online) |
| Design | |
|---|---|
| International Protection (IP) code | IP20 |
| LED indicators | Yes |
| Display type | LCD |
| Control type | Touch |
| Product colour | White |
| Form factor | Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 1476.3 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4 |
| Weight & dimensions | |
|---|---|
| Weight | 227 kg |
| Height | 1300 mm |
| Depth | 850 mm |
| Width | 500 mm |
