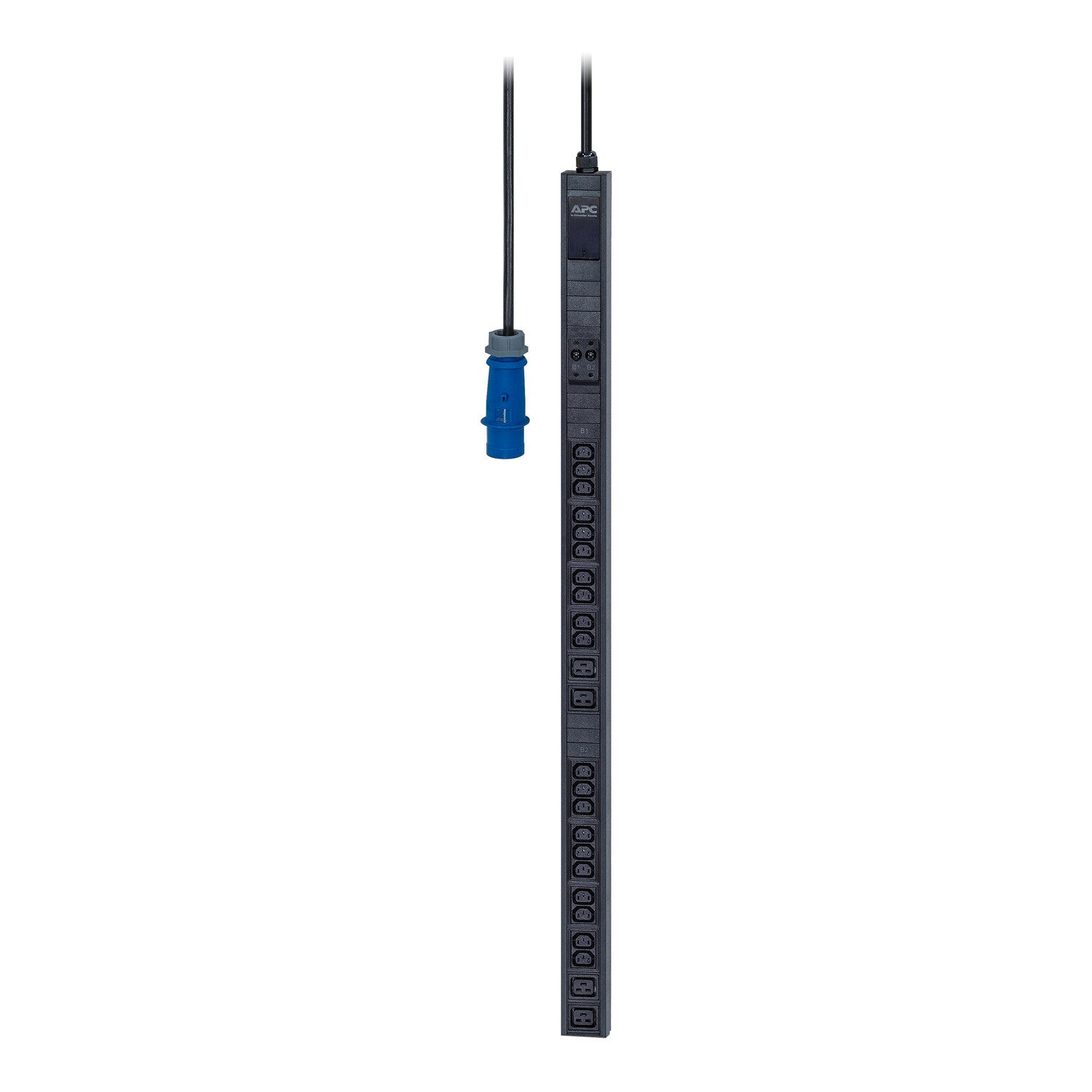

APC Easy Rack PDU, Basic, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £106.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Reliable and affordable Rack Power Distribution
- Single input power source and multiple output receptacles
- Zero U Rack Mounting Abilities
- Toolless Rack Mounting Capabilities
- Wide range of input and output connections
"APC Easy Basic Rack PDU EPDU1132B is Easy-to-install and easy-to-use PDU, making rack power distribution easy." "This offers more than a power strip for server rack and network rack solutions." "This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing." "This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current)." "EPDU1132B has IEC 309 32A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets." "This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty." "Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack." "The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure." "Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets." "Saves time and money during installation by using one branch whip and standard connections." "Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip."
Specifications
Design
| PDU types | Basic |
|---|---|
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Aluminium |
| Product colour | Black |
| On/off switch | No |
Ports & interfaces
| AC outlets quantity | 24 AC outlet(s) |
|---|---|
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | IEC 60309 32 A 2P + E |
Show all 37 specificationsShow fewer specifications
Features
| Cable length | 2.99 m |
|---|
Power
| Nominal input voltage | 200; 208; 230 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 7360 VA |
| Maximum input current per phase | 32 A |
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | CE; TÜV |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 9000 m |
Weight & dimensions
| Width | 62 mm |
|---|---|
| Depth | 44.4 mm |
| Height | 1175 mm |
| Weight | 3.58 kg |
Packaging content
| Manual | Yes |
|---|
Technical details
| Preferred mounting position | no preference |
|---|---|
| Packaging without single use plastic | No |
| Take-back system | No |
| Sustainable packaging | No |
