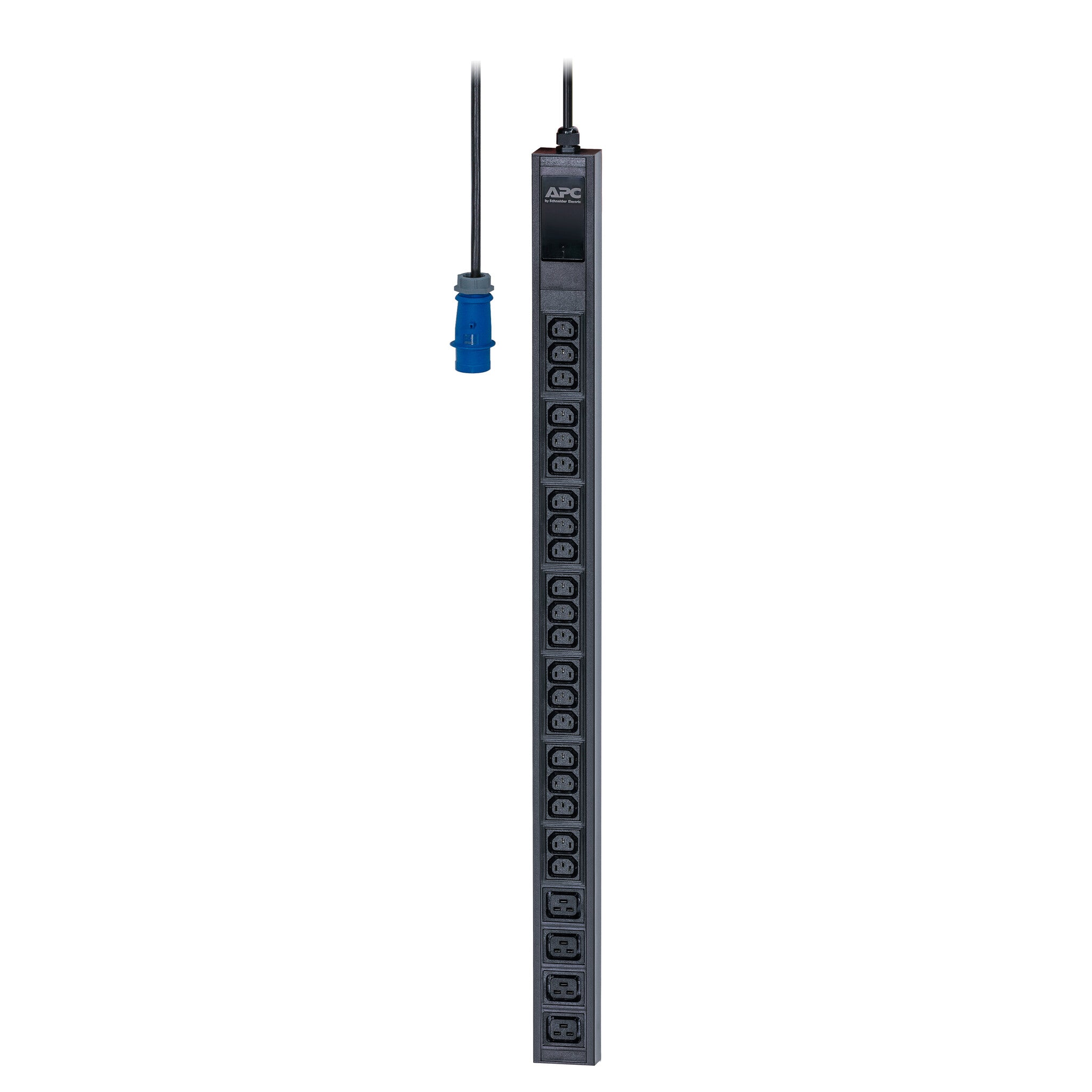

APC Easy Rack PDU, Basic, 0U, 1 Phase, 3.7kW, 230V, 16A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £89.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Single-phase Basic 0U Black
- 24 AC outlet(s) C13 coupler, C19 coupler
- 3680 W
APC Easy Basic Rack PDU EPDU1116B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1116B has IEC 309 16A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.
Specifications
Design
| On/off switch | No |
|---|---|
| Product colour | Black |
| Housing material | Aluminium |
| Mounting | Vertical |
| Rack capacity | 0U |
| Type | Single-phase |
| PDU types | Basic |
Ports & interfaces
| AC outlet types | C13 coupler, C19 coupler |
|---|---|
| Power plug | IEC 60309 |
| AC outlets quantity | 24 AC outlet(s) |
Show all 29 specificationsShow fewer specifications
Features
| Cable length | 3 m |
|---|
Power
| Maximum power | 3680 W |
|---|---|
| Maximum input current per phase | 16 A |
| Load capacity | 3680 VA |
| Nominal output voltage | 230 V |
| Maximum current | 16 A |
| AC input frequency | 50 - 60 Hz |
| Nominal input voltage | 200/208/230 V |
Operational conditions
| Non-operating altitude | 0 - 9000 m |
|---|---|
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions
| Weight | 2.2 kg |
|---|---|
| Height | 902 mm |
| Depth | 44 mm |
| Width | 62 mm |
Packaging content
| Manual | Yes |
|---|
