APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 30000 W
£8,695.99
Couldn't load pickup availability
- Double-conversion (Online)
- 30 kVA 30000 W
- Waveform: Pure sine
- Sealed Lead Acid (VRLA) 240 V
- Tower White

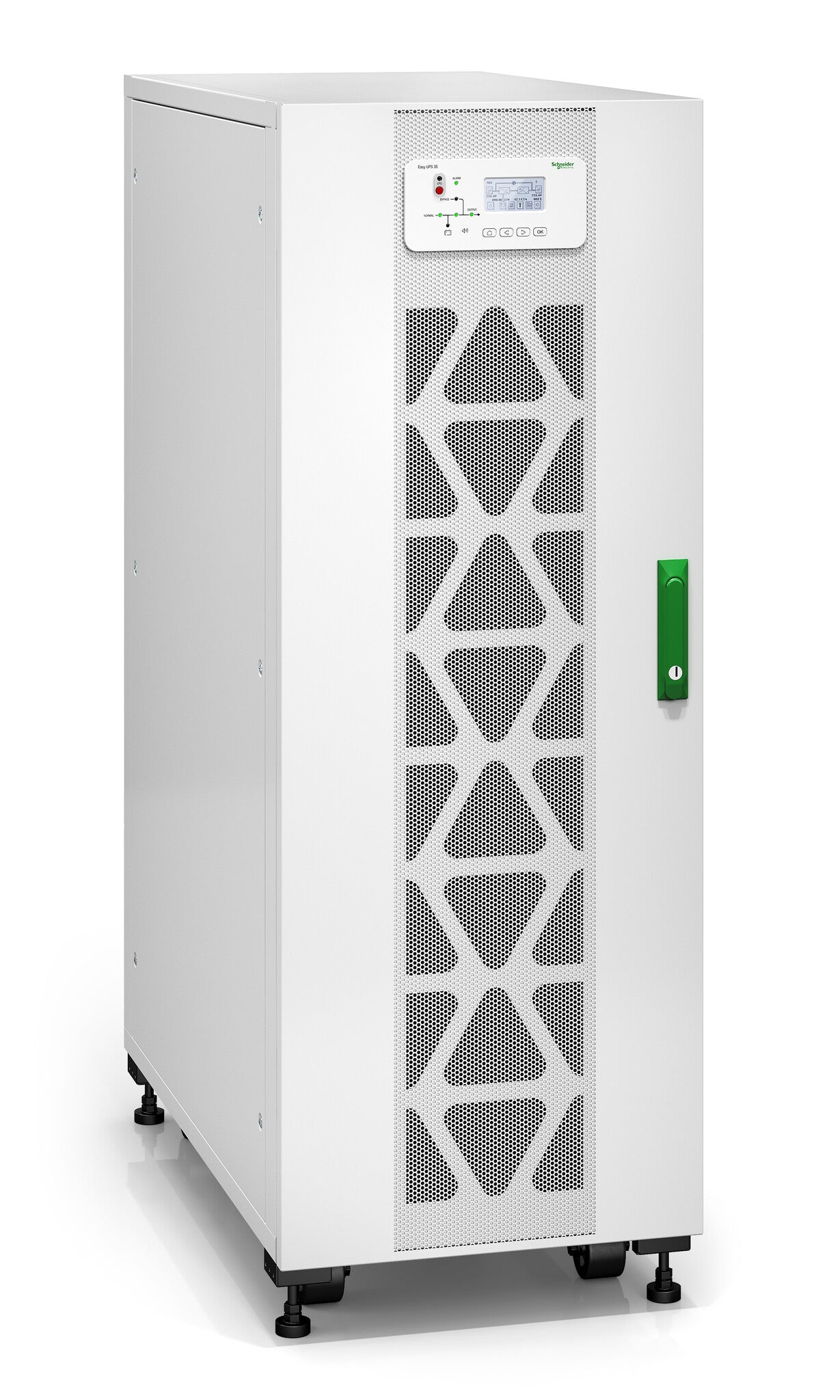

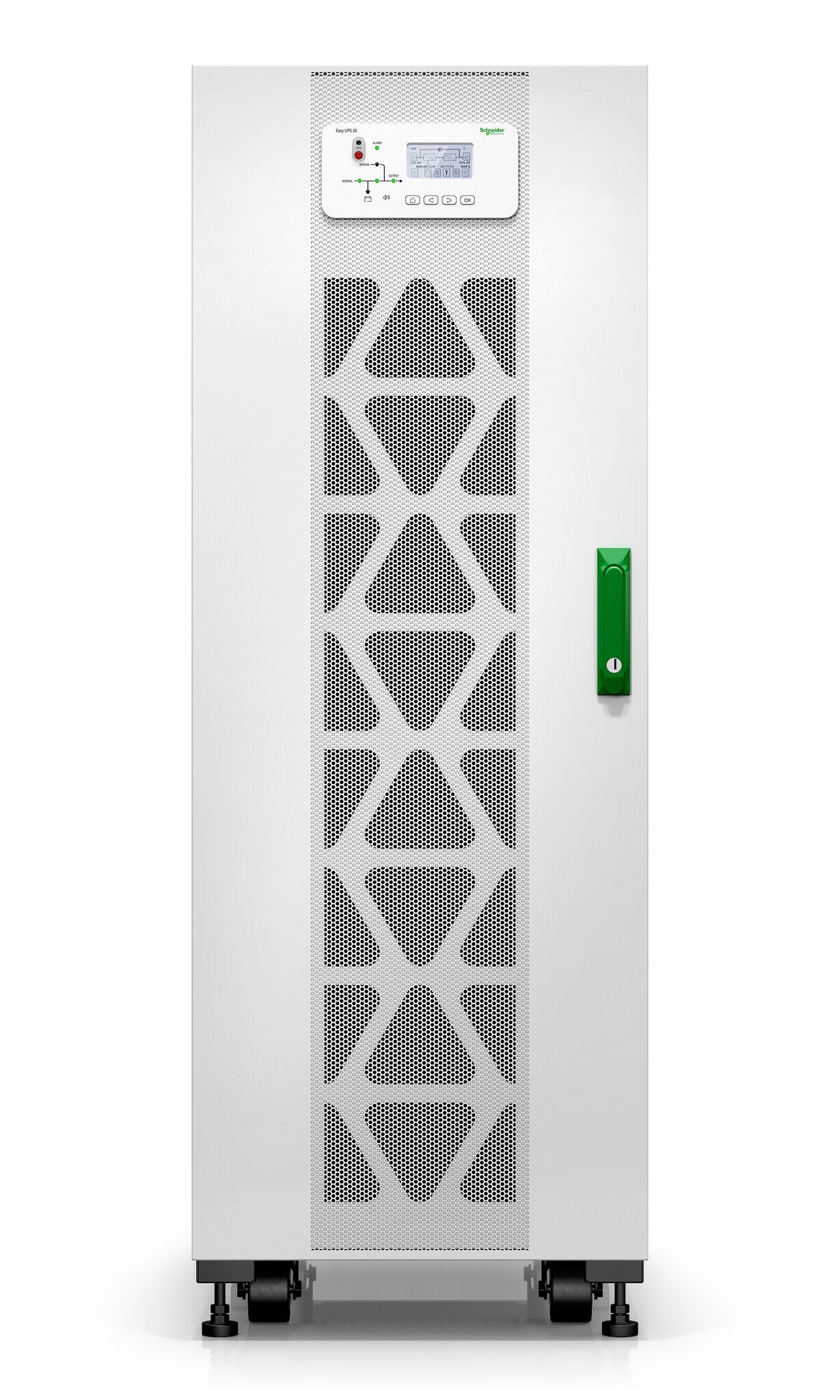

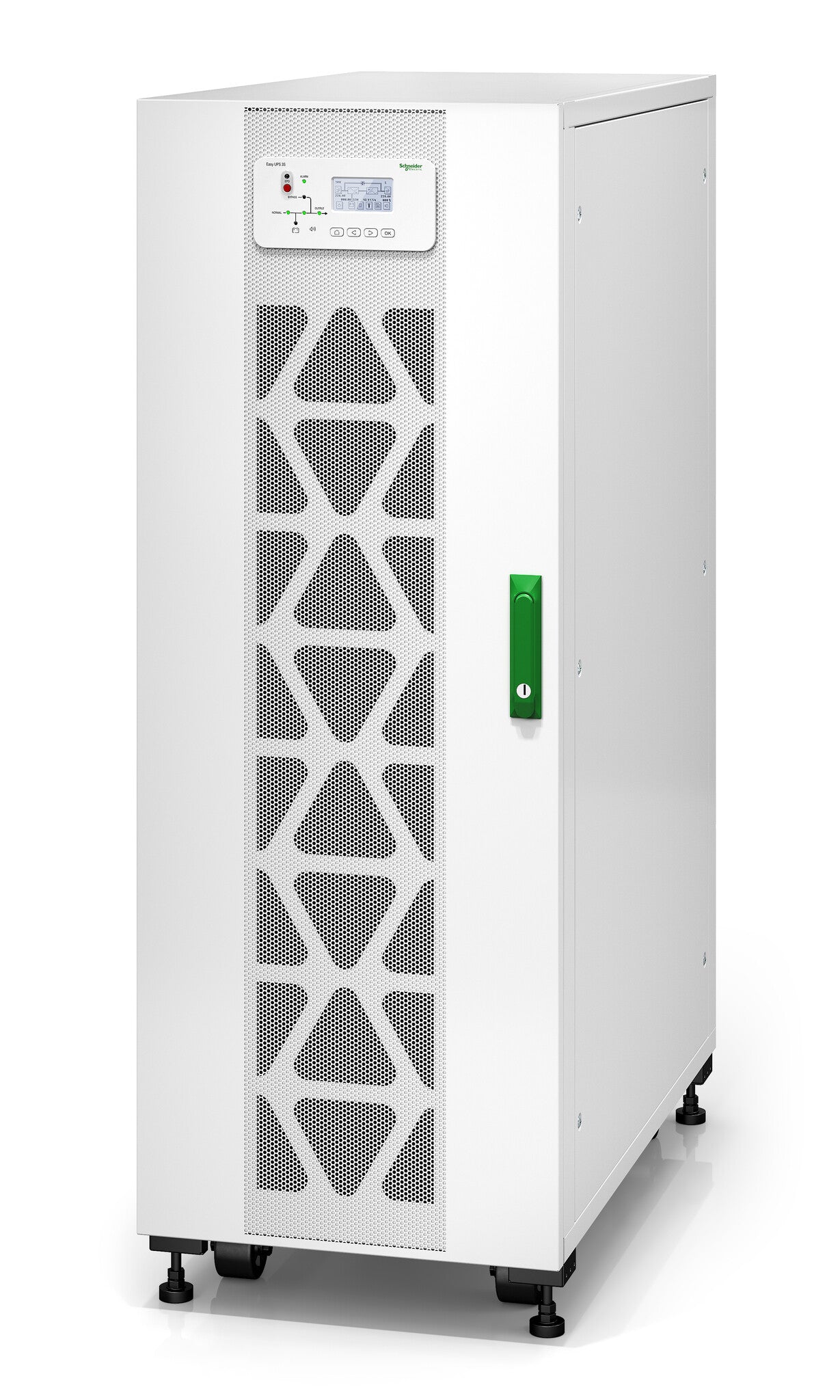

Easy UPS 3S 30 kVA 400 V 3:3 UPS for internal batteries

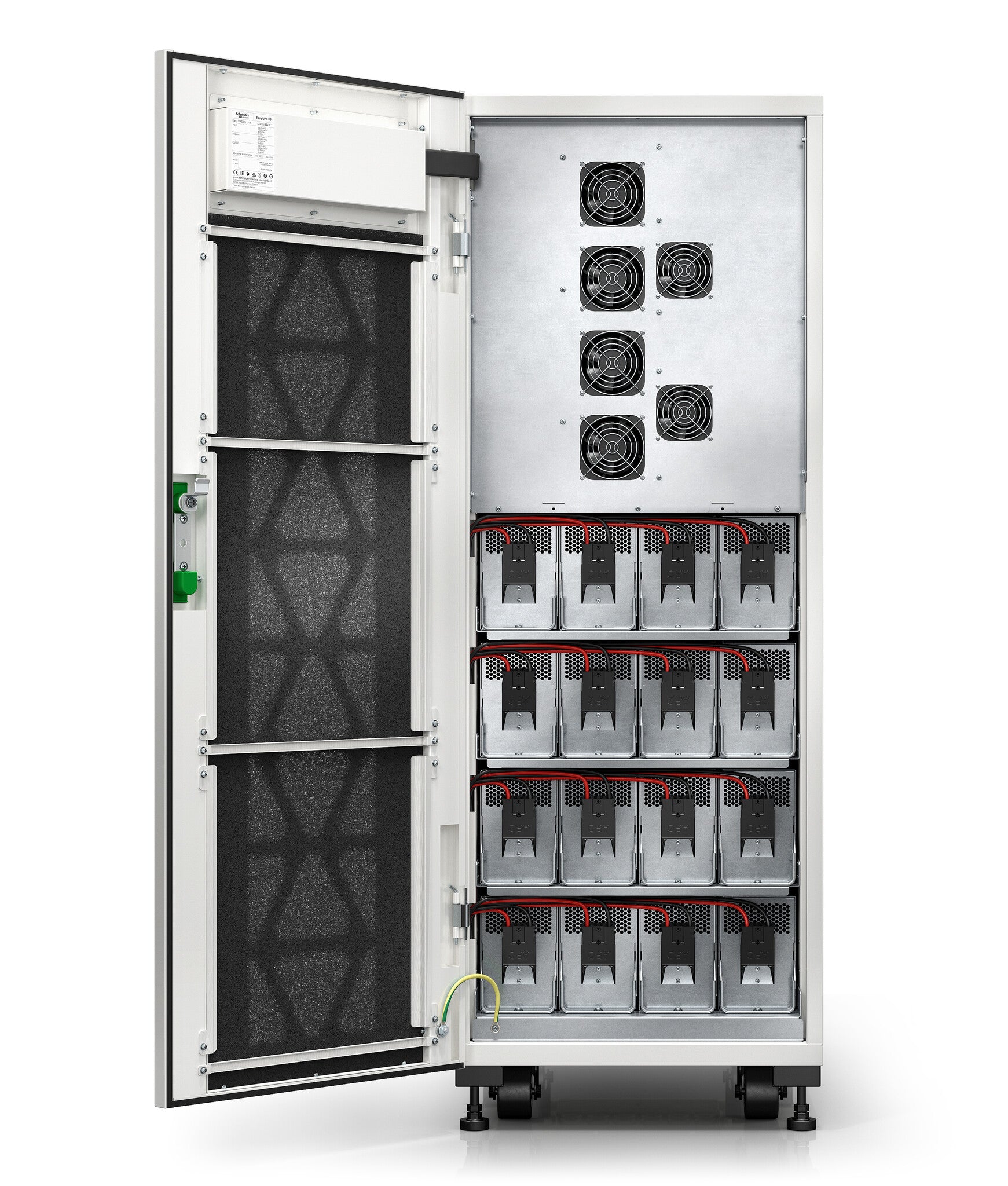

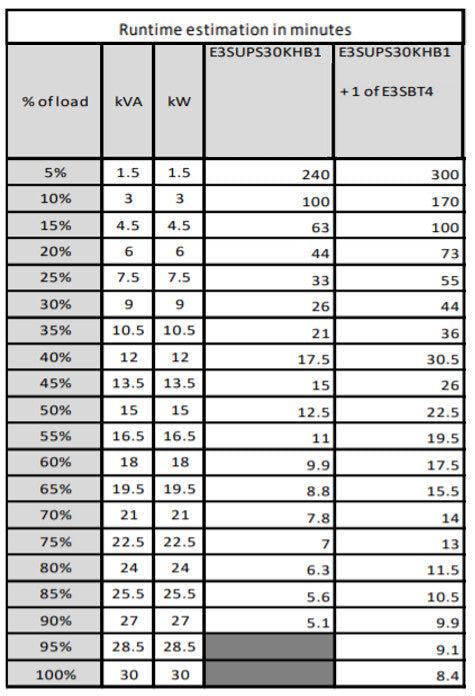

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 55 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 63 dB |
| Ports & interfaces | |
|---|---|
| AC outlet types | Hardwire |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Number of batteries supported | 4 |
| Typical backup time at full load | 9 min |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
| Weight & dimensions | |
|---|---|
| Width | 500 mm |
| Depth | 969 mm |
| Height | 1400 mm |
| Weight | 584 kg |
| Packaging data | |
|---|---|
| Management card included | No |
| Package width | 683 mm |
| Package depth | 1114 mm |
| Package height | 1640 mm |
| Package weight | 638 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Other features | |
|---|---|
| Output voltage | 400 V |
