APC · MPN: AP8865
£1,305.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £435.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Metered, Monitored 0U Black
  • LCD
  • 44 AC outlet(s) NEMA 5-20R, C13 coupler, C19 coupler

Description

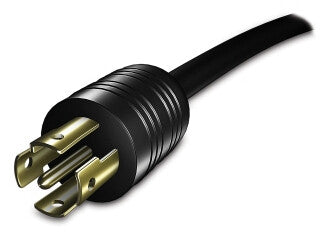

The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8865 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a NEMA L21-30P input plug with 1 83m (6ft) cord, (2) NEMA 5-20R, (36) IEC 60320 C13 and (6) IEC 60320 C19 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty

Specifications

Design

PDU typesMetered, Monitored
Rack capacity0U
MountingVertical
Product colourBlack
DisplayLCD

Ports & interfaces

AC outlets quantity44 AC outlet(s)
Power plugNEMA L21-30P
AC outlet typesNEMA 5-20R, C13 coupler, C19 coupler
Output connections36x IEC 320 C13
6x IEC 320 C19
2x NEMA 5-20R
Show all 30 specificationsShow fewer specifications

Features

Cable length1.82 m
Security algorithmsSNMP

Management features

MonitoringPower, Voltage, Energy

Power

Nominal input voltage208 V
AC input frequency50 - 60 Hz
Maximum current30 A
Nominal output voltage208 V
Load capacity8600 VA
Maximum input current per phase30 A
Maximum total current draw per phase30 A

Certificates

CertificationCSA C22.2 No. 60950,UL 60950-1

Operational conditions

Operating temperature (T-T)5 - 60 °C
Storage temperature (T-T)-25 - 65 °C
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)5 - 95%
Non-operating altitude0 - 15240 m

Weight & dimensions

Width56 mm
Depth46 mm
Height1791 mm
Weight7.56 kg

Packaging content

ManualYes
