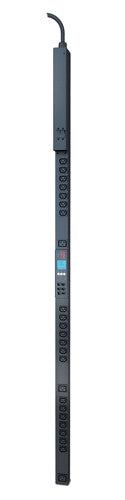

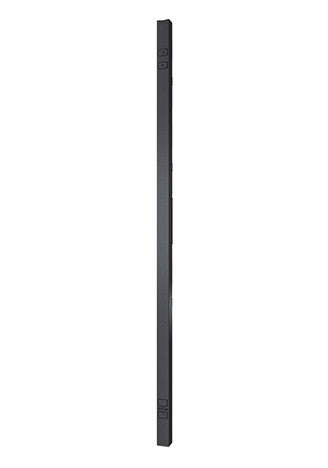

APC AP8453 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £473.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Single-phase Metered, Metered-by-outlet 0U Black
- 24 AC outlet(s) C13 coupler, C19 coupler
- 7680 W
APC Metered-by-Outlet Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh) at the outlet level. This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to monitor and optimize energy use, and plan for capacity on a granular level for things like customer power usage. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC 309 2P + E plug with a 3m (10 ft) cord while power comes out at 230 volts through (21) C13 and (3) C19 locking outlets. Daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Specifications
Design
| Product colour | Black |
|---|---|
| Mounting | Vertical |
| Rack capacity | 0U |
| Type | Single-phase |
| PDU types | Metered, Metered-by-outlet |
Ports & interfaces
| AC outlet types | C13 coupler, C19 coupler |
|---|---|
| Power plug | IEC309 |
| AC outlets quantity | 24 AC outlet(s) |
Show all 28 specificationsShow fewer specifications
Features
| Cable length | 3.05 m |
|---|
Management features
| Monitoring | Current, Power, Voltage |
|---|
Power
| Maximum power | 7680 W |
|---|---|
| Maximum total current draw per phase | 32 A |
| Maximum input current per phase | 32 A |
| Load capacity | 7680 VA |
| Nominal output voltage | 230 V |
| Maximum current | 32 A |
| AC input frequency | 50 - 60 Hz |
Certificates
| Certification | EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Operating altitude | 0 - 3000 m |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | -5 - 45 °C |
Weight & dimensions
| Weight | 8.21 kg |
|---|---|
| Height | 1829 mm |
| Depth | 51 mm |
| Width | 56 mm |
