APC · MPN: AP7850B
£632.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £210.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Price drop alert

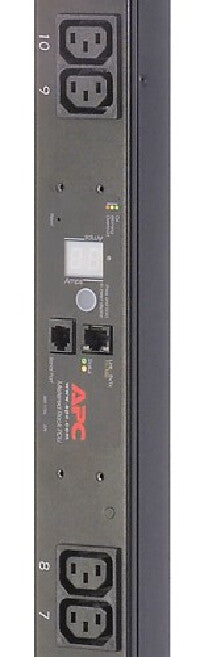

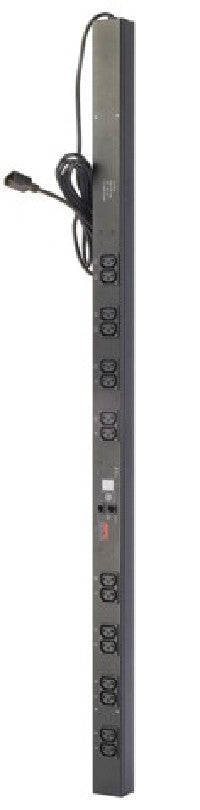

APC AP7850B power distribution unit (PDU) 16 AC outlet(s) 0U Black
Now £632.99

We'll only use your email for this alert unless you tick the box. Unsubscribe any time.

We'll watch the price for 6 months and email you if it drops. Unsubscribe in one click.

Overview

  • Metered 0U Black
  • 16 AC outlet(s) C13 coupler
  • 2300 W

Toolless Rack Mounting Capabilities

Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.

Vertical Mounting Capabilities

Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Integrates with StruxureWare Data Center Expert

An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Local Current Monitoring Display

The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Specifications

Design

Product colourBlack
MountingVertical
Rack capacity0U
PDU typesMetered

Ports & interfaces

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity16 AC outlet(s)
Show all 30 specificationsShow fewer specifications

Features

Cable length3.05 m
LED indicatorsYes

Management features

MonitoringCurrent, Power, Voltage

Power

Maximum power2300 W
Maximum total current draw per phase10 A
Maximum input current per phase10 A
Load capacity2300 VA
Nominal output voltage230 V
Maximum current10 A
AC input frequency47/63 Hz
Nominal input voltage200-250 V

Certificates

CertificationCE, GOST, VDE
Compliance certificatesRoHS

Operational conditions

Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-25 - 65 °C
Operating temperature (T-T)-5 - 45 °C

Weight & dimensions

Weight3.07 kg
Height1245 mm
Depth44 mm
Width56 mm
